Overview
Meet the All-in-One Fast Charging Kit – the definitive power solution designed to supercharge your CyberBrick experience. We've bundled all you need for continuous, uninterrupted play into one simple kit. Say goodbye to your battery anxiety.
Recommended For:
- CyberBrick owners who want to eliminate playtime limits.
- Families and friends who enjoy multi-player RC battles.
- Hobbyists seeking a professional, efficient charging setup.
Product Features

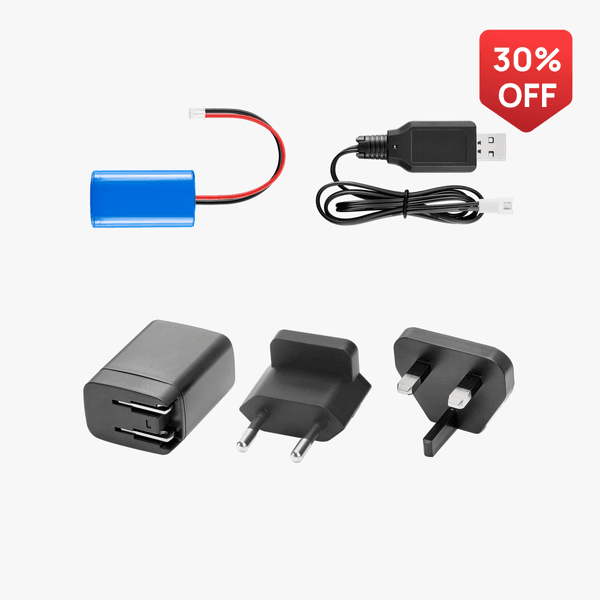

- The Ultimate All-In-One Kit: This complete bundle has it all: 14500 7.4V 800mAh Li-ion Battery*6, 7.4V Lithium Battery Charger*2, and 20W Dual-Port Fast Charger*2. No need to buy anything else – you get a full charging station in one box.
- Extend your CyberBrick Playtime: Play longer by change between multiple batteries, Easily power CyberBrick Ultimate Hardware Kit (2 cars, 2 remotes) simultaneously for epic head-to-head races. One battery drains, and another is ready to go, guaranteeing your fun never pauses.
- Simultaneous Charging: Each charging hub is equipped with one USB-A port and one USB-C port, and includes two interchangeable adapters compatible with EU (European standard), UK (British standard), and US (American standard) power outlets. The battery charger included in the set utilizes the USB-A port, while the spare USB-C port serves as an excellent option for powering your other devices.

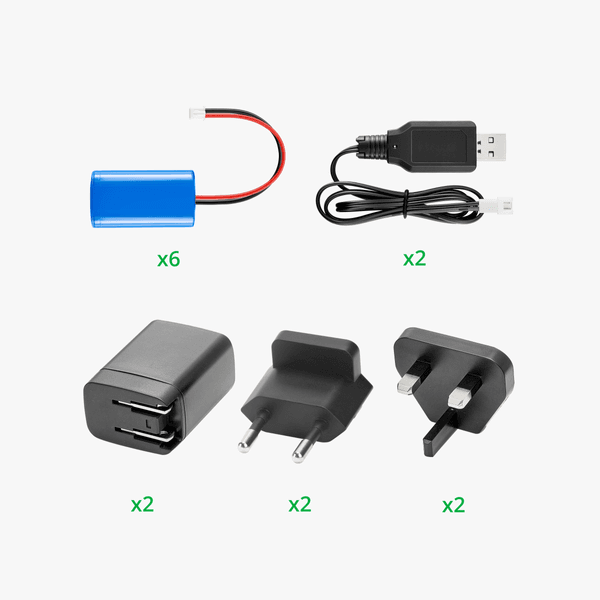

In The Box
| Item Number | Item Name | Qty |
| 1 | 20W Dual Port Fast Charger (1 PCS) - XB006 | 2 |

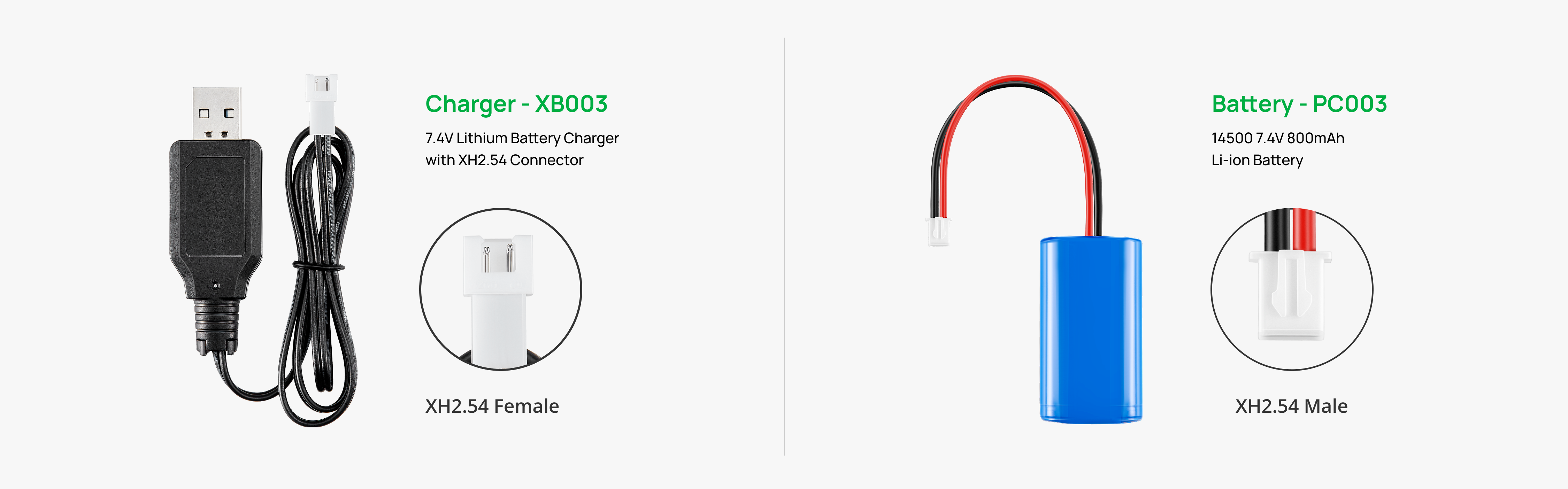

| 2 | 7.4V Lithium Battery Charger with XH2.54 Connector (1 PCS) - XB003 | 2 |
| 3 | 14500 7.4V 800mAh Li-ion Battery (1 PCS) - PC003 | 6 |
Product Specifications
|
Product ID
|
Rated Input
Voltage
|
Rated Input
Frequency
|
Rated
Output Power
|
USB-C Output
|
USB-A Output
|
|
B-XB006
|
100-240Vac
|
50/60Hz
|
15W/20W
|
5V 3A 9V 2.22A 12V 1.67A |
5V 3A 9V 2A 12V 1.5A |
|
Product ID
|
Input Connector Type
|
Output Connector Type | Length (cm) | Input | Output |
|
B-XB003
|
USB Type-A
|
XH2.54 Female | 50 | 5V/2A | 7.4V/0.5A |
|
Product ID
|
B-PC003
|
|
Nominal Voltage
|
7.4V
|
|
Nominal Capacity
|
800mAh
|
|
Operating temperature
|
Charging：0℃~45℃
Discharging：-20℃~60℃
|
|
Charging Current
|
Standard Charging 160 mA
Max Charging 800 mA
|
|
Overcharge Voltage
|
8.4V±0.05V
|
|
Max continuous
discharge current
|
3A
|
|
Overdischarge
Protection Voltage
|
5.8V±0.08V
|
|
OverCurrent Protection
|
20A±3A
|
| Product Weight |
50g
|
Important Notices
- To ensure operational safety and stability, strictly adhere to the following warning. DO NOT tear battery outer packaging! Violation may cause electrolyte leakage, short circuit, or explosion hazards.
- The USB charger for this product only supports standard 5V 1-2A input. Please always use the original charger that meets the voltage/current requirements, or charge directly via a computer USB port. Do not use chargers with output higher than 5V or 2A (such as mobile fast chargers, 9V/12V adapters, etc.), as this may cause device damage, overheating, or even serious fire hazards. Do not cover the device while charging, and keep it away from high temperature, humidity, or flammable environments. Never charge the device unattended.
- The charger's maximum total output is 20W, shared between both ports.When only one device is connected, it can receive up to the full 20W.When two devices are connected, the total 20W output is split between them.Please ensure your devices do not require more power than the charger’s rated output to avoid slower charging or compatibility issues.
