Vortek Upgrade Kit for H2D/H2S to H2C | Multi-Material 3D Printer Upgrade

$899.00

Product Description

Upgrade your H2D or H2S with the Vortek system for faster, cleaner multi-material 3D printing. With intelligent hotend swapping, automatic filament changes, 8-second induction heating, and support for up to 24 materials, the Vortek Upgrade Kit helps reduce purge waste while improving print efficiency and reliability.

Upgrade to Smarter Multi-Material Printing

The Vortek Upgrade Kit transforms compatible H2D and H2S printers with an advanced multi-material system designed for cleaner swaps, less purge waste, and faster workflow. Instead of relying on a traditional single-nozzle color change process, Vortek uses an intelligent hotend swapping system that replaces the entire hotend during material transitions.

That means more efficient multi-material printing, less wasted filament, and a smoother experience for makers, engineers, schools, and advanced STEM programs.

Why the Vortek Upgrade Kit Stands Out

Multi-Material Printing with Minimal Purge Waste

Traditional single-nozzle multi-color printing often wastes material during purging between filament changes. The Vortek system solves this with a smart hotend swapping design, reducing waste while maintaining cleaner transitions between materials.

Fully Automatic Filament Change

Paired with the AMS (Automatic Material System), the Vortek system automates the filament change process so users do not need to manually load every filament into the toolhead. This improves workflow efficiency and makes complex prints easier to manage.

Intelligent Material-to-Hotend Matching

The system can store filament information in the hotend memory, helping ensure the correct filament is matched to each hotend. When printing with more than seven filament types, the system calculates the most efficient combination to reduce purge waste and improve overall print planning.

8-Second Induction Heating

Vortek uses industry-leading induction heating technology to bring the nozzle to printing temperature in as little as 8 seconds, significantly reducing preheating time during material swaps.

Contactless Design for Better Reliability

Instead of relying on contact-based metal pins that may oxidize or create unstable connections over time, Vortek uses a contactless high-frequency connection system for stable communication, precise temperature control, and smarter hotend synchronization.

More Colors, Fewer Limits

Unlike traditional toolchanger printers that restrict color count based on the number of toolheads, the H2C system supports up to 24 materials in a single print through parallel-connected AMS units. Its intelligent allocation algorithm helps optimize filament-to-hotend assignments for high-efficiency multi-color and multi-material output.

Who This Product

The Vortek Upgrade Kit is ideal for:

advanced makers running frequent multi-color prints
engineers testing multi-material applications
schools and STEM labs that want a more automated printing workflow
print environments focused on reducing filament waste and improving efficiency

Important Compatibility Notes

H2D and H2S users can upgrade to H2C by purchasing the appropriate Vortek Upgrade Kit
The process is technically demanding and time-intensive
Users who want the Vortek experience without a lengthy upgrade may prefer purchasing an H2C directly
H2D Pro to H2C is not recommended
H2C does not support professional connectivity features such as Ethernet and WPA2-Enterprise authenticated Wi-Fi

Product Specifications

Materials	Plastic, Metal	Packaging Size	550125425mm
Color	Gray, Black	Packaging Weight	1.2 kg

Installation

For the Vortek Upgrade Kit (H2D Compatibility Pack): Bambu Lab Wiki.
For the Vortek Upgrade Kit (H2S Compatibility Pack): the wiki for the Vortek Upgrade Kit (H2S Compatibility Pack) will be launched simultaneously when the kit goes on sale.

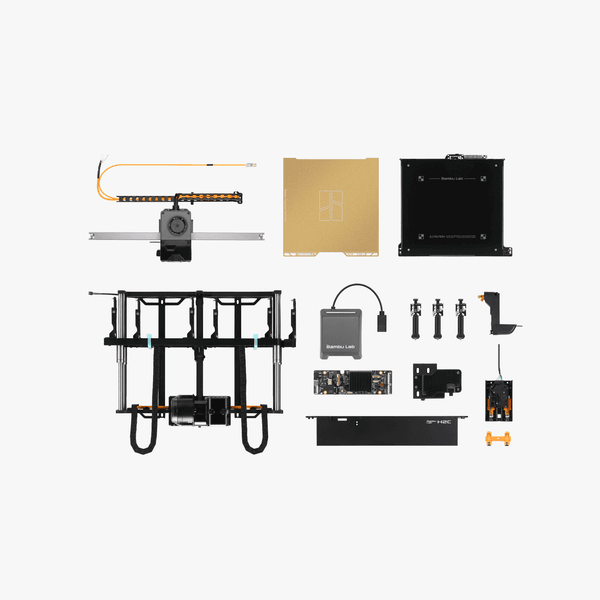

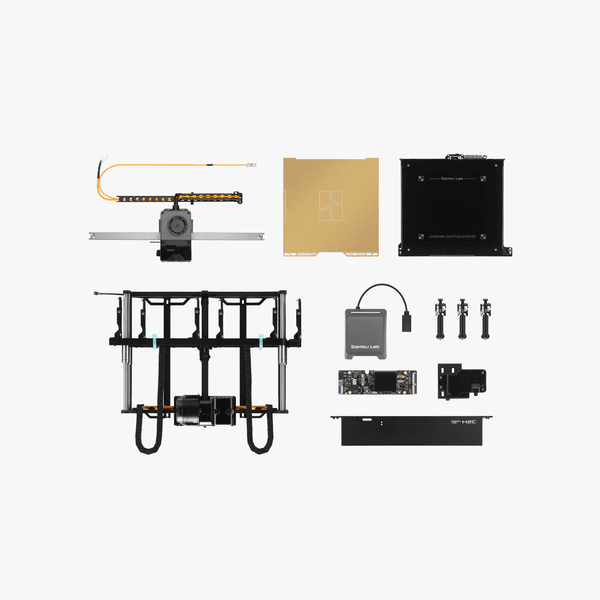

In the Box

Vortek Upgrade Kit (H2D Compatibility Pack)

Vortek Upgrade Kit (H2S Compatibility Pack)

1. 0.4mm Induction Hotend with Hardened Steel Nozzle * 4

2. 0.6mm Induction Hotend with Hardened Steel Nozzle * 1

3. 0.2mm Induction Hotend with Stainless Steel Nozzle * 1

4. AP Board * 1

5. Heatbed * 1

6. Induction Hotend Rack Assembly * 1

7. Toolhead with X-Axis Assembly * 1

8. 4-in-1 PTFE Adapter * 1

9. Nozzle Offset Calibration Sensor * 1

10. 4-in-1 PTFE Adapter Filament II Cleaning Pad * 5

11. Induction Hotend Latch Actuator * 1

12. Toolhead Cooling Fan * 1

13. Front Cover * 1

14. Induction Hotend Mount Crossbeam * 2

15. Induction Hotend Lever Release Assembly Mounting Bracket * 1

16. Textured PEI Plate * 1

17. 185mm PTFE Tube * 1

18. M3×6 Screws * 10

19. M3×5 Screws * 10

20. BT2×12 Screw * 1

21. M2.5×4 Screws * 3

22. M2×5 Screws * 3

23. Soft Screw * 4

24. Cable Tie (blue; black) * 4

25. Vinyl Tape * 1

1. AP Board * 1

2. Heatbed * 1

3. Induction Hotend Rack Assembly * 1

4. Toolhead with X-Axis Assembly * 1

5. 0.4mm Induction Hotend with Hardened Steel Nozzle * 4

6. 0.6mm Induction Hotend with Hardened Steel Nozzle * 1

7. 0.2mm Induction Hotend with Stainless Steel Nozzle * 1

8. Adjustment End Stop (left; right) * 2

9. Nozzle Offset Calibration Sensor * 1

10. PTFE Tube Coupler * 1

11. 4-in-1 PTFE Adapter * 1

12. 4-in-1 PTFE Adapter Filament II Cleaning Pad * 5

13. XY-Axis Belt * 2

14. Belt Anchor * 2

15. Belt Clamp * 4

16. Purge Wiper * 1

17. Induction Hotend Latch Actuator * 1

18. Buffer * 1

19. Filament Cutter Stopper (left; right) * 2

20. Front Cover * 1

21. Induction Hotend Mount Crossbeam * 2

22. Induction Hotend Lever Release Assembly Mounting Bracket * 1

23. Textured PEI Plate * 1

24. PTFE Tube (185mm; 610mm; 590mm) * 3

25. MC-TH Cable * 1

26. Soft Screw * 4

27. Cable Tie (blue; black) * 4

28. Vinyl Tape * 1

29. BT3×5 Screws * 1

30. M3×6 Screws * 10

31. BT3×8 Screws * 10

32. M3×5 Screws * 10

33. BT2×12 Screws * 1

34. M2.5×4 Screws * 3

35. BT2.6×8 Screws * 5

36. M2.5×5 Screws * 5

37. M3×8 Screws * 8

38. M2×5 Screws * 6

FAQ

1. Can H2S and H2D be upgraded to H2C?

A: H2D and H2S users can upgrade their devices to H2C by purchasing a Vortek upgrade kit. However, due to the high level of technical skill required for the upgrade process and its lengthy duration, it is recommended that users who want to experience the Vortek system directly purchase an H2C. Purchasing an H2S or H2D first and then upgrading will incur additional costs.

The H2D Vortek upgrade kit is expected to arrive as early as January 2026. Since H2D does not require updating its native firmware before the upgrade, the upgrade can be performed immediately upon kit arrival.

While the H2S Vortek upgrade kit is expected to arrive around the same time, the upgrade requires a prior update to the native H2S firmware. This firmware is expected to be released as early as Q1 2026, therefore the Vortek upgrade for H2S users is also expected to be available as early as Q1 2026.

The following are detailed tutorials on upgrading from H2D/H2S to H2C:

- H2D: H2D to H2C Upgrade Guide

- H2S: H2S to H2C Upgrade Guide (release in Q1 2026)

2. After purchasing the Vortek Upgrade Kit, how many packages will I receive?

A: The upgrade kit is shipped in 5 separate packages. We recommend checking immediately upon receipt to ensure all components are present and nothing is missing. For a detailed list of included parts, please refer to the specific Wiki page for your upgrade kit.

3. What is the estimated installation time?

A: The replacement and installation process is estimated to take approximately 4-5 hours. Please ensure you have set aside sufficient time and reviewed the official installation guide before beginning.

4. Can I use the Vortek Upgrade Kit to upgrade my H2D Pro to H2C?

A: No, upgrading the H2D Pro to H2C is not recommended. Please note that the H2C does not support professional connectivity features, including Ethernet connections and WPA2-Enterprise authenticated Wi-Fi.

5. For more information about FAQ, refer to the official wiki.
