Overview

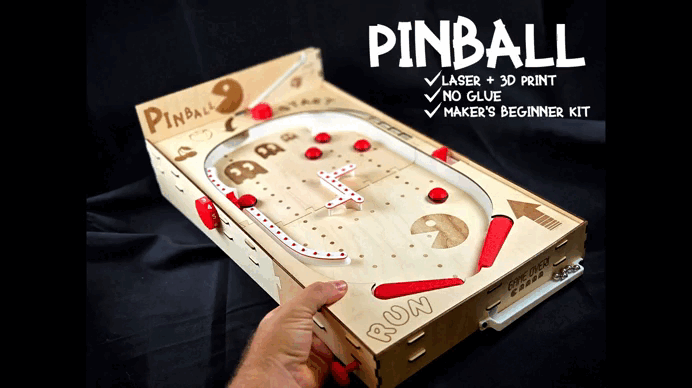

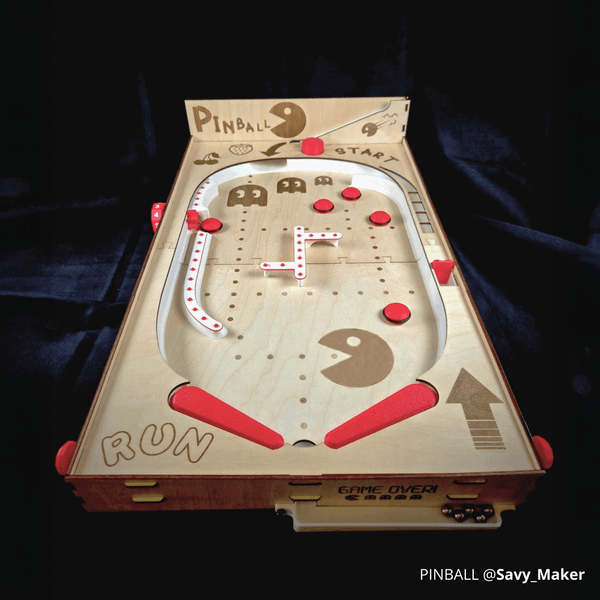

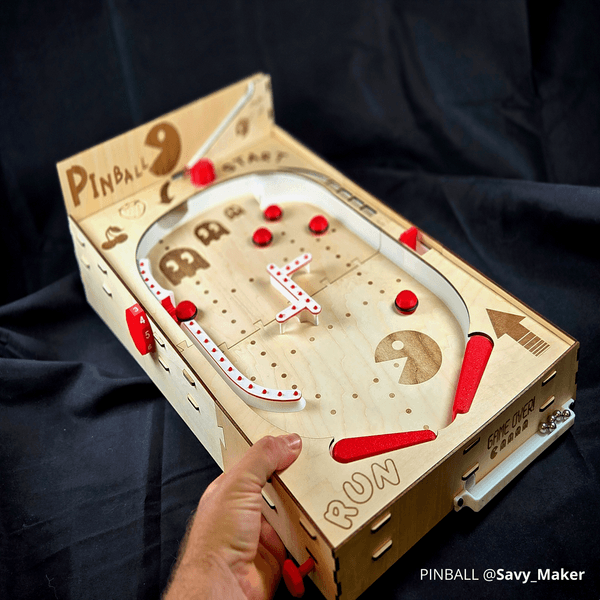

This pinball machine is a unique hybrid project that combines two different technologies: laser cutting/engraving and 3D printing, bringing to life a retro-style game inspired by the world of Pac-Man. The base and playfield are made of 3mm basswood plywood, laser-cut for precise shapes and engraved details directly on the surface. The engravings include decorative writings such as PINBALL, RUN, and GAME OVER, as well as iconic shapes of Pac-Man and the ghosts, enriching the playfield with a nostalgic style. Just click here to get the assembly guide.
The result is a completely mechanical game, without electronics, that combines craftsmanship, retro design, and modern technologies, offering a gaming experience that is both simple and fascinating.
.gif)
Design Features

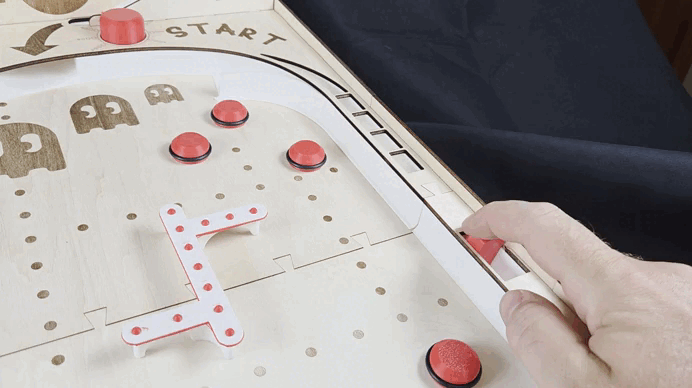

- The ball launching system is located on the right side and can be operated manually.
- The steel balls are stored in the front compartment engraved with GAME OVER.
- The laser engravings not only embellish the pinball but also serve as gameplay guides, marking paths and targets.
- The combination of natural wood colors and red details creates a vivid and eye-catching contrast.
- This pinball can be played with multiple balls at the same time.
- In addition to the right-side launcher, it is possible to release multiple balls simultaneously from the top by holding down the red button.

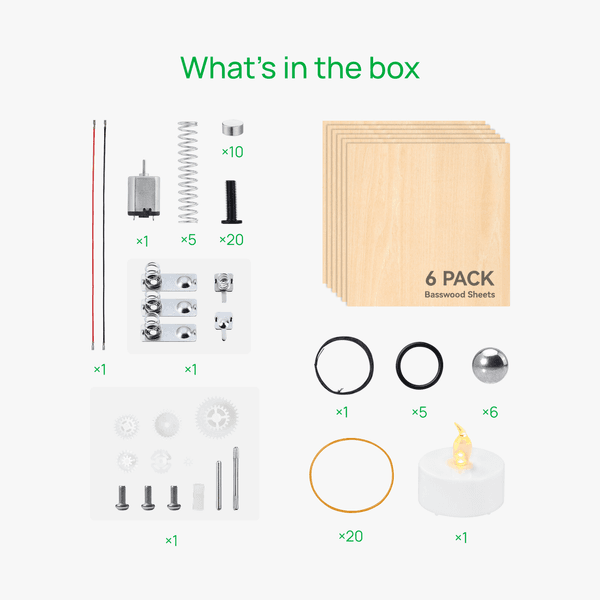

In the Box
| Product Name | Quantity（pcs） |
|
3mm Basswood Plywood
|
6 |
|
030 Micro DC Motor
|
1 |
|
AAA Battery Terminal Kit
|
1 |
|
Power Cable Kit with 2mm Spade Terminals
|
1 |
|
1:49.7Dual-axis Plastic Reduction- Gear Kit
|
1 |
|
D4x2mm Round Magnet
|
10 |
|
BT3x8 SHCS Self Tapping Screw
|
20 |
|
0.5x5x25 mm Helical- Compression Spring
|
5 |
|
OD24x2.5mm 0 Ring
|
5 |
|
1.4x20mm Basic Rubber Bands
|
20 |
|
0.6mm Black Nylon Cord
|
1 |
|
LED Flame Tea Light Candle Set- Warm White
|
1 |
|
8mm Stainless Steel Balls
|
6 |
-
1x Maker's Beginner Kit
-
5x OD24x2.5mm O-Ring
-
11x vBT3x8 SHCS Self-Tapping Screw
-
2x 1.4x20mm Basic Rubber Bands
-
5x 8mm Stainless Steel Balls
-
2x 0.5x5x25mm Helical Compression Spring
-
-
3mm Basswood Plywood
-
PLA Basic (Not included)
Building Tips
- This model is compatible with the Maker’s Beginner Kit (B-ZC002). The kit includes various non-printed parts to support multiple designs, so some components may not be necessary for this specific model.
- This model incorporates 3D printing elements. To inspire creative expression, the kit does not include 3D printing filaments—allowing you to freely choose the colors and textures that suit your personal style and printing preferences.
- Click here for more of this model.
- Click here for more material guides.
