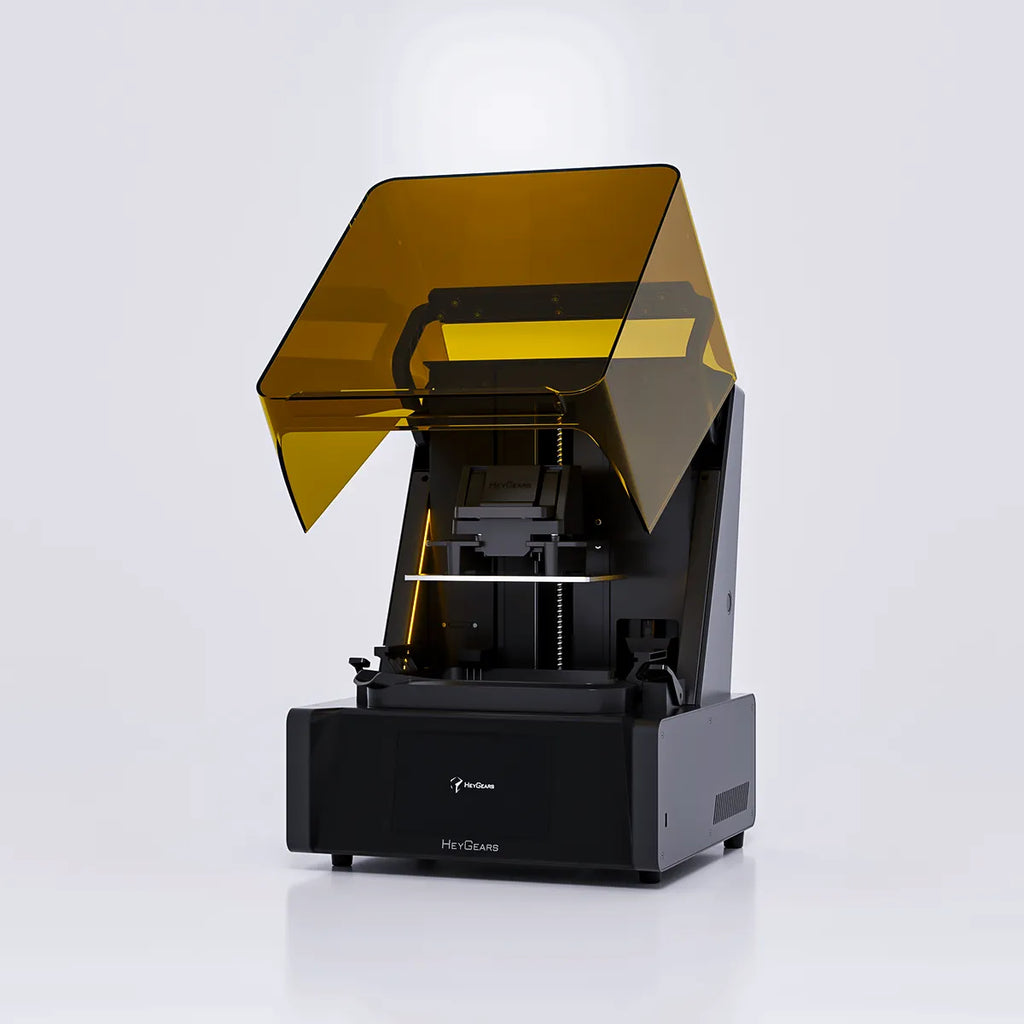

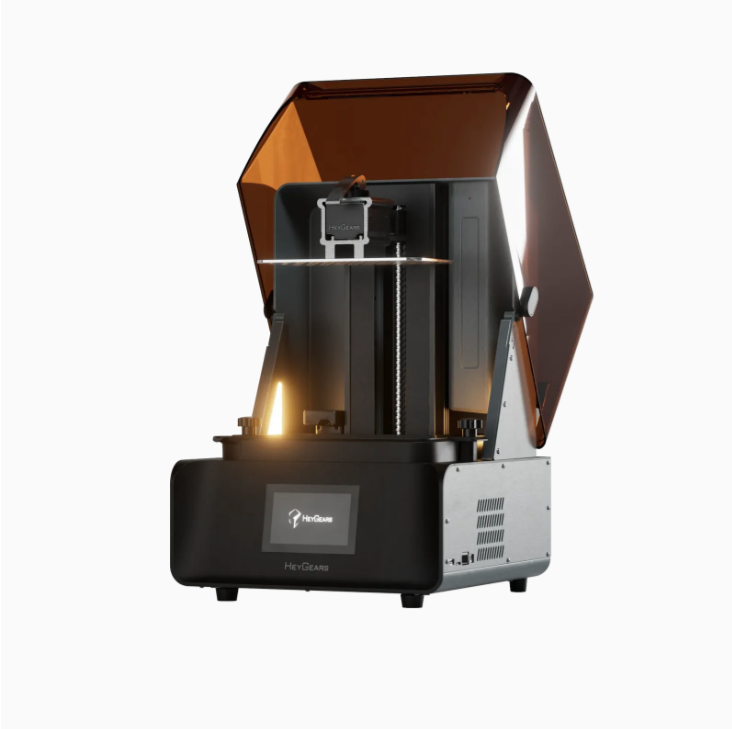

The HeyGears Reflex RS Combo brings together high-precision resin printing, intelligent software assistance, and streamlined post-processing in one integrated workflow. Designed for makers, educators, engineers, dental/modeling users, and professional prototyping teams, the Reflex RS helps reduce the common frustrations of resin printing: failed prints, manual slicing adjustments, inconsistent accuracy, and messy post-processing.
At the center of the system is a 10.3-inch 8K mono LCD screen with a 29.7 μm XY native pixel size, supporting fine details and smooth surfaces for miniatures, engineering parts, prototypes, models, and classroom projects. Its C5-grade Z-axis module delivers high repeat positioning accuracy, helping maintain consistent layer alignment and print quality.
The Reflex RS also uses full-field precision screen calibration, dividing the screen into 60 zones to help control light intensity variation and improve dimensional consistency. With a stated printing tolerance of up to ≤0.05 mm under HeyGears lab testing conditions, this machine is built for users who care about repeatable results.
Reliable C5 grade Z-axis Module
High repeat positioning accuracy ensures layer positioning errors are no more than 2 μm*. Tested with a 50 kg load across ten thousand runs.
Full-Field Precision Screen
LCD Screen Light Intensity Visualization
To achieve printing high accuracy and reliability, we partition the screen into 60 zones and calibrate it with a full-screen tool, ensuring light intensity variation remains within ±3%* for a printing tolerance of ≤0.05 mm.
Printed Results Assembly Comparison
The RS automatically calibrates the screen using NFC data, keeping light intensity differences within 5%* and reducing variations in light intensity to ensure printing precision after screen replacement.
*Data sourced from HeyGears Lab
Adaptive Z-axis Compensation
Adaptive Process Packages
The adaptive process packages allows the RS printer to adjust the Z-axis compensation adaptively for each resin, to support up to 180 combinations of different angles, hole sizes, and edge types.
Z-axis Compensation Comparison
This approach minimizes deformation and resin buildup on support surfaces, and reduces post-processing time compared to using just a single z-axis compensation parameter.
Dynamic Motion Algorithm 3.0, 33% Increase in Print Speed*
*Data sourced from HeyGears Lab, utilizing PAWW10 water-washable resin, comparedto conventional motion control 3D printing. The exact speed increase may vary based on model.
Dynamic Motion Control
This algorithm assesses printing difficulty for each layer using factors like cross-sections, part spacing, and quantity, selecting from 18 optimized motion control parameters to ensure quality while enhancing speed.
Printing Results Comparison
Automatic Pre-processing
Complete Pre-processing in Just One Minute
One-click slicing without manual adjustment.
Automatic Pre-processing
Automatic Repair Prevents Failures
Automatically detects and repairs model defects such as inverse normals, holes, and intersecting shells.
Intelligent Auto-Supports
Automatic Pre-processing
Intelligently configured scaffold supports result in reduced detachments and a higher printing success rate.
Force Value Monitoring System
Residue Detection
Force sensors with a sensitivity of 0.1 N can detect resin residue as small as 0.2 mm and can auto-stop upon detection or print failure.
Force Value Monitoring System
Printing Analysis
A report is produced after each print to accurately identify issues.
Automated Printing Assistance
Floating Screen Auto Leveling
A floating screen system with a deviation of 0.15° eliminates gaps of up to 240 µm* for automatic leveling.
Automated Printing Assistance
Automatic Resin Heating
The optional RS heated resin tank*uses an integrated heater for higher efficiency. It can elevate resin temperature from 50 °F (10 °C) to an optimal 73 °F (22 °C) in 20 minutes*, auto heating maintains this temperature throughout the printing process for optimal results.
*Requires a separate purchase of the RS Heated & Pulsing Release Resin Tank*Data sourced from HeyGears Lab
Automated Printing Assistance
Automatic Resin Refill
Automatic resin refill before and during printing.
A Complete Production System
For easier operation, the Reflex RS includes automatic pre-processing, one-click slicing, automatic model repair, intelligent auto-support generation, force monitoring, residue detection, print failure detection, and post-print analysis reports. These features are especially valuable for schools, makerspaces, and small teams where users may have different experience levels.

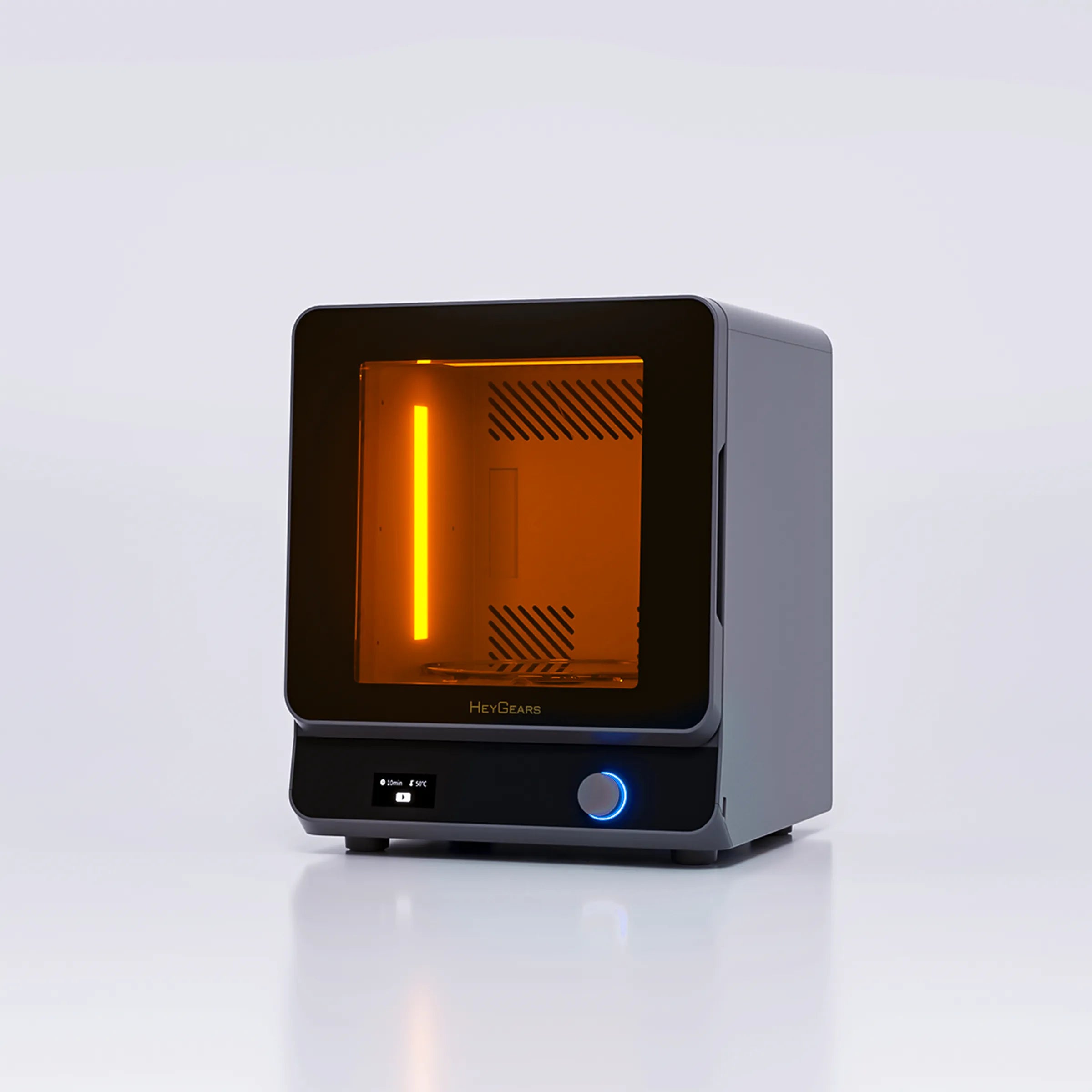

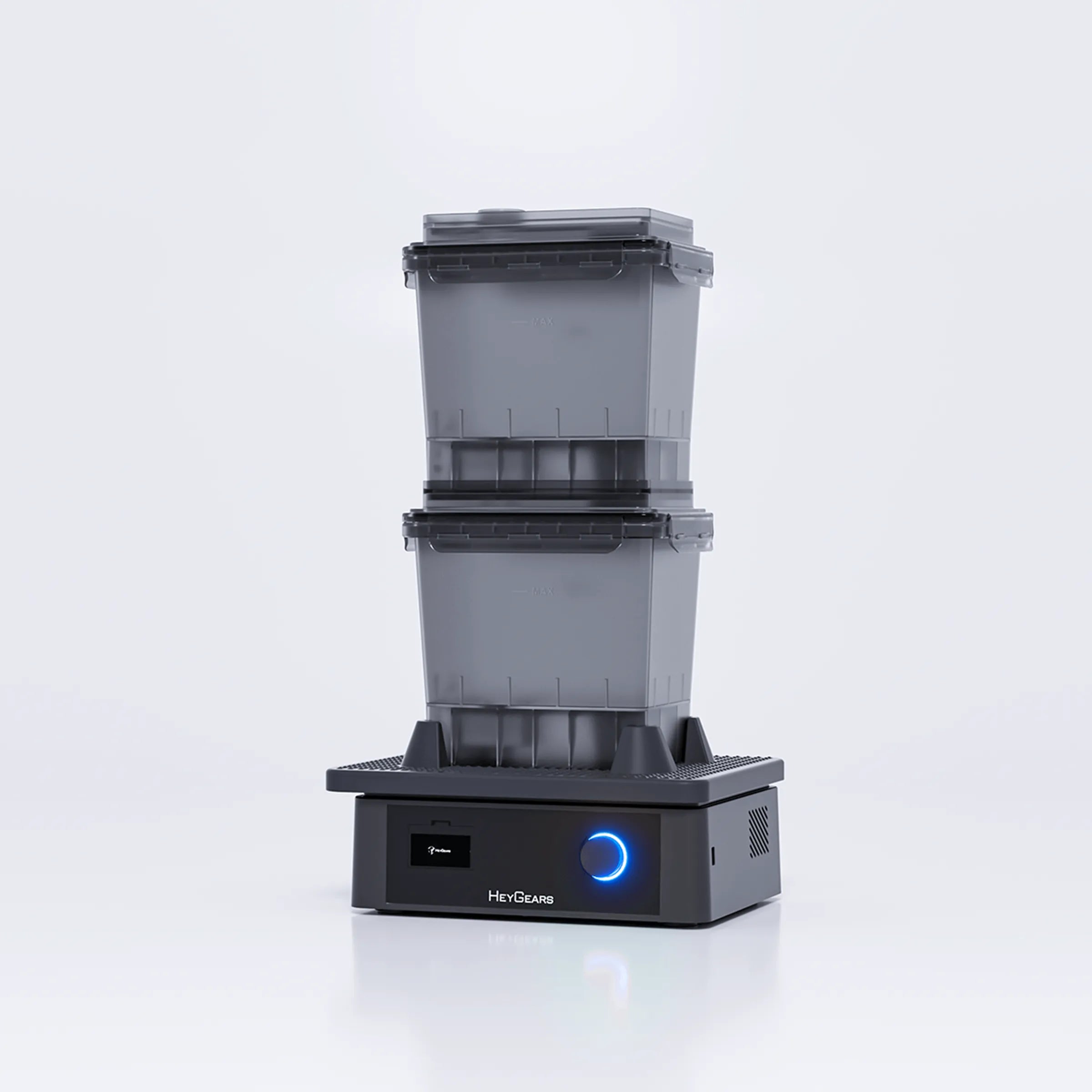

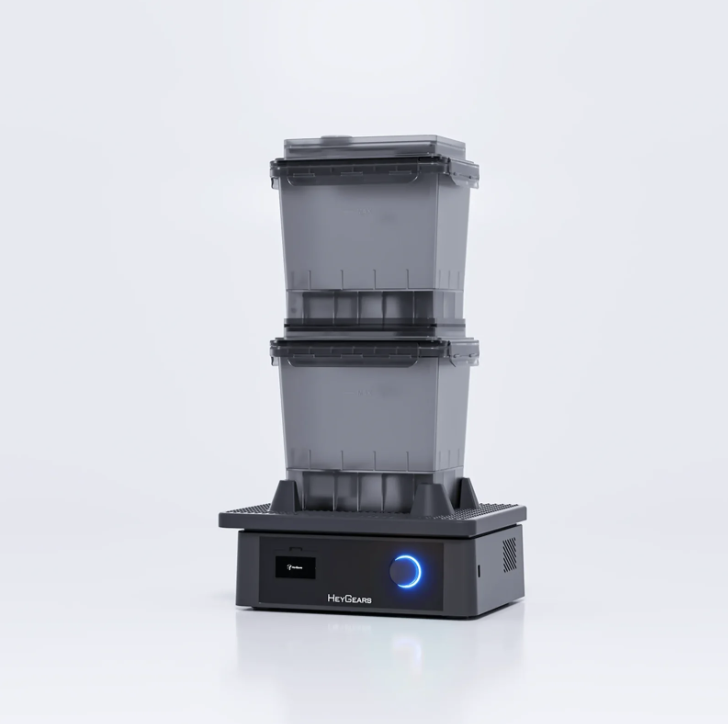

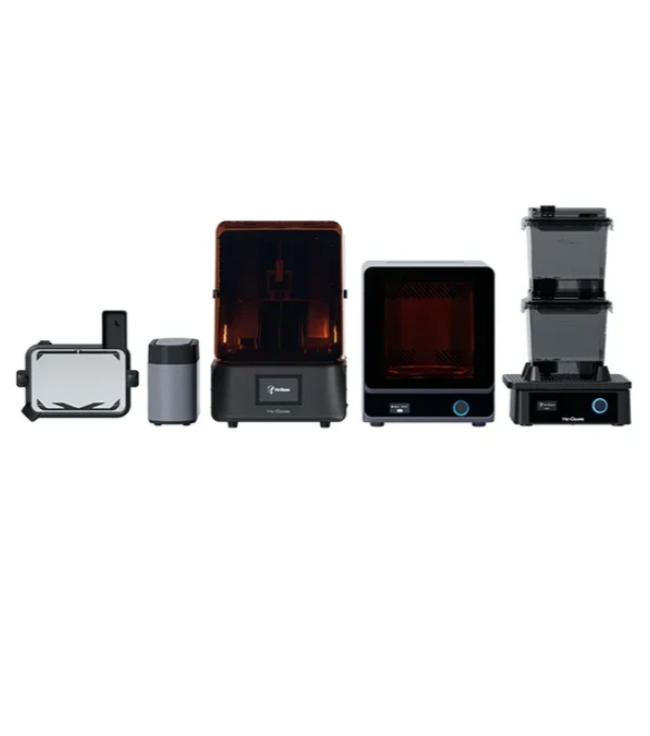

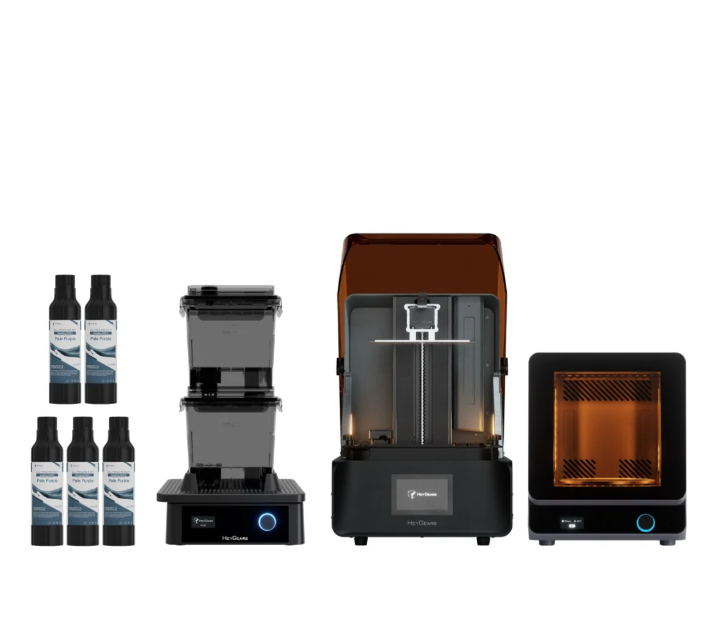

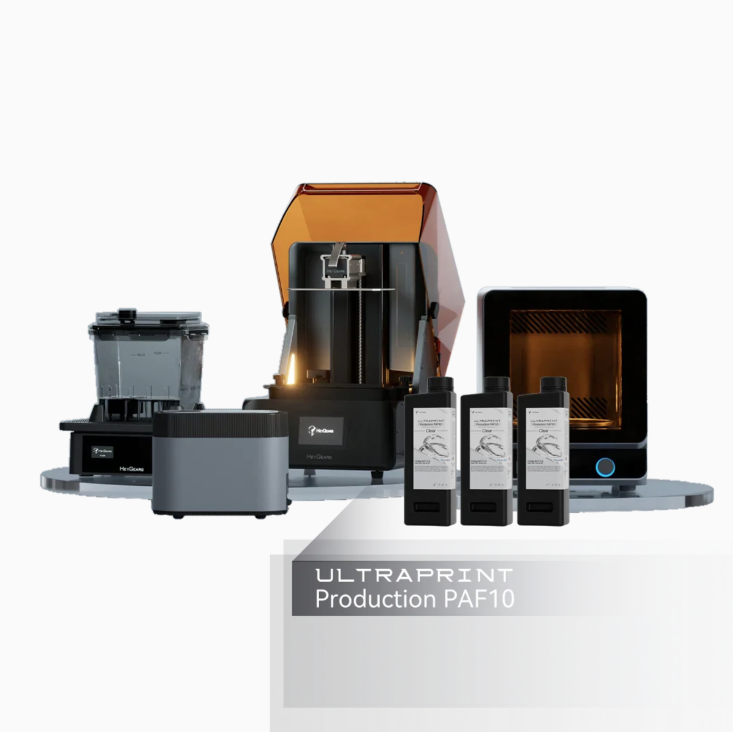

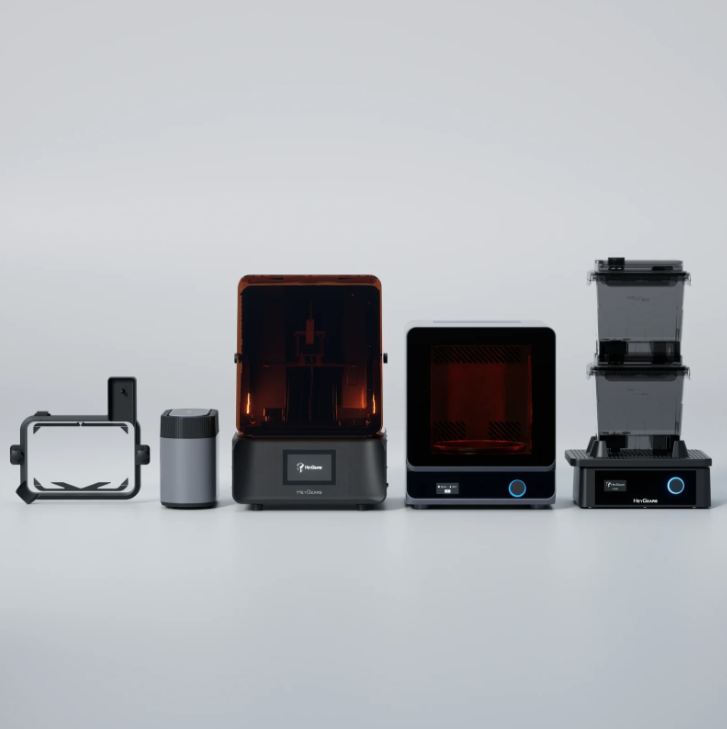

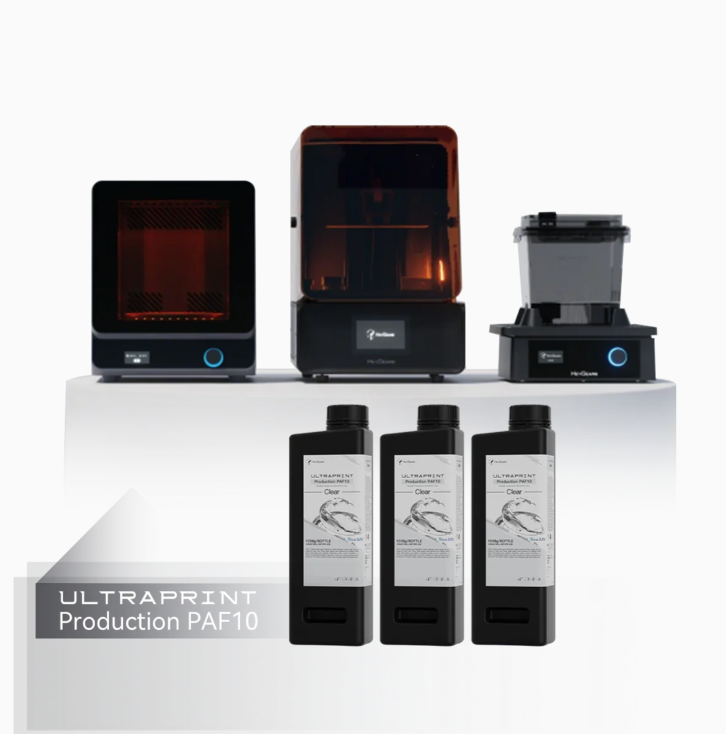

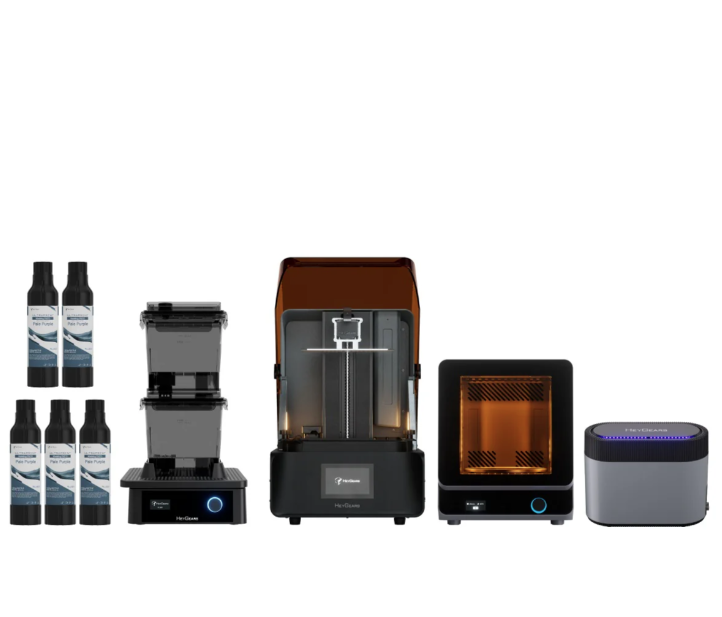

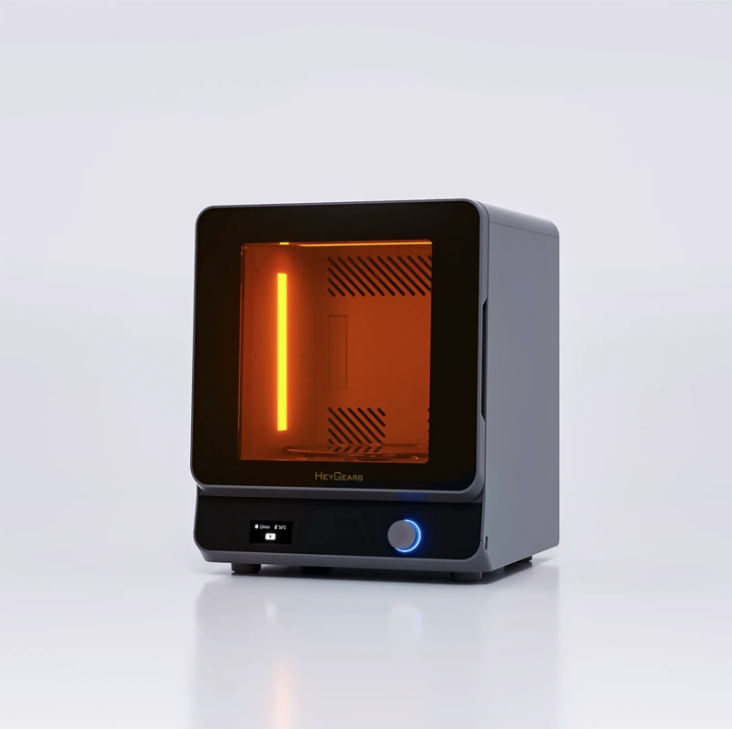

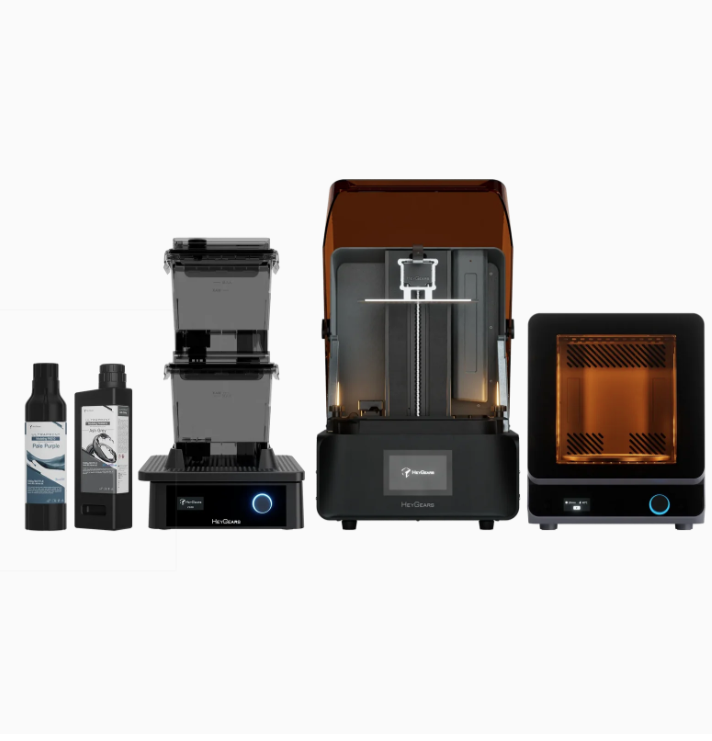

The Reflex RS Combo is also designed as a more complete production system. Pair it with compatible HeyGears washing, curing, resin, heated resin tank, and pulsing release accessories to create a cleaner, faster, and more reliable resin printing workflow.
Key Benefits
High-precision 8K resin printing
The 10.3-inch 8K mono screen and 29.7 μm XY resolution help capture fine details for models, prototypes, miniatures, and precise parts.
Smarter workflow with less manual adjustment
Automatic pre-processing, model repair, auto-supports, and print analysis help reduce setup time and failed prints.
More consistent print quality
C5-grade Z-axis accuracy, adaptive Z-axis compensation, force monitoring, and screen calibration support repeatable results.
Designed for complete resin workflow

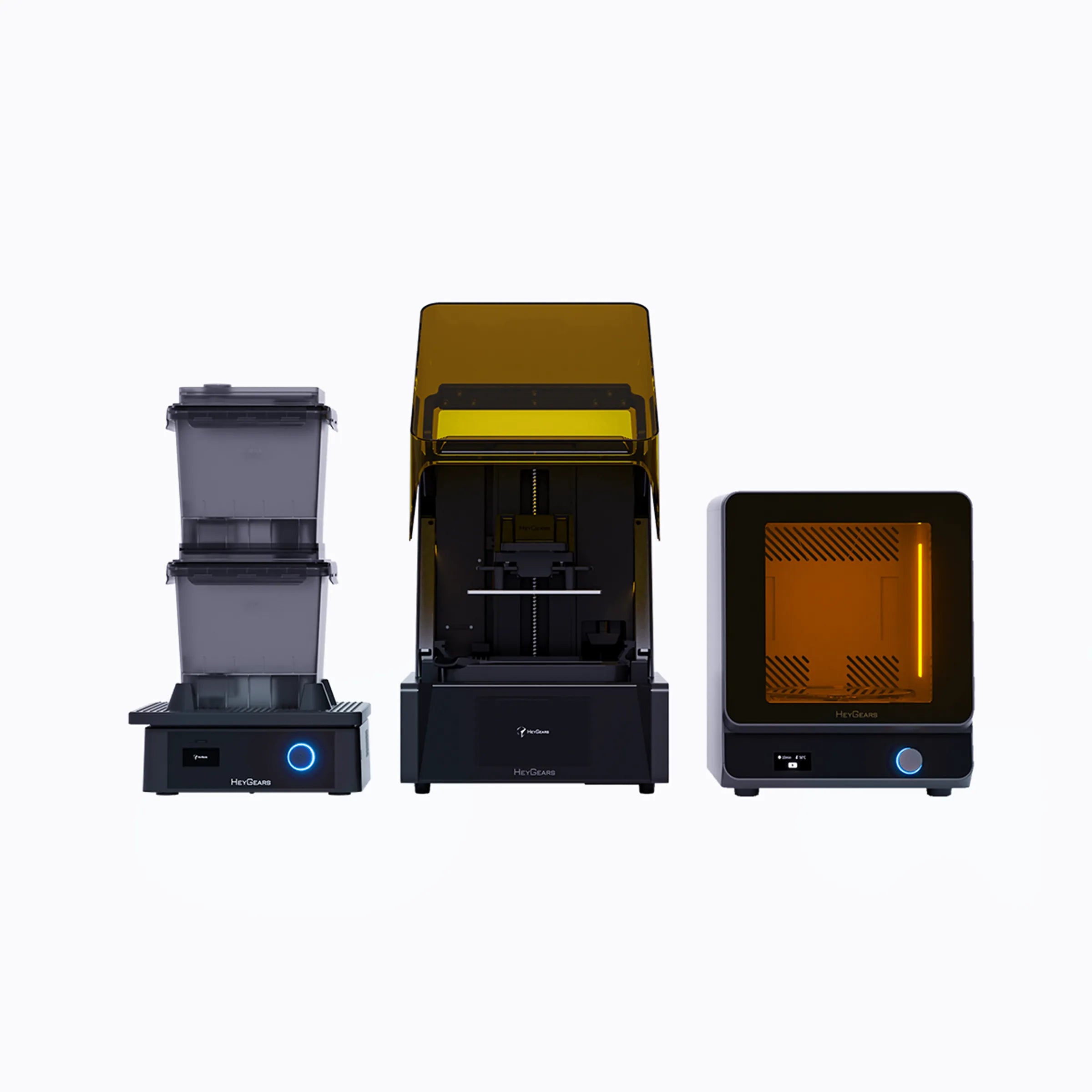

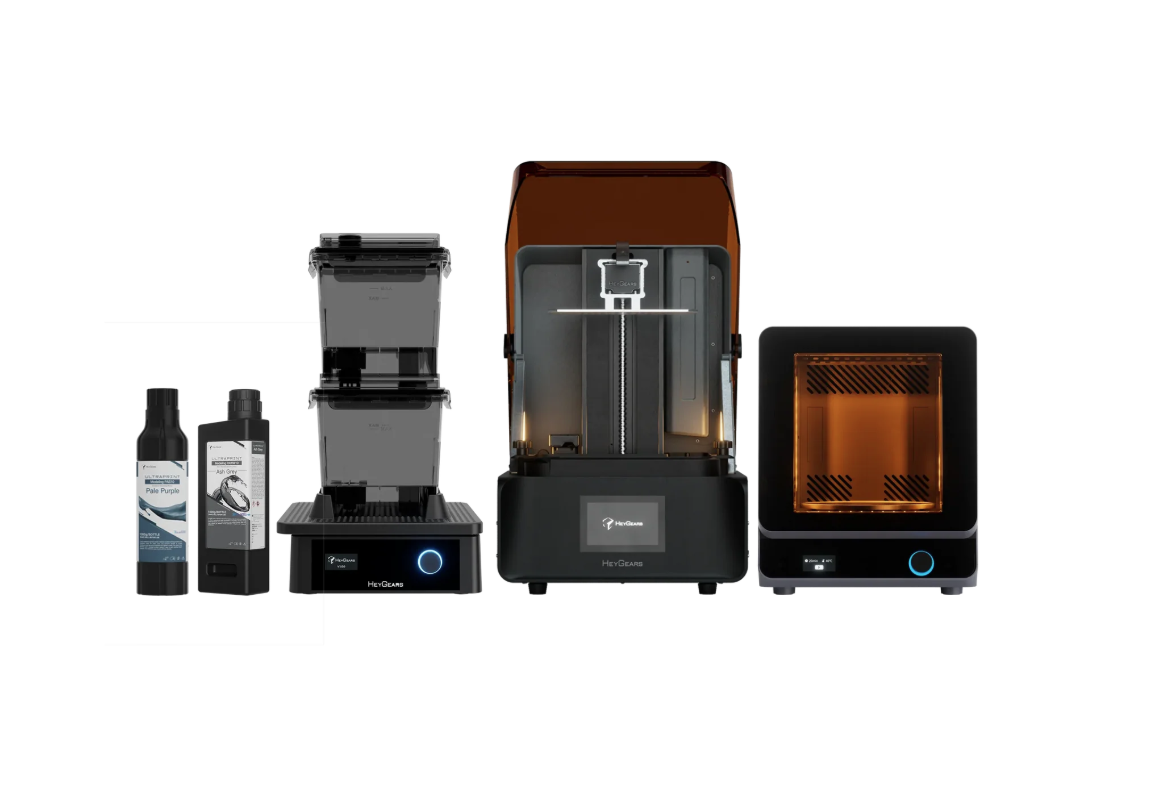

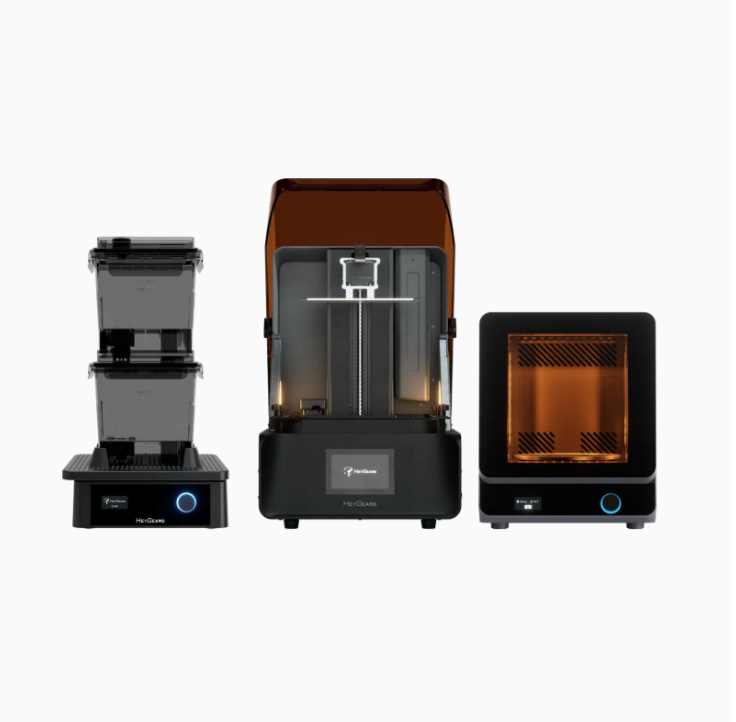

The Reflex RS Combo supports an integrated process from printing to washing to curing, making it suitable for makerspaces, STEM labs, small studios, and professional use.
Large resin build volume
With a build volume of 222 × 122 × 228 mm, the Reflex RS can handle larger models or multiple smaller parts in one print job.
Specifications
| Feature | Details |
|---|---|
| Printing Technology | LCD / MSLA |
| Build Volume | 222 × 122 × 228 mm |
| LCD Screen | 10.3-inch 8K mono screen |
| Light Source | 405 nm |
| XY Native Pixel | 29.7 μm |
| Accuracy | ±15 μm |
| Layer Thickness | 30–100 μm |
| Z-Axis Module | C5 Grade Accuracy |
| Connectivity | USB / Wi-Fi |
| Machine Size | 380 × 360 × 584 mm |
| Weight | 20 kg |
| Rated Power | 180 W |
| Voltage | 100–240 V, 50/60 Hz |
| Languages | English, Simplified Chinese, Japanese |
Included in the Box
- Reflex RS 3D Printer
- Power Cord
- Part Removal Tool
- Resin Tank
- Build Platform
- Allen Wrench
- Scraper
1. What is the HeyGears Reflex RS Combo best for?
The Reflex RS Combo is best for users who need detailed resin prints, including makers, schools, STEM labs, prototyping teams, model designers, and professional users who want a more automated resin printing workflow.
2. What is the build volume of the Reflex RS?
The Reflex RS has a build volume of 222 × 122 × 228 mm, giving users enough space for larger resin models or multiple smaller parts in one print.
3. Does the Reflex RS support Wi-Fi?
Yes. The Reflex RS supports both USB and Wi-Fi connectivity.
4. Why is the Reflex RS easier to use than a basic resin printer?
The Reflex RS includes automatic pre-processing, model repair, intelligent auto-supports, force monitoring, residue detection, and print analysis reports. These tools help reduce manual setup and improve print success.
5. Is this printer suitable for schools or STEM programs?
Yes. The Reflex RS is suitable for advanced STEM programs, makerspaces, engineering classes, design labs, and school innovation spaces. However, resin printing requires proper ventilation, safety handling, gloves, cleaning, and supervision.
