2.5D Framed Blueprint - Pacific Clipper
2.5D Framed Blueprint - Pacific Clipper is a stereoscopic blueprint frame that presents the appearance and internal structure of the "Pacific Clipper" through detailed three-view drawings. This model integrates multiple making techniques, including 3D printing, laser cutting, and knife cutting, using the Maker’s Supply kit along with a few simple processes. For more details, please see the Documentations section for installation instructions.
Design Features and Use Scenarios
- 2.5D Creative Effect: This unique 2.5D framed model adds a subtle depth effect, making the airplane appear as if it’s coming out of the drawing. It’s a standout piece that brings more visual interest than a traditional flat blueprint.
- Perspective effect: The combination of a wooden frame and a 3D-printed PLA shell presents a three-dimensional airplane body. Rather than simply restoring the outer appearance, this model reveals the internal structure, better reflecting the blueprint aesthetic.
- Size: With a frame size of 585 × 283 mm, this piece delivers a strong visual presence while revealing more internal details. The size is perfect for display and also works beautifully as a wall-mounted picture frame.

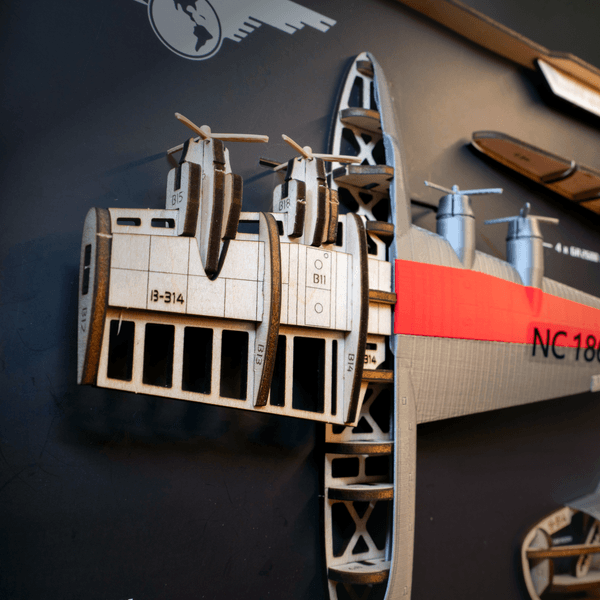

- Details: The model includes interactive features such as rotatable propellers and movable ailerons, offering a more engaging display. It also highlights the aircraft’s signature element—the wing passage for engine maintenance.
- Nameplate with backlight: The nameplate features a built-in backlight using a 6500K white LED light strip, adding a refined glow that enhances the overall visual appeal of the frame.
Product Specifications

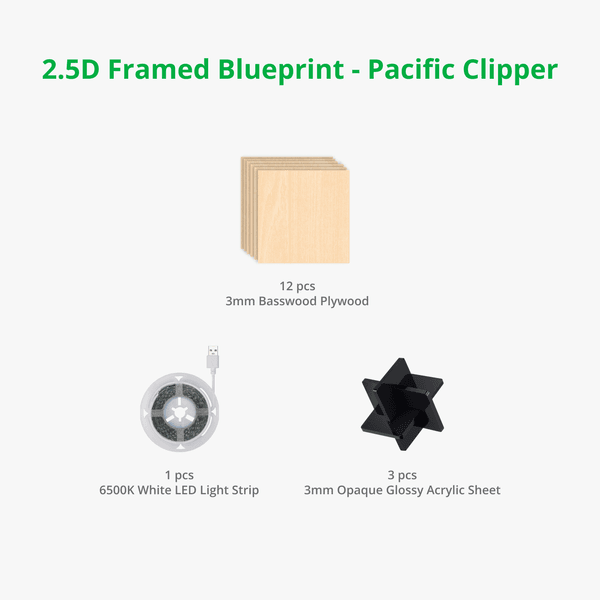

| Product ID | Name | Quantity (pcs) |
| YA001 | 3mm Basswood Plywood | 12 |
| YB001 | 3mm Black Opaque Glossy Acrylic | 3 |
| KA004 | 6500K White LED Light Strip | 1 |
Important Informations:
- This model incorporates 3D printing elements. To inspire creative expression, the kit does not include 3D printing filaments—allowing you to freely choose the colors and textures that suit your personal style and printing preferences.
- Materials used for optional decorative purposes, such as waterslide decal paper and PVC/PET transparent stickers, are not included in the kit. You can also achieve great effects with carbon fiber sheets or printable vinyl sticker, which allows users to personalize their builds through DIY customization.
- The background blueprint is intended to be printed on paper using a 2D printer. You can download the printable file and production guidelines in the Documentation section of this page and print it with a large-format printer or via a local print shop.
Building Tips
- Ensure that a person is always present to closely monitor the machine throughout the laser engraving and cutting process. At the same time, make sure the workspace is well ventilated and consider using a high‑efficiency air purification system for optimal air quality.
- When using the 10w laser cutting module, the power limitation will result in slower processing speeds. The slower ablation process may cause edge carbonization, which is normal.
- Before assembly, please sand the cut edges with sandpaper to prevent carbonized powder from contaminating the model body.
- Please remove the protective film from the acrylic material before processing.
- Click here for more of this model.
- Click here for more material guides.
