EINSTAR 2 Specifications
Scan Modes
-
Laser HD
Light Source: 17 Parallel Blue Laser Lines
Resolution: 0.05–10 mm
Scan Speed: Up to 2,500,000 points/s
Working Distance: 100–600 mm
Max FOV: 490 × 580 mm
Alignment: Global Marker / Markers
Minimum Scan Volume: 10 × 10 × 10 mm
Outdoor Use: ≤ 110,000 Lux -
IR Rapid
Light Source: IR VCSEL
Resolution: 0.2–10 mm
Scan Speed: Up to 4,800,000 points/s
Working Distance: 160–1400 mm
Max FOV: 1170 × 1385 mm
Alignment: Global Marker / Markers / Features / Texture / Hybrid
Minimum Scan Volume: 50 × 50 × 50 mm
Outdoor Use: ≤ 70,000 Lux
Camera Resolution
3D Cameras: 2 MP × 2
Texture Camera: 2.3 MP
Output Formats
STL, OBJ, PLY, 3MF, ASC
Laser Class
Class 2
Operating Conditions
Temperature: -10°C to 40°C
Interface & Power
USB Type-C
Battery: 5500 mAh × 1
Supports 60W PD 3.0 Charging
Dimensions & Weight
130 × 37 × 61 mm (5.12 × 1.46 × 2.40 in)
420 g (0.92 lbs, with battery) / 348 g (0.77 lbs, without battery)
Certifications
CE, FCC, RoHS, WEEE, FDA, SRRC, IP50
Recommended Computer Configurations
Windows
-
OS: Windows 11 Professional 22H2 (64-bit)
-
GPU: NVIDIA GeForce RTX 3060 (Laptop GPU or above), 6 GB VRAM minimum
-
RAM: Minimum 32 GB DDR5 dual-channel (Recommended: 64 GB or above)
-
Processor: 13th Gen Intel® Core™ i7-13700H or above
-
Interface: USB 3.0
Mac
-
macOS: Tahoe 26.2 or later
-
Minimum: MacBook Pro M1 or MacBook M3, 16 GB RAM
-
Recommended: MacBook Pro M3 Max/Ultra, 24 GB RAM or above

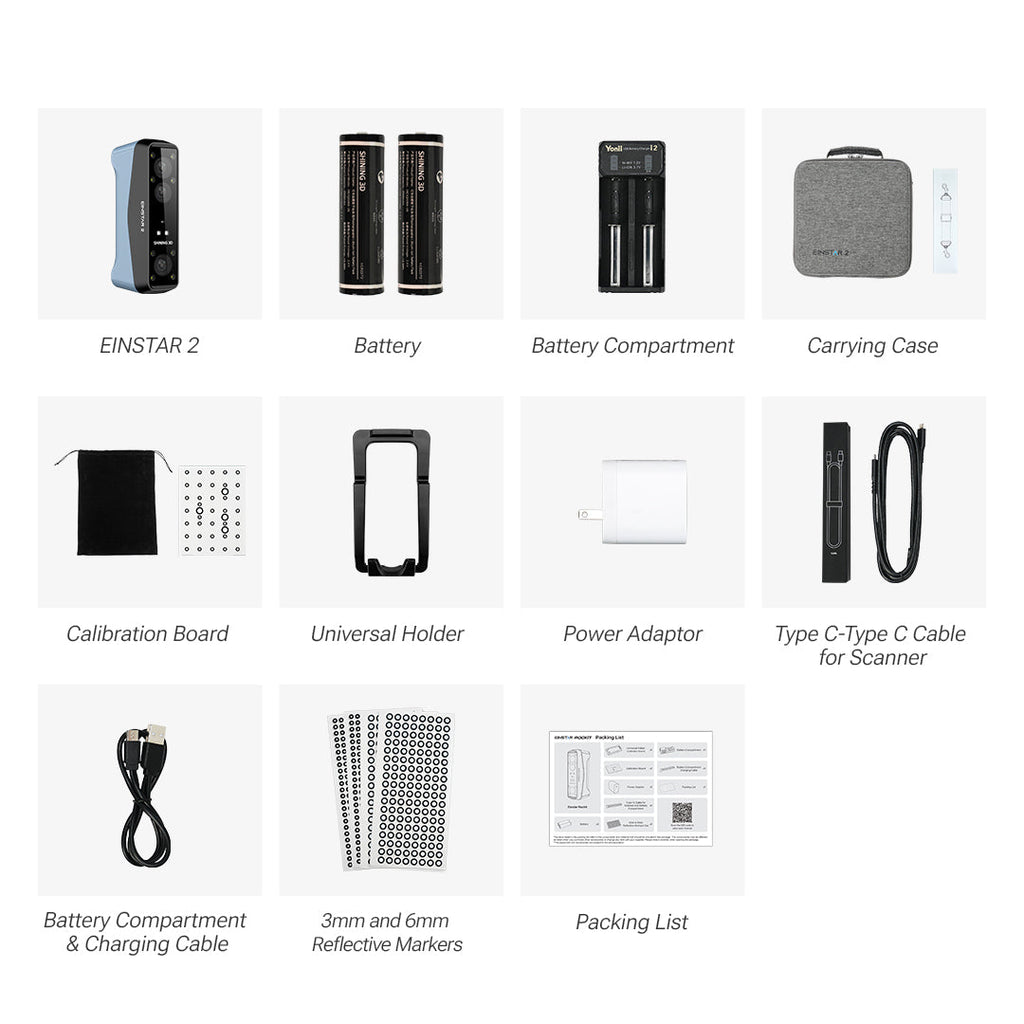

What Is In The Box

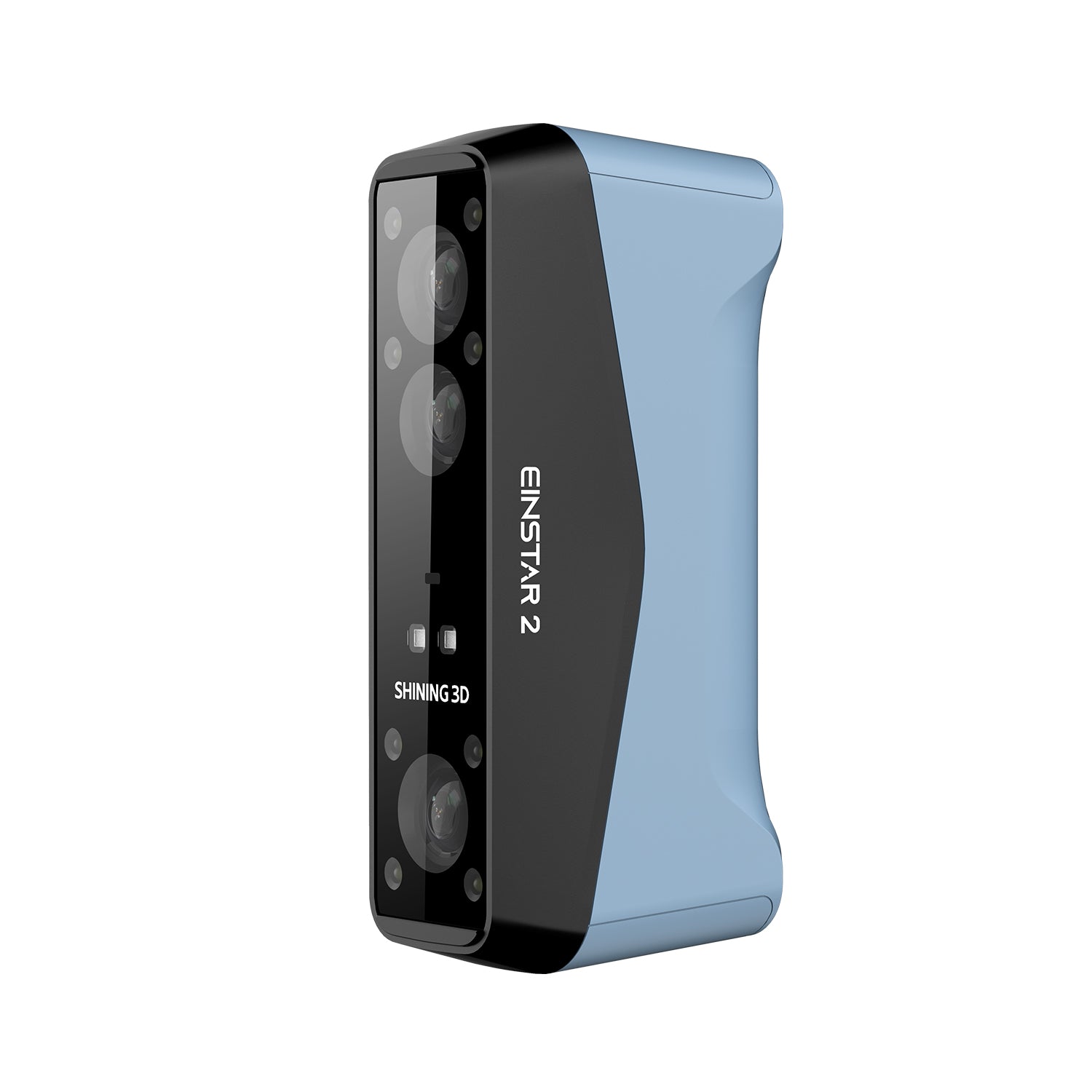

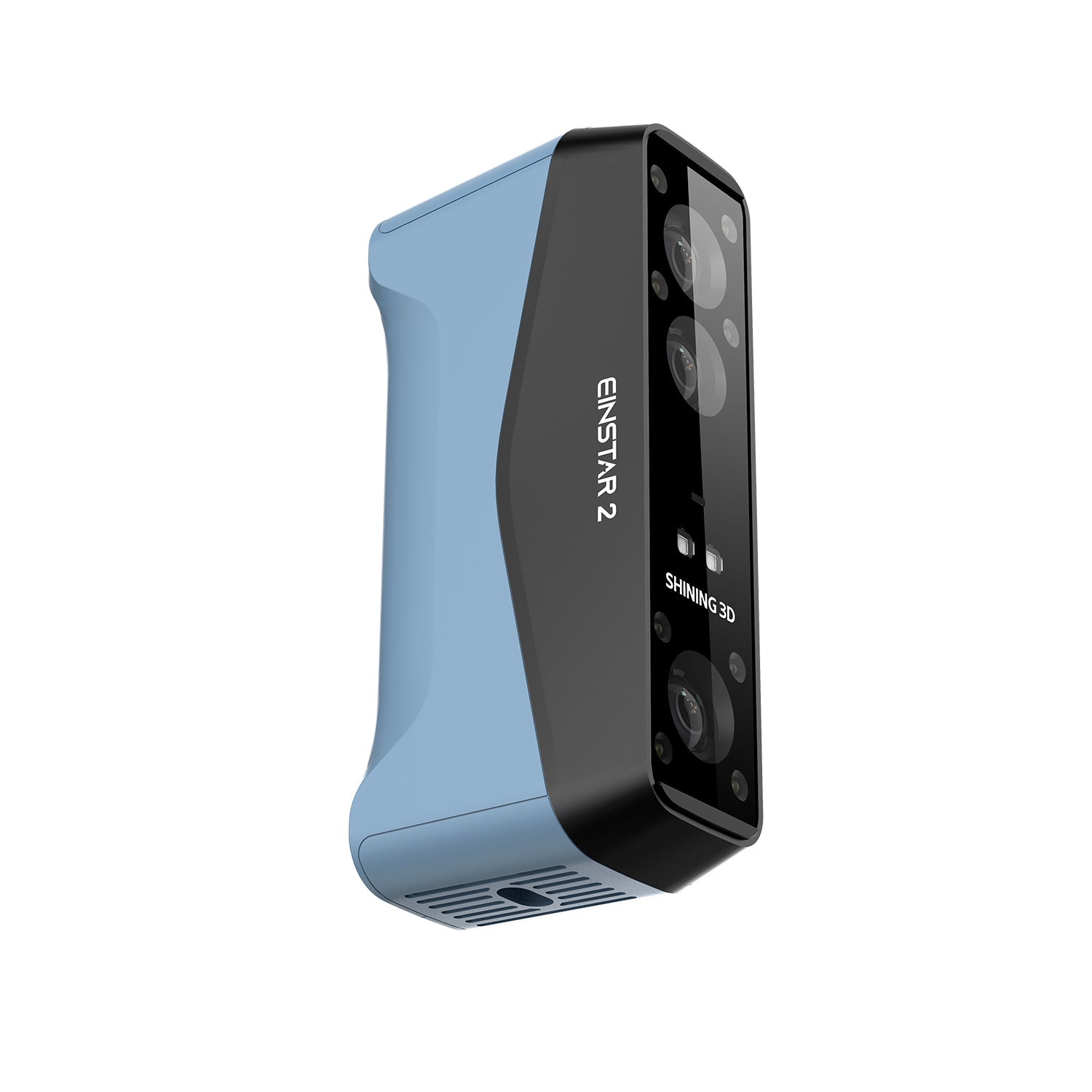

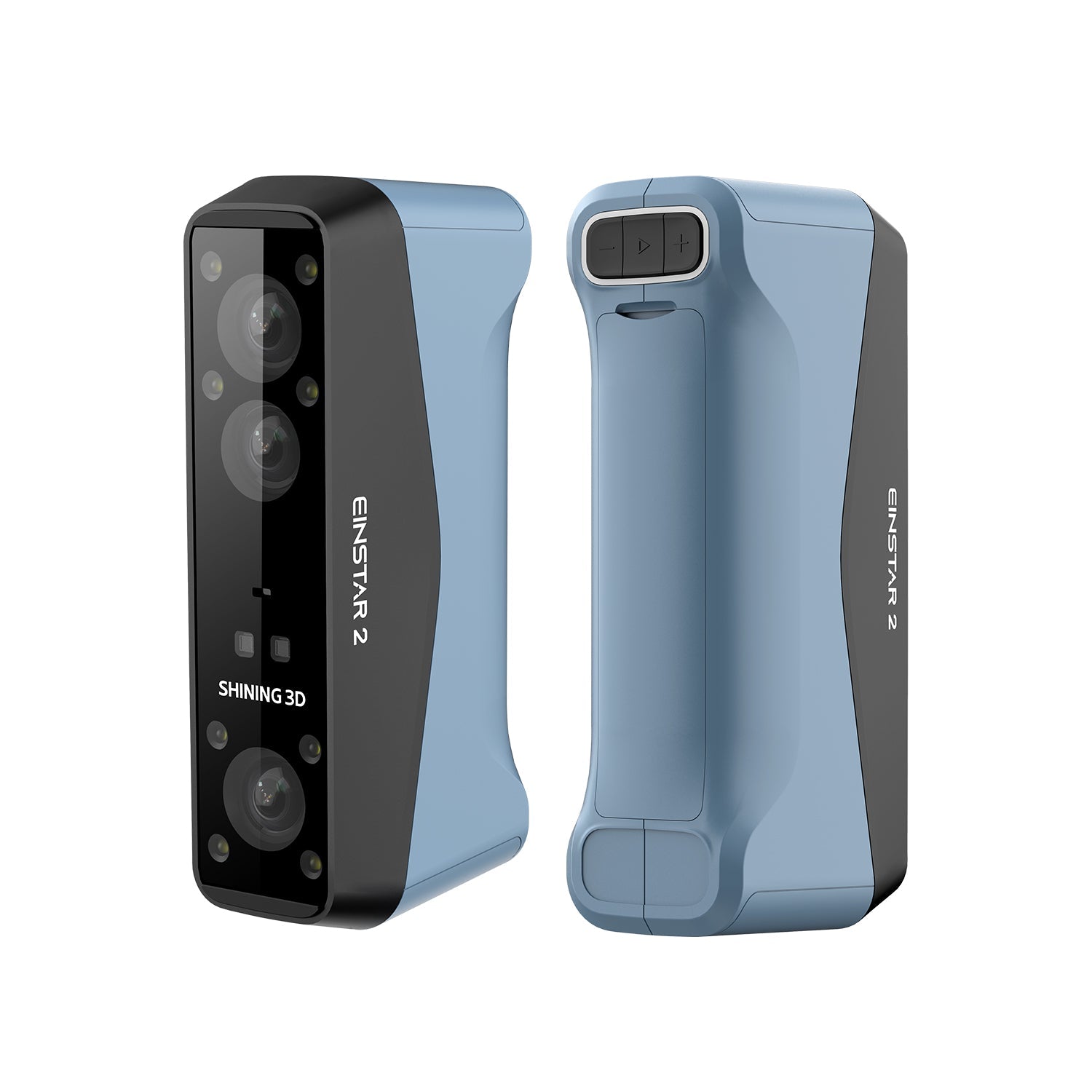

EINSTAR 2-Still EINSTAR, Even Better
