0.2mm Nozzle - Optimal Print Fineness
Smaller diameter extrudes thin filaments
High resolution on the horizontal print surface
0.6mm and 0.8mm Nozzle - Faster Print Speed
Larger diameter extrudes more filaments per second, resulting in faster print speed
Comparison of Different Nozzle Sizes
| 0.2 mm Nozzle | 0.4 mm Nozzle | 0.6 mm Nozzle | 0.8 mm Nozzle | |
| Usage scenario | Perfect for small and intricate models, with precision that's worth the wait |
Ideal for everyday use with the perfect balance of speed and quality |
Faster speeds and capable of printing high-performance filaments, with some decrease in resolution |
Faster speeds and capable of printing high-performance filaments, with some decrease in resolution |
| Commonly used for | Miniature models Intricate logos Text Molds |
Toys Mechanical parts Decorative objects |
Large structural parts Functional parts for household Industrial or engineering parts High-strength models |
Large structural parts Functional parts for household Industrial or engineering parts High-strength models |
Filament Compatibility
| Material | 0.2 mm Nozzle | 0.4 mm Nozzle | 0.6 mm Nozzle | 0.8 mm Nozzle | Hardened Steel Required? |
| General PLA | YES | YES | YES | YES | Optional |
| PLA Sparkle | *NO | YES | YES | YES | Optional |
| PLA Marble | *NO | YES | YES | YES | Optional |
| Wood/Rock/Metal-filled PLA | *NO | YES | YES | YES | Optional |
| PETG | YES | YES | YES | YES | Optional |
| PVA | YES | YES | YES | YES | Optional |
| ABS | YES | YES | YES | YES | Optional |
| ASA | YES | YES | YES | YES | Optional |
| PC | YES | YES | YES | YES | Optional |
| PA | *NO | YES | YES | YES | Optional |
| TPU | *NO | YES | YES | YES | Optional |
| Bambu PLA-CF | *NO | *Highly Recommended |
YES | YES | *Required |
| Bambu PETG-CF | *NO | *Highly Recommended |
YES | YES | *Required |
| Bambu PAHT-CF | *NO | YES | *Highly Recommended |
YES | *Required |
| Bambu PET-CF | *NO | YES | *Highly Recommended |
YES | *Required |
| CF/GF Filaments from other brands | *NO | Not Recommended | YES | YES | *Required |
[*Note]
- Filaments with carbon fiber, glass fiber, metal, or other inorganic particles are prone to clog a 0.2 mm nozzle.
- For filaments containing carbon fiber or glass fiber, it is highly recommended to use a hardened steel 0.6 mm nozzle to minimize the risk of clogging and abrasion.
- Bambu PLA-CF and Bambu PETG-CF have been extensively tested and proven to have a low risk of clogging when printed with a hardened steel 0.4 mm nozzle, while also achieving higher print quality.

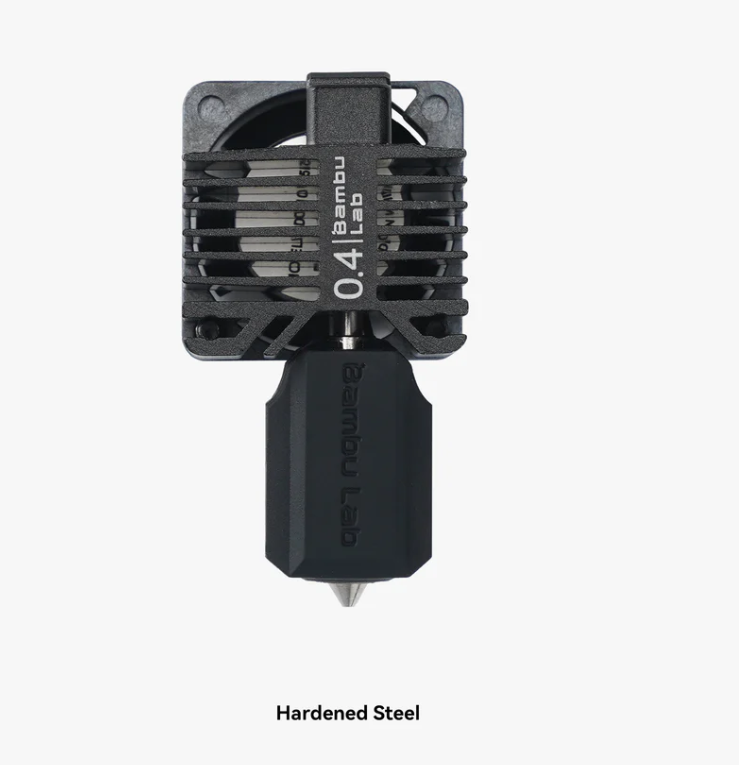

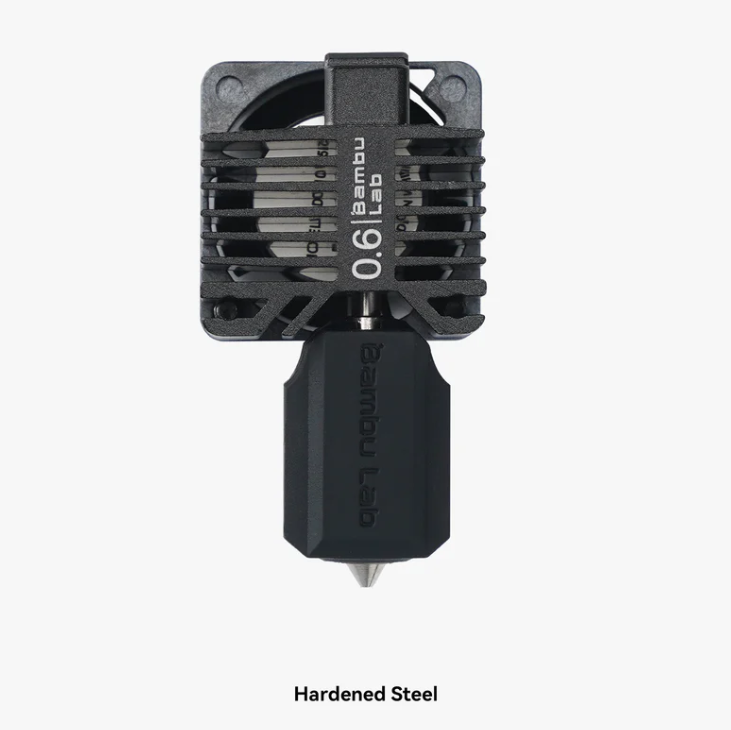

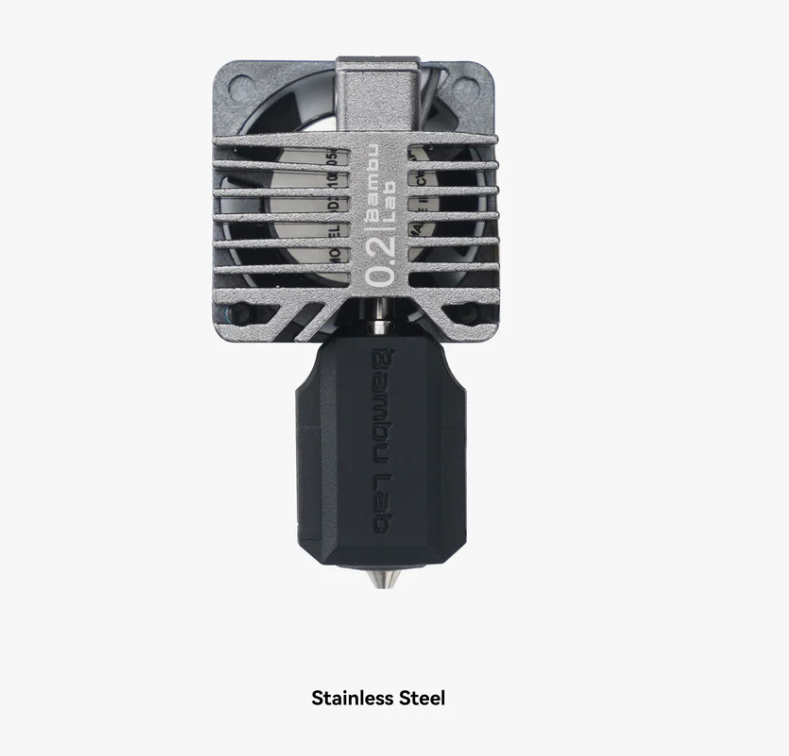

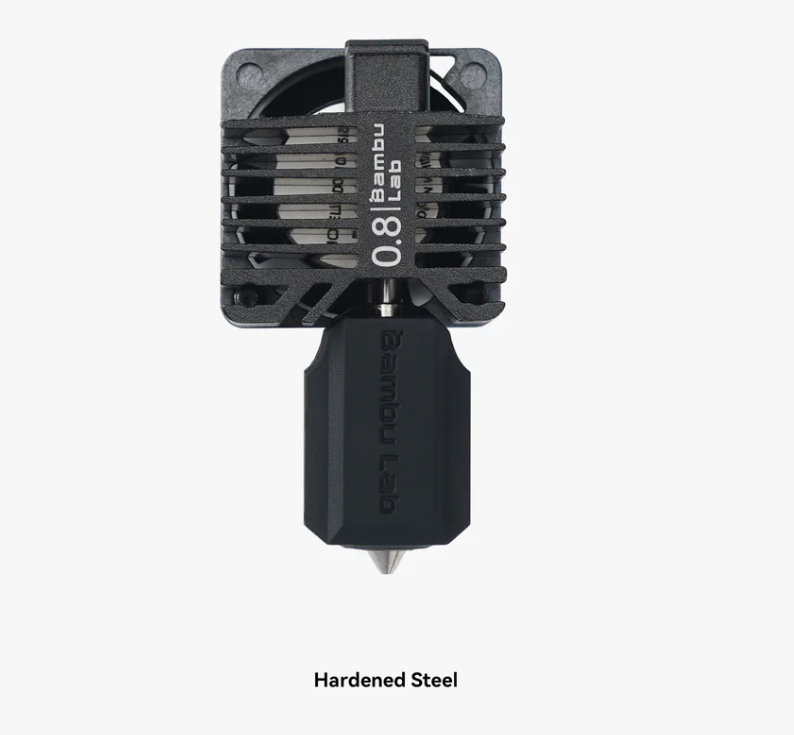

Replacing Complete Hotend

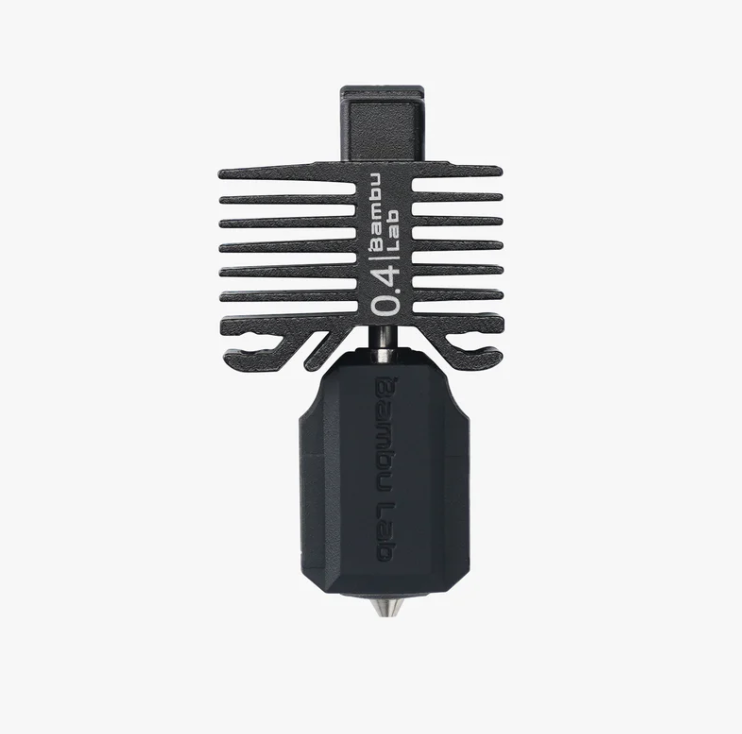

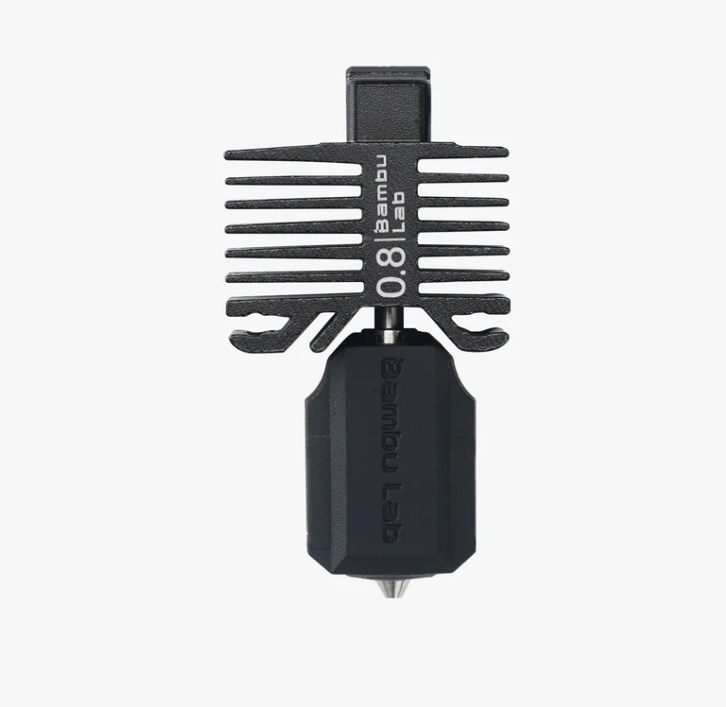

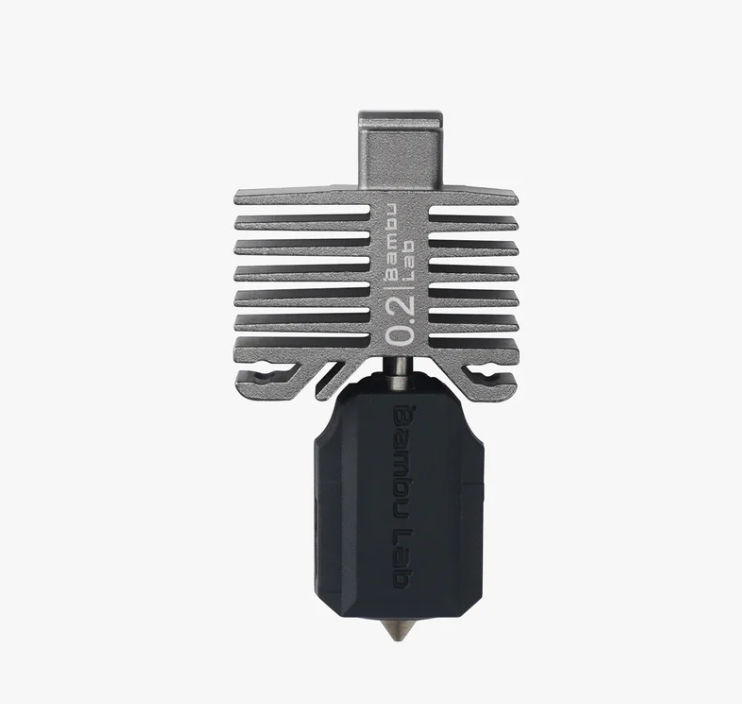

Replacing Hotend
Learn more about replacing the Complete Hotend and Hotend on Bambu Lab Wiki.
In the Box
| Complete Hotend | Hotend |
| P1 Series Complete Hotend * 1 | Hotend * 1 |
| M3-14 Step Screws * 2 | M3-14 Step Screws * 2 |
| Silicone Sock * 1 | |
| Thermal Grease * 1 | |
| Retaining Clip * 1 |
Product Specifications
| Max. Printing Temp. | 320 ℃ | Length | 47.3 mm |
| Packaging Weight | 40 g/30 g | Packaging Size | 190*70*50 mm |

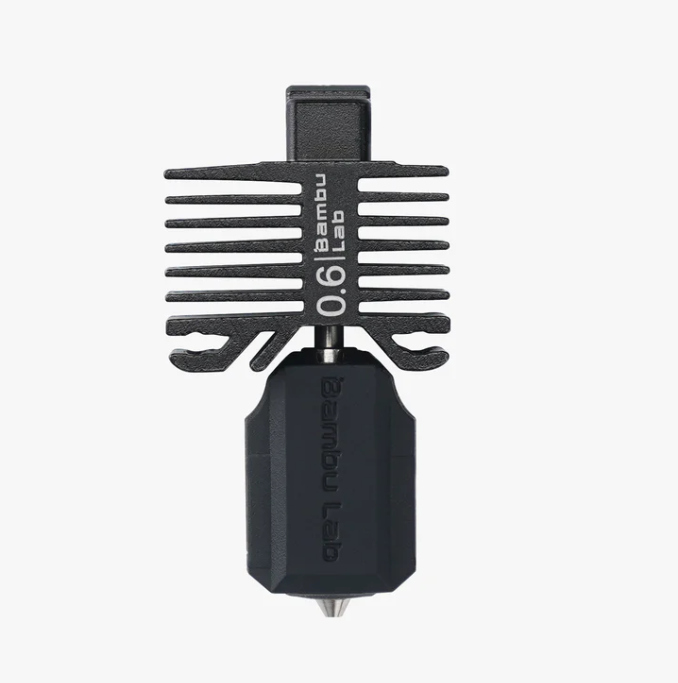

Bambu Hotend - P1 Series
$35.99
0.2mm / Complete Hotend - $35.99
Product Description
Product Highlights-Click “Description +” above for full product details.
What's Included-Click “Description +” above for full product details.
