Wireless Induction Transmitter Coil
3D Files with Structure and Dimensions.
Bring Your Miniatures to Life — Without Wires.
Traditional miniature lighting often requires visible wires, complex routing, and limited placement options. The Wireless Inductive Lighting Kit delivers power wirelessly through electromagnetic induction, allowing your models to light up naturally and cleanly — without exposed cables. Perfect for dioramas, vehicles, architectural scenes, and creative DIY projects.

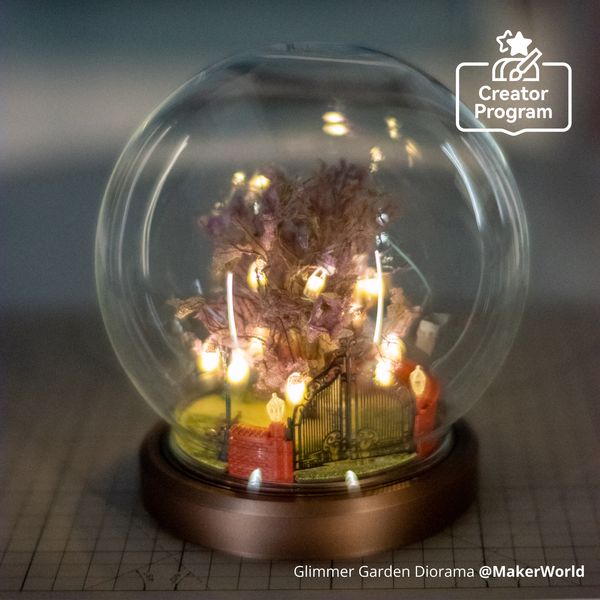

Note. Click the model images to explore the full project details on MakerWorld and build your own miniature scene.
Create Immersive Wireless Lighting Effects
Automatic Inductive Activation
Lights turn on automatically when entering the inductive power area. Create immersive interactive scenes with a more realistic presentation experience.
One Button, Multiple Lighting Modes
Easily switch between different lighting effects using the wireless controller board. Choose between: slow flash mode, fast flash mode, always on mode, off mode.
Perfect for vehicle headlights, architectural lighting, decorative lanterns, and interactive miniature displays — allowing you to quickly adapt your lighting setup for different scenes and effects.

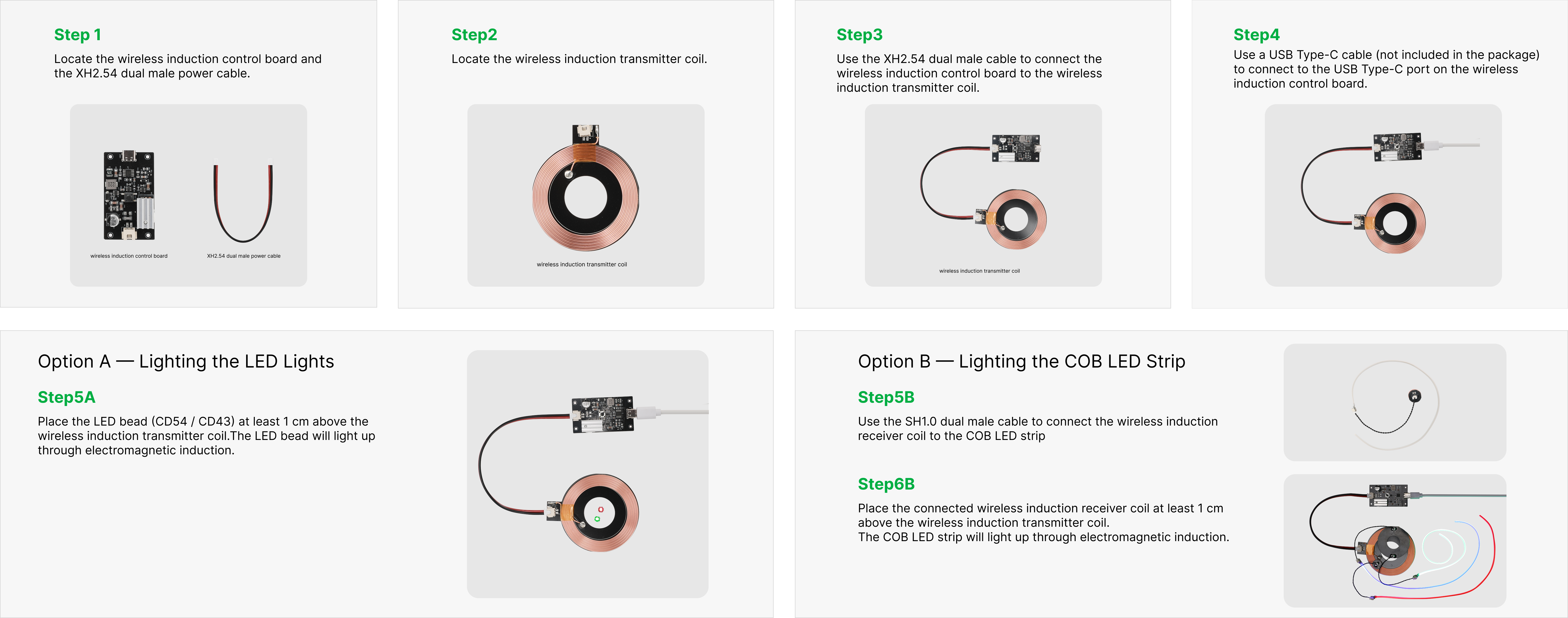

How Wireless Inductive Lighting Works
Choose Your Lighting Setup
Two wireless lighting solutions designed for different miniature lighting applications.
Choose between built-in inductive LED lighting or expandable COB light strip setups depending on your project needs.
| Option |
Option A
Inductive LED Lights
|
Option B
COB Light Strip Setup
|
|---|---|---|
| Best For |
|
|
| Required Products |
Wireless Inductive Coil Kit
(Includes 20 pcs LED lights)
|
Wireless Inductive Coil Kit
Receiver Module (15mm / 50mm)
COB Light Strip
|
| Notes |
Includes wireless receiving functionality built directly into the LEDs. No additional receiver module required. Optional: add more LED lights (CD54 / CD43) to create richer and more immersive miniature scenes. |
COB light strips do not contain built-in wireless receiving functionality. A receiver module is required for operation. |

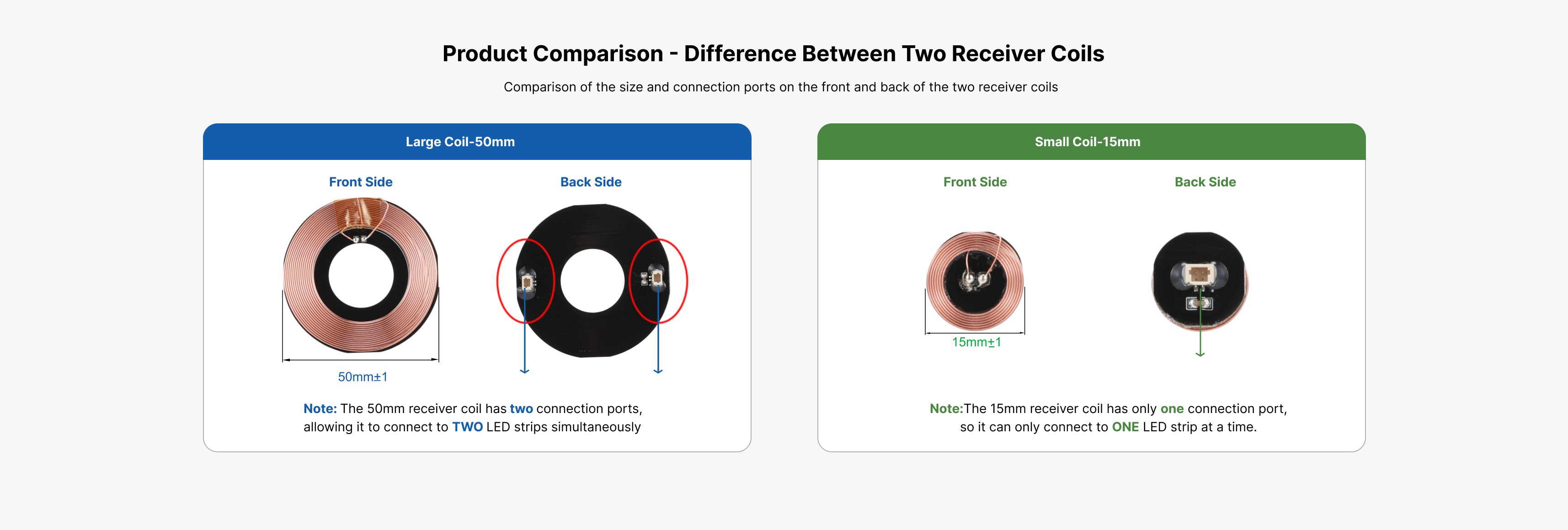

Receiver Modules for Different Installation Needs
For COB Light Strip Setup. Choose between compact or high-output receiver modules depending on the size and brightness requirements of your scene.
The 15mm receiver is designed for tight miniature spaces, while the 50mm version provides stronger output for larger lighting setups.
Product Specifications
Wireless Induction Control Board
| Board Size | 59.3 × 1 × 34mm |
| Power Input | DC 5V / 2A (USB Type-C) |
| Supported Protocols | PD / QC Fast Charging |
| Lighting Modes | Always On / Slow Flash / Fast Flash / Off |
| Working Frequency | 182KHz |
| Max Output Power | 1W |
Wireless Induction Transmitter Coil
| Coil Size | 90 × 7 × 77mm |
| Connector Type | XH2.54-2P |
| Recommended Use | Installed inside miniature bases and powered platforms |

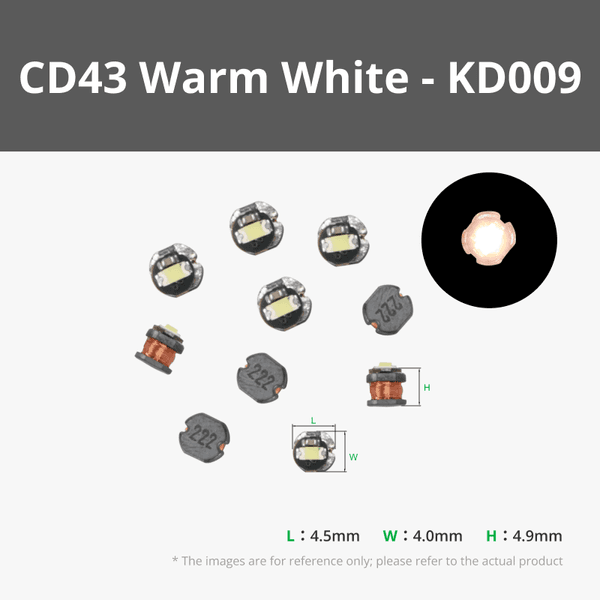

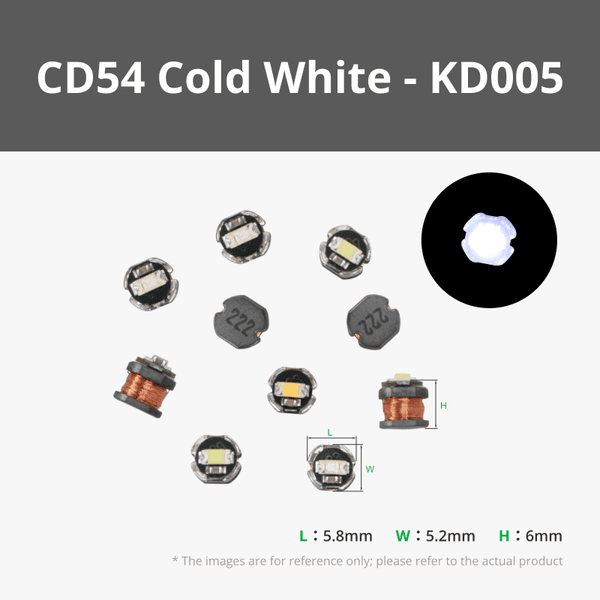

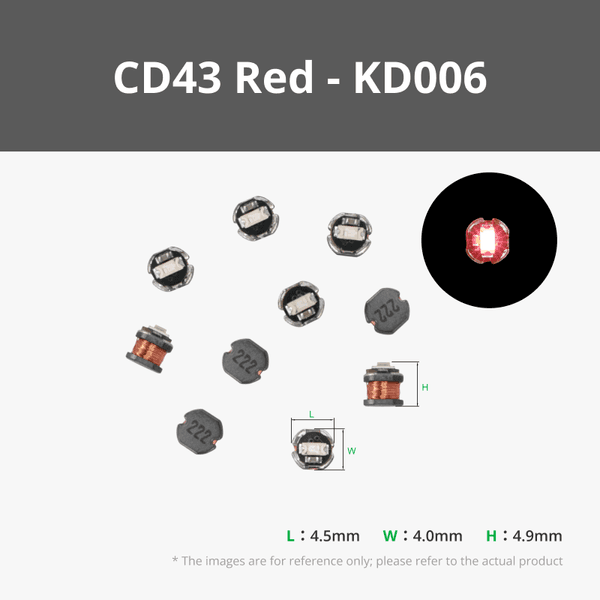

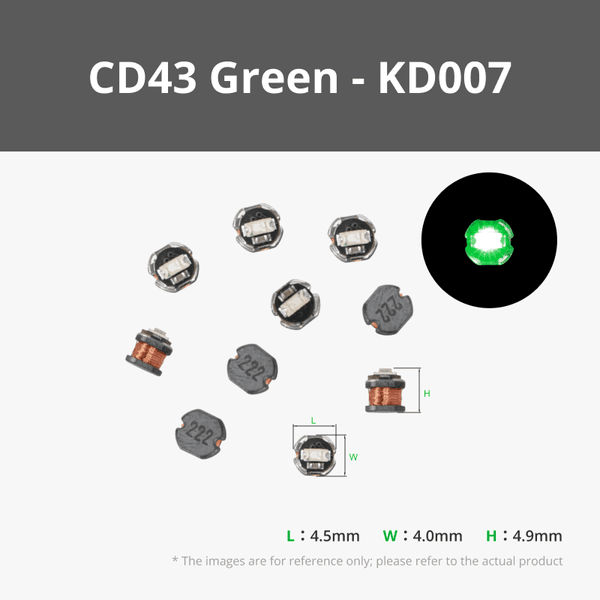

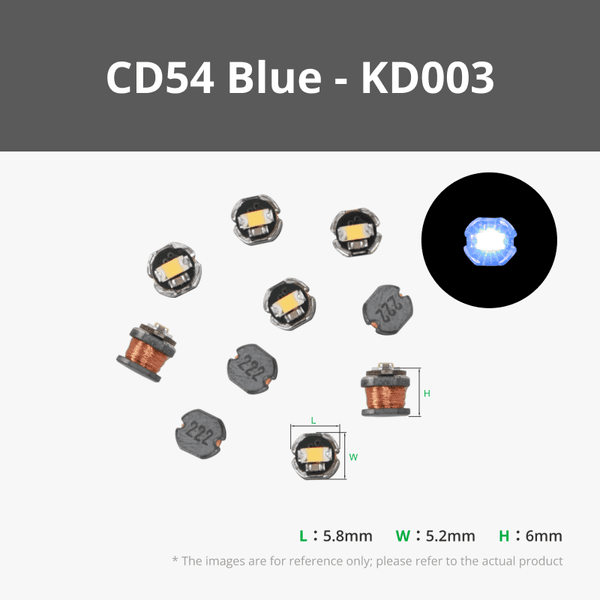

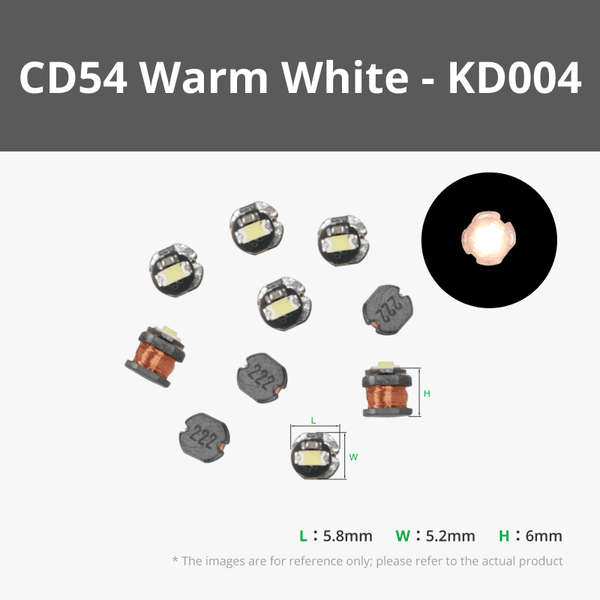

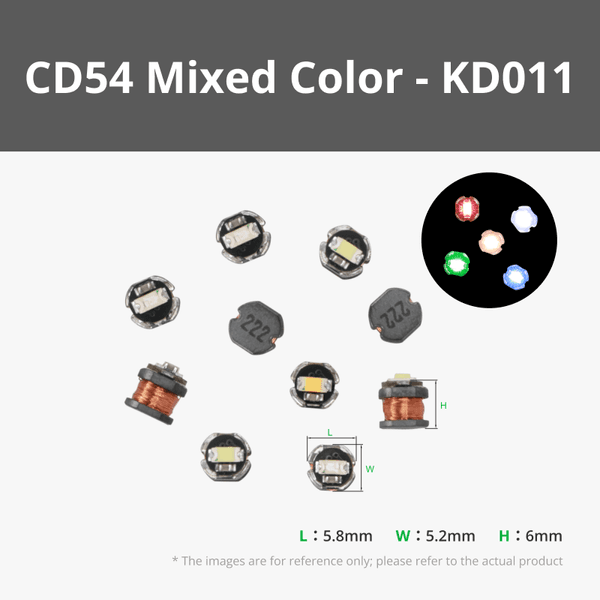

Inductive LED Lights (CD54 / CD43)
| LED Types | CD54 / CD43 |
| CD54 Size | 5.8 × 6 × 5.2mm |
| CD43 Size | 4.5 × 4.9 × 4mm |
| LED Colors | Red / Green / Blue / Warm White / White |
| Wireless Receiving | Built directly into the LED module |
| Inductive Distance | 0–14cm (depending on installation position and LED color) |

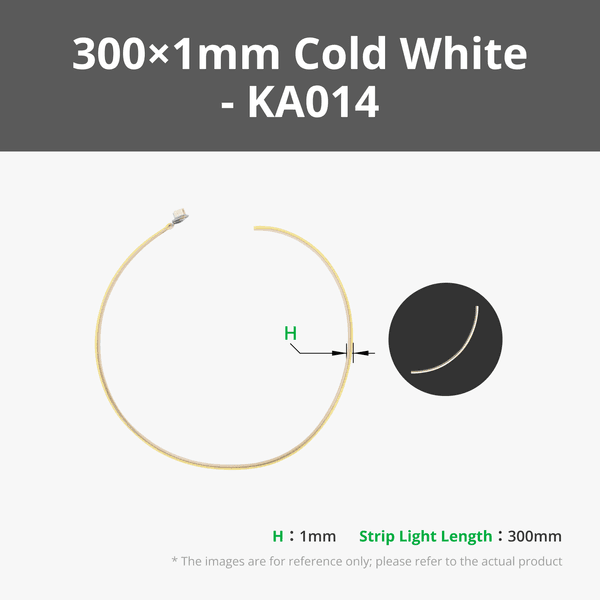

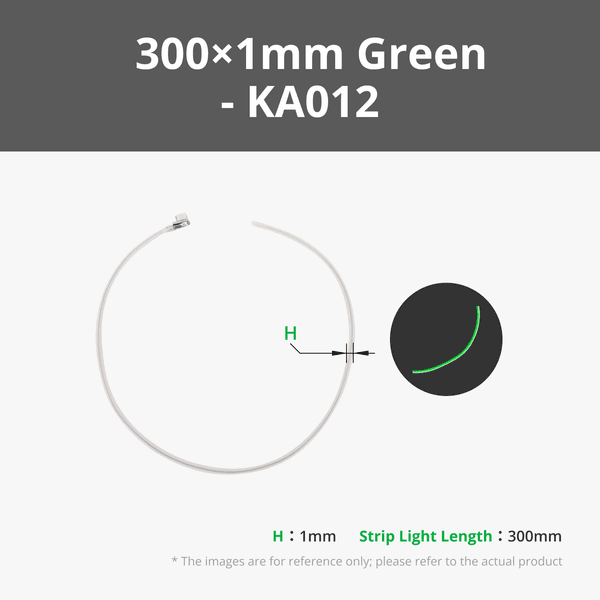

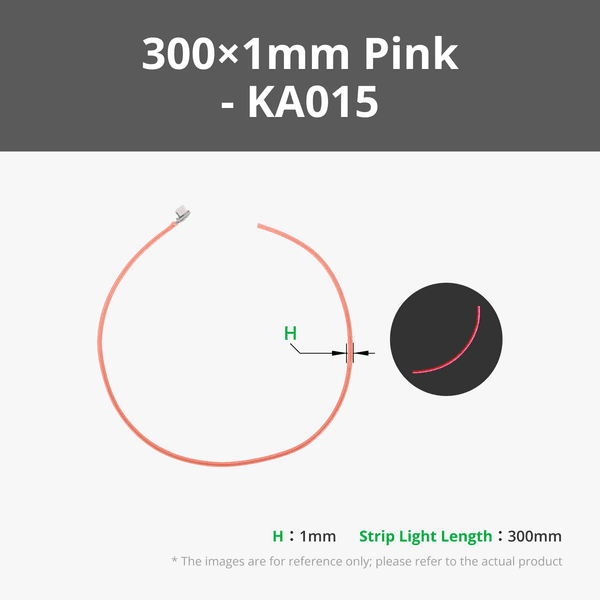

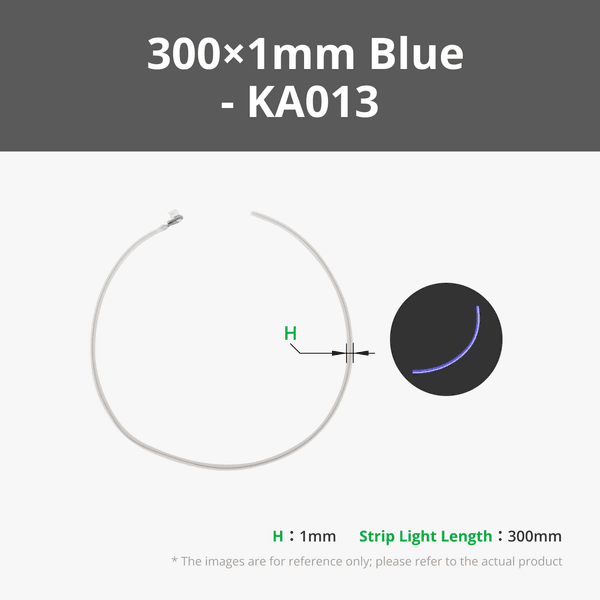

COB Light Strip & Receiver Module
| Receiver Sizes | 15mm / 50mm |
| 15mm Receiver | Supports 1 light strip |
| 50mm Receiver | Supports up to 2 light strips |
| COB Strip Length | 300mm |
| Light Colors | White / Blue / Purple / Pink / Ice Blue / Green / Red |
| Color Temperature | 6000K (±5%) |
| CRI | Ra ＞ 90 |
| Brightness Efficiency | 100lm/W |
| Protection Rating | IP20 |
Installation Notes
- Total power output should not exceed 1W.
- Keep metal objects away from the transmitter coil during operation.
- COB light strip can be bent freely but not folded in half. The working humidity environment should be 20%-40%RH (non-condensing).
- Receiver modules should not directly contact each other during installation.
- COB light strips require a receiver module for wireless operation.
- Lighting brightness and inductive distance may vary depending on installation position and surrounding materials.
Documentations
Wireless Induction Control Board
3D Files with Structure and Dimensions.
Wireless Inductive Coil LED Lights - CD54
3D Files with Structure and Dimensions.
Wireless Inductive Coil LED Lights - CD43
3D Files with Structure and Dimensions.

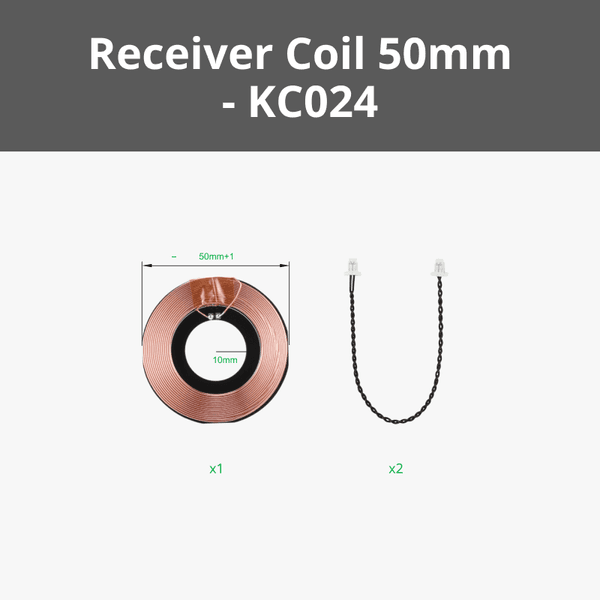

Wireless Inductive Receiver Coil - 50mm
3D Files with Structure and Dimensions.

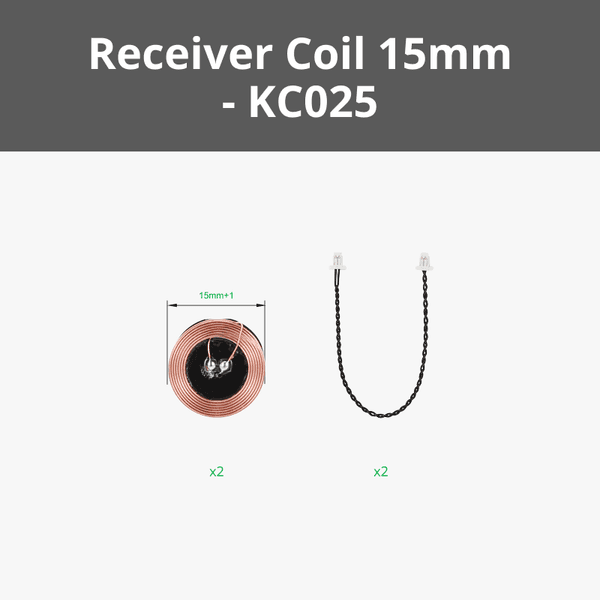

Wireless Inductive Receiver Coil - 15mm
3D Files with Structure and Dimensions.

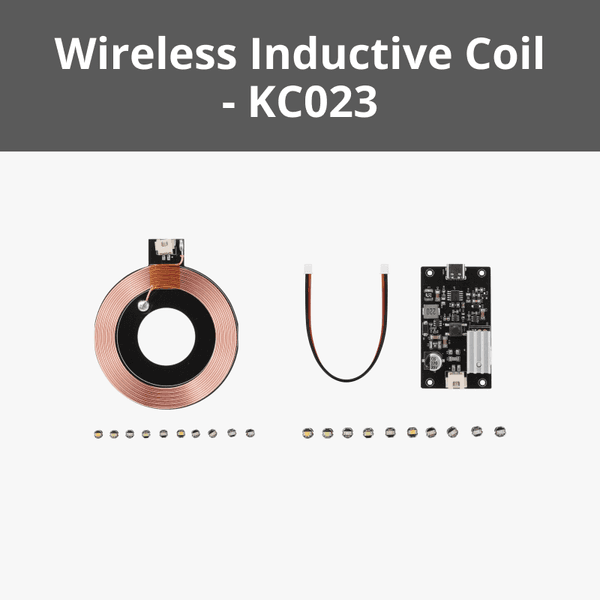

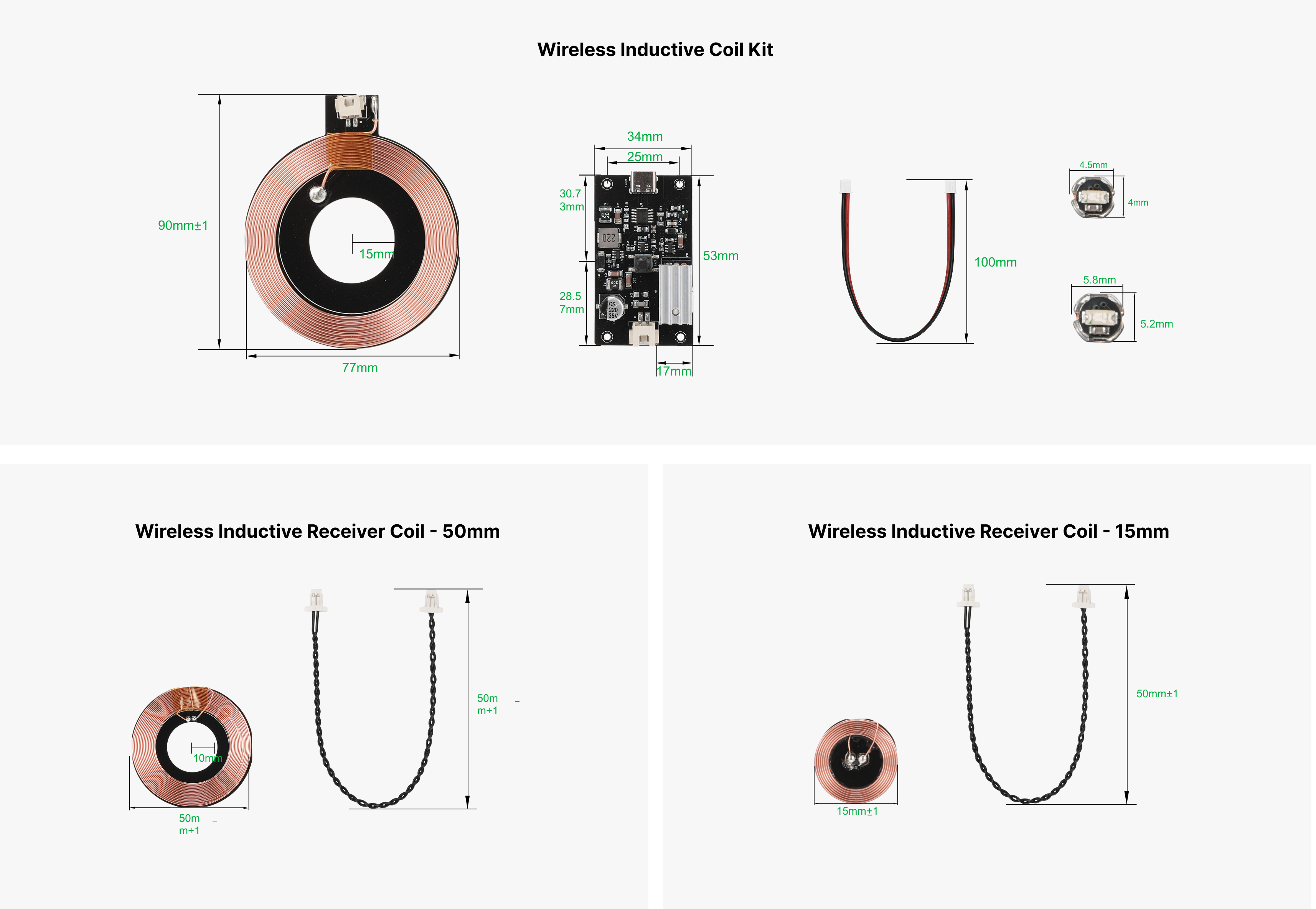

Wireless Inductive Coil Kit
$16.99
Wireless Inductive Coil Kit with 20 LED Lights - KC023 - $16.99
