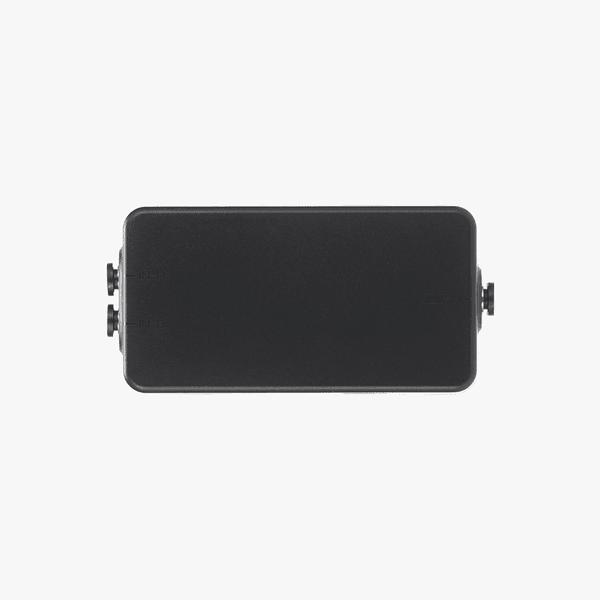

Bambu Lab Filament Track Switch accessory for X2D dual-nozzle printer

Filament Track Switch for dynamic AMS filament routing on Bambu Lab

Roll over image to zoom in Click on image to zoom

Bambu Lab Filament Track Switch | Dynamic AMS Filament Routing for Dual-Nozzle Printing

INNOADDI

Product Feature

Eliminate Manual Filament Re-grouping
Dynamic Mapping for Peak Efficiency

Variant: X2D

Variant

Price:

$59.99

Bambu Lab X2D AMS Combo Dual-Nozzle 3D Printer | Multi-Material, AI Monitoring, Heated Chamber

$649.00

View Add-on

Bambu Lab AMS 2 Pro – Multi-Material Filament System with Drying & RFID Sync

$359.00 $299.00

View Add-on

Bambu Lab AMS HT - Automatic Material System

$159.00 $139.00

View Add-on

4-in-1 PTFE Adapter Filament II Cleaning Pad

$2.99

View Add-on

Bambu Hotend - H2/P2S/X2D

$20.99

View Add-on

Bambu High Flow Hotend - H2D/H2S/P2S/H2C

$51.99

View Add-on

Share this product

Overview

The Bambu Lab Filament Track Switch is designed to make multi-color and multi-material printing on the X2D more efficient by eliminating the need for manual filament regrouping between AMS units. Instead of being locked to a fixed nozzle path, filaments can be dynamically routed to the nozzle assigned by the slicer, giving you more flexibility and less setup friction.

For users running complex dual-nozzle jobs, this means a more streamlined workflow and better use of available AMS slots.

Key Benefits

Eliminate manual filament re-grouping
Traditionally, dual-extrusion printing often requires users to manually rearrange filaments between AMS units so the right material reaches the correct nozzle. The Filament Track Switch removes that manual bottleneck by intelligently routing filament where it is needed.

Dynamic mapping for greater efficiency
The switch unbinds AMS units from fixed nozzle assignments, allowing dynamic filament mapping across the printer’s extrusion system. This supports more flexible nozzle usage and can improve multi-color printing efficiency.

vision encoder

Better hardware flexibility for dual-nozzle workflows
With the Filament Track Switch installed, the X2D can make better use of AMS-connected filament paths, helping users manage larger or more varied print jobs with less manual intervention.

Important Compatibility Notice

Please read before purchasing:

Currently, the Filament Track Switch is only compatible with the X2D
Support for H2C is expected in Q2 2026
Support for H2D is expected in the second half of 2026

Even though H2D and H2C may appear in broader compatibility references, current supported use is X2D only. Buyers should not purchase for H2C or H2D until official support is released.

Important Usage Notes

The maximum number of AMS units depends on the printer’s own AMS expansion limit
On dual-nozzle printers such as the X2D, one AMS can support filament switching between the left and right hotends
With only one AMS connected, the two hotends support alternate feeding only, not simultaneous feeding
During switching, the AMS must unload filament first and then reload it
External spools are not supported while the Filament Track Switch is installed
Certain filaments such as PLA-CF, PLA Glow, and PLA Silk may be more sensitive to feed resistance and may not perform reliably through the switch
High-precision nozzle offset calibration on the X2D cannot currently be performed while the switch is installed; the switch must be removed first until a future firmware update addresses this limitation

Ideal For

X2D users doing advanced multi-color printing
Makers who want less manual filament reassignment
Engineers optimizing dual-nozzle workflows
Users managing multiple AMS units on more complex print jobs

Installation Guide

Please refer to the installation guide for the Filament Track Switch available on Bambu Lab Wiki. For a visual walkthrough, we also recommend watching the step-by-step installation video.

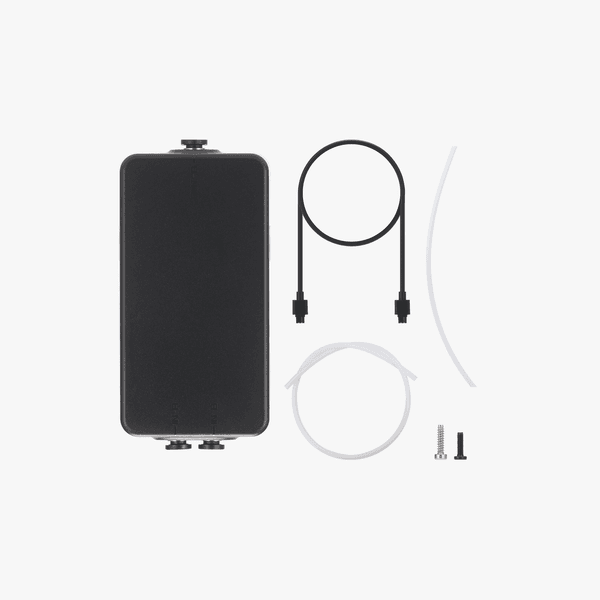

In the Box

Item	Quantity
Filament Track Switch	1
6-pin Cable	1
PTFE Tube (700 mm)	2
PTFE Tube (400 mm)	2
ST3x10 Screws	4
BT2x8 Screws	2

Product Specifications

Materials	Plastic, Metal	Packaging Size	15011050mm
Color	Black	Packaging Weight	60 g

FAQ

1. When the filament track switch is installed on the X2D printer, how many AMS units can be connected at most?

A: The number of AMS units the printer can connect to is independent of whether the filament track switch is installed, so the X2D supports up to 4 AMS 2 Pro and 8 AMS HT units simultaneously—12 units with 24 slots in total—linked via the 4-in-1 PTFE adapter.

2. Can the 4-in-1 PTFE adapter be used when only two AMS units are connected?

A: Using the 4-in-1 PTFE adapter with just two AMS units is strongly discouraged; the extra resistance during loading and unloading can compromise print reliability.

3. Can the filament track switch be connected to an external spool?

A: No. When using an external spool, it will permanently occupy one extruder channel, making the filament track switch unable to dynamically map filament from the AMS to the two extruders. Therefore, if you need to print with an external spool, you need to remove the filament track switch.

4. Are there filament restrictions when printing with the filament track switch?

A: Certain filaments—such as PLA-CF, PLA Glow, and PLA Silk—are more sensitive to feed resistance and may fail to load or unload. Avoid using these filaments through the switch. If problems occur and printing must continue, try:

Manually moving the problematic filament to another AMS slot;
Using the officially recommended PTFE tube length;
Arranging the AMS units as advised in the official guidelines.

If issues persist, disable the filament track switch for the current print job.

5. What should I do if the filament track switch is clogged?

A: If the filament track switch is clogged, please refer to filament track switch disassembly and troubleshooting guide to clear the clog.

6. What should I do if the filament gets stuck at the filament track switch outlet?

A: If the filament gets stuck at the filament track switch outlet, you can try the following solutions:

Reconnect the PTFE tube between the filament track switch and the filament buffer.
Install the pneumatic connector locking tab on the filament track switch outlet.
Replace the PTFE tube between the filament track switch and the filament buffer.

7. Can the printer perform calibration when using the filament track switch?

A: Currently, after installing the filament track switch on the X2D, high-precision nozzle offset calibration cannot be performed. To run this calibration, you must first remove the switch and restore the printer to its state without the switch. A future firmware update will resolve this limitation.
