Bambu Lab R1

Big job. Light work.

Why Choose Bambu Lab R1

55W CO2. Cuts deeper. Cuts more.

Fast, without losing detail.

Cleaner air while you cut.

No manual calibration.

Taller. Rounder. Longer. Thicker.

What you mark is what you cut.

See what R1 can make.

PlayDeck – Modular Play Table & Stool Set @janberrydesign

Crystal Canyon Mine – Marble Run @Daniel4d

Prairie Lamp @Makim

Sunflower Painting @miyabi

Thundercloud – Layered Acrylic Lamp @Daniel4d

Layered Clock @Bambu Lab

CO₂ laser. Wood to glass. Tabletop decor to furniture.

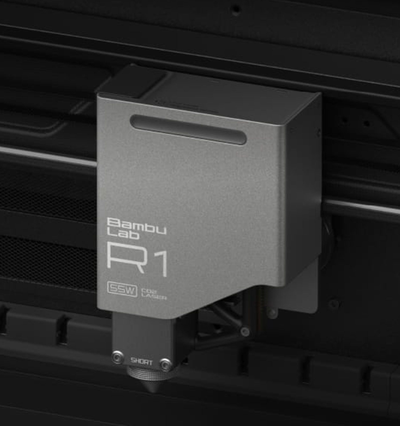

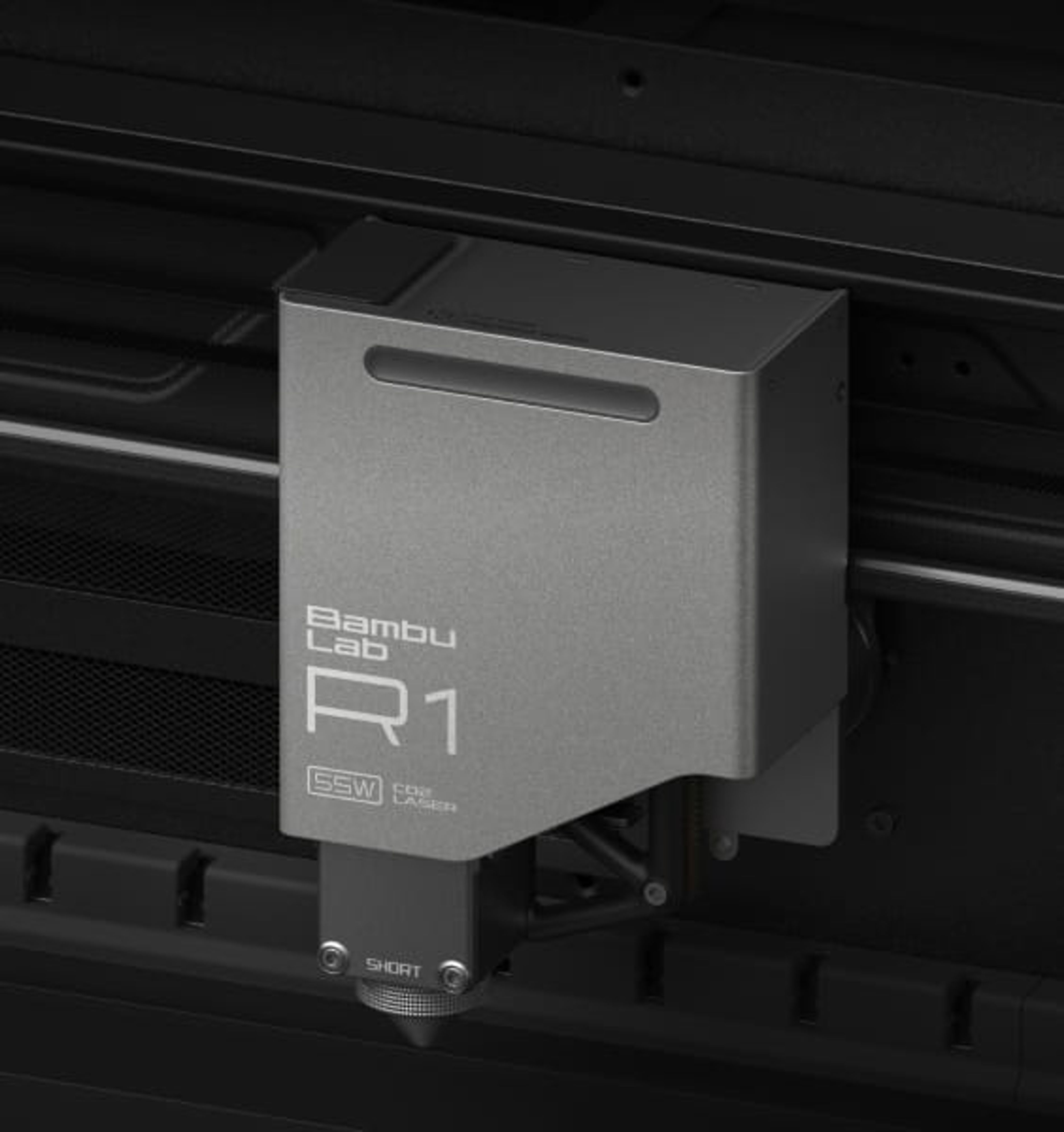

A 55W CO₂ laser with Bambu Lab's proven motion control, making laser work faster, finer, and easier.

The 55W CO₂ laser cuts up to 18 mm walnut and 20 mm acrylic¹ in a single pass — fast, clean, and without the extra passes that slow you down.

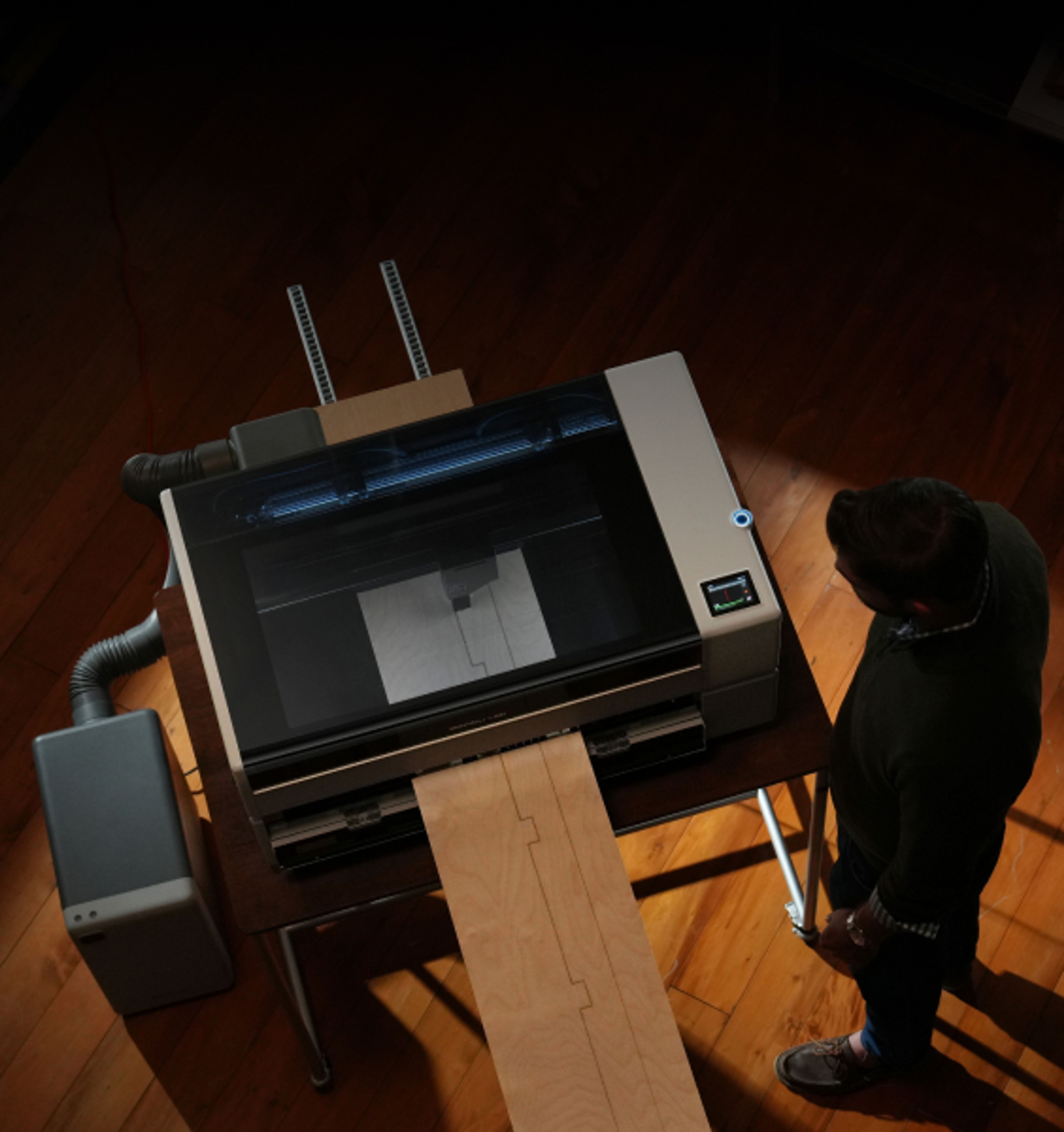

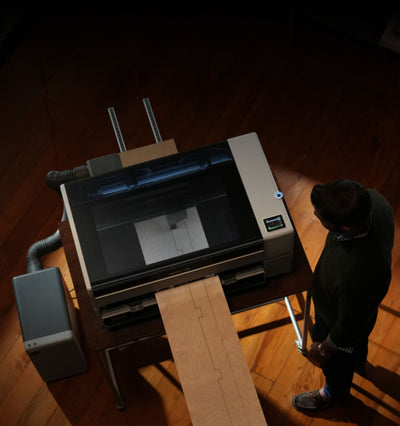

With the auto-feed conveyor³, R1 handles material up to 3 meters long. Pass-through feeding and deep cutting turn full-length panels into tables, shelving and furniture.

Bring out the best in every material.

Powered by a 55W CO₂ laser, R1 works across a wide range of materials — from wood and acrylic to glass, leather, fabric, and more — each bringing its own character to the piece.

Full material list

Wood

Transparent acrylic

Glass

Fabric

Leather

Anodized aluminum

Slate

Tricky setup? Solved.

Auto Laser AlignmentFollow it on the screenMaterial, recognized

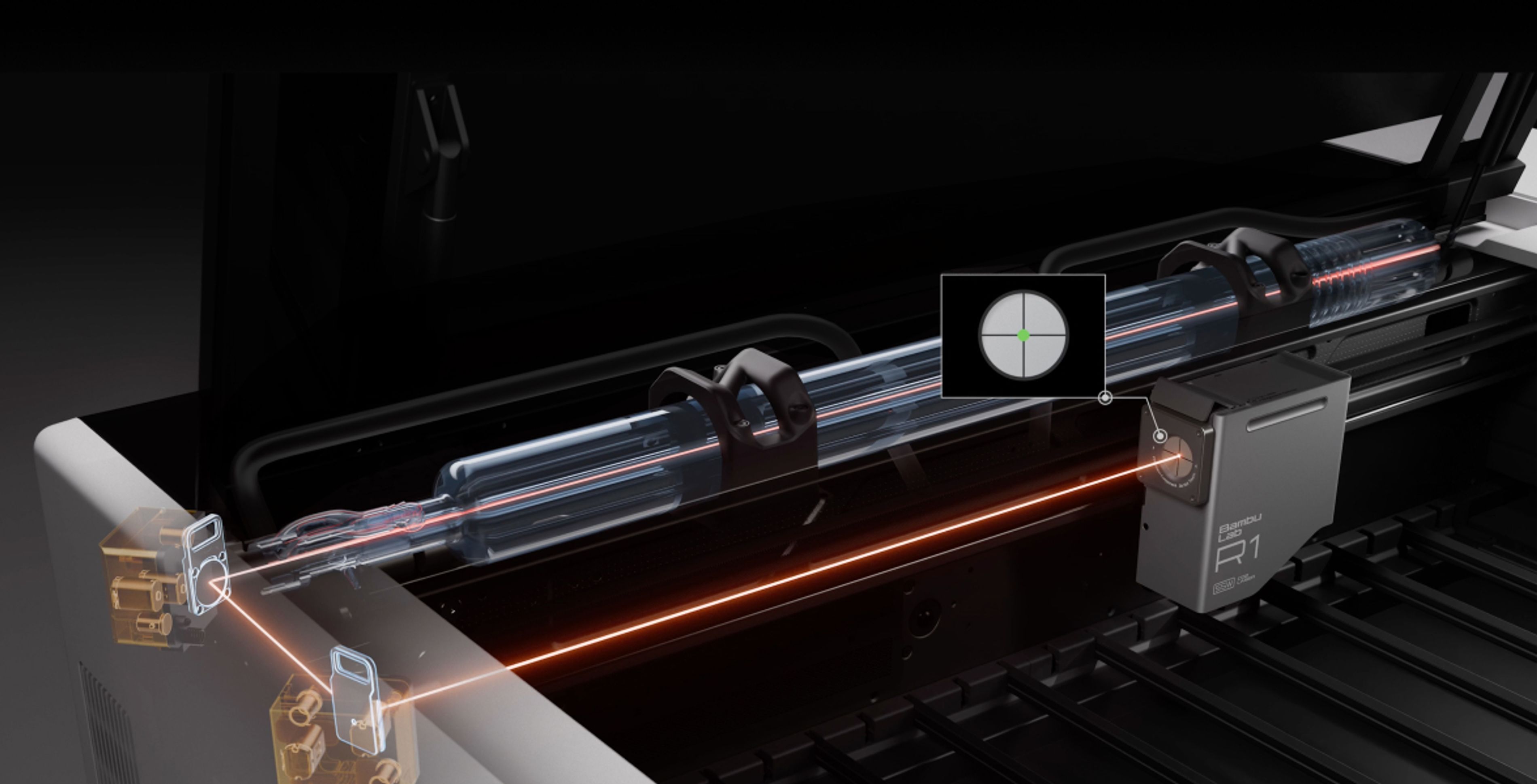

Usually, aligning the optical path meant test shots, manual adjustments, and trial and error — with no telling how long it might take. With R1, that chore comes down to one small sensor. Mount the Laser Alignment Sensor on the toolhead, and it measures the beam, detects the misalignment, and corrects the path automatically, in just one minute.

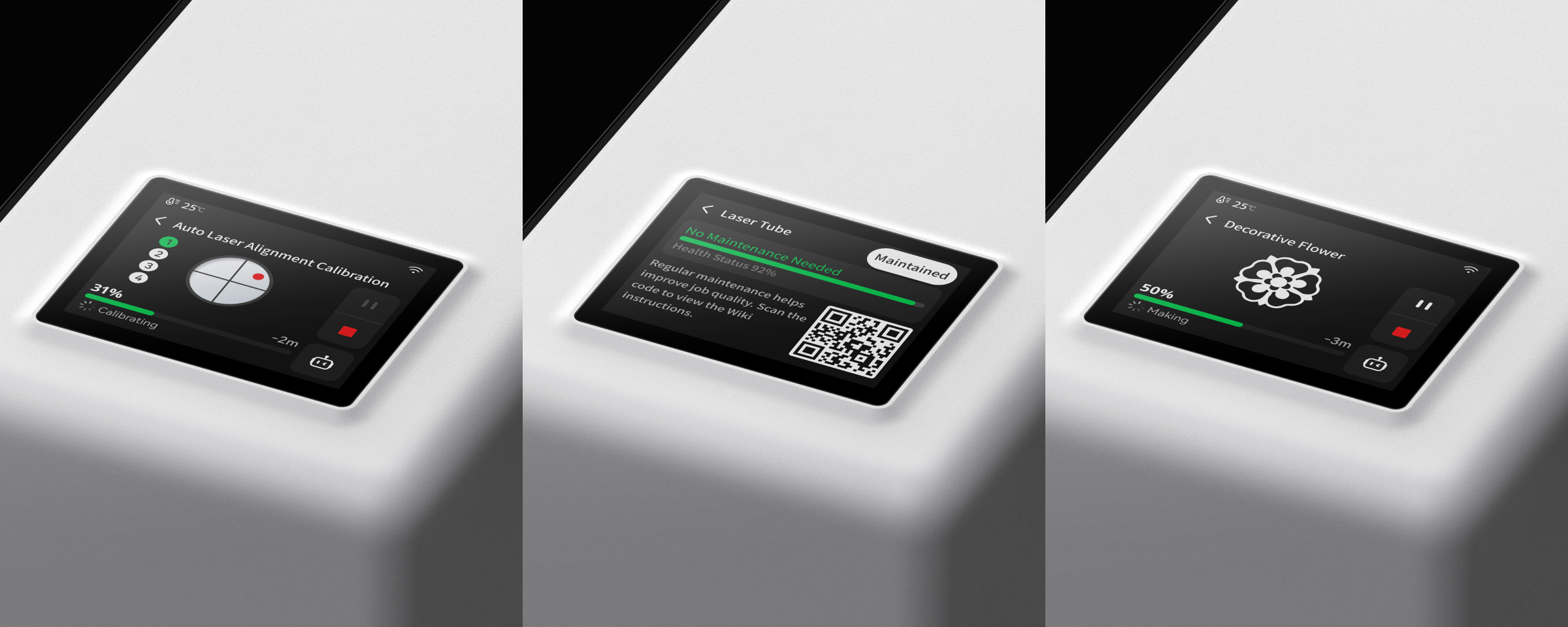

R1 puts a touchscreen right on the machine. Follow every job in real time, watch the optical path calibrate, and check the machine's health status — all without a computer.

R1 recognizes Bambu Lab material automatically and applies the right power and speed, so you can skip test grids and manual parameter setup.

Safer by design.
Made for everyday spaces.

Crossflow VentilationClass 1 laser safetyLid-open stopFlame detectionEmergency stop

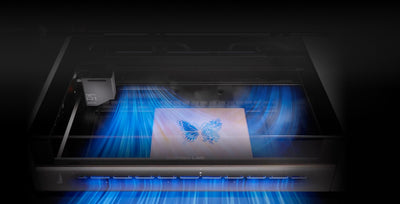

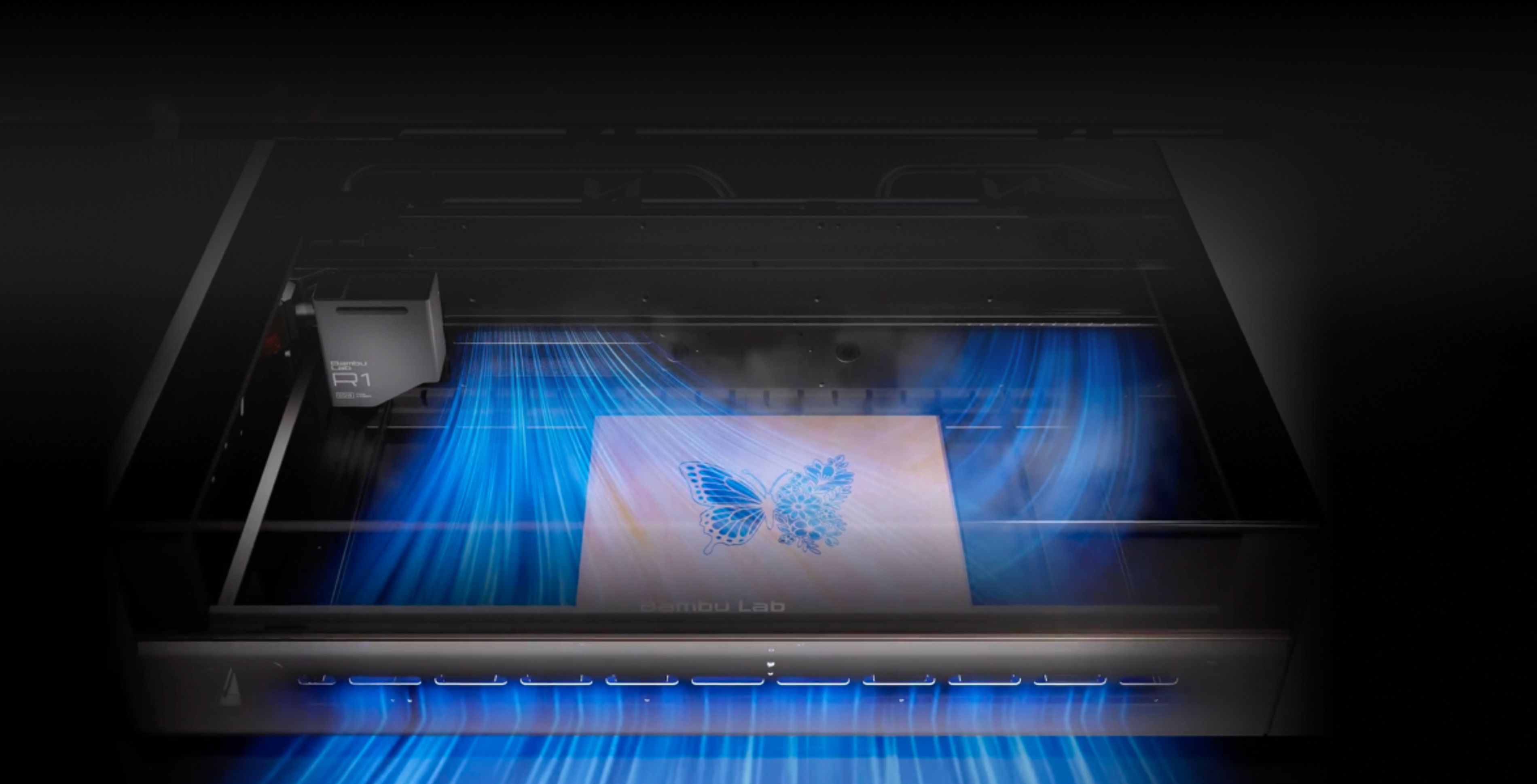

Most lasers rely on a single exhaust fan. R1 brings fresh air in from one side and exhausts smoke from the other, creating a steady crossflow through the entire chamber.

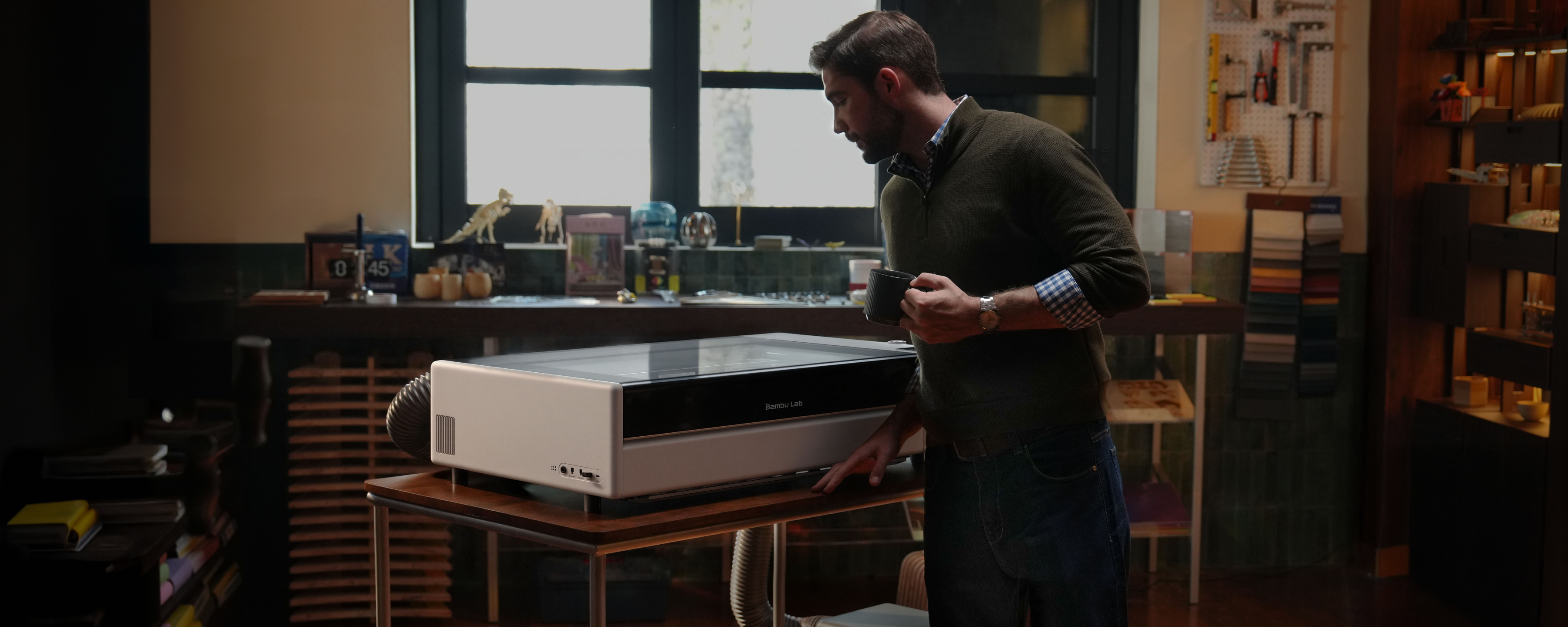

R1 is Class 1 under IEC 60825-1 in standard enclosed use. Laser radiation stays contained inside the enclosure, so no safety goggles or dedicated laser room are needed.⁷

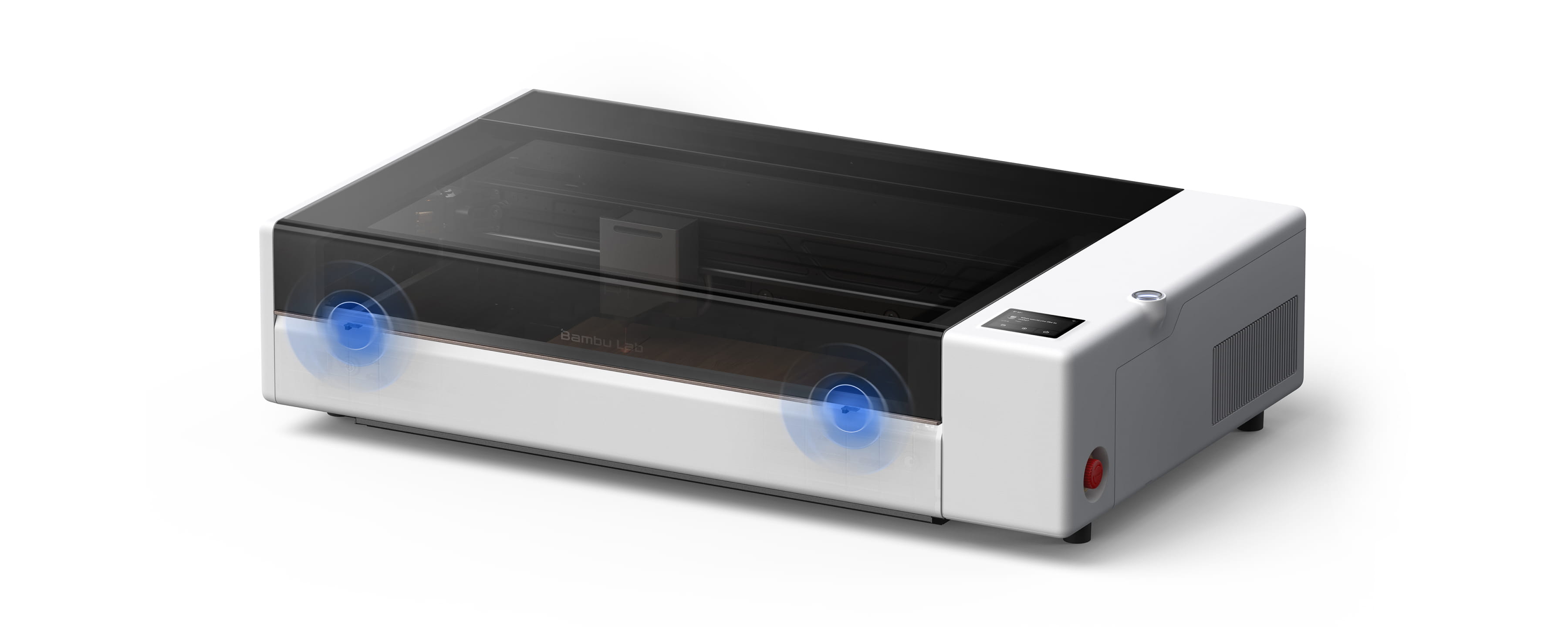

Open the lid and the laser stops immediately. It stays disabled while the lid is open.

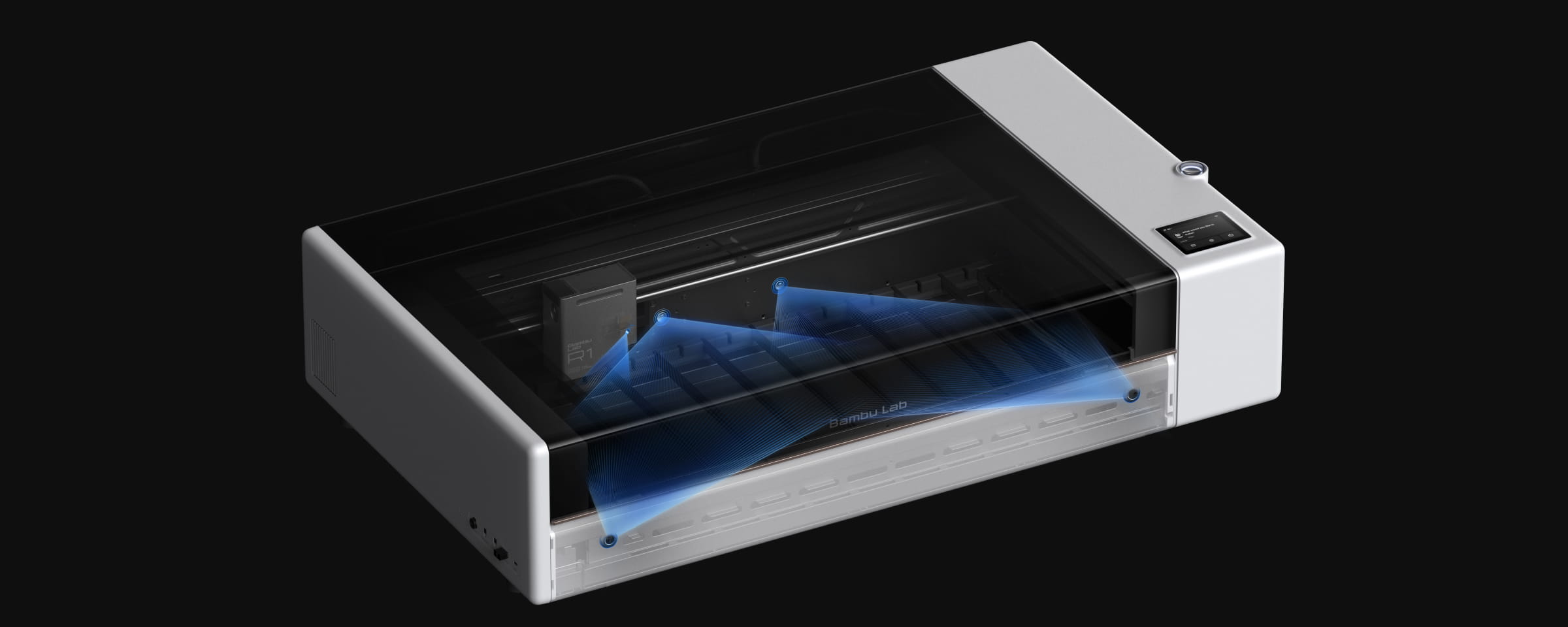

Built-in sensors continuously watch for signs of flame and respond as soon as one is detected.

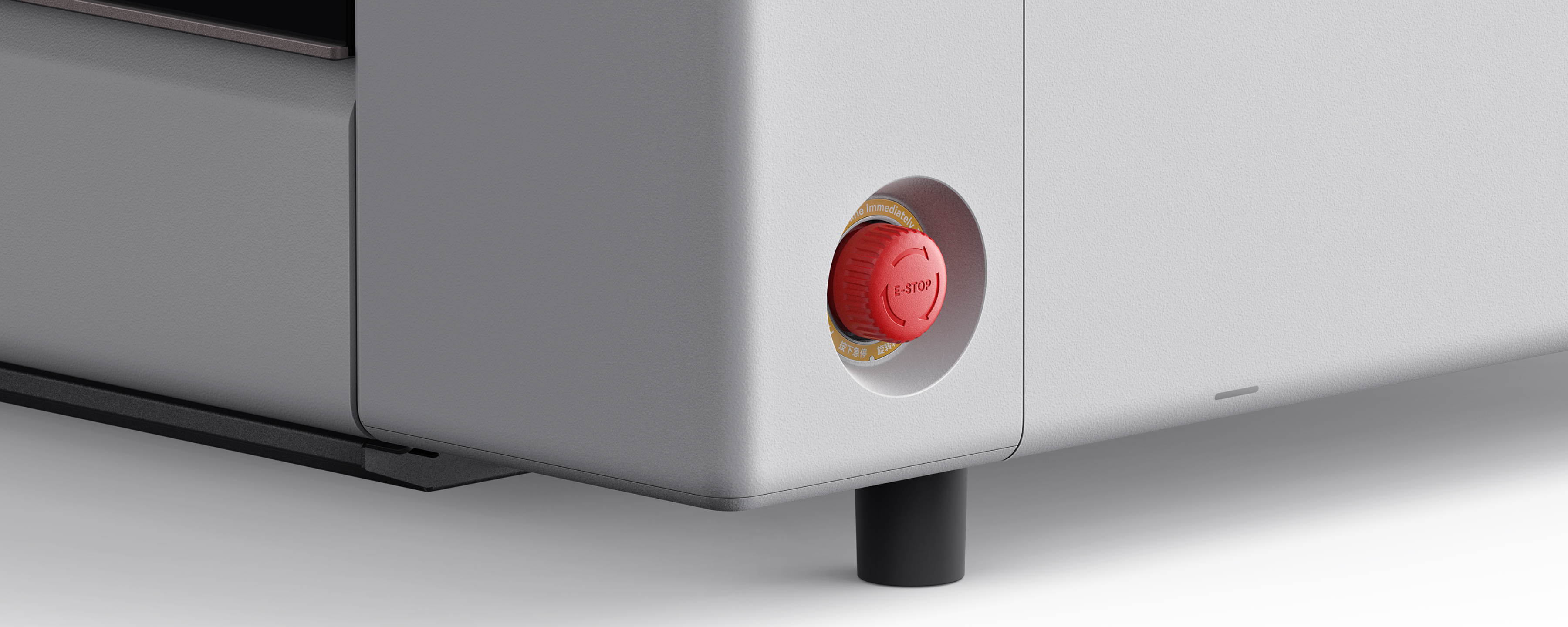

One press cuts power to the machine immediately.

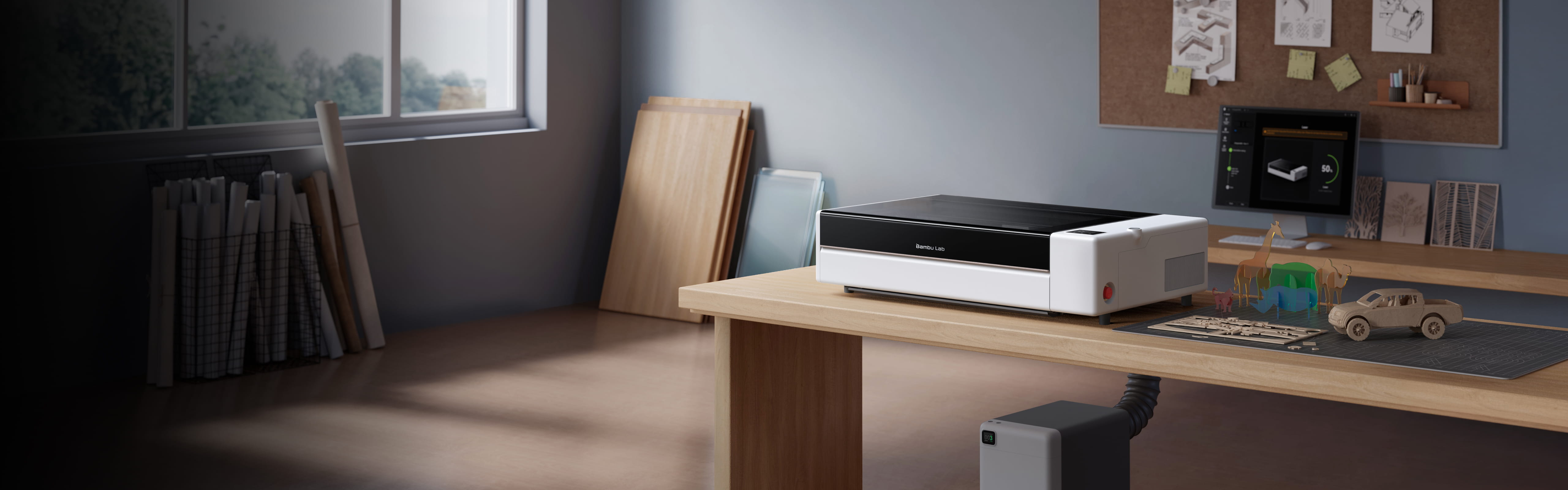

Same work area. Smaller footprint.

R1 delivers the same working area as a typical CO₂ laser while taking up about a third less space.⁸

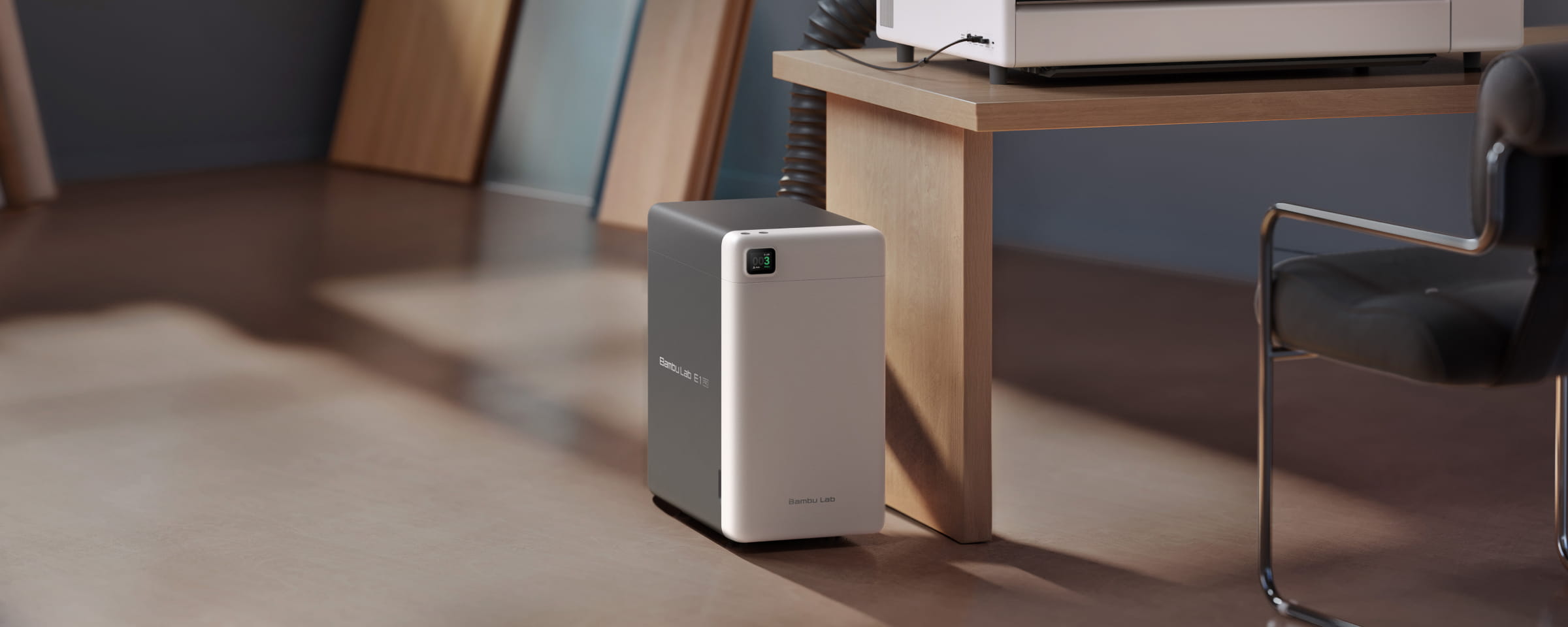

E1 Pro Air Purifier. Cleaner air, back in the room.

Built for R1, E1 Pro⁶ connects directly to R1's exhaust outlet and pulls smoke out at the source. Multiple filter layers, with activated carbon, catch smoke and fine particles and reduce odors.

Learn more

Go taller. Rounder. Longer. Thicker.

Add the setup you need for taller objects, round pieces, thicker stock, and extra-long boards.³

Riser Base

Raises R1 to create clearance for taller objects. Also required for the Conveyor and Rotary.
Learn more.

Conveyor

Automatically feeds long stock through R1, letting you cut and engrave boards up to 3 meters long.
Learn more.

Rotary Attachment

Rotates round objects for full 360° engraving on bottles, bowls, cups, and more. Requires the Riser Base.
Learn more.

Focus lenses (Medium / Long)

Greater depth of focus for cleaner cuts through thicker materials — up to 20 mm with the long-focus lens.
Learn more.

What's in the box

	R1	R1 Long Material Bundle	R1 Long Material & Rotary Bundle
R1	1	1	1
Power Cord	1	1	1
Smoke Ventilation Hose	1	1	1
Smoke Ventilation Fan	1	1	1
Anti-freeze	1	1	1
Funnel	1	1	1
Allen Key	1	1	1
Safety Key (Pre-installed)	1	1	1
Laser Alignment Sensor	1	1	1
Material Pin	1	1	1
Calibration Board	1	1	1
Lubricant Grease	2	2	2
Lubricant Oil	1	1	1
Clear Acrylic	1	1	1
Basswood Plywood	1	1	1
Riser Base	-	1	1
Automatic Conveyor Feeder	-	1	1
Rotary Attachment	-	-	1
Rotary Attachment Bracket	-	-	1

Bambu Lab R1 55W CO₂ Laser Cutter & Engraver

Big jobs. Light work.

The Bambu Lab R1 combines a powerful 55W CO₂ laser with intelligent positioning, automatic optical-path alignment, high-speed engraving, and an enclosed safety system. Cut and engrave wood, clear acrylic, leather, fabric, paper, and more—without the complicated setup traditionally associated with CO₂ laser machines.

Ideal for makers, schools, design studios, fabrication labs, and businesses producing signs, décor, prototypes, models, and custom products.

Key Features

• Powerful 55W CO₂ laser
• 600 × 300 mm standard working area
• Cuts up to 20 mm acrylic in a single pass
• Cuts up to 18 mm black walnut plywood with the appropriate focusing lens
• Engraving speed up to 1,000 mm/s
• Acceleration up to 20,000 mm/s²
• Automatic optical-path alignment in approximately one minute
• TriSense positioning system with cameras, lasers, and encoders
• Positioning accuracy within 0.2 mm
• Automatic focusing and surface-height detection
• Crossflow ventilation for more effective smoke removal
• Touchscreen operation and real-time machine monitoring
• Class 1 enclosed laser system during standard operation
• Expandable for long, tall, round, and thick workpieces

Powerful Cutting and Engraving

The 55W CO₂ laser gives the R1 the power to handle demanding projects while maintaining clean edges and fine detail.

Depending on the focusing lens and material, the R1 can cut:

• Up to 20 mm acrylic
• Up to 18 mm black walnut plywood
• Wood, including plywood
• Acrylic, including transparent acrylic
• Leather
• Fabric
• Paper
• EVA foam
• Shell

The R1 can also engrave compatible coated metals, glass, ceramic, slate, and other supported surfaces.

Cutting performance depends on the material, focusing lens, settings, maintenance, and operating environment. References to wood cutting capacity apply to plywood.

Accurate Placement with TriSense

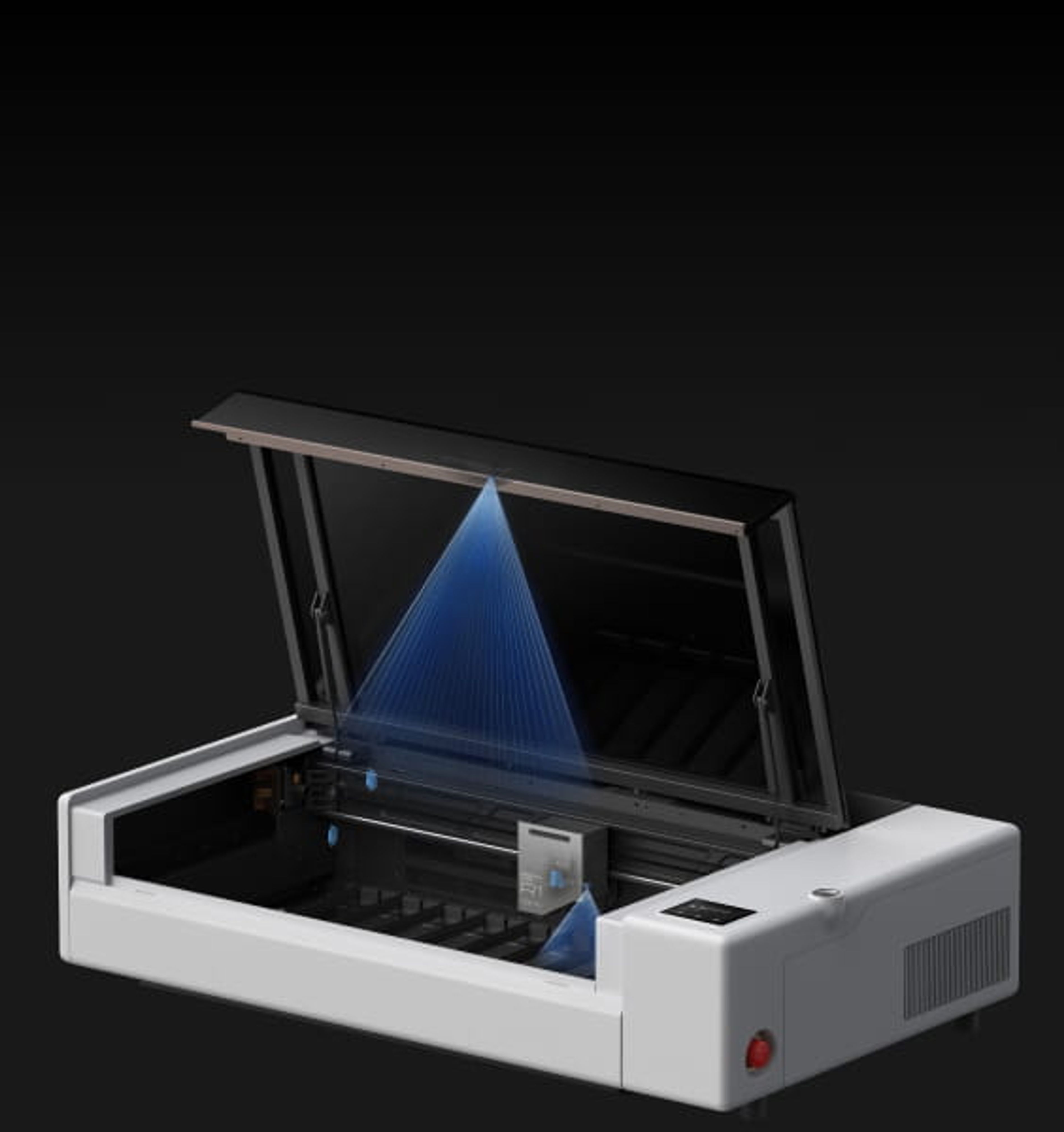

Drop your material into the machine—even if it is crooked, small, transparent, curved, or uneven. The R1’s TriSense system combines dual cameras, dual lasers, and encoders to locate the workpiece and place the design accurately.

TriSense supports:

• Panoramic work-area capture
• Detailed toolhead-camera positioning
• Automatic laser ranging and focusing
• Surface-height detection
• Printed-outline tracing
• Accurate positioning on transparent materials
• Positioning accuracy of less than 0.2 mm

For applications requiring even higher motion accuracy, the optional Vision Encoder provides absolute motion accuracy of less than 0.1 mm across 600 mm.

Fast Engraving Without Sacrificing Detail

The R1 reaches engraving speeds of up to 1,000 mm/s with acceleration up to 20,000 mm/s².

Bambu Lab’s motion-control and vibration-compensation technologies help reduce artifacts following sharp direction changes, maintaining clean lines and consistent engraving depth even at high speeds.

Automatic Laser Alignment

Traditional CO₂ laser alignment can require thermal paper, test shots, and repeated manual adjustments. With the included Laser Alignment Sensor, the R1 measures the beam, detects misalignment, and automatically corrects the optical path in approximately one minute.

Designed for Safer Operation

During normal enclosed operation, the R1 is classified as a Class 1 laser product under IEC 60825-1.

Built-in safety features include:

• Enclosed laser chamber
• Automatic laser shutoff when the lid is opened
• Flame-detection sensors
• Emergency-stop button
• Safety key
• Crossflow smoke ventilation

Proper ventilation is still required. Always follow the manufacturer’s operating instructions and material-safety guidance.

Expand Your Working Capabilities

Optional accessories allow the R1 to accommodate specialized projects:

Riser Base

Raises the machine to provide clearance for taller objects. The Riser Base is also required when using the Conveyor or Rotary Attachment.

Automatic Conveyor Feeder

Processes boards and other long materials up to 3,000 mm in length.

Rotary Attachment

Provides 360-degree engraving on compatible cylindrical and round objects, including bottles, cups, bowls, and similar items.

Medium- and Long-Focus Lenses

Provide greater depth of focus for cutting thicker materials. The standard short-focus lens offers the smallest spot size for fine engraving details.

E1 Pro Air Purifier

Connects directly to the R1 exhaust outlet. Its multi-layer filtration system uses activated carbon to capture smoke, fine particles, and odors.

Accessories are sold separately unless specifically included in the selected bundle.

Available Configurations

R1

Includes the R1 laser cutter and the standard operating accessories.

Price: $2,499

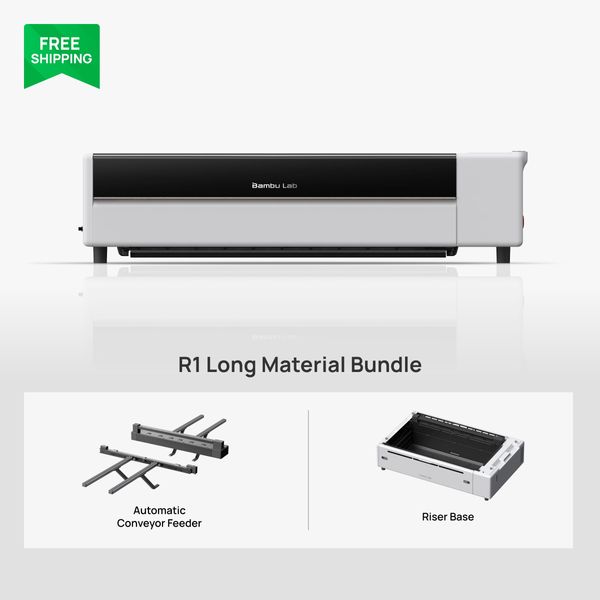

R1 Long Material Bundle

Includes:

• Bambu Lab R1
• Riser Base
• Automatic Conveyor Feeder
• Standard operating accessories

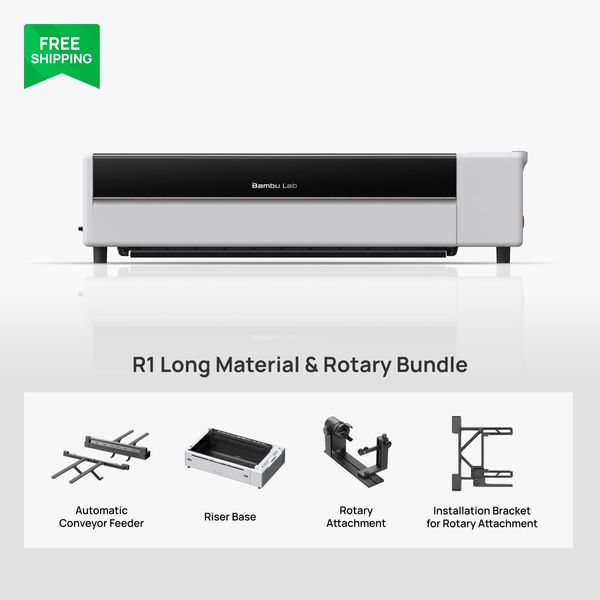

R1 Long Material & Rotary Bundle

Includes:

• Bambu Lab R1
• Riser Base
• Automatic Conveyor Feeder
• Rotary Attachment
• Rotary Attachment Bracket
• Standard operating accessories

Standard Package Contents

• Bambu Lab R1
• Power cord
• Smoke ventilation hose
• Smoke ventilation fan
• Laser Alignment Sensor
• Safety key, pre-installed
• Material pin
• Calibration board
• Antifreeze
• Funnel
• Allen key
• Lubricant grease
• Lubricant oil
• Clear acrylic sample
• Basswood plywood sample

Bundle-specific accessories are included only with the applicable configuration.

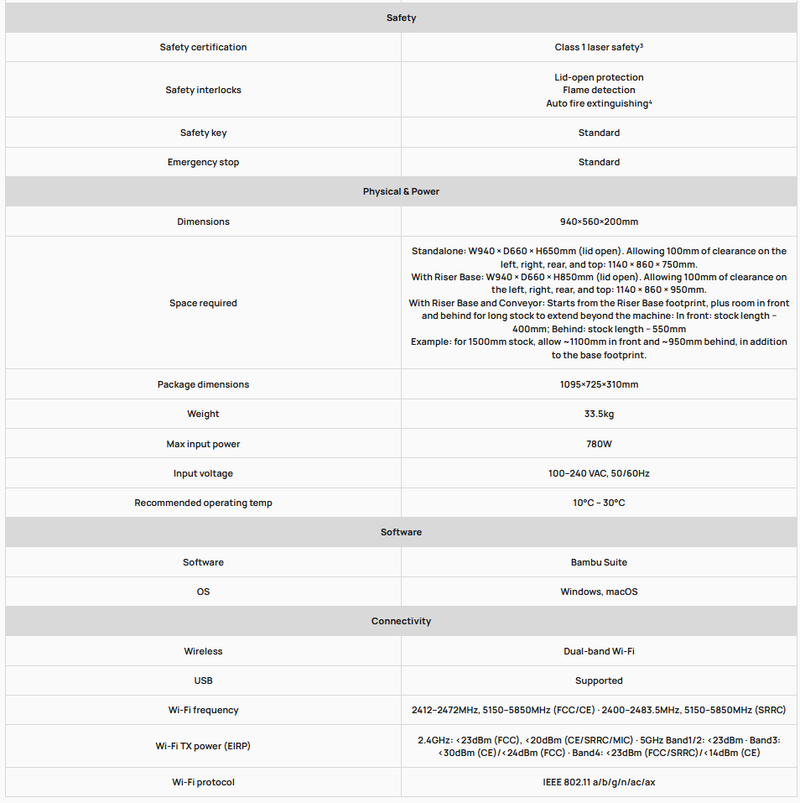

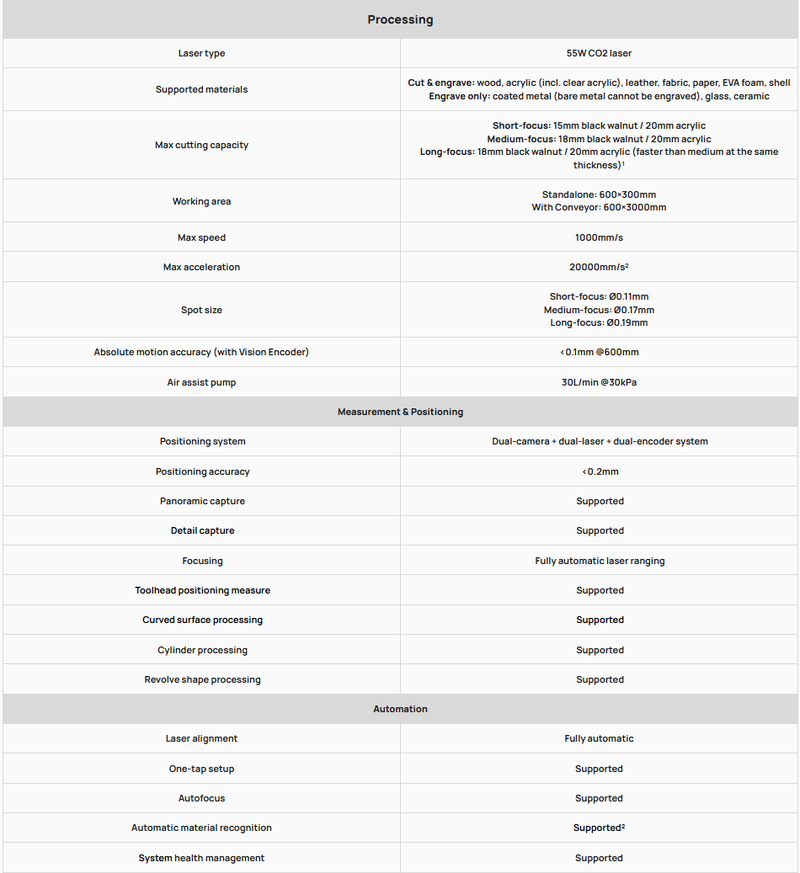

Technical Specifications

Important Laser Safety Notice

When the R1 is operated with the standard enclosure fully closed, it functions as a Class 1 laser product.

When used with the Riser Base or Automatic Conveyor Feeder, the enclosure is no longer complete and the machine becomes a Class 4 laser system. Class 4 operation requires appropriate CO₂ laser safety eyewear, additional safety controls, and trained professional operators.

Do not process PVC, vinyl, or other materials that may release toxic or corrosive fumes. Confirm the composition and laser compatibility of every material before use.
