Wireless Inductive Coil Kit

Roll over image to zoom in Click on image to zoom

Bring Your Miniatures to Life — Without Wires.

Traditional miniature lighting often requires visible wires, complex routing, and limited placement options. The Wireless Inductive Lighting Kit delivers power wirelessly through electromagnetic induction, allowing your models to light up naturally and cleanly — without exposed cables. Perfect for dioramas, vehicles, architectural scenes, and creative DIY projects.

Note. Click the model images to explore the full project details on MakerWorld and build your own miniature scene.

Create Immersive Wireless Lighting Effects

Automatic Inductive Activation

Lights turn on automatically when entering the inductive power area. Create immersive interactive scenes with a more realistic presentation experience.

One Button, Multiple Lighting Modes

Easily switch between different lighting effects using the wireless controller board. Choose between: slow flash mode, fast flash mode, always on mode, off mode.

Perfect for vehicle headlights, architectural lighting, decorative lanterns, and interactive miniature displays — allowing you to quickly adapt your lighting setup for different scenes and effects.

How Wireless Inductive Lighting Works

Choose Your Lighting Setup

Two wireless lighting solutions designed for different miniature lighting applications.

Choose between built-in inductive LED lighting or expandable COB light strip setups depending on your project needs.

Option	Option A Inductive LED Lights	Option B COB Light Strip Setup
Best For	Small miniatures Vehicle headlights Decorative lighting Compact scenes	Large illuminated areas Ambient lighting Scene base lighting Architectural models
Required Products	✔ Wireless Inductive Coil Kit (Includes 20 pcs LED lights) CD54 Size : Red / Green / Blue / Warm White / Cold White (2 pcs per color, 10 pcs total) CD43 Size : Red / Green / Blue / Warm White / Cold White (2 pcs per color, 10 pcs total)	✔ Wireless Inductive Coil Kit ✔ Receiver Module (15mm / 50mm) ✔ COB Light Strip
Notes	Includes wireless receiving functionality built directly into the LEDs. No additional receiver module required. Optional: add more LED lights (CD54 / CD43) to create richer and more immersive miniature scenes.	COB light strips do not contain built-in wireless receiving functionality. A receiver module is required for operation.

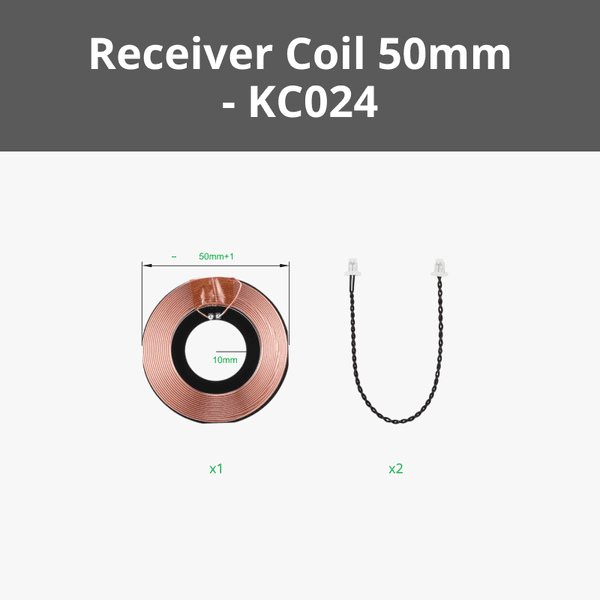

Receiver Modules for Different Installation Needs

For COB Light Strip Setup. Choose between compact or high-output receiver modules depending on the size and brightness requirements of your scene.

The 15mm receiver is designed for tight miniature spaces, while the 50mm version provides stronger output for larger lighting setups.

Product Specifications

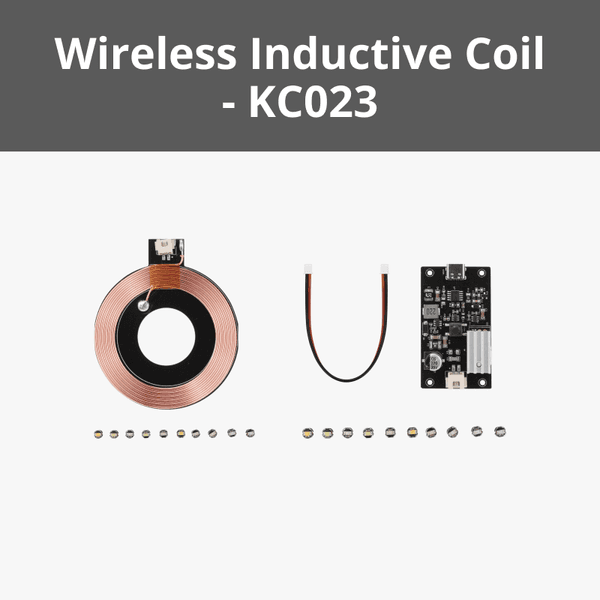

Wireless Induction Control Board

Board Size	59.3 × 1 × 34mm
Power Input	DC 5V / 2A (USB Type-C)
Supported Protocols	PD / QC Fast Charging
Lighting Modes	Always On / Slow Flash / Fast Flash / Off
Working Frequency	182KHz
Max Output Power	1W

Wireless Induction Transmitter Coil

Coil Size	90 × 7 × 77mm
Connector Type	XH2.54-2P
Recommended Use	Installed inside miniature bases and powered platforms

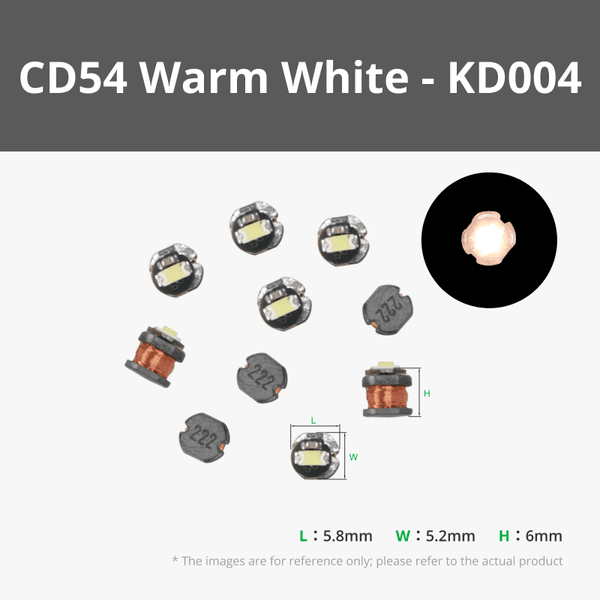

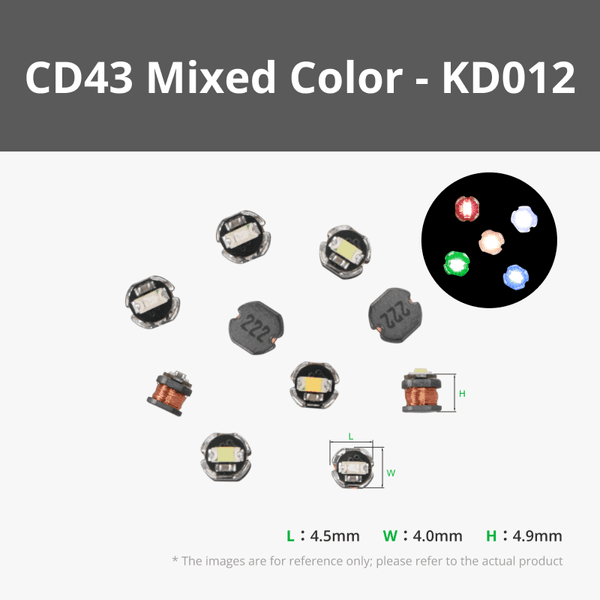

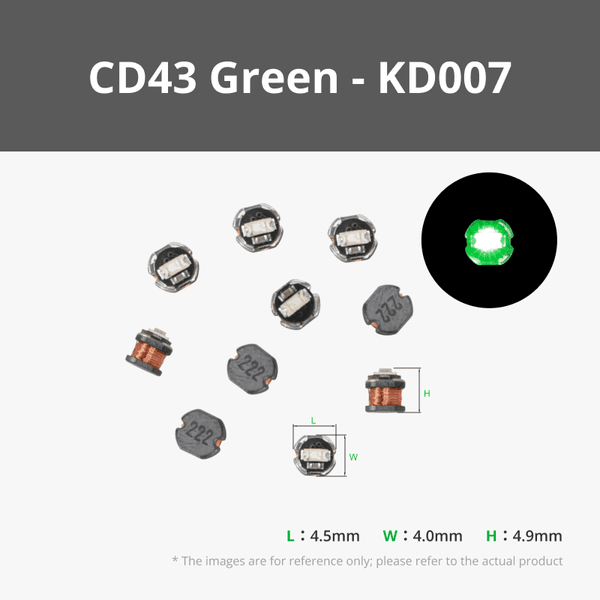

Inductive LED Lights (CD54 / CD43)

LED Types	CD54 / CD43

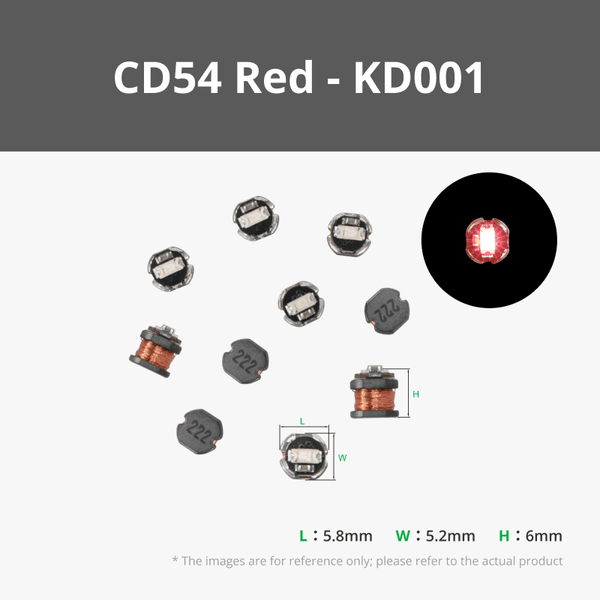

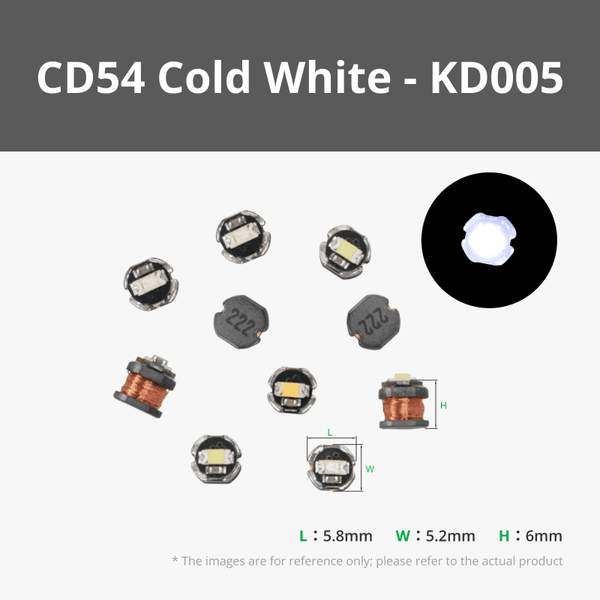

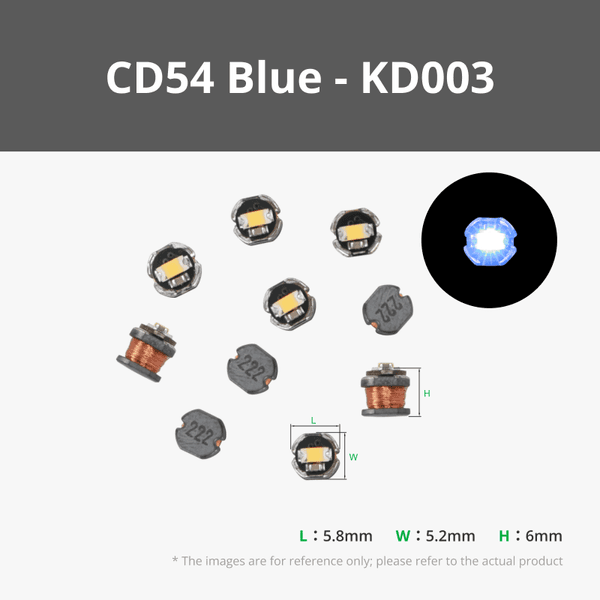

CD54 Size	5.8 × 6 × 5.2mm

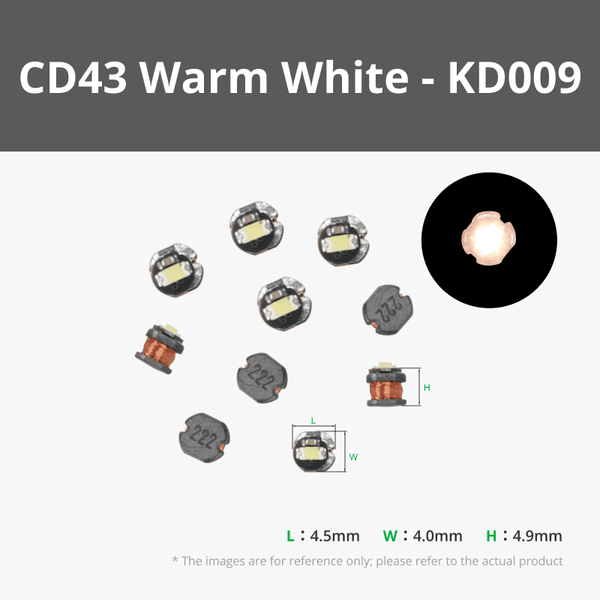

CD43 Size	4.5 × 4.9 × 4mm
LED Colors	Red / Green / Blue / Warm White / White
Wireless Receiving	Built directly into the LED module
Inductive Distance	0–14cm (depending on installation position and LED color)

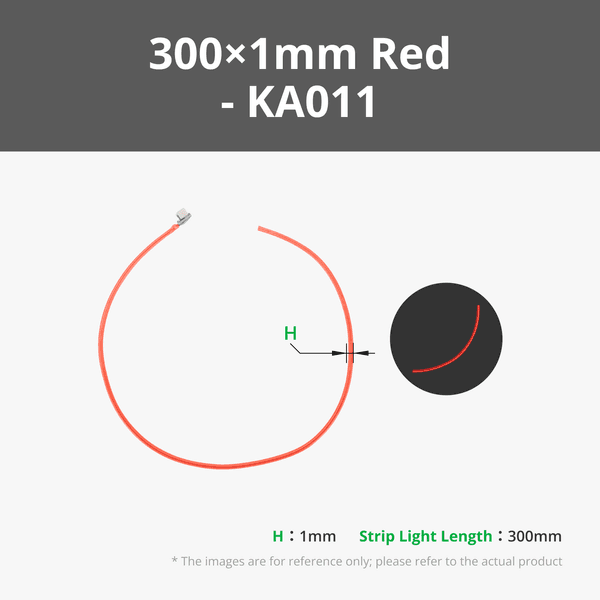

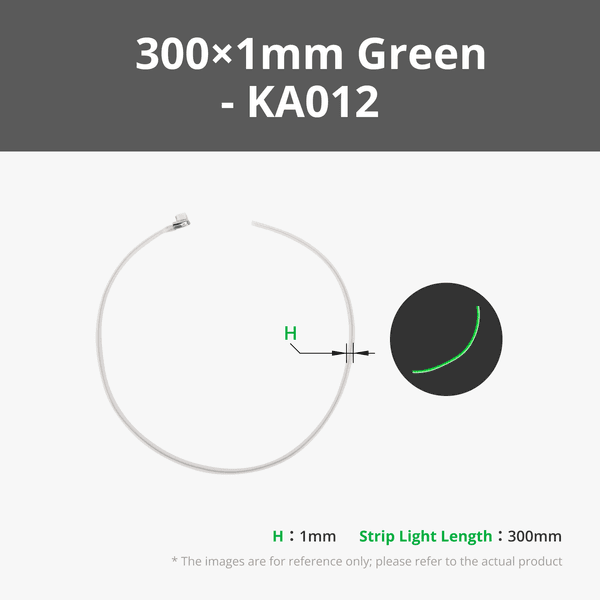

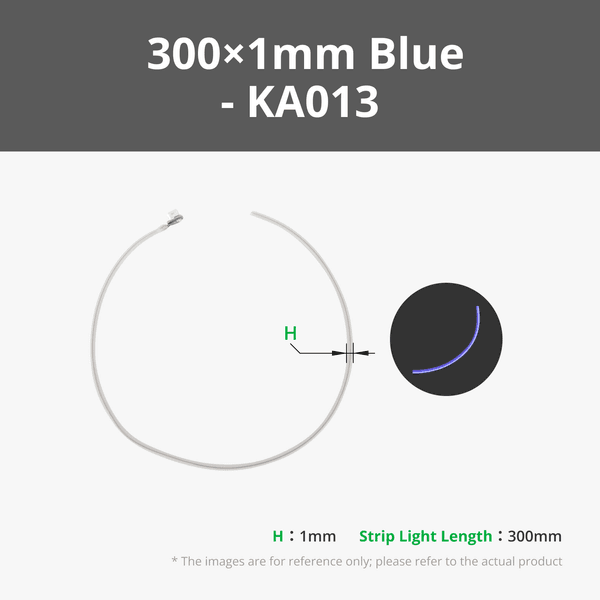

COB Light Strip & Receiver Module

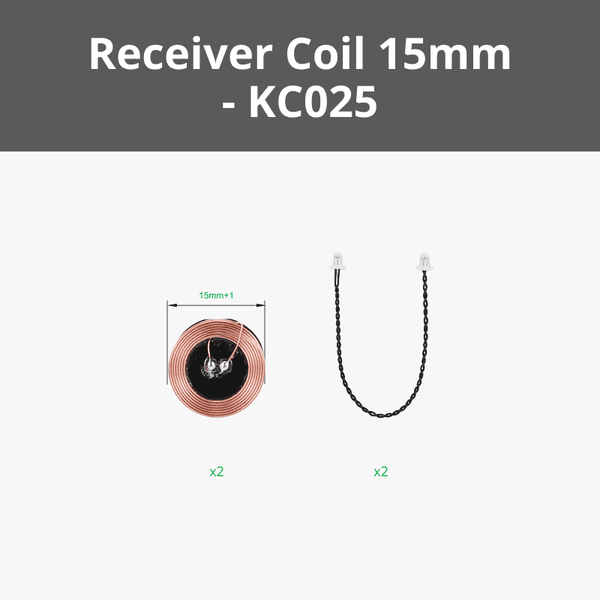

Receiver Sizes	15mm / 50mm
15mm Receiver	Supports 1 light strip
50mm Receiver	Supports up to 2 light strips

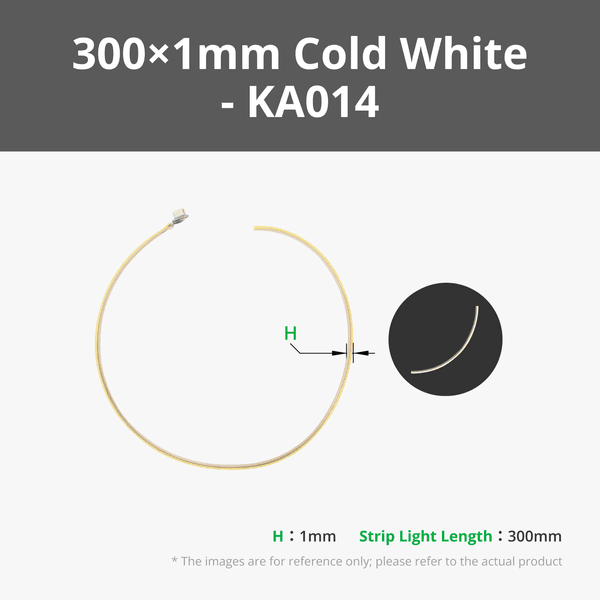

COB Strip Length	300mm
Light Colors	White / Blue / Purple / Pink / Ice Blue / Green / Red
Color Temperature	6000K (±5%)
CRI	Ra ＞ 90
Brightness Efficiency	100lm/W
Protection Rating	IP20

Installation Notes

Total power output should not exceed 1W.
Keep metal objects away from the transmitter coil during operation.
COB light strip can be bent freely but not folded in half. The working humidity environment should be 20%-40%RH (non-condensing).
Receiver modules should not directly contact each other during installation.
COB light strips require a receiver module for wireless operation.
Lighting brightness and inductive distance may vary depending on installation position and surrounding materials.
