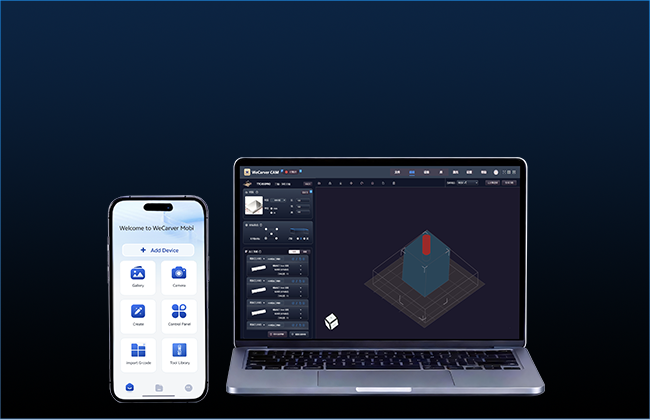

WeCarver CAM Smart Software
Why Twotrees ED1 Stands Out
Âą0.01mm Ultra-Precise Machining Accuracy
Integrated
Die-Cast Frame

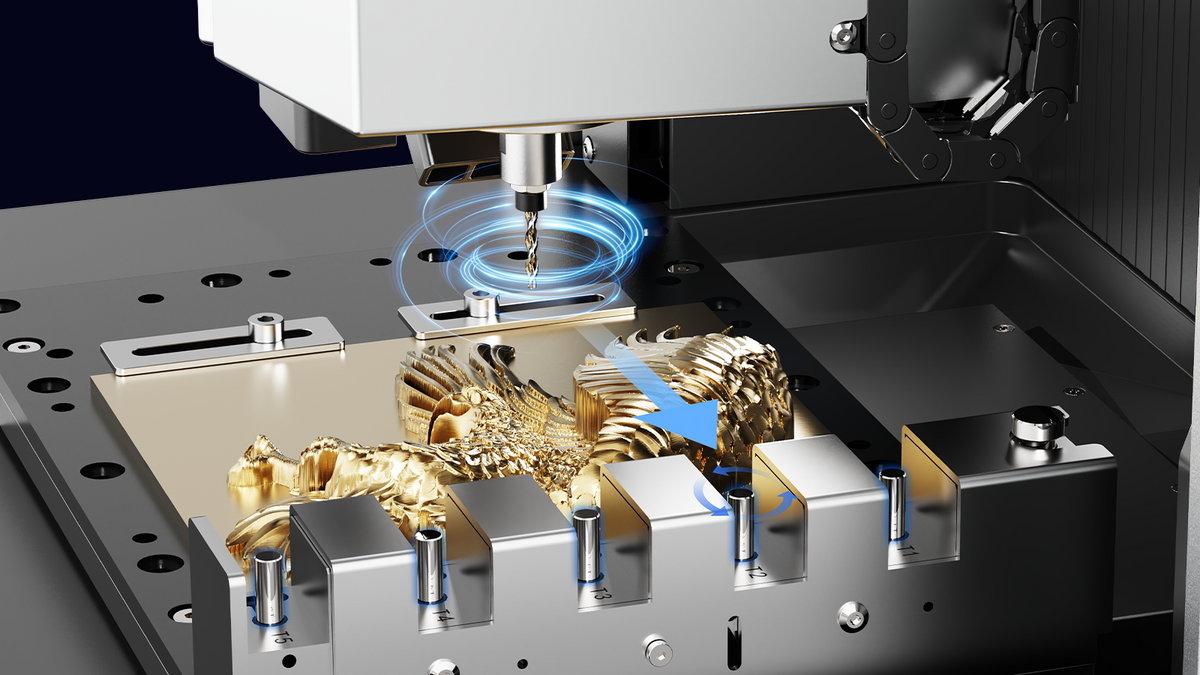

Fully Automatic Tool Changer
600W Industrial Power Spindle

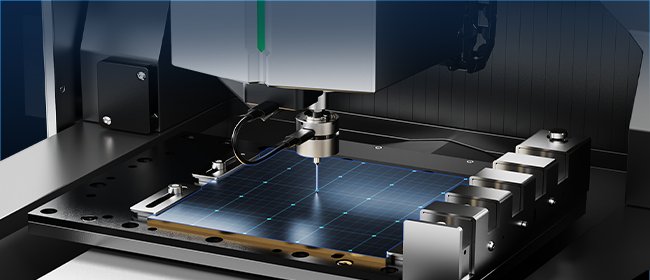

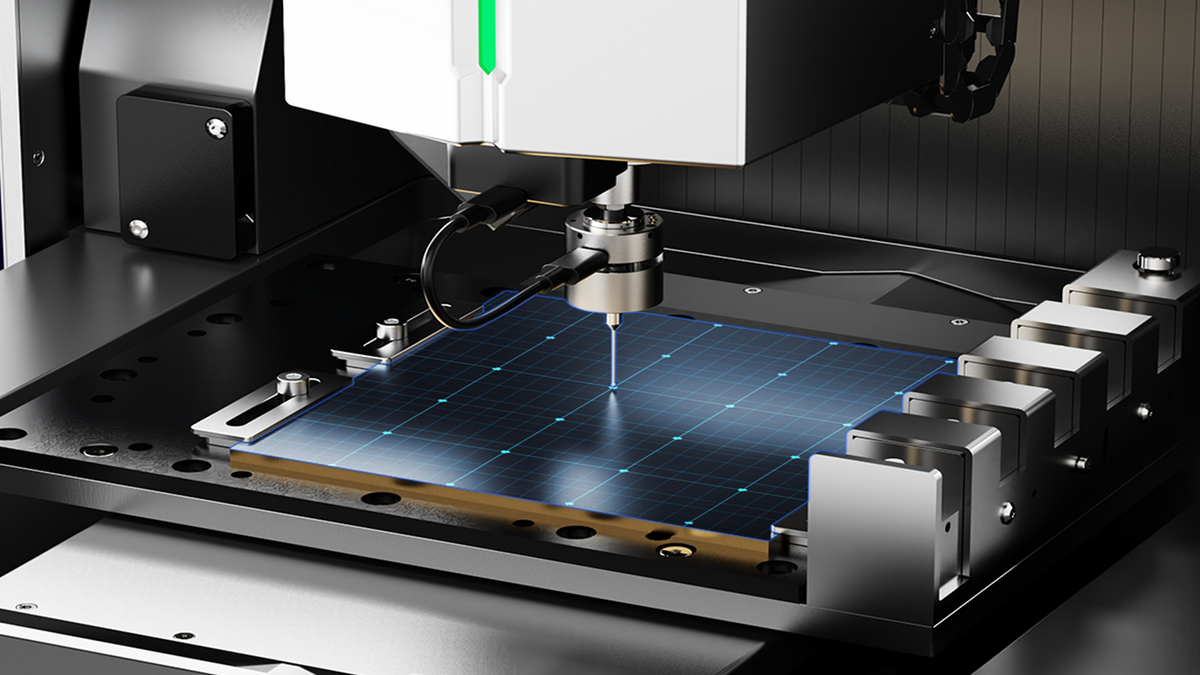

Auto Leveling

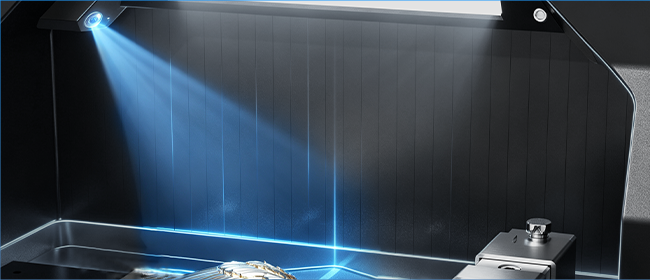

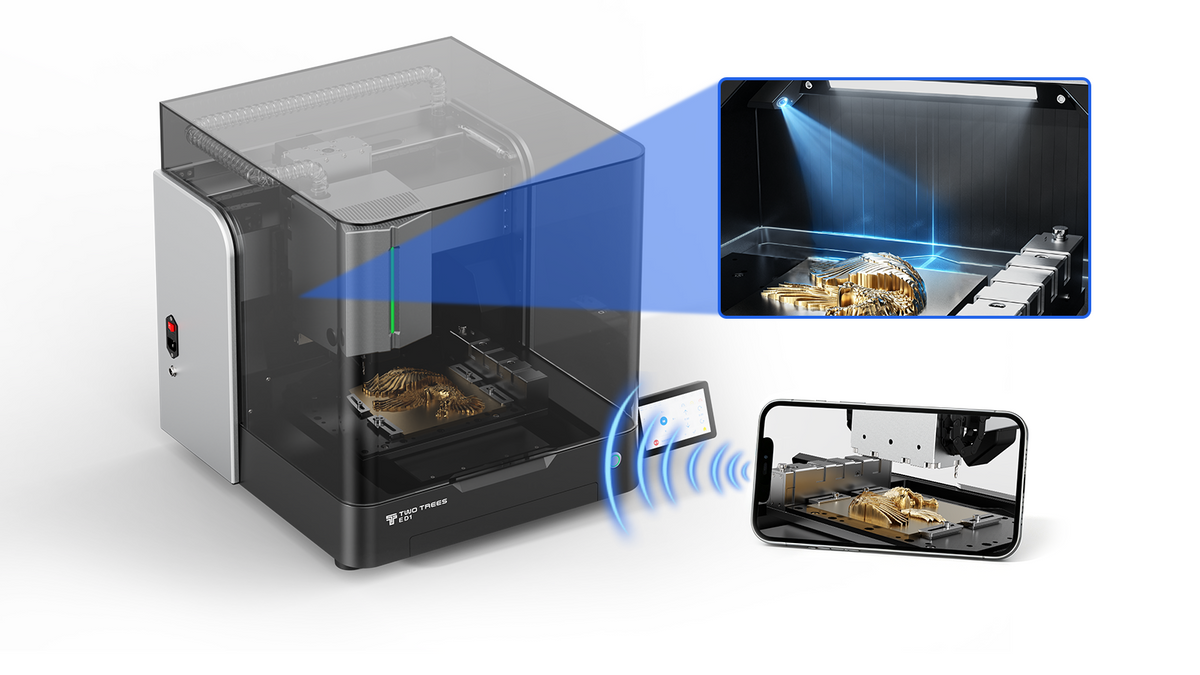

Built-in HD Monitoring Camera
Advanced Expansion Modules
High-Efficiency Dust & Noise Control

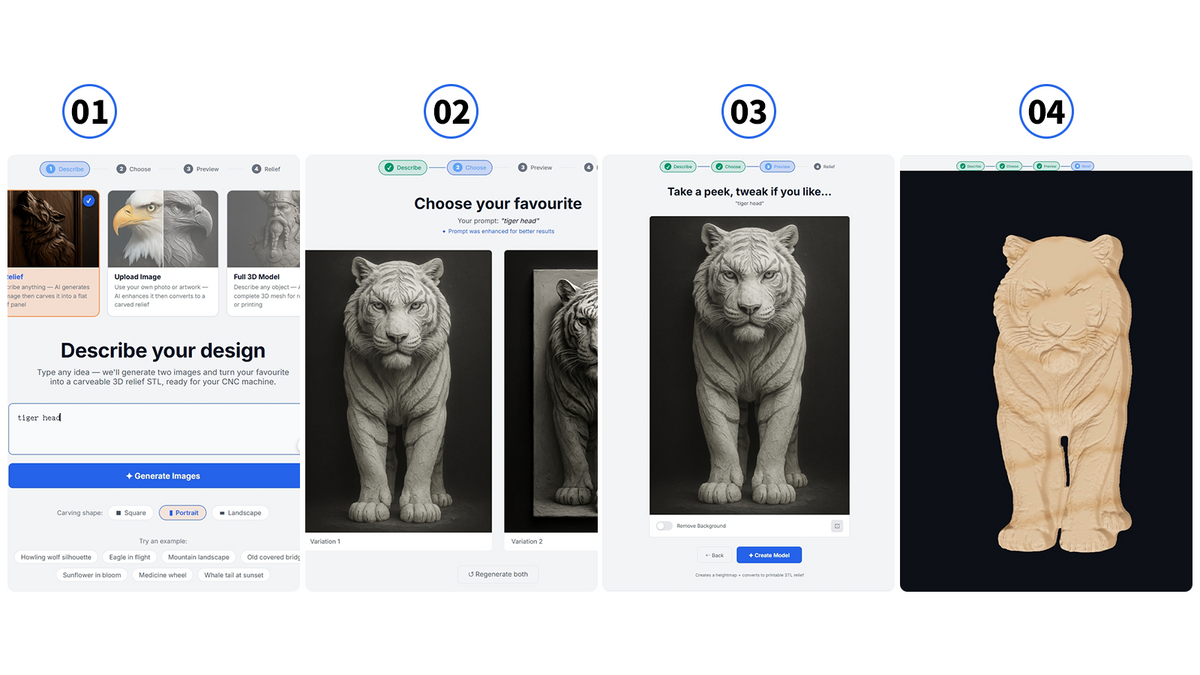

AI-Assisted Design
Multi-Material Compatibility
From Idea to Finished Part
Build prototypes, custom parts, and small-batch projects from your desktop.

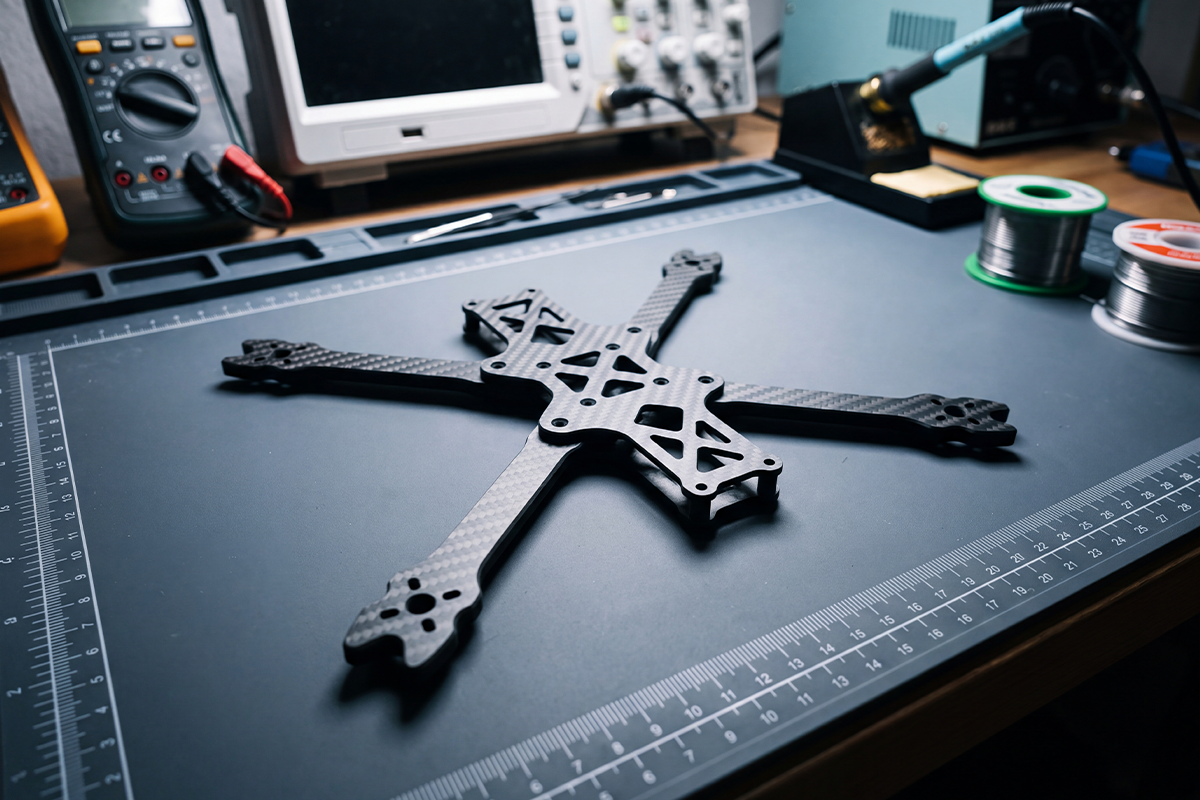

Drone
RC Car

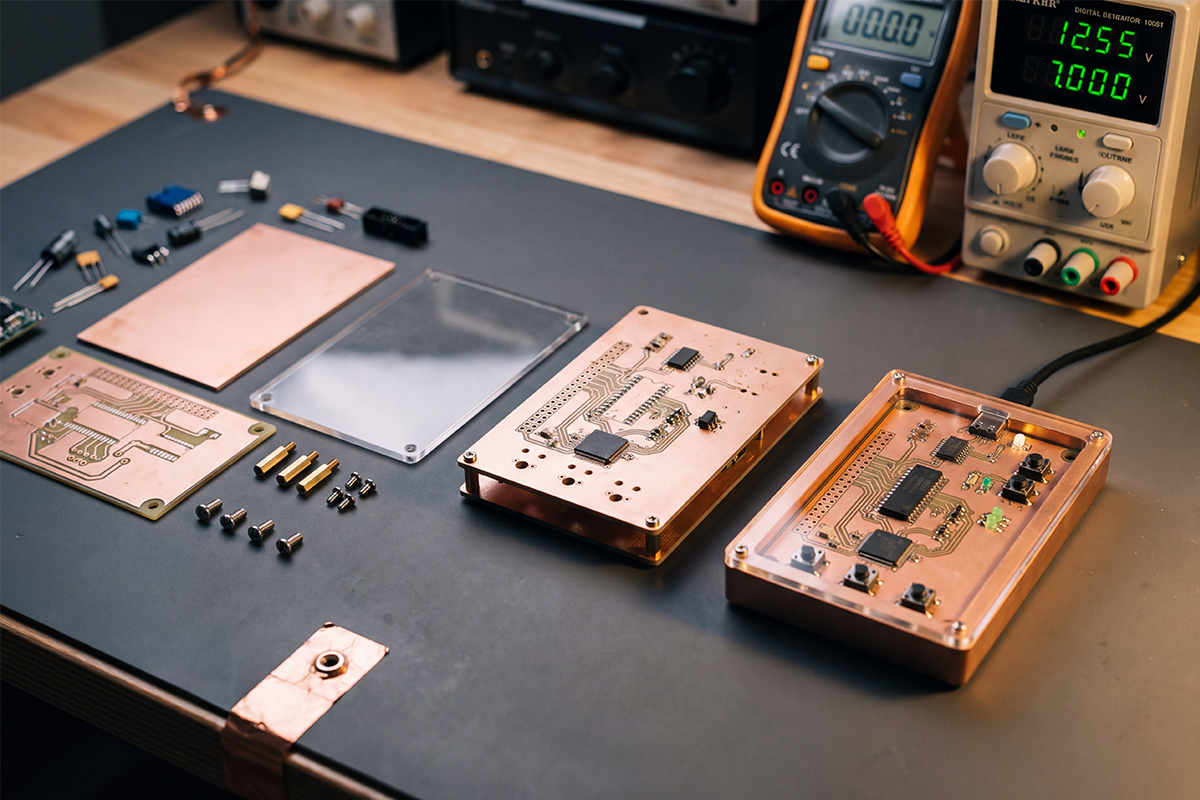

PCB Prototype

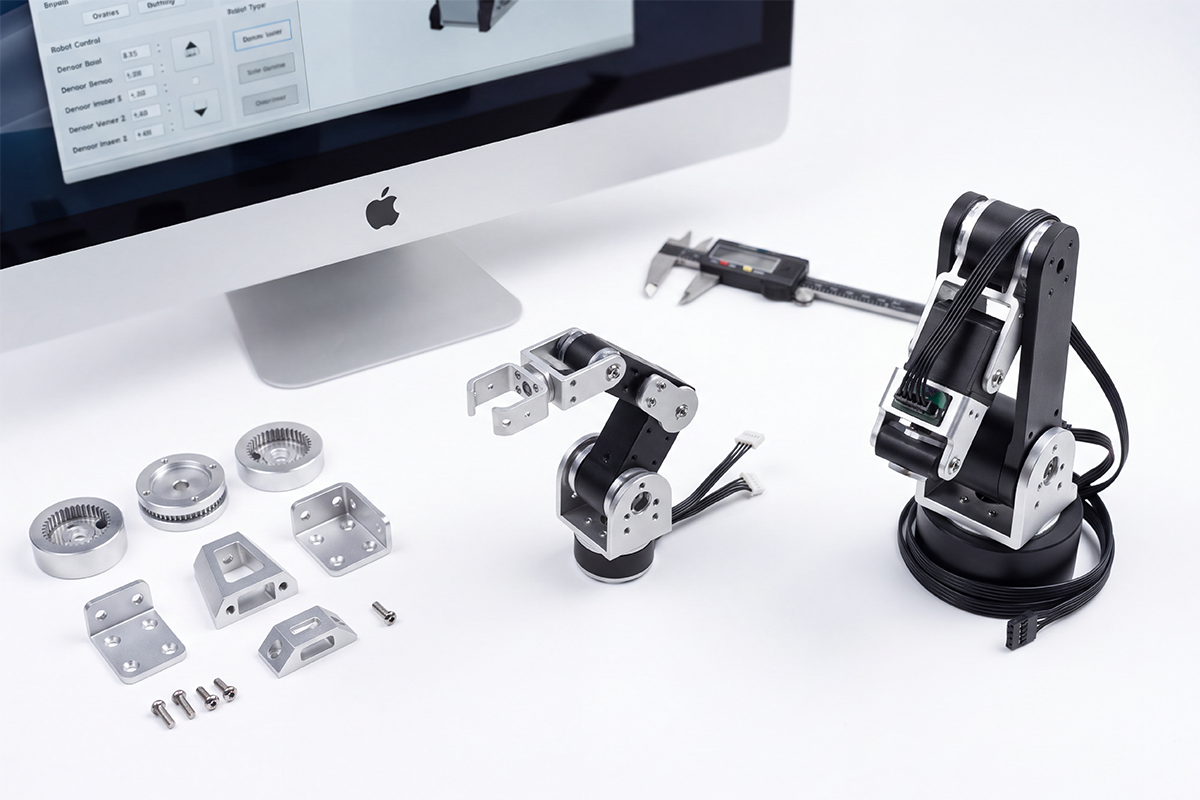

Small Robot
Home Decor

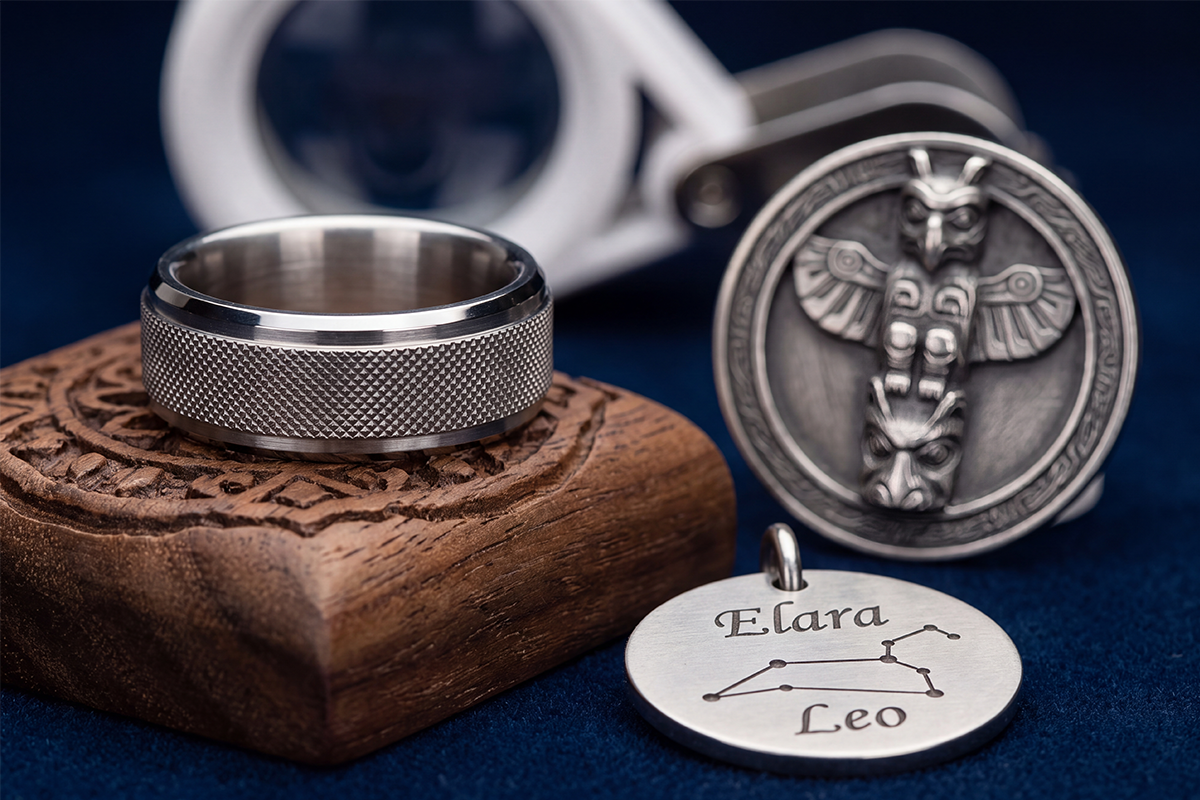

Metal Decorations
Desktop Size. Industrial Soul.

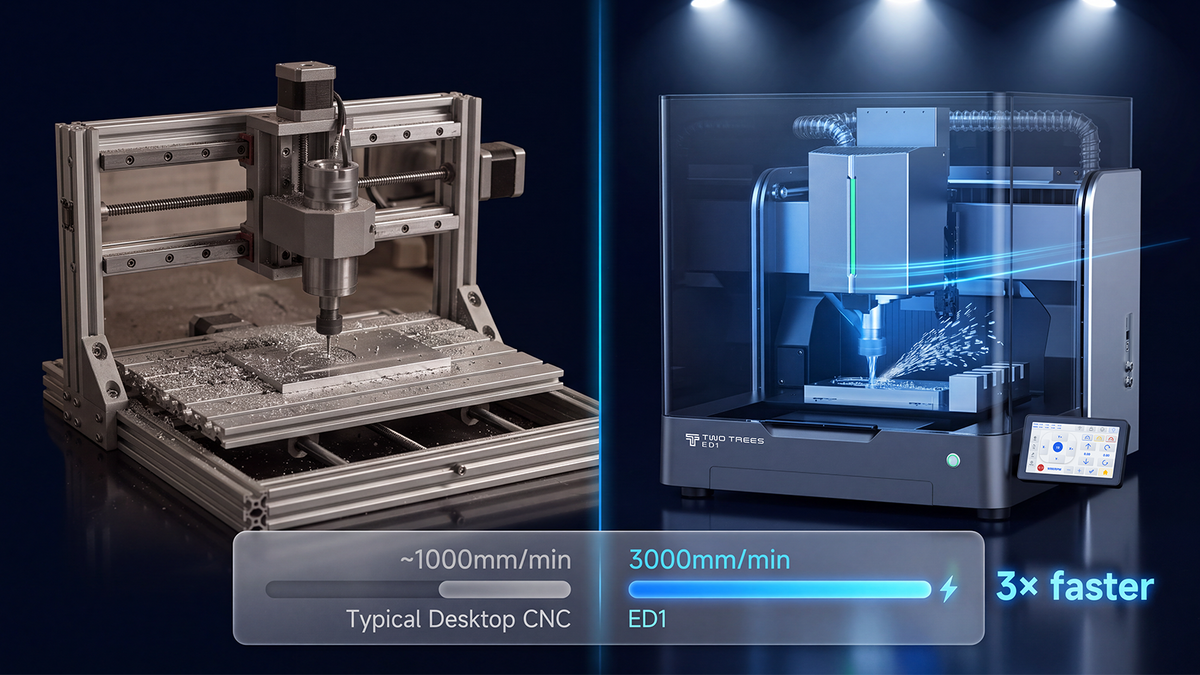

Fast enough to make roughing disappear, controlled enough to keep finishing clean.A 30-minute job finishes in 10. More parts, same afternoon.
Tackle Hard Material with Ease
12+ Materials

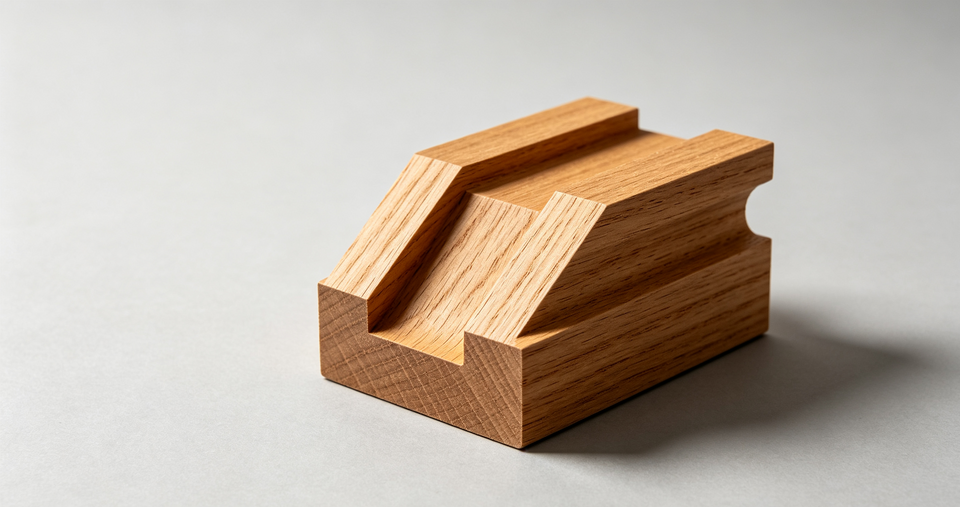

Solid Wood
Warm natural grain for organic, rustic finished creations.
Ideal for coasters, frames and handâcrafted wooden decor.
ED1 Tool & Material Machining Guide
From hardwood to hard metal-bits, RPM, feed rate, and depth in one table

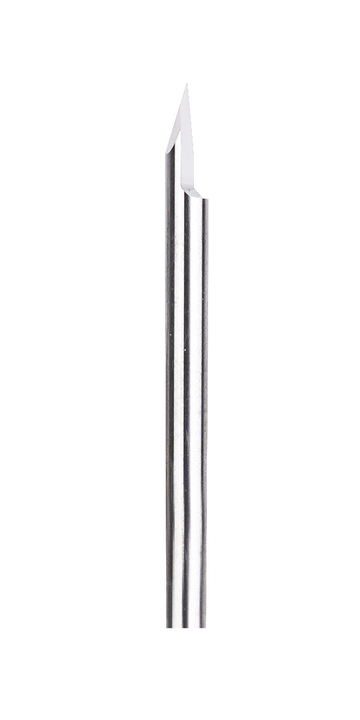

Flat Bottom V-bit
3.175 à 45° à 0.2
Recommended materials
PCB
Hardwood
Spindle Speed
8,000 â 18,000
RPM
Feed Rate
3,000
mm/min
Pass Depth
1
mm
Pro tip
Fragile tipâshallow passes,slow feed.
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â

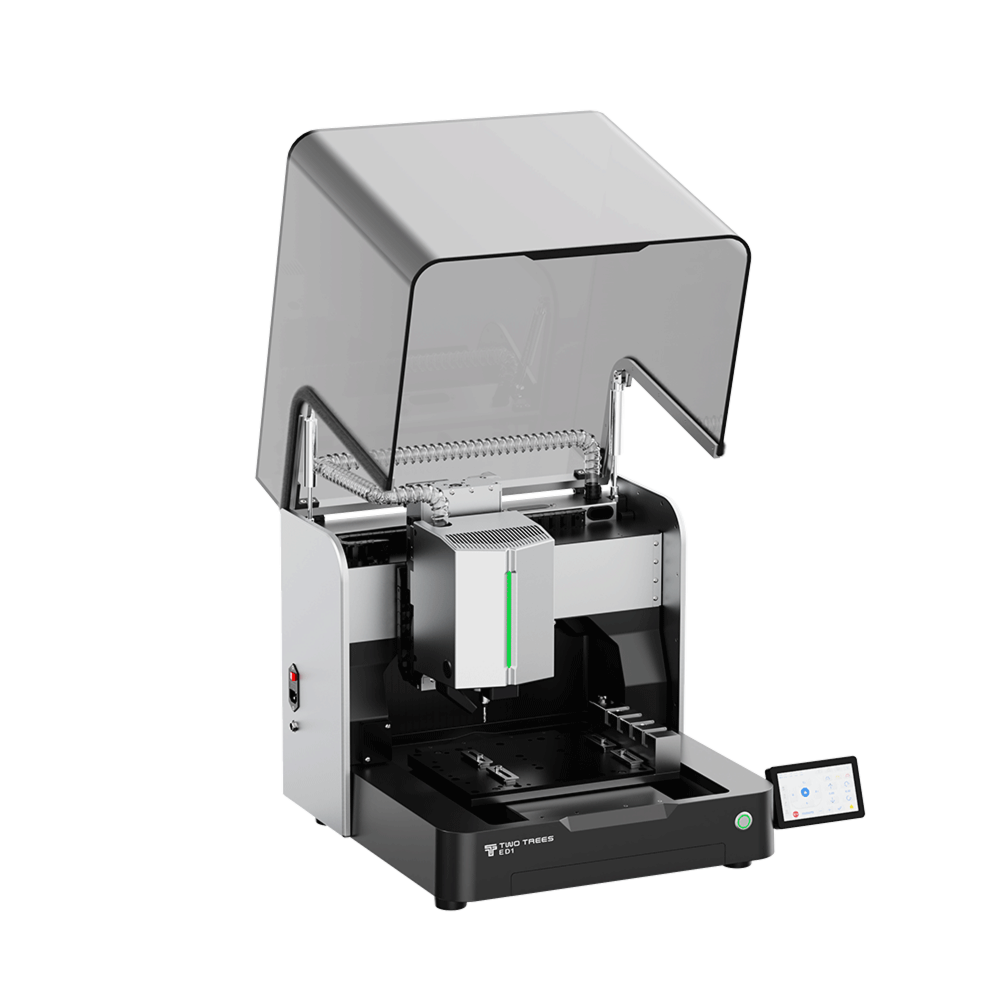

Well-Engineered Machine Build
Thickened pearl cotton
Effective sound insulation

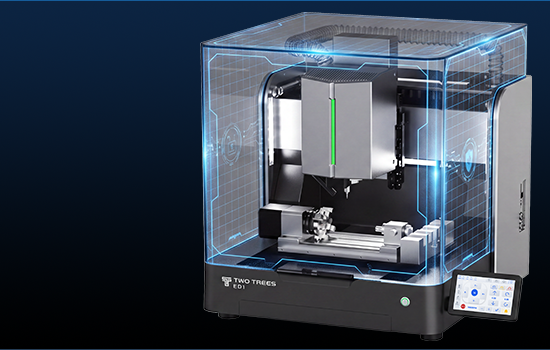

Integrated Die-Cast Frame
Robust & Durable
Dust Collection Box
Hassle-Free Cleaning
Fully enclosed Design
Safer, Cleaner, Quieter

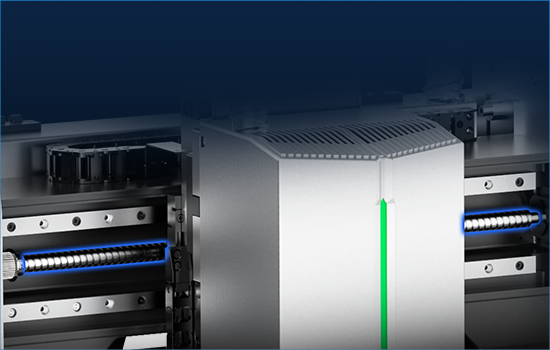

Precision Ball Screw
Smooth Motion & Precise Positioning
Touch Control Panel
Intuitive & Easy to Operate
OPTIONAL ACCESSORIES
Built to Expand Your ED1
Add new capabilities and keep your workspace ready for every project.

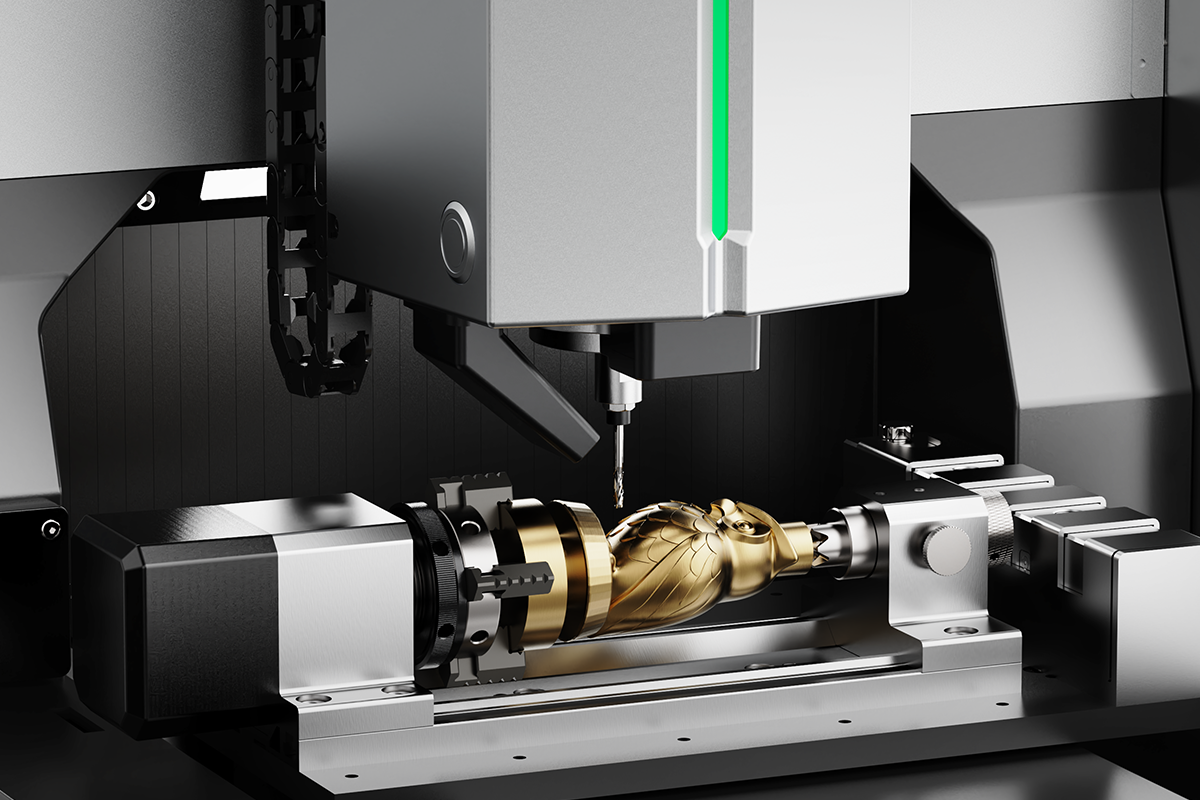

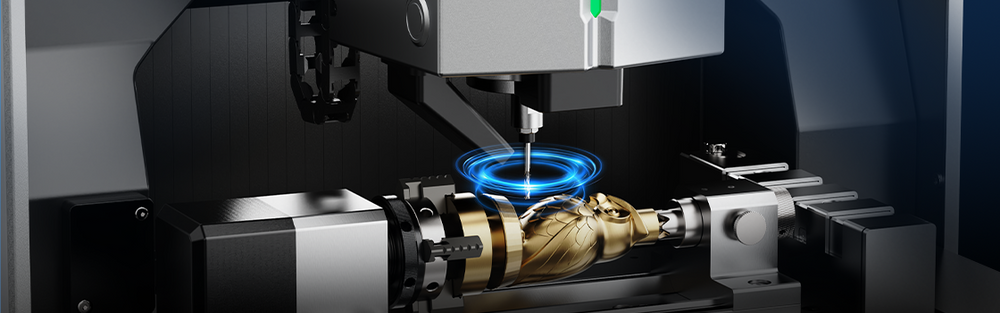

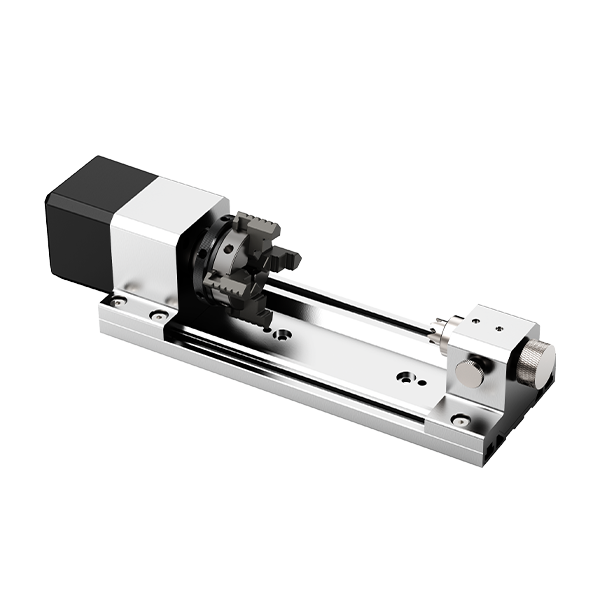

01 / ROTARY AXIS
Create Beyond Flat Surfaces
Machine cylinders, curved objects, and complex shapes with smooth, continuous motion.
360° Rotary CarvingSecure WorkholdingMore Creative Possibilities

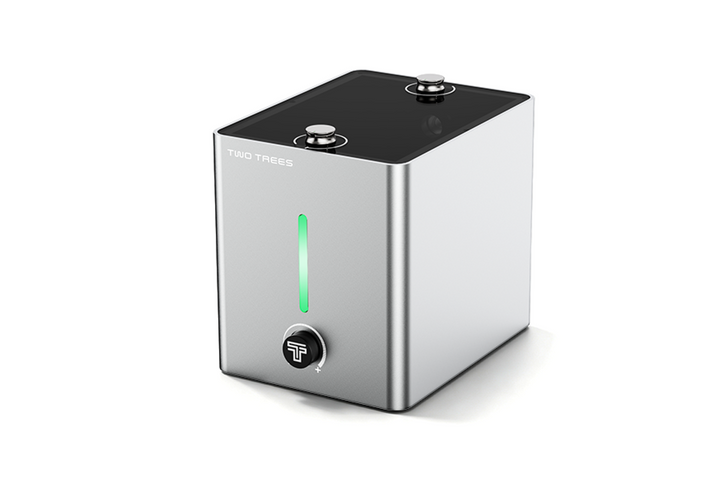

02 / DUST COLLECTOR
A Cleaner Way to Work
Capture debris at the source and keep your workspace clear for longer, cleaner sessions.
Efficient ExtractionAdjustable AirflowCleaner Workspace

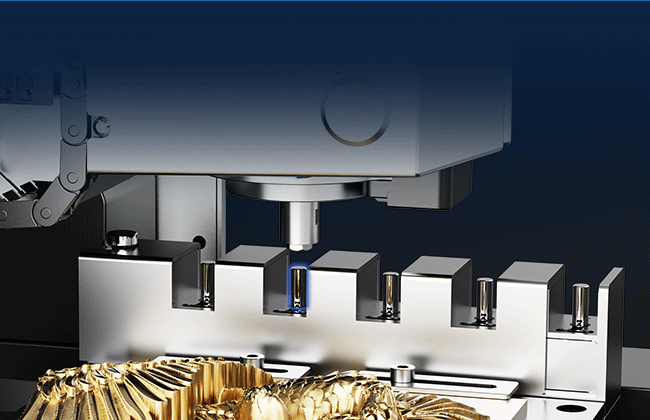

Automatic Tool Change
Save 95% of Your Time
Manual vs. Automatic - Less Time. More Making.
Up to
95%
less tool-change time

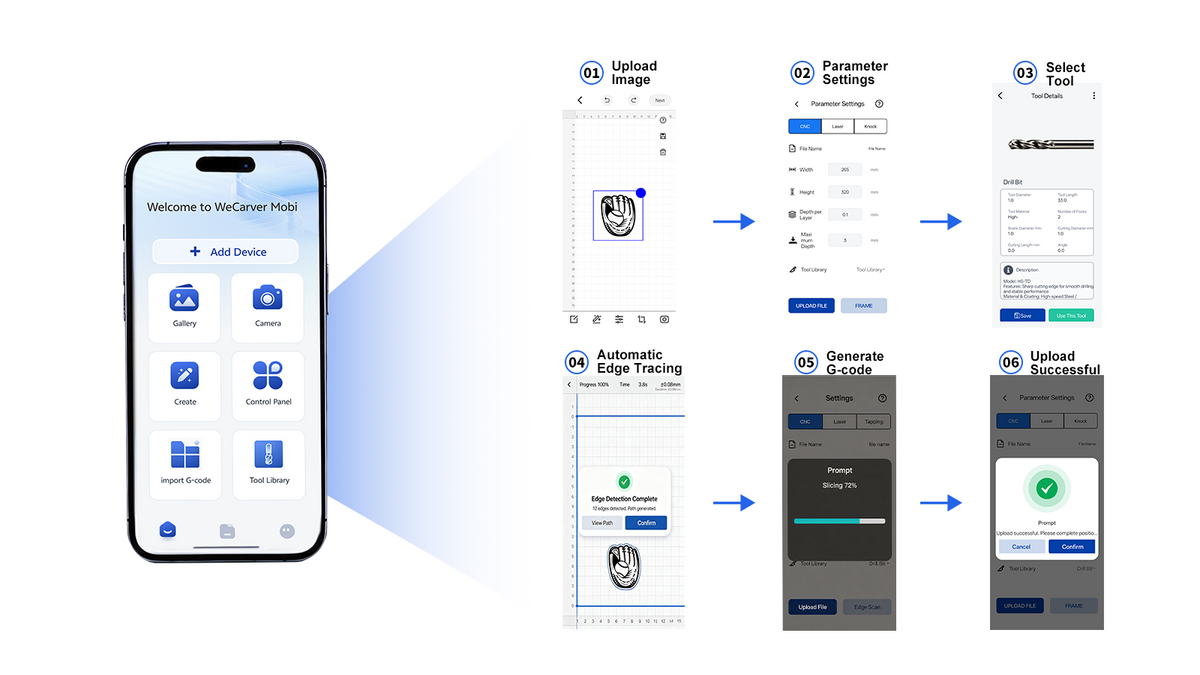

Smart Workflow
Intelligent-Driven, Streamlined Process & User-Friendly
What ATC Lets Your Shop Make Faster
Discover the best materials that showcase the power of multi-tool CNC workflows
Aluminum
Precision-Aluminum Control Panel
CNC-machined aluminum panel with grooves, holes & engraved labels.
Tool set
2 Tools
3-Flute End Mill

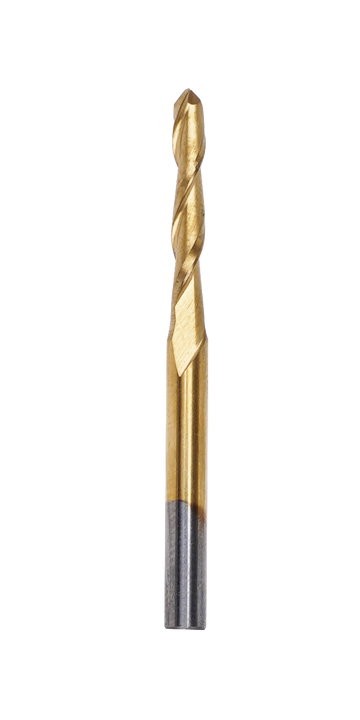

2âFlute Taper Ball Nose
Hardwood
Precision-Hardwood Craft Panel
Hardwood milling, drilling & engraving â one setup.
Tool set
4 Tools

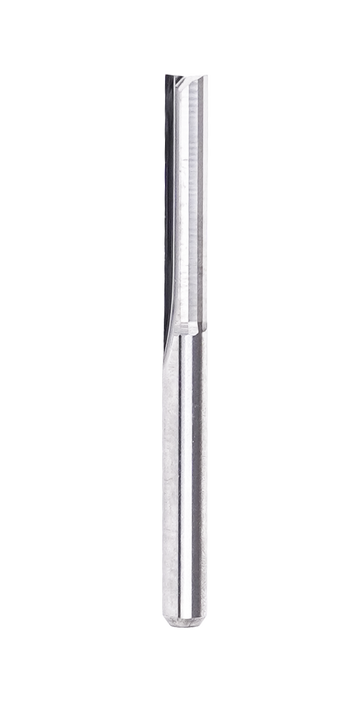

2âFlute StraightâFlute
2âFlute Taper Ball Nose
Round Bottom Cutter
Collet
Acrylic
Precision-Acrylic Decor Panel
Clear acrylic counterbores, slots & frosted lettering.
Tool set
2 Tools
SingleâFlute Carbide

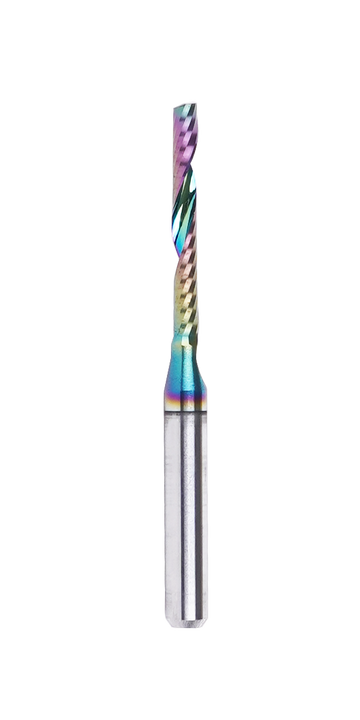

SingleâFlute Spiral
Designed For HassleâFree Home Crafting

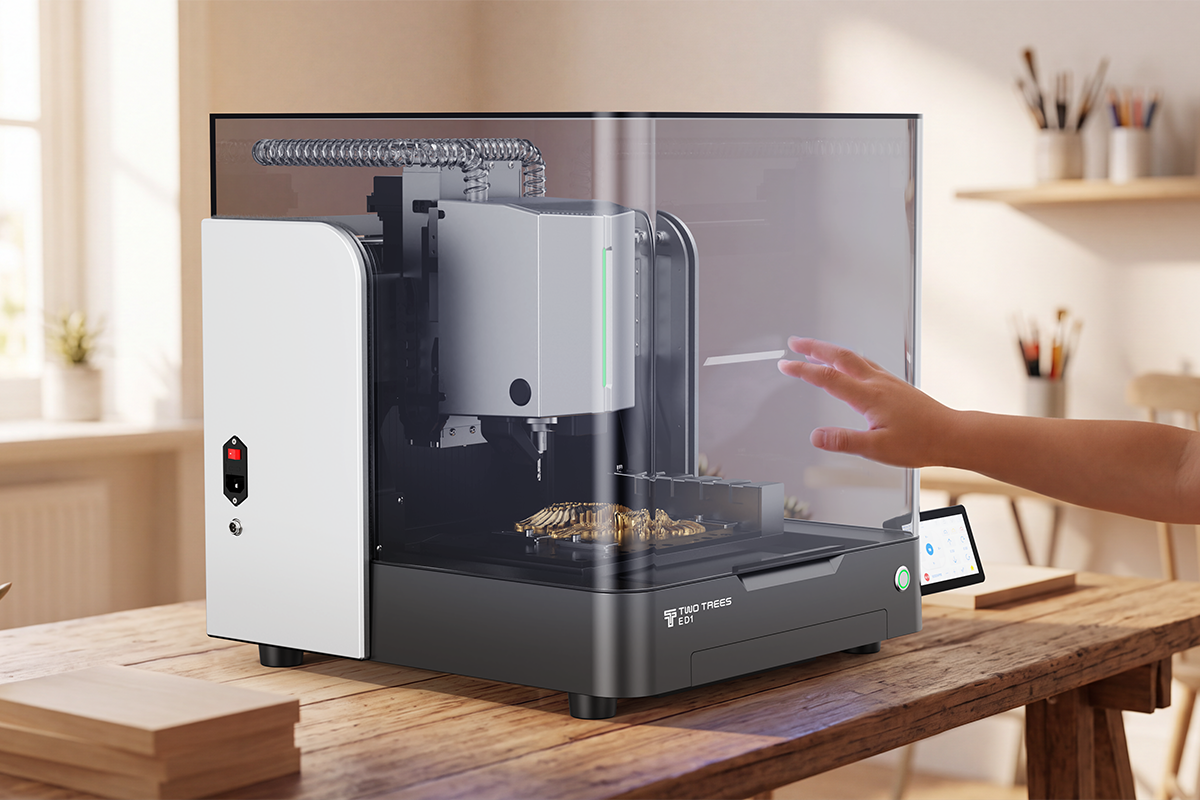

Stay Safe
Worry-Free ¡ Family-Friendly
Safety-door interlock avoids injuries. Perfect for home & education.

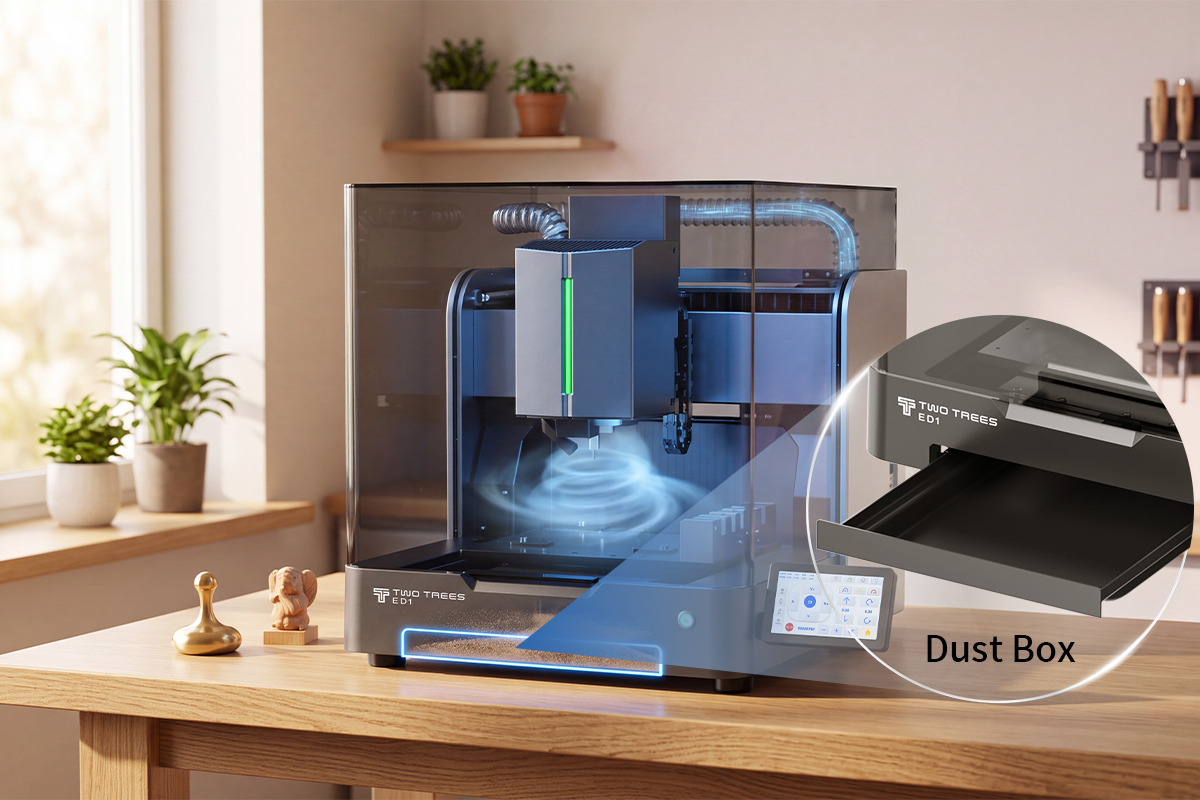

No Dust
No Mess ¡ Ready Right Away
Built-in dust collection, optional vacuum, keeps workspace clean.

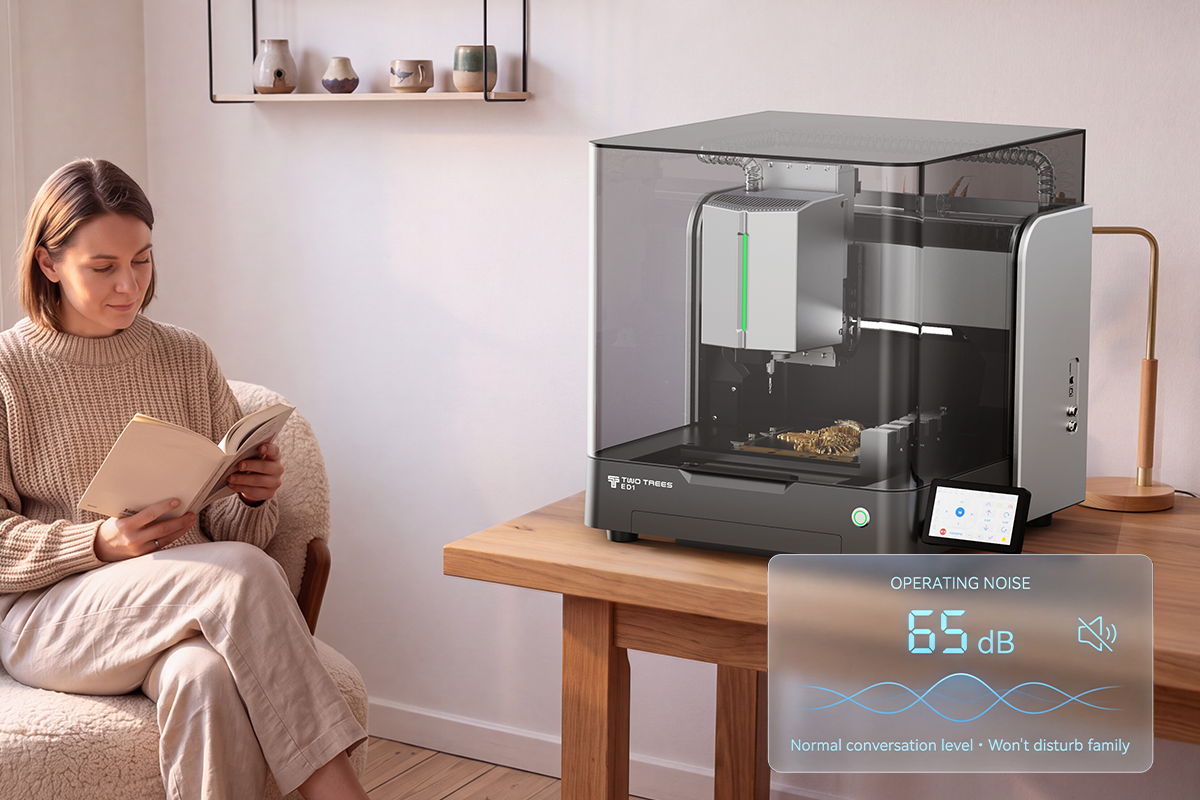

Quiet
Calm ¡ No Noise Complaints
Enclosed shell insulates noise, quiet operation with no disturbance.
Smart workflow
Simpler, Freer, Beginner-Friendly
Built for every creator
One Machine, Ready for Every Role
Makers
Build Without Limits
From prototypes to finished pieces, create with confidence.
Small business
Create Products That Sell
Turn ideas into market-ready products faster.
Families
Make Creativity Hands-On
A shared maker space for projects at home.
Education
Teach Through Making
Bring STEM learning to life in every classroom.
Multiple Optional Accessories â Better Experience
Locate workpiece edges and centers to 0.01mm. No guesswork, no manual errors. Essential for symmetrical parts, multi-hole setups, and precision alignment.
Diverse Accessories. Simple Creation.
4th Axis Module
Enable Multi-sided Machining
4th Axis Module
Enable Multi-sided Machining

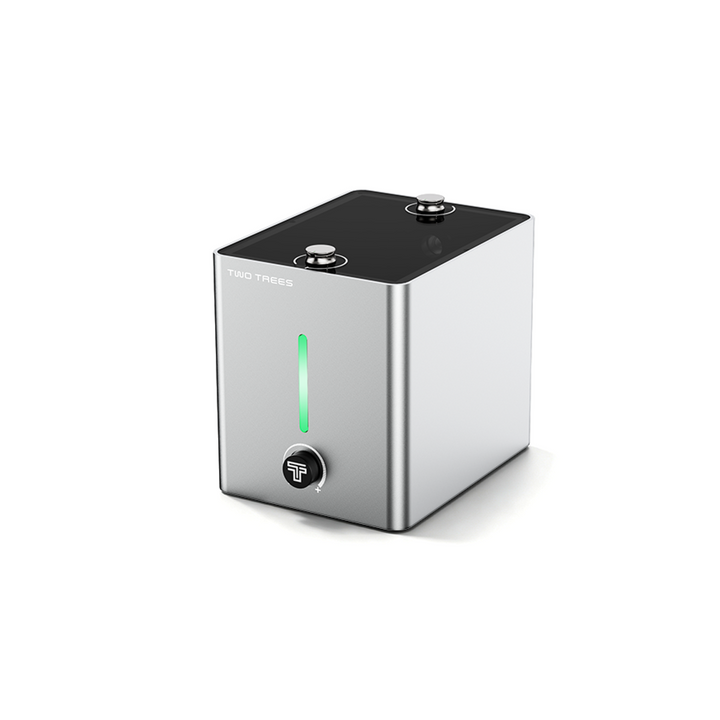

Vacuum Cleaner
Keep Your Workspace Clean

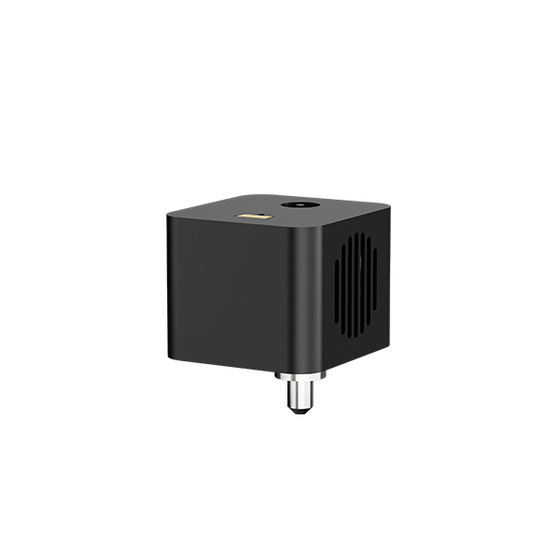

Laser Module
Precise Engraving and Cutting

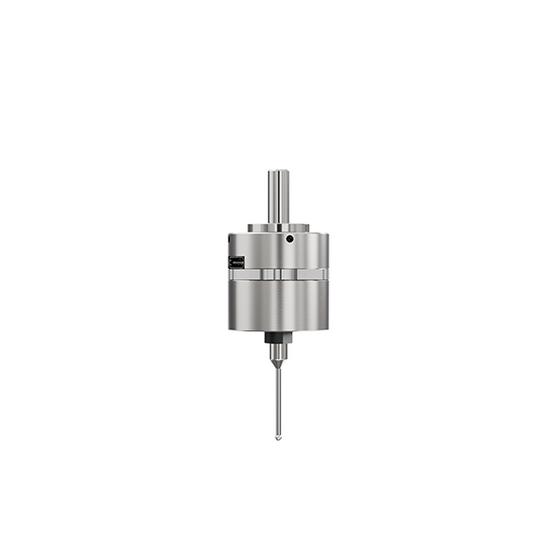

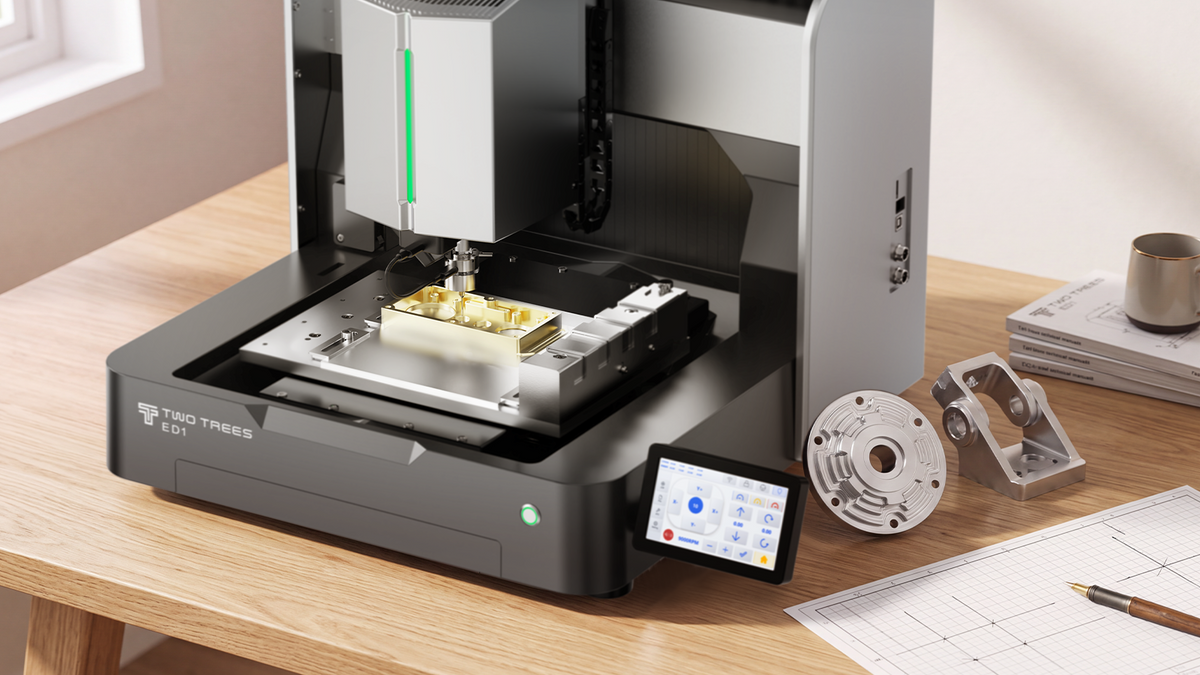

3D Wired Probe
Precisely Position Origin Point

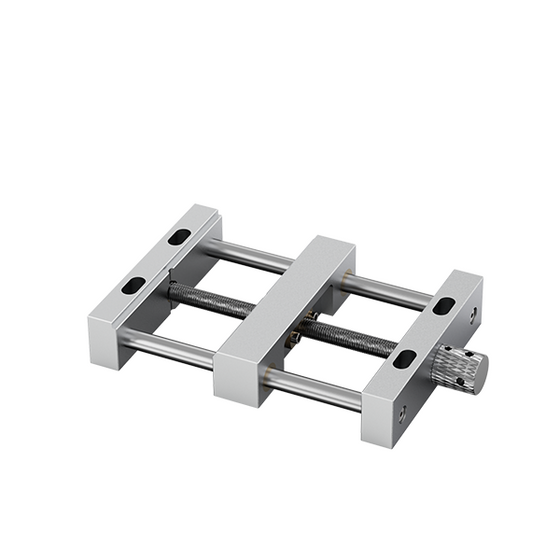

Aluminum Vise Bench
High-precision Clamping

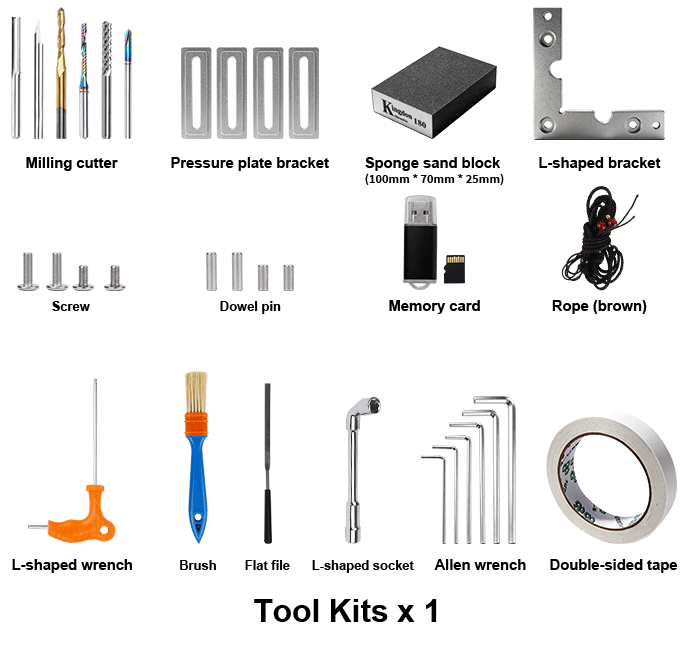

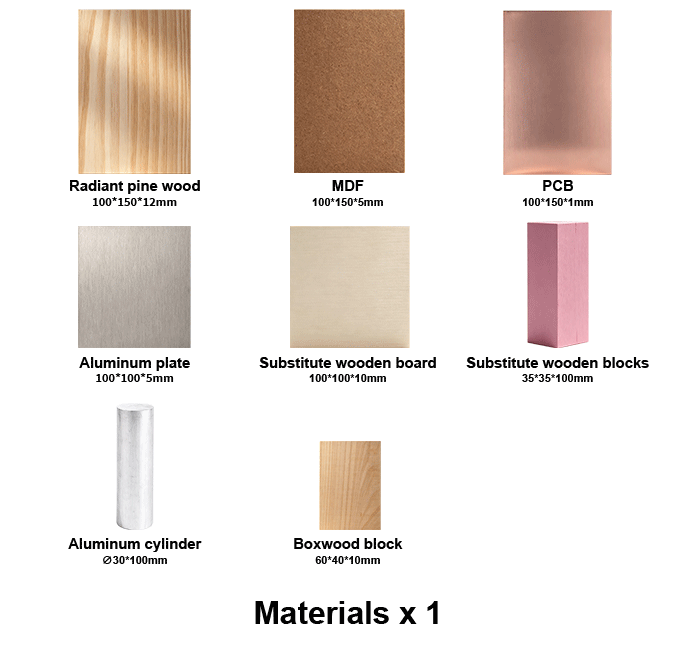

What's in the box?
Included in every ED1

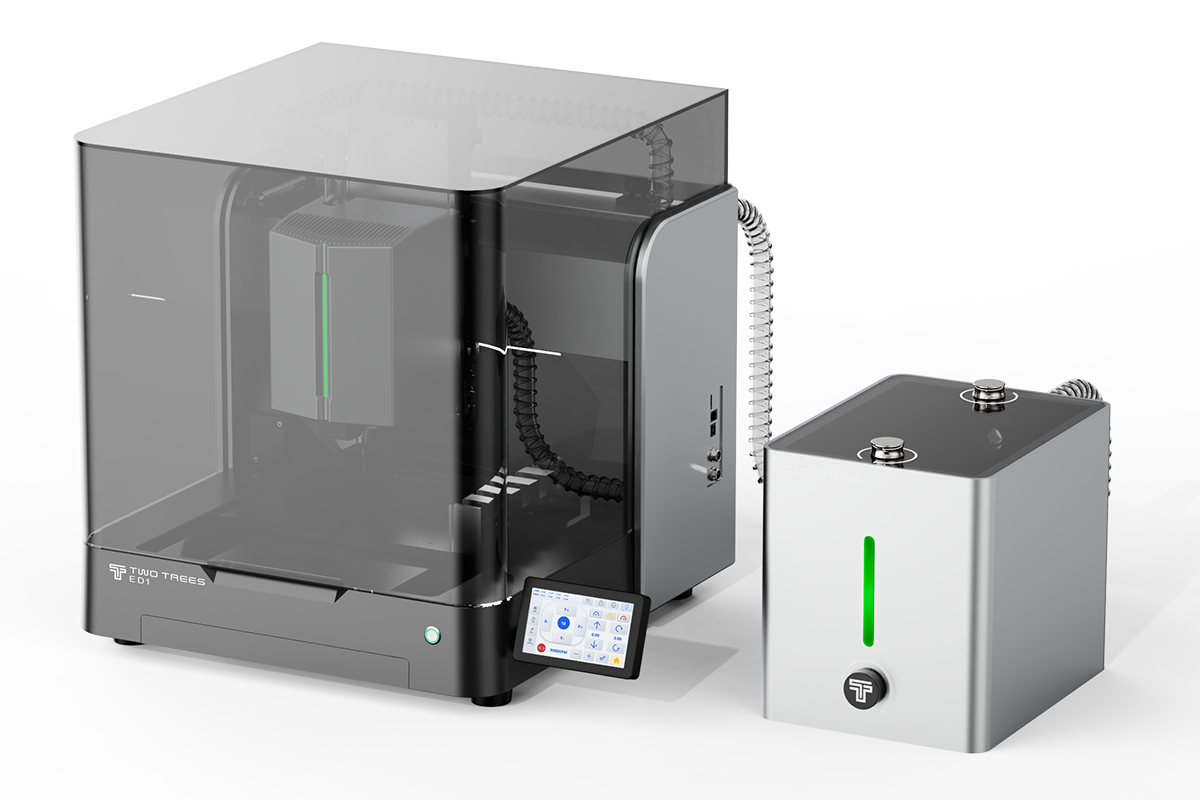

ED1 TECHNICAL DATA
Built for precision. Specified in detail.
Every measurement, tolerance, and interface is engineered for repeatable accuracy â so creators can focus on making, not compensating.
Work Area
300 Ă 200 Ă 120 mm
Spindle
600W
Speed
18,000 RPM
Accuracy
Âą0.01 mm
Tool Capacity
5 Tools
Weight
38 kg
Â
Main Body Material
Die-Cast + Aluminum + Injection-Molded Parts + Ball Screw + Linear Guide Rail
Housing Material
Aluminum + Plastic
Machine Dimensions
630mm (557mm with Screen Folded) Ă 510mm Ă 525mm
Sculpture area
300mm Ă 200mm Ă 120mm (11.8in Ă 7.8in Ă 4.7in)
Compatible Materials
Plywood / MDF / Solid Wood / Acrylic / Carbon Fiber / Aluminum / Copper / Plaster / Marble / Paraffin Wax / Plastic / Gold / Silver / Gemstone /Mild Steel / TitaniumďźPSďźMild Steel & Titanium,Long processing time is not recommended.ďź
Machine Weight
38 kg
Main Body Material
Aluminum Alloy
Dust Protection
Sliding Hard-Shell Dust Cover
Tool Capacity
5 Tools
Max Clamping Length
100 mm
Max Clamping Diameter
50 mm
Reducer Type
Harmonic Reducer Drive
Resolution
720P / 30 fps
Connection
Wi-Fi Wireless Connection
High-Speed Wi-Fi Transfer
10 MB/s
Blue Laser
10W Laser, Quick-Change (10s), No Wiring Required
Vise Module
Max Clamping Range (200 Ă 120 mm)
Â
Â
Â
Â
Â
Â
Â
Â
Â
Â
Firmware
GRBL Open-Source
Wi-Fi 2.4 GHz
Supported (Built-in, Pluggable)
TF Card
Supported
USB Port
Supported
Motion Structure
XYZA
Engraving Accuracy
Âą0.01 mm
Max Engraving Speed
3000 mm/min
Max Acceleration
200 mm/s²
Spindle Power
600W Variable-Frequency Spindle
Spindle Speed
0-18000 RPM
Speed Control
Supported
Tool Setting
Supported
Laser/CNC Mode Switching
Supported
Accuracy Calibration
Supported
Language Selection
Supported (Chinese / English / German / Russian / Japanese / French / Portuguese / Spanish)
CAM Software
WeCarver CAM, ArtCAM, Fusion 360, Easel, Carveco Maker, etc.
Supported OS
Windows / Android / Mac / Linux
Software Languages
Chinese / English / Spanish / German / French / Russian / Portuguese / Italian / Japanese / Korean / Turkish
Supported File Formats
.nc / .gcode
Safety Certifications
CE-EMC / CE-LVD / CE-MD / CE-RED / ROHS / FCC-SDOC / FCC-ID
Optimal Ambient Temperature
0°C ~ 40°C
Twotrees ED1 Enclosed Desktop CNC Router Machine
$2,399.00
