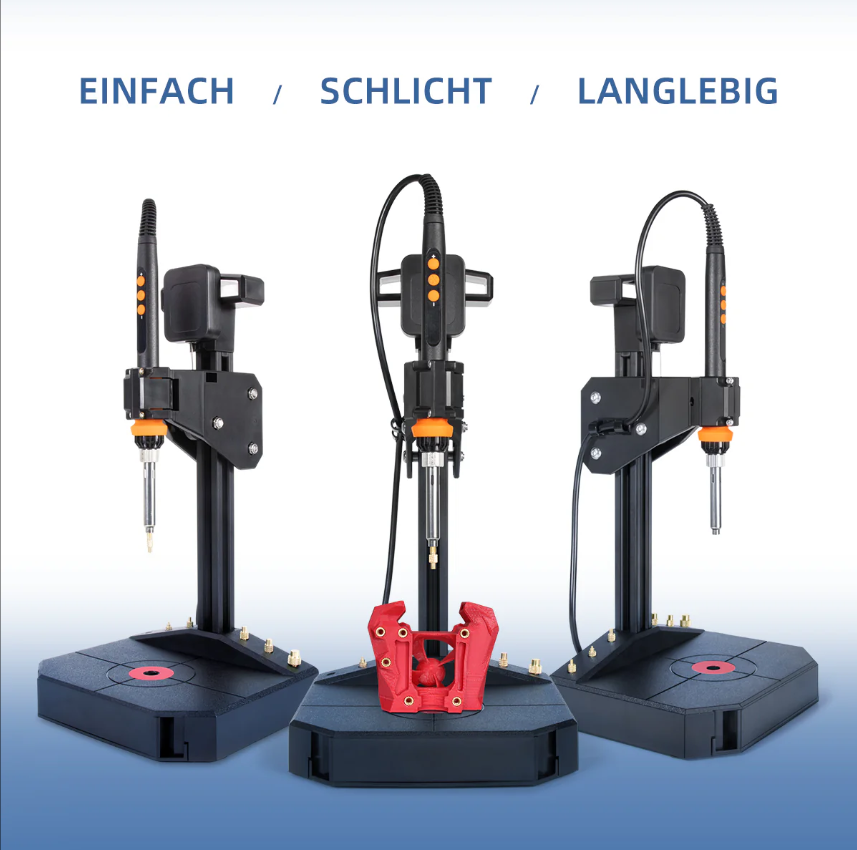

Professional Heat Insert Press Kit for 3D Printing — 90W Heat-Set Insert Tool

The Professional Heat Insert Press Kit for 3D Printing makes it easier to install brass heat-set threaded inserts into 3D printed parts with better alignment and less guesswork.

If you build functional 3D prints, basic screw holes are often not enough. Plastic threads can wear out, strip, or crack over time, especially in parts that need repeated assembly. Brass heat-set inserts give printed parts stronger and more durable threaded connections, making them ideal for enclosures, mounts, robotics parts, brackets, fixtures, and product prototypes.

This kit is designed specifically for 3D printing users. It arrives 95% pre-assembled, so setup is fast and simple. The included 90W high-power soldering iron provides consistent heat for embedding inserts smoothly into PLA, PETG, ABS, and other compatible thermoplastics.

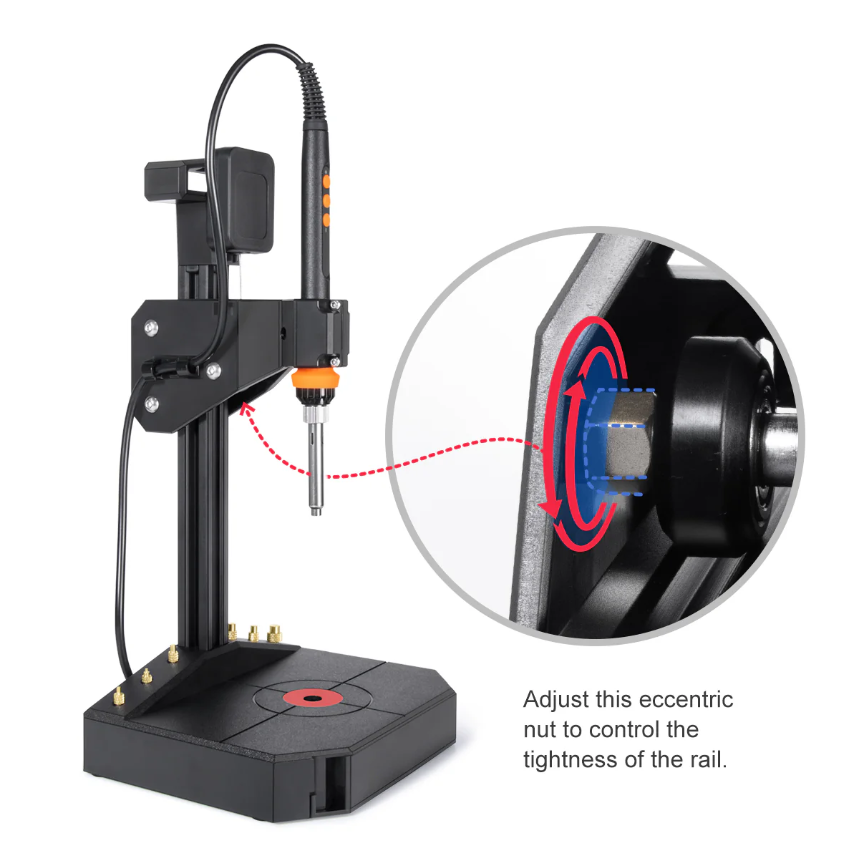

The press uses a 235 mm aluminum extrusion frame and a high-tension spring arm to guide the soldering iron vertically. This helps improve insert placement compared with handheld installation, reducing crooked inserts, uneven pressure, and damaged parts.

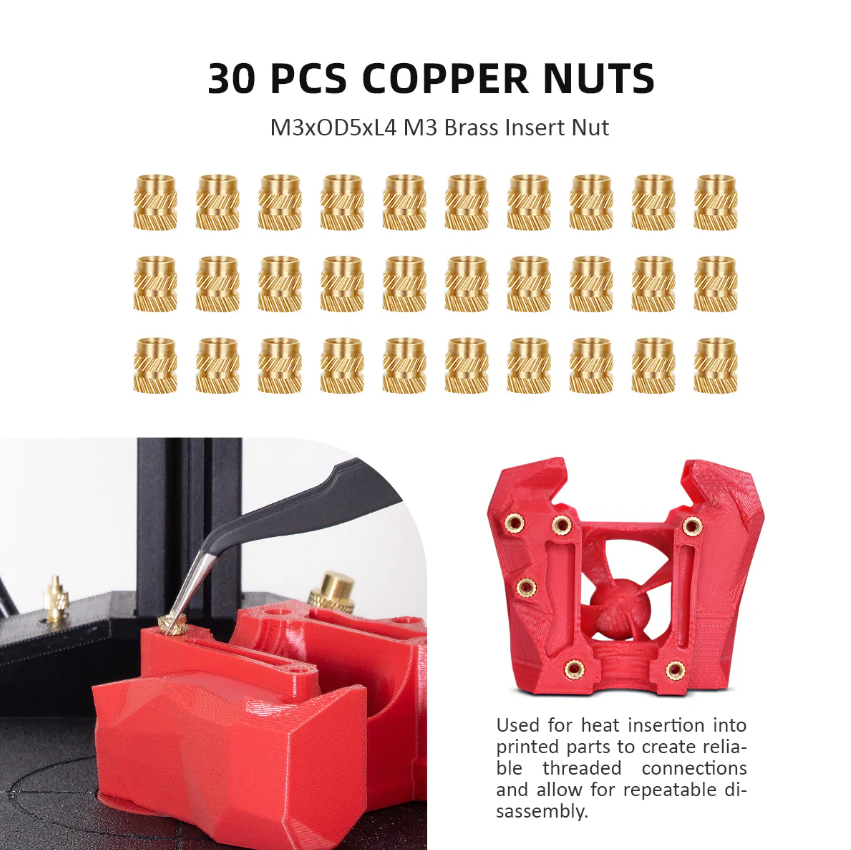

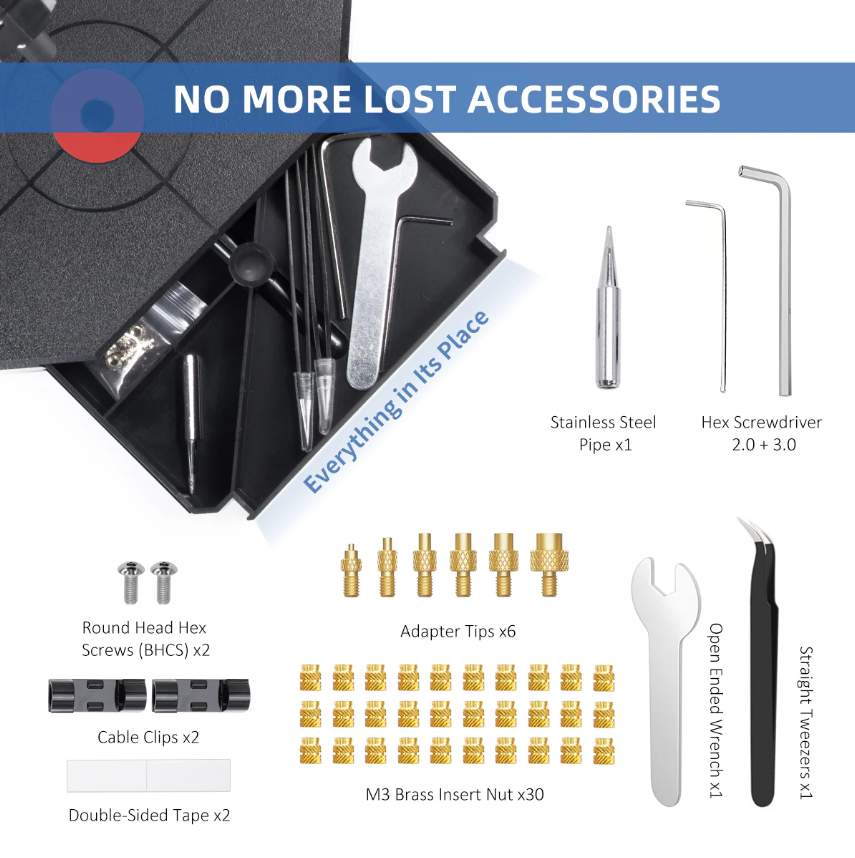

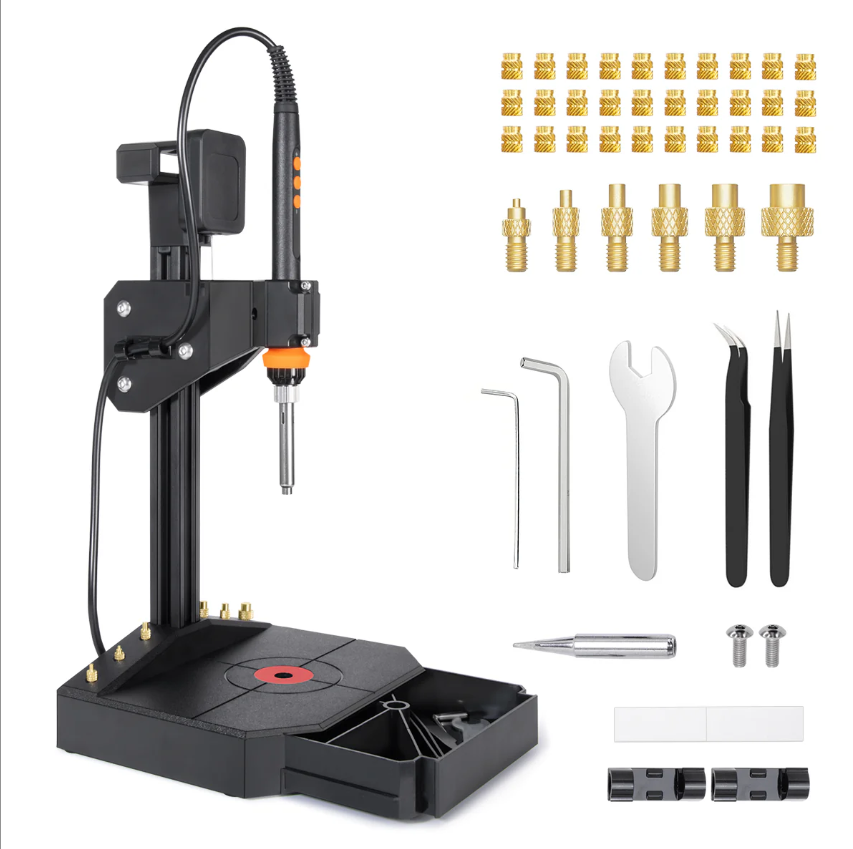

The kit includes multiple adapter heads, brass heat-set inserts, tweezers, and hex wrenches, giving users a complete starting setup for cleaner, stronger 3D printed assemblies.

Key Benefits

Easy heat-set insert installation
Designed to simplify threaded insert installation for 3D printed parts.

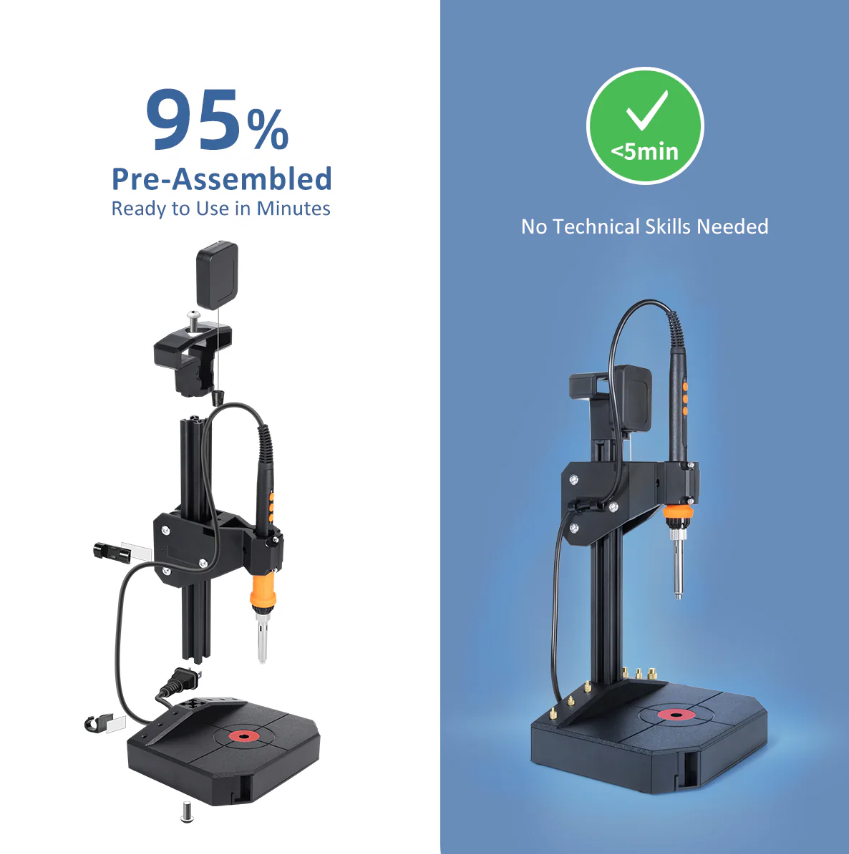

95% pre-assembled
Spend less time setting up and more time building.

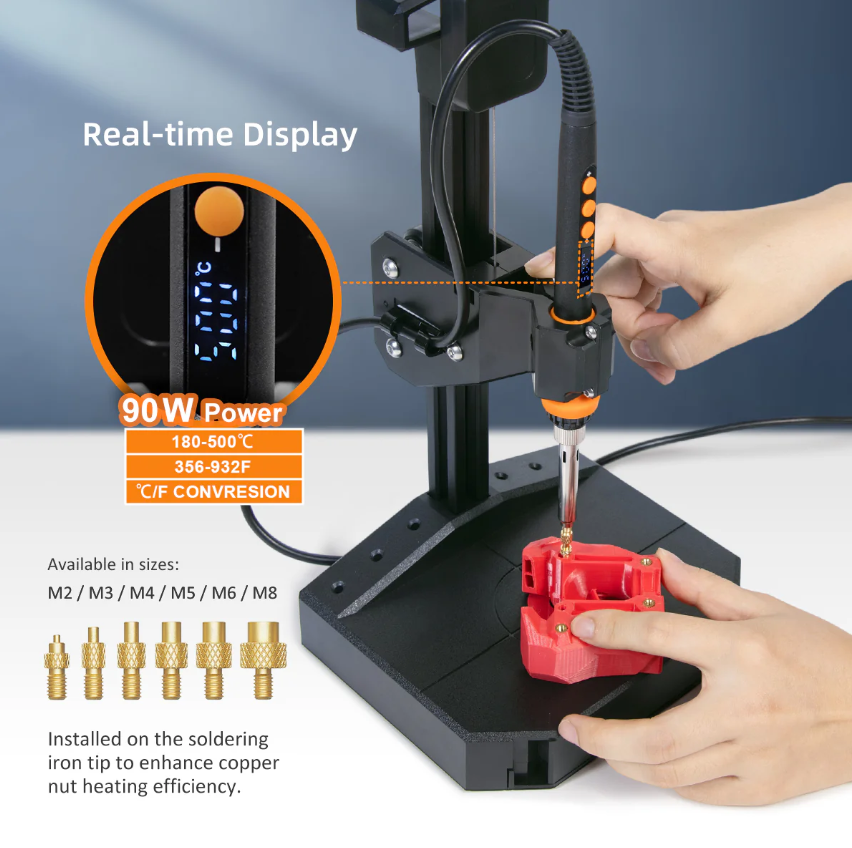

90W high-power soldering iron
Provides strong, consistent heat for smooth insert installation.

Precision press design
The aluminum frame and spring arm guide the tool vertically for cleaner results than handheld insertion.

All-in-one starter kit
Includes brass inserts, adapter heads, tweezers, and hex wrenches.

Great for functional prints
Ideal for mechanical parts, electronics enclosures, custom mounts, robotics projects, and small production work.

Ideal Applications

• Electronics enclosures
• Robotics parts
• Custom brackets and mounts
• Functional prototypes
• Mechanical assemblies
• STEM engineering projects
• Product design samples
• Print farm post-processing
• Maker workshop projects
• Reusable screw connections in 3D printed parts

Compatible Materials

• PLA
• PETG
• ABS
• ASA
• TPU blends, depending on hardness
• Other compatible thermoplastics

FAQ

1. What is this heat insert press kit used for?

It is used to install brass heat-set threaded inserts into 3D printed parts. This creates stronger screw connections than threading screws directly into plastic.

2. Why should I use a press instead of a handheld soldering iron?

A press helps guide the insert vertically, making it easier to keep inserts straight and reduce part damage. Handheld installation can work, but it is easier to make inserts crooked.

3. What materials can this be used with?

It can be used with common 3D printing materials such as PLA, PETG, ABS, ASA, and other compatible thermoplastics. Temperature should be adjusted based on the material.

4. Is this kit beginner-friendly?

Yes. The kit is 95% pre-assembled and includes the main tools needed to start installing heat-set inserts.

5. What is the difference between this kit and the Nutopress Pro?

This kit is a more affordable starter/professional option with a press frame and 90W iron. The Nutopress Pro is the upgraded version with a linear rail slider, adjustable positioning mechanism, and higher-precision workflow for users who need more repeatability.
