3DeVOK MQ 3D Color Scanner-The Choice for Professionals Wireless Scanning for the Future
About 3DeVOK MQ 3D Scanner
The 3DeVOK MQ 3D Scanner, a versatile 3d scanner for industrial use, combines 22-line infrared laser and infrared speckle technology with dual FoV for professional applications. Wireless, intuitive, and efficient, MQ enables users to capture highly accurate 3D data anytime, anywhere. Ideal for 3D printing, creative design, cultural heritage preservation, reverse engineering, art, medical rehabilitation, and research, it is the ultimate productivity partner for design studios, 3D printing farms, and small to medium-sized businesses
6 Key Features for Exceptional 3D Scanning Every Time

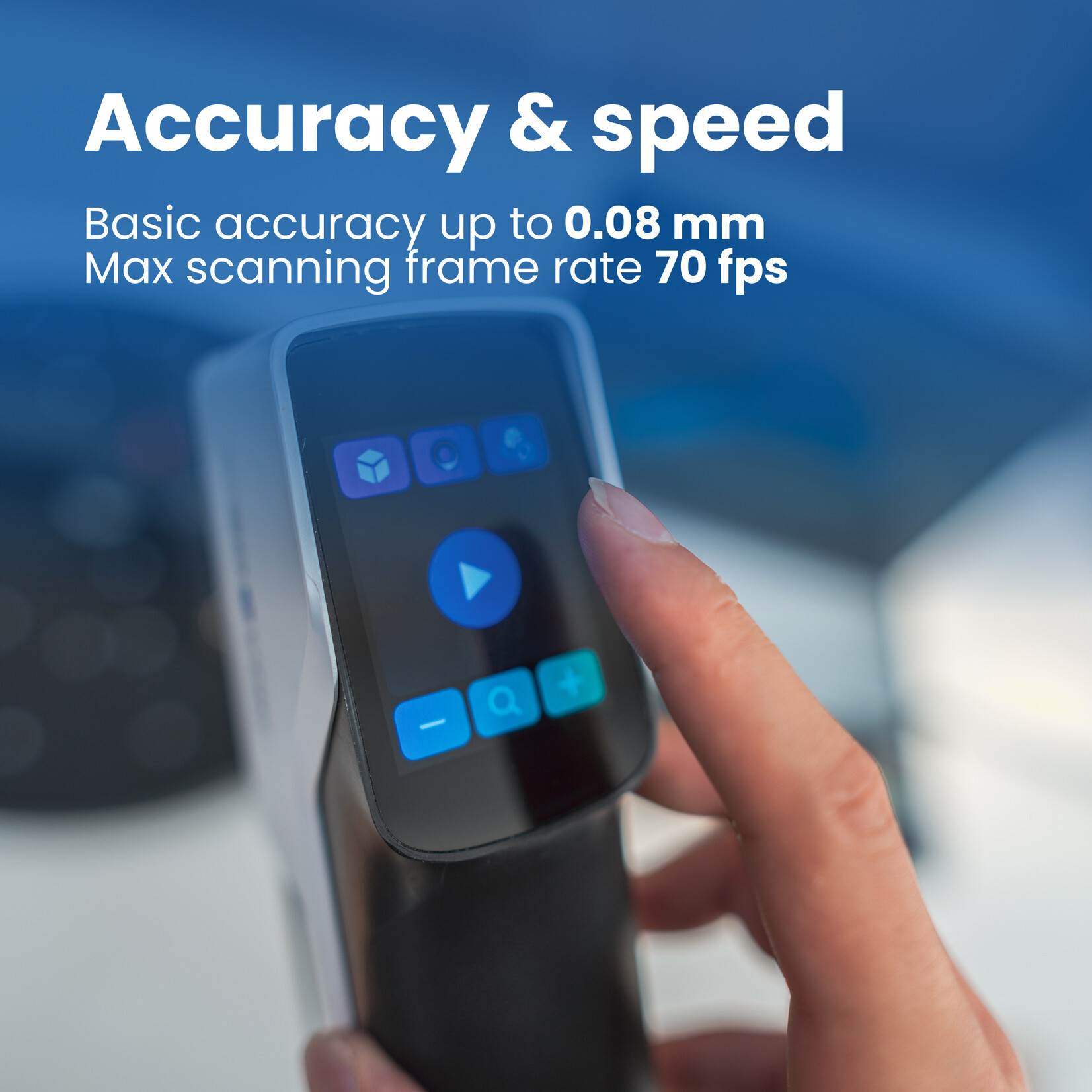

Accurate
- Up to 0.08mm accuracy for highly detailed scans
Detailed
- 0.1mm resolution captures even the finest details
Fast
- 4.5 million points per second for professional efficiency
Marker-free
- Infrared laser and speckle enable non-marker scanning
Vivid
- 24-bit color + texture mapping for true-to-life colors
Wireless
- Optional wireless handle for easy large-object scanning
Brand-new Hardware Upgrade
Dual-Mode Laser - Boundless Scanning
22-Line Infrared Laser
- The MQ 3D scanner features 22-line infrared laser technology, enabling seamless scanning of objects as small as 5cm across various materials. With up to 0.08mm accuracy, it meets the quasi-industrial 3D data acquisition demands.
Infrared Speckle with 2 Distinct FoV
- Designed specifically for scanning portraits, body parts, and medium to large objects (30cm and above), the scanner supports Fine and Fast Scanning at the ultra-wide scanning area up to 1,100mm × 1,000mm, enabling efficient scanning and easy operation.

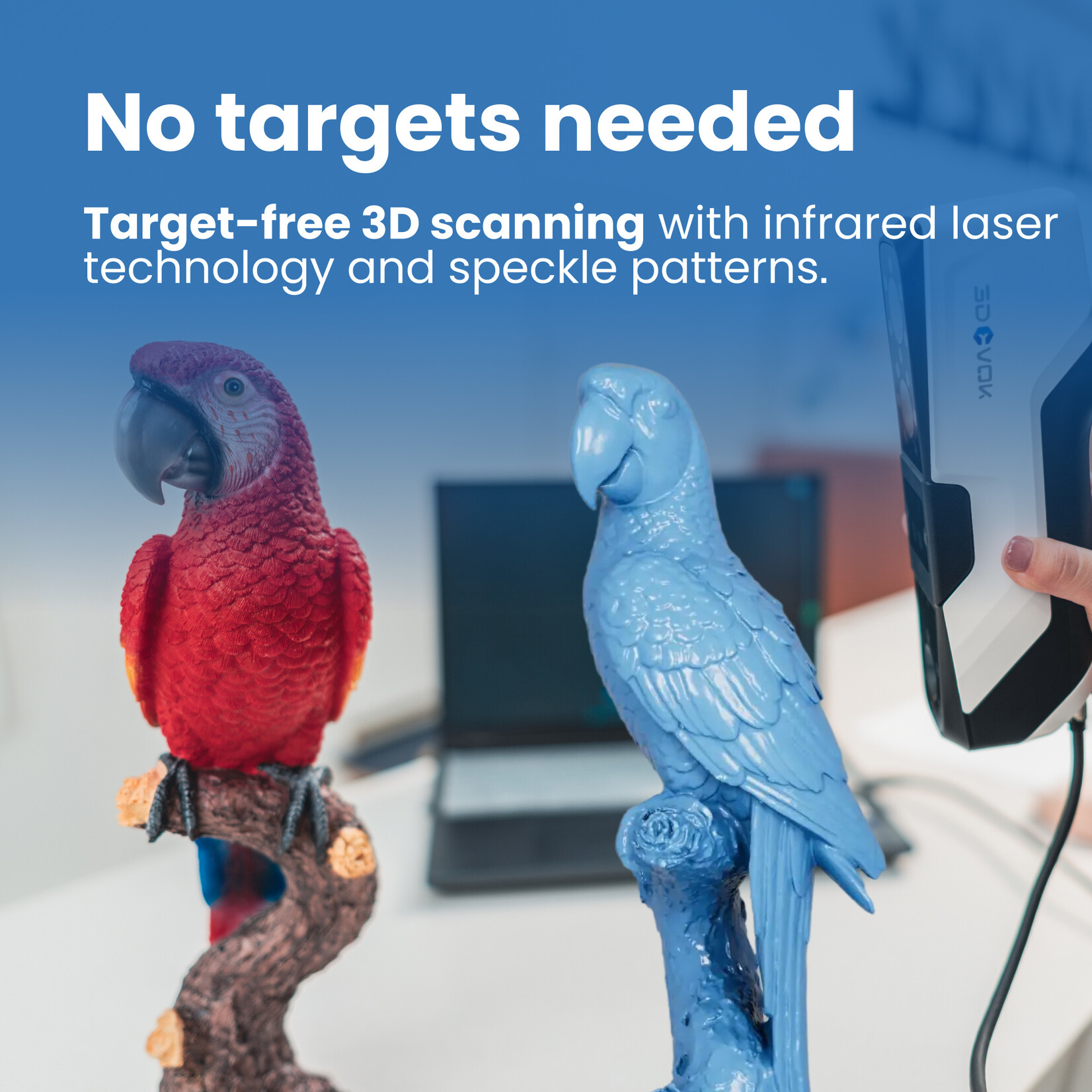

Marker-free Data Capture
- Dual-Mode Laser (Infrared Laser & Infrared Speckle) enables marker-free 3D scanning, making 3D data acquisition more efficient and convenient.
3DeVOK MQ - Empowering Professionals
0.08mm
Accuracy up to
0.1mm
Resolution up to
Vivid
24-bit color + texture mapping

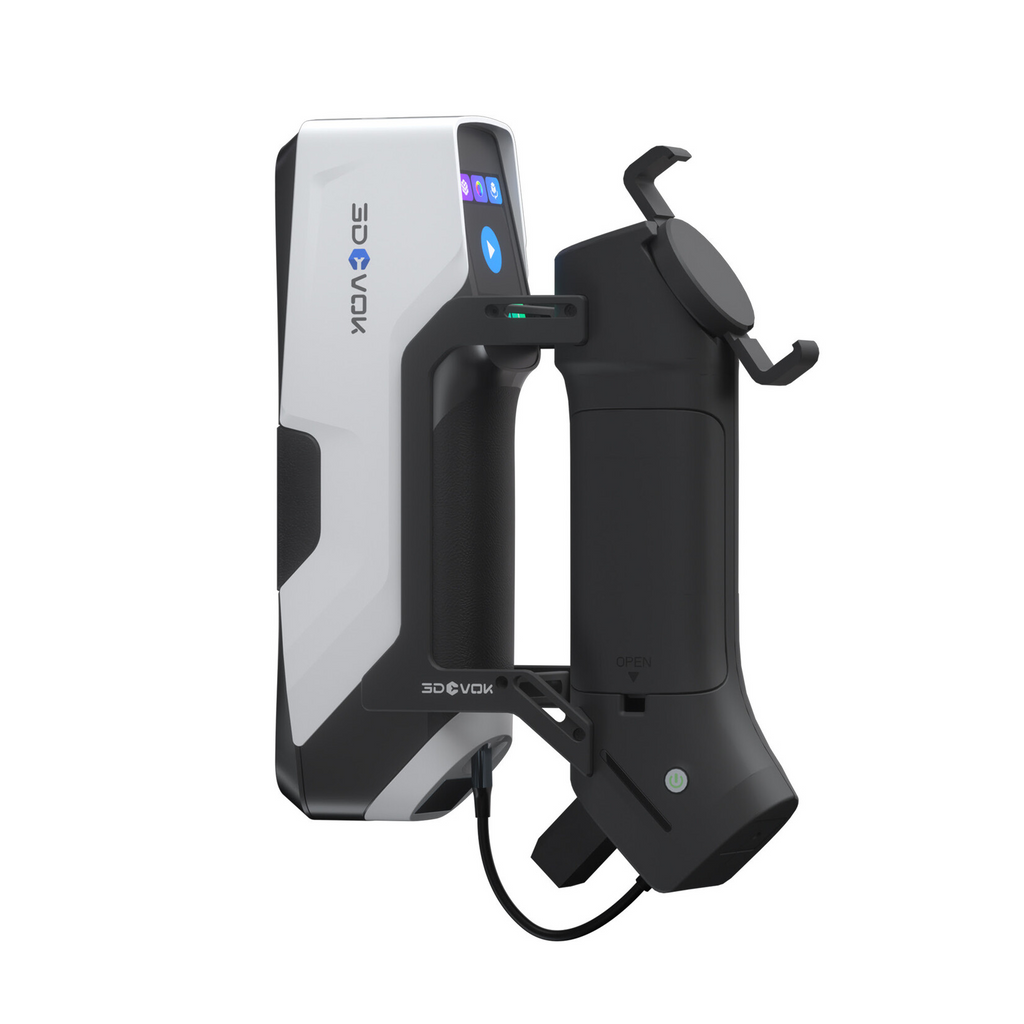

Wireless Freedom - Reliable Mobility
With an optional wireless handle, easily manage your scanning tasks
Adaptable to Various Environments
Perform efficiently in indoor, outdoor, low-light, and even direct sunlight conditions, ensuring reliable results in any setting.
Embrace the Power of Versatility
3D Printing
Bringing Creative Ideas to Life
Medical Rehabilitation
Technology Enhancing Lives
Education & Research
Making New Technologies Accessible
Tech for All
Unlocking the Digital Future of Everything
Technical Specifications
| 3DeVOK MQ Technical Specifications | ||
| Light Sources | 22 Infrared Laser Lines [Invisible] | Infrared VCSEL Structured Light [Invisible] |
| Class of Lasers | Class Ⅰ (Eye-safe) | |
| Scan Modes | Infrared Laser Lines Supports markerless and invisible-light scanning |
Infrared Linear-array Structured Light (Speckle) Supports markerless scanning, invisible-light scanning, partial fine scanning, and rapid scanning at ultra-long-distance range and ultra-large FoV |
| Accuracy✱ | Up to 0.08 mm | |
| Point Distance | 0.1-5 mm | |
| Alignment Mode | Support hybrid, markers, texture, and geometric features alignment | Support hybrid, texture, and geometric features alignment |
| Ability to Capture Texture | Yes | |
| Scanning Distance | 150-1,000 mm | 150-1,500 mm |
| Field of View | 140 mm × 140 mm – 490 mm × 490 mm | 50 mm × 75 mm – 1,100mm × 1,000mm |
| Scanning Frame | Up to 80 FPS (Marker alignment) | Up to 30 FPS |
| Scanning Speed | Up to 2,450,000 Points/s | Up to 4,500,000 Points/s |
| Output Formats | *.obj, *.stl, *.ply, *.asc, *.mk2, *.txt, *.epj, *.apj, *.spj, *.map, *.sk | |
| The Ability for 3D Printing | Supports .stl, .obj and other formats | |
| Wireless Scanning | Support (with an optional handle) | |
| Working Temperature Range | 0 – 40 ℃ | |
| Working Humidity Range | 10% – 90% RH (Non-condensing) | |
| Interface | USB 3.0 | |
| Scanner Dimensions & Weight | Dimensions: 215 mm × 73 mm × 53 mm; Weight: 550 g | |
| Power Source | DC: 12 V, 5.0 A | |
| Certifications | CE-EMC, FCC, RoHS, IEC 60825, IEC 62471, IEC 60529-IP50, WEEE, KC | |
| Recommended Configurations for PC | OS: Win10/Win11, 64-bit; CPU: i7-13650HX and above; RAM: 32GB and above; Graphic Card: NVIDIA discrete graphics card, NVIDIA RTX3060 and above; Graphics memory: 6GB and above |
|
| ✱ The laboratory theoretical accuracy test results are subject to uncertainty errors. | ||
What Is In The Box
3DeVOK MQ
$2,199.00
