Go up to 3 meters long
The Conveyor automatically feeds long materials through R1 during processing, extending the processing length up to 3,000 mm for signs, panels, furniture parts, and other large-format projects..
Easy to install and remove
The Conveyor is quick to install and easy to remove, making it simple to switch between long-material and regular-size projects* Requires the Riser for installation and use.
Usage tips
Before use, please follow theAuto-Passthrough Processing Guide to correctly install the Riser and Conveyor.
Parameter
| Parameter | Specification |
| Applicable to | Bambu Lab R1 |
| Dimensions |
117*1234*756 mm |
| Package Dimensions | 867*388*246 mm |
| Dimensions | 940 mm*560 mm*234 mm |
| Net Weight | Approx. 9.2 kg |
| Max. Workpiece Size |
Guide rail only, no extension: 450 mm < length < 1500 mm Guide rail + 1 extension: 450 mm < length < 2000 mm Guide rail + 2 extensions: 450 mm < length < 2500 mm Guide rail + 3 extensions: 450 mm < length < 33000 mm |
| Max. Processing Speed |
Laser Fill / Laser Image: 1000 mm/s Laser Line / Laser Cut: 200 mm/s |
| Power Supply |
Powered via 6-pin cable connected to the R1 riser base |
* The length of material the machine can engrave depends on whether guide rail extensions are used and how many. No matter how many sets of extension rails are used (it is recommendded to use no more than 3 sets at maximum), the length of the material shall not exceed 200 mm beyond the total length of the rails plus the machine.
In the box
| Item | Quantity |
| Smoke Curtain Mount | 1 |
| Support Roller Assembly |
1 |
| Conveyor Roller Assembly | 1 |
| Guide Rail | 4 |
| Guide Rail Support | 4 |
| Bambu Bus Cable 6-pin | 1 |
| Sensor Light Shield |
1 |
| Screws (for Smoke Curtain Mount ) | 6 |
| Screws (for Support Roller Assembly) | 6 |
| Screws (for Conveyor Roller Assembly) | 10 |
| Screws (for Guide Rail) | 6 |
| Allen Key | 1 |

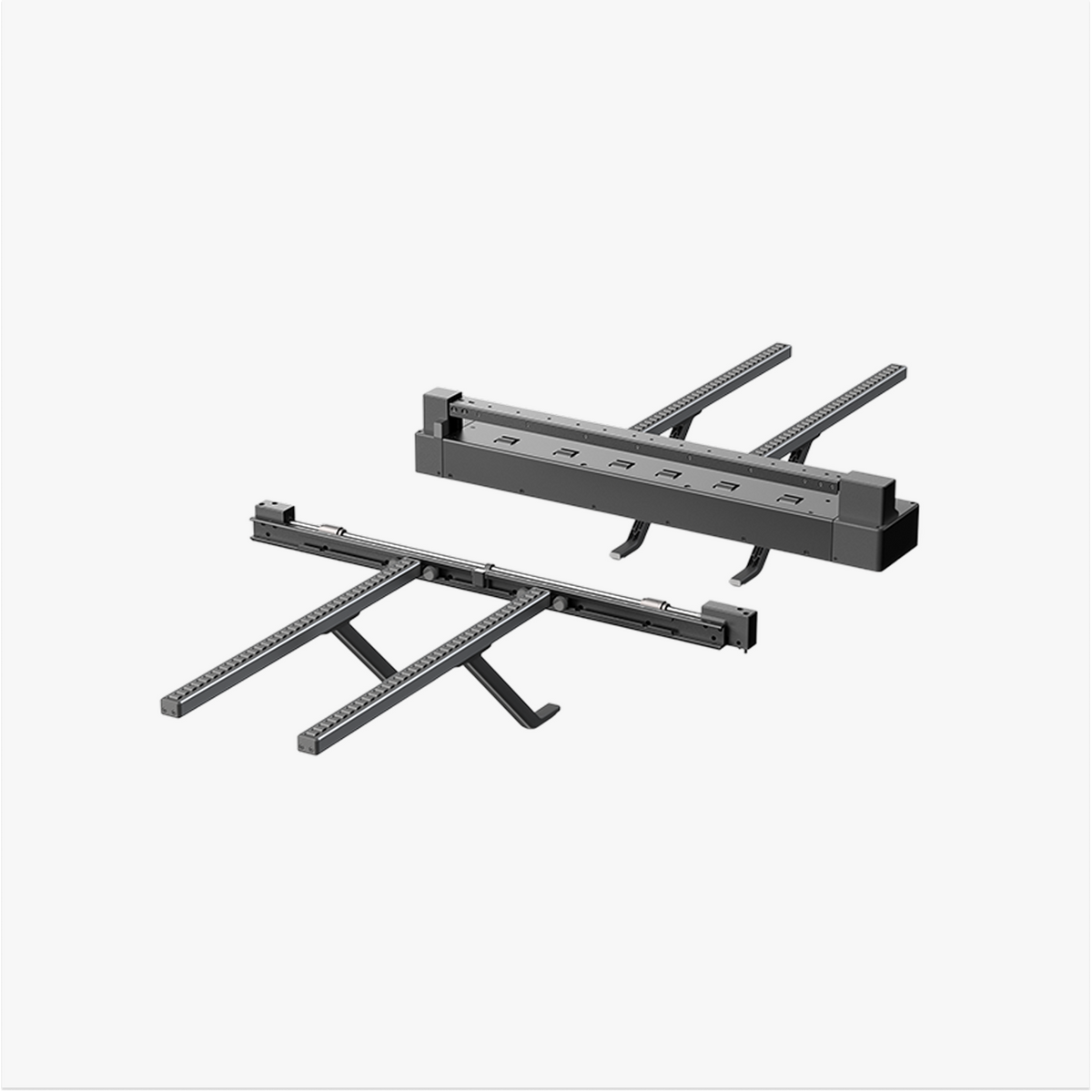

Automatic Conveyor Feeder
