Product Features
-
Large Build Volume: 340 × 320 × 340 mm³ for industrial‑grade, full‑scale prototypes and functional parts.
-
Multi‑Color Printing: Advanced extrusion system supports vibrant, multi‑material creations.
-
Precision Motion System: Closed‑loop servo motor extruder ensures consistent feed and positioning accuracy.
-
Modular Versatility: Optional 10 W laser engraving and cutting module for multi‑purpose fabrication.
-
Ultra‑High Resolution: 5 μm optical motion calibration for unmatched detail and surface quality.
-
High‑Temperature Capability: 350 °C nozzle and 65 °C active chamber for engineering‑grade materials.
-
Smart AI Monitoring: Full filament path AI detection for automatic error prevention and flow control.
-
Wide Power Compatibility: Operates safely on 100 – 120 V voltage range.
Get the Highlights
AI Detection
23 Sensors & 3 Cameras
340×320×340
mm³ Large Volume
＜ 50 μm
Motion Accuracy
20,000 Times/Sec
Extrusion Torque Regulation
Up to 30%
Faster Print Speed
10W 455nm
Laser Cutting
65 °C
Active Heated Chamber
Auto Venting
Filament Drying
Your Go-To Personal Manufacturing Hub
-
3D Printing
-
Multi-Color
3D Printing
-
3D Printing
-
Multi-Color
3D Printing -
Laser
Cutting -
Digital
Cutting
-
Multi-Color
3D Printing
-
3D Printing
-
Digital
Cutting
Accuracy That Works for You
Correct Mechanical Deviations
Even the printer comes out of the factory with superb accuracy, mechanical wear and variances over time are inevitable—but now, first time in the industry, there’s a solution.With the Vision Encoder⁽¹⁾, the H2S achieves distance-independent motion accuracy under 50 μm—thinner than a human hair. During calibration, it automatically compensates for mechanical drift, ensuring consistent precision and peak performance over time.
One Print. Perfect Fit.
Bambu Lab's Auto Hole/Contour Compensation⁽²⁾ minimizes printing tolerances, delivering machine-shop-level precision for hole dimensions. Design fit-critical parts with confidence—integrate shafts, bearings, and fasteners without trial and error. Post-print assembly has never been easier.
Ready for Engineering Filaments
Featuring a 350 °C hotend and a 65 °C actively heated chamber, it supports the entire Bambu filament lineup—from PLA and PETG to PC and PPA. With closed-loop fan control and precise thermal management, the H2S minimizes warping and deformation while improving layer adhesion. Build large, high-performance parts that are as functional as they are strong.
Even Surfaces, Crisp Edges
H2S uses both the sensing capability of its servo motor on the extruder and the high-resolution eddy current sensors on the nozzle to precisely control extrusion by measuring nozzle pressure and calibrating PA parameters for each filament, improving surface smoothness and edge sharpness.
Precision in Motion
Active Vibration Compensation neutralizes micro-vibrations and resonance in real time, enabling premium print quality at higher speeds.
Print Functional Designs
Seed Starter: PA6-GF
RC Plane: PLA Tough+
Go-Kart Frame: PAHT-CF
Handbag: TPU for AMS
Intelligence That’s Got Your Back
20,000 Checks Per Second
Closed-Loop Feedback, Real-Time Control
Bambu Lab’s proprietary PMSM servo system enables 20 kHz resistance and position sampling to dynamically modulate electromagnetic torque vectors. It stabilizes extrusion and actively detects grinding⁽³⁾ or clogs in real time.
23 Sensors + 3 Cameras
Each Potential Risk Has Its Own Detector
With AI-driven real-time monitoring, the vision system detects clumping, spaghetti and purge chute jamming as they happen, helping prevent failed prints before they start. This same vision system powers advanced features like Live Spatial Alignment, allowing precise laser and cutting calibration, and Vision Encoder technology, which enhances positional accuracy.
Pre-Flight Checklist by AI
Prior to each operational cycle, the H2S vision system initiates a comprehensive pre-flight checklist: Chamber Integrity Scan – Detects debris across the entire print surface. Hardware Configuration Audit – Instantly identifies build plate properties.
Flap Switch Airflow & Filtration System
3D Printing & Laser Cutting. 3 Modes, All-in-One
High-Temp Printing
Chamber sealed. Internal air recirculates through the Air Filter and the heater to stabilize high-temp conditions. Print large engineering parts without warping.
Low-Temp Printing
Top Vent opens to bring in cool air, while maintaining a filtered exhaust⁽⁴⁾. Print PLA and PETG without opening the door, and handle overhangs and bridging with ease.
Laser Cutting/Engraving
Top Vent and Filter Switch Flap open. Fumes are channeled efficiently to the ventilation system, keeping your workspace safe and clean.
Bigger. Faster. Better.
Maximum Volume. Maximum Productivity.
With a build volume of 340×320×340 mm³, the H2S offers the largest print space among all Bambu Lab printers. Your Vision. Fully Realized in One Print.
120% Larger Build Volume
Than the X1 Carbon
Full Scale Printing
Print bigger, with fewer plates
Top Speed. More Reliable Than Ever.
Bambu Lab’s proprietary PMSM⁽⁵⁾ servo extrusion system delivers 67% more extrusion force, providing solid support to high flow⁽⁶⁾ printing. Paired with up to 1000 mm/s toolhead speed and up to 20,000 mm/s² acceleration, your H2S can finally go full throttle—cutting your printing time by up to 30%⁽⁷⁾—while maintaining top-tier quality.
DynaSense Extruder
PMSM servo extruder delivers up to 10kg of extrusion force—67% more than regular stepper motors, delivering the strongest support for high-flow printing.
1 day 7 hours
12.3% Faster Than X1C
1 day 1 hour
11.2% Faster Than X1C
6 days
22.2% Faster Than X1C
Cut. Engrave. Draw.
Compact. Capable. All in One.
Live Spatial Alignment
Top-down BirdsEye camera⁽⁸⁾ and onboard toolhead camera enable Live Spatial Alignment, letting you preview the toolpath directly on your material with 0.3 mm accuracy. What you see is what you get.
Auto Arrangement
Bambu Suite automatically arranges your project shapes to make the most of every sheet—smart, efficient, and effortless.
10W 455nm Laser Power
Slice through up to 5 mm plywood, acrylic, or PU with ease—clean, fast, and precise.
Air Assist
Air Assist keeps your lines crisp by blowing away smoke and char while cooling the surface—preventing soot buildup and beam distortion for sharp, clean results.
Digital Cutting
Effortlessly cut through paper, vinyl, PU leatherette, and more—clean, accurate, and ready to apply.
Drawing
Use the drawing module to automate linework, sketches, or handwritten notes—precise, repeatable, and hands-free.
Not a Toolkit. A Production-Ready Platform.
-
Laser
Cutting
-
Laser
Cutting -
Laser
Engraving
-
Laser
Cutting
-
Laser
Cutting -
Laser
Engraving
-
Digital
Cutting
-
Digital
Cutting
Protected Inside and Out
Safety, Built In
Shields your eyes from the 455 nm laser beam while keeping your workspace clear and visible.
Connectivity, By All Means. Privacy, By Design.
The H2S offers seamless cloud connectivity for convenient remote control from any device. For security-sensitive applications, it also delivers complete offline functionality, ensuring physically isolated operation. Users can control the printer, send files, and upgrade firmware—no internet required. Additionally, Developer Mode unlocks MQTT port access, empowering developers and integrators to connect third-party components and custom software with ease
Accessible. Comfortable. Made to Last.
Quick-Swap Nozzle
Swap nozzles in seconds—no tools, no hassle. Whether you're switching materials or upgrading to a different nozzle size, the redesigned hotend makes it easy and intuitive, even for first-time users.
Quiet by Design
With Active Motor Noise Canceling and specialized air duct noise-reduction technology, the H2S operates below 50 dB⁽¹¹⁾. Print overnight or in shared spaces without disrupting your environment.
All-Metal, Die-Cast Body
The integrated die-cast aluminum alloy chassis delivers a sturdy, stable structure that provides a rigid foundation for high-speed, large-format printing, while minimizing accuracy loss caused by micro-twisting.
Multi-Color Printing and Drying, All-in-One
AMS 2 Pro
Learn More
AMS HT
Electro-Magnetic Air Vent
Automated venting facilitates dehumidification during drying and airtight sealing for weeks of quality printing.
Auto-Rotate Drying
During the drying process, the filament spools rotate automatically to provide more even drying.
RFID Sync
AMS 2 Pro uses RFID to auto-match drying settings for Bambu official filaments, no manual input needed.
Endless Models to Print
MakerWorld
Over a Million Models at Your Fingertips
MakerLab
AI Assisted 3D Modeling Tools, Bring Your Vision to Life
Maker's Supply
Go-To Source for Parts that Bring 3D Prints to Life
Integrated Ecosystem, End-to-End Support
Software Ecosystem
Control & Browse From Any Device, Anywhere
Bambu Lab Academy
Master Your Printer with Easy-to-follow Lessons
Bambu Lab Wiki
Find Answers to Every Printing Problem
H2S Specs
Unboxing video
What's in the box
| H2S AMS Combo | H2S Laser Full Combo | H2S | |
|---|---|---|---|
|

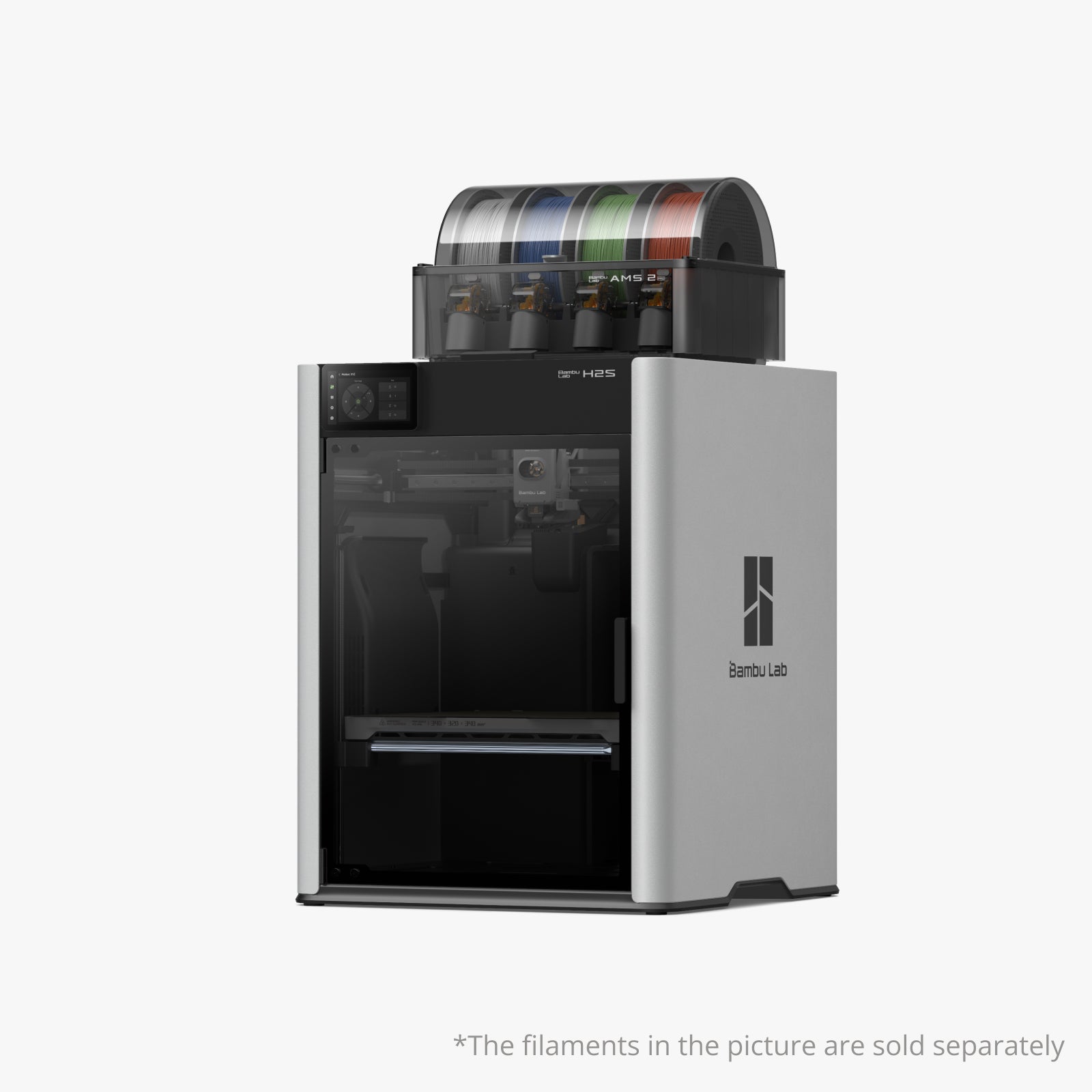

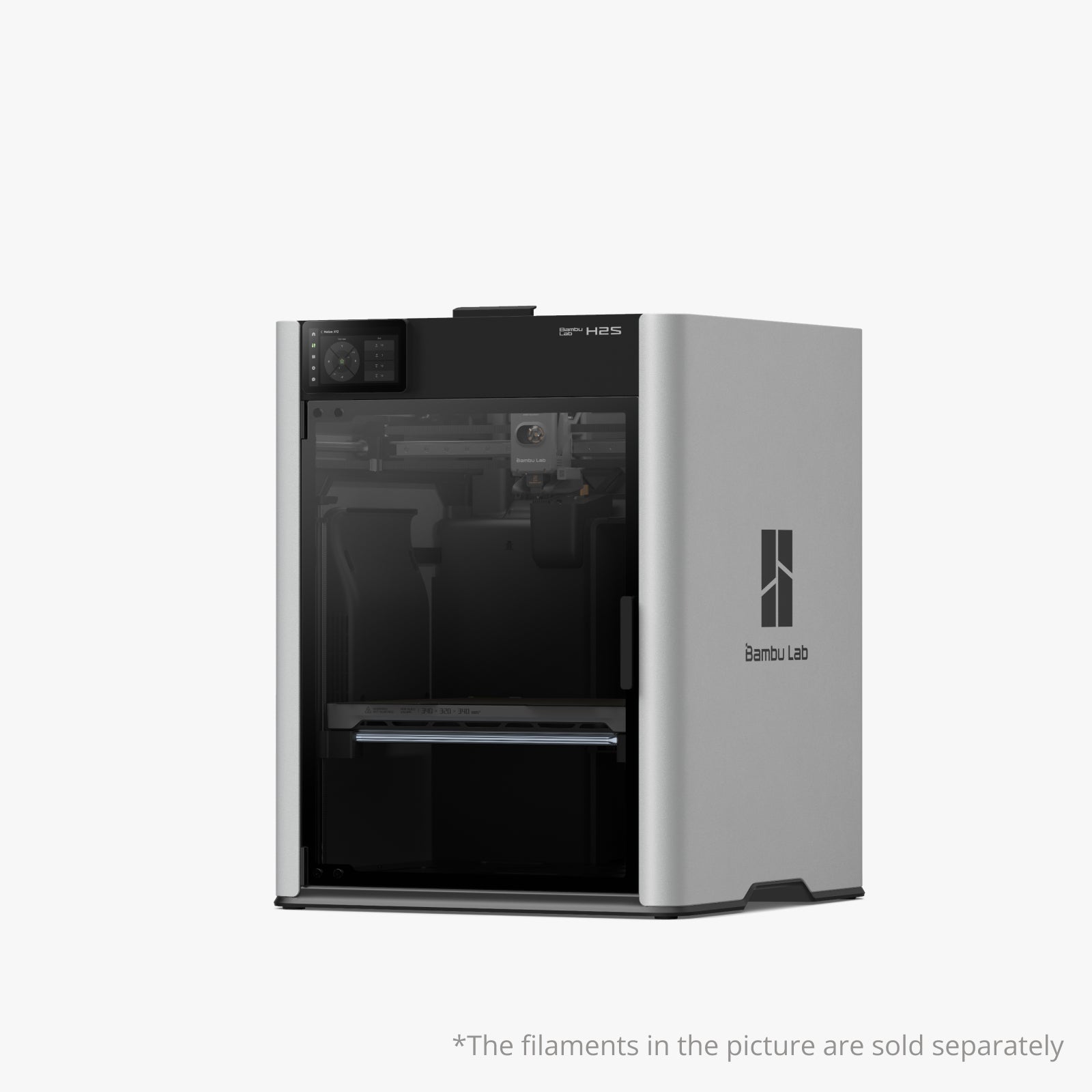

Bambu Lab H2S
|
- | ||
|
Bambu Lab H2S Laser Edition
|
- | - | |
|
Textured PEI Build Plate
|
|||
|
Spool Holder
|
|||
|
Accessory Box
|
|||
|
AMS 2 Pro
|
- | ||
|
10W Laser Module
|
- | - | |
|
Cutting Module (with Pen Holder)
|
- | - | |
|
Laser Platform
|
- | - | |
|
Cutting Platform
|
- | - | |
|
Safety Key
|
|||
|
Ventilation Pipe
|
- | - | |
|
Laser and Cutting Materials
|
- | - | |
|
Emergency Stop Button
|
- | - |
Frequently Asked Questions
1. Does the H2S support laser and cutting functions?
It supports 10W laser and cutting but does not support 40W laser.
2. Can a non-laser H2S be upgraded to a laser H2S?
Yes. The upgrade kit and its installation guide will be available some time after the product launch. Note that the upgrade kit uses an external air pump, which differs in installation structure from the built-in air pump. It must be installed externally and connected to the machine via an air tube. The upgraded printer has the same functionality and processing performance as the laser version.
3. Can the H2S be upgraded to an H2D?
No, it is recommended to choose the model that suits your needs when placing an order.
4. Is the H2S compatible with the first-generation AMS or AMS lite?
The first-generation AMS is fully plug-and-play compatible with the H2S for multi-color printing but does not support AMS drying. Due to fundamental differences in the feeding mechanism and buffer structure, the H2S does not support AMS lite
5. How many AMS 2 Pro and AMS HT units can the H2S support, and how many colors can it print?
The H2S supports up to 4 AMS 2 Pro and 8 AMS HT units, totaling 12 units with 24 filament slots, enabling up to 24-color printing.
6. Are the hotend and silicone sock of the H2S compatible with the H2D or A1?
The H2S hotend and silicone sock are compatible with the H2D. While structurally similar to the A1 hotend, they are not fully compatible. For optimal print quality, we strongly recommend not using the A1 hotend on H2 series printers. Using an H2 series hotend on an A1 printer is feasible, but it requires the H2 series silicone sock.
7. Are the H2S and A1 series tool heads the same? Can the components on the tool head be shared with the A1 series?
The H2S tool head features a completely new design, with optimized and upgraded components, including the extruder motor, filament drive wheel, hotend heating assembly, and cooling fan. As a result, the components on the H2S tool head are not compatible with the A1 series, except for the cutter blade.
8. Are the build plates of the H2S and H2D compatible?
Yes, they are compatible.
9. Does the H2S support motion accuracy calibration, and is the calibration plate from my previously purchased H2D compatible?
It supports motion accuracy calibration, and the H2D calibration plate is compatible.
10. The AMS 2 Pro connects to the printer via a 6-pin interface. What are the two remaining 4-pin interfaces on the back of the H2S printer used for?
The two 4-pin ports on the back are reserved for future expansion accessories. For example, to upgrade a non-laser version of the printer to a laser version, one of these ports can be used to connect an external air pump.
11. Does the H2S come with a standard USB drive, and what functions are affected without one? What are the USB drive specifications?
The package does not include a standard USB flash drive. You can still initiate printing normally without a USB, as the printer has built-in storage space to run print files. However, without a USB inserted, the following functions will be affected:
1
. The recording and time-lapse photography functions can't be turned on;
The package does not include a standard USB flash drive. You can still initiate printing normally without a USB, as the printer has built-in storage space to run print files. However, without a USB inserted, the following functions will be affected:
1. The recording and time-lapse photography functions can't be turned on;
2. Printing cannot be initiated through the LAN;
3. Print files cannot be sent to the machine for storage through the Bambu Studio;
4. Log files cannot be exported;
USB requirements: USB2.0 protocol or above (actual minimum write speed needs to be greater than 10MB/s), supported file formats are FAT32 and exFAT. and the printer only supports mounting one USB, and cannot connect multiple USB via a USB hub.
2. Printing cannot be initiated through the LAN;
3. Print files cannot be sent to the machine for storage through the Bambu Studio;
4. Log files cannot be exported;
USB requirements: USB2.0 protocol or above (actual minimum write speed needs to be greater than 10MB/s), supported file formats are FAT32 and exFAT. and the printer only supports mounting one USB, and cannot connect multiple USB via a USB hub.
12. What precautions or recommendations are there for printing TPU with the H2S?
Due to TPU’s flexible nature, which can cause issues during feeding and printing, we’ve created a dedicated wiki guide for TPU printing. Following the guide ensures smooth TPU printing.
13. What precautions should be taken when using the laser function?
Laser processing involves high-energy beams that may interact with flammable materials. Never leave the machine unattended during laser operation, ensure no flammable or explosive items are nearby, and refer to the Laser Safety Document for detailed safety guidelines.
1. Vision Encoder: Vision Encoder needs to be purchased separately on the Bambu Lab Store.
2. Auto Hole/Contour Compensation: Auto Hole/Contour Compensation must be enabled in Bambu Studio and requires the use of designated Bambu filaments.
3. Filament grinding detection on the DynaSense Extruder may vary depending on filament type.
4. Filter Mode for low-temperature printing is optional and will be available in Q4 2025.
5. Permanent Magnet Brush-less Servo Motor
6. High Flow Hotend are optional equipment and can be purchased from the official store.
7. When using Bambu Lab PLA Basic to print a 200×200×200 mm cube with 15% infill, the printing time can be reduced by up to 30% compared to Bambu Lab X1C. Actual time savings may vary depending on the model, infill, and filament used.
8. The laser and digital cutting functions are all controlled and visualized through Bambu Suite. Live Spatial Alignment is enabled by the BirdsEye Camera. The BirdsEye Camera comes standard with the H2S Laser Edition, or can be added via the Laser Upgrade Kit.
9. Push notifications require the use of Bambu Handy and cloud connectivity.
10. Due to safety protocol, Developer mode cannot be enabled when using Laser and Cutting functions.
11. Background noise: 40 dB; Test distance: 1 m
12. The go-kart frame shown in the picture is merely a component of the complete vehicle. Its usability and durability are limited by the overall design and construction of the vehicle. It cannot be used on the road until permission is obtained from the local relevant authorities. When conducting any operations, please strictly abide by the applicable local laws, regulations and safety standards to avoid risks or damages.
13. Creator projects are provided for illustrative purposes only. Bambu Lab does not endorse, and disclaims any representations or warranties regarding creator projects, including, without limitation, the safety, marketability, or usability of any 3D printed works based on such projects. See our Terms of Service for more information.
14. Ensure that a person must be present at all times to closely monitor the machine during laser engraving and cutting operations. Do not open the laser safety window while the machine is operating. The laser process should only be observed through the designated laser safety window. Individuals with medical conditions or sensitivities (e.g., to strong light or smoke) must strictly follow professional medical advice before operating or approaching the machine. For safety instructions regarding laser use, refer to the Laser Module Safety Guidelines Wiki and the Laser Safety Document.
15. All product data for the H2S, such as PMSM extrusion force improvement and model print times, is based on Bambu Lab’s internal testing. Actual results may vary due to individual product differences, user habits, and environmental conditions. Please refer to actual usage for reference.
