Product Application
This round hygrometer, when combined with a 3D-printed desiccant box, efficiently monitors the storage environment of your 3D printing materials.
With the precisely designed AMS desiccant box, you can easily install the hygrometer in the designated position without any tilt, keeping humidity data clearly visible.
The model securely holds the hygrometer and allows for additional desiccant, maximizing material preservation while ensuring the hygrometer remains functional and accessible.
|

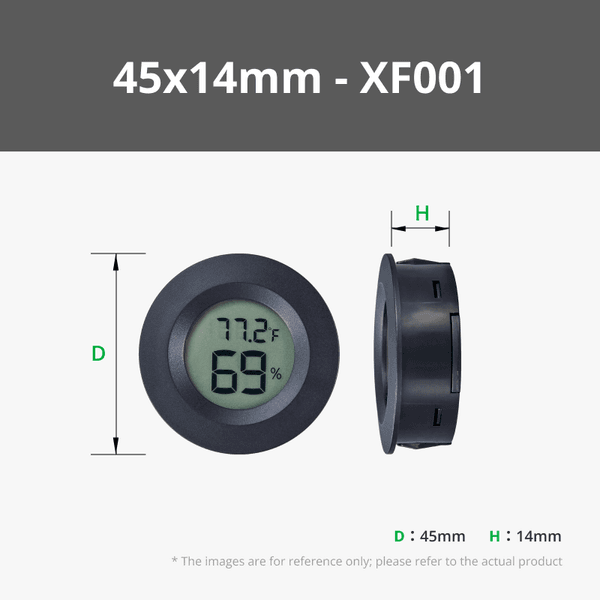

Product ID
|
D (mm)
Diameter |
H (mm)
Thickness |
Quantity |
| XF001 | 45 | 14 | 1PCS |
Guidance
Basic Information
| Shell Material | ABS |
| Device Operating Temperature | -10°C to 60°C |
| Temperature Measurement Range | -50°C to 70℃ |
| Temperature Accuracy | ±1℃ |
| Display Screen | LCD |
| Display Operating Temperature | -5°C to 50°C |
| Humidity Measurement Range | 20% to 90% |
| Humidity Accuracy | ±5% |
Product Feature
Small, durable, and portable | Monitor the temperature and humidity values | Fast response time,with a measurement cycle of 10 seconds
Can be switched between Fahrenheit and Celsius with a double-click the ℃/℉ conversion button on the back | Rated voltage is DC 1.5V (1x LR44 button cell battery)
Considerations
- The device is rated for use in ambient temperatures from -10°C to 60°C, but the display operates reliably only between -5°C and 50°C. Using the device outside this display temperature range may cause slow response, screen lag, or other visual anomalies.
- Avoid prolonged use or storage in extreme temperatures. Extended exposure to -10°C or below may cause moisture-sensitive components to freeze and sustain permanent damage. Similarly, continuous operation at 60°C or above can lead to gradual screen dimming, eventual blackouts, and potential damage to heat-sensitive parts. For optimal performance and longevity, avoid prolonged use in extreme temperatures.
Circular Embedded Electronic Digital Thermometer Hygrometer
