Extruder Connection Board - H2D/H2C

Overview

The Extruder Connection Board is installed on the back of the toolhead and primarily serves to connect and manage the electrical signals and power supply for the extruder. It acts as an interface between the extruder components and the main control system, ensuring stable operation of sensors, heating elements, and motors.

Installation

Learn more about H2D Extruder Connection Board on Bambu Lab Wiki.

Learn more about H2C Extruder Connection Board on Bambu Lab Wiki.

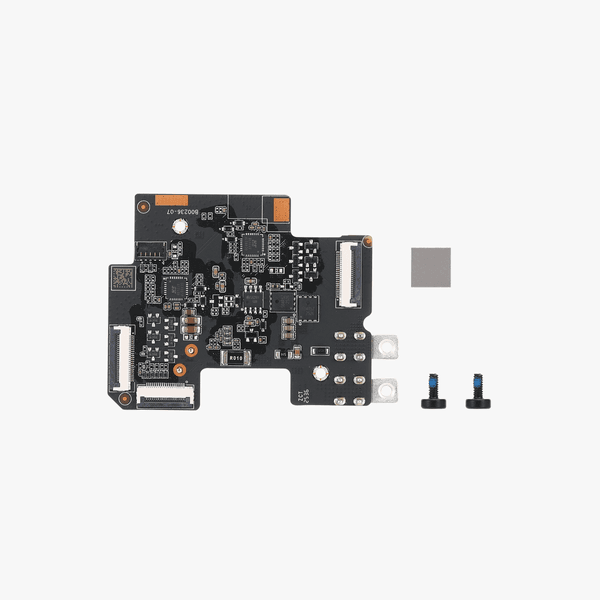

In the Box

For H2D

- H2D Extruder Connection Board*1

- M1.6-4 Screw*2

For H2C

- Extruder Connection Board*1

- M1.6x4 Screw *2

- Thermal Silicone Pad *1

Compatibility

H2D and H2D Laser
H2C and H2C Laser
