FreeScan Combo | Combo+
FreeScan Combo | Combo+
METROLOGY GRADE 3D SCANNER

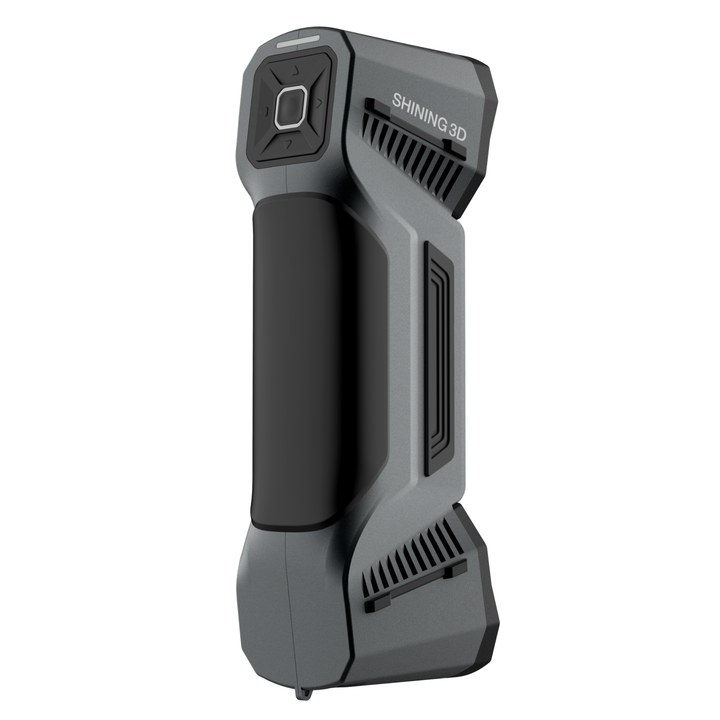

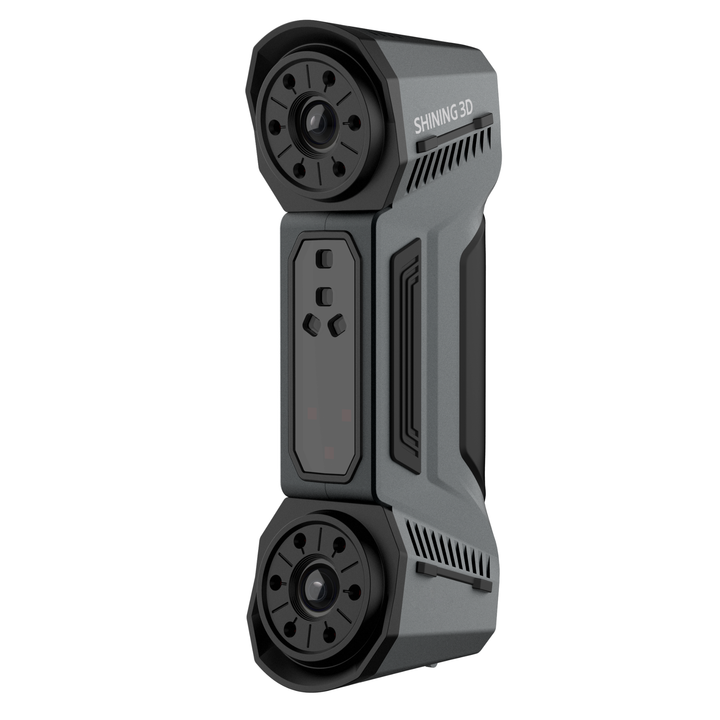

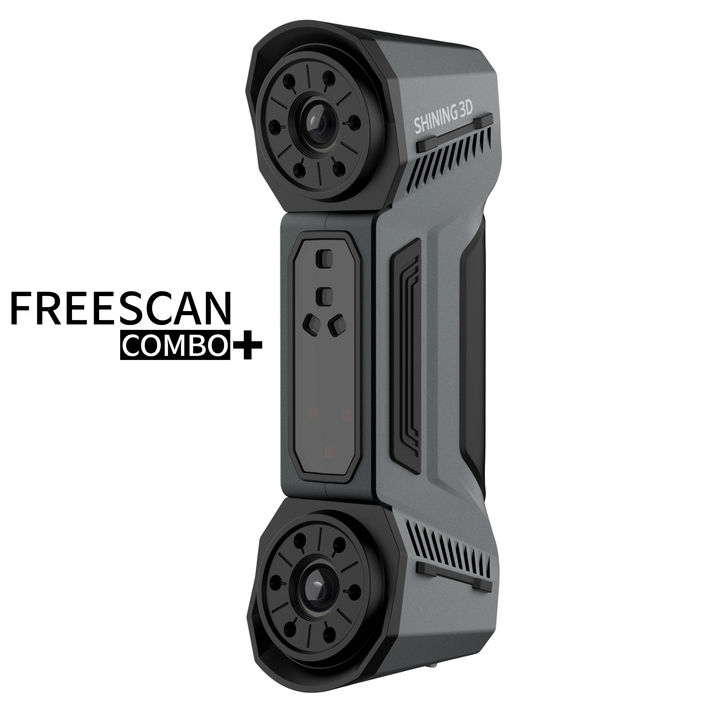

FreeScan Combo | Combo+

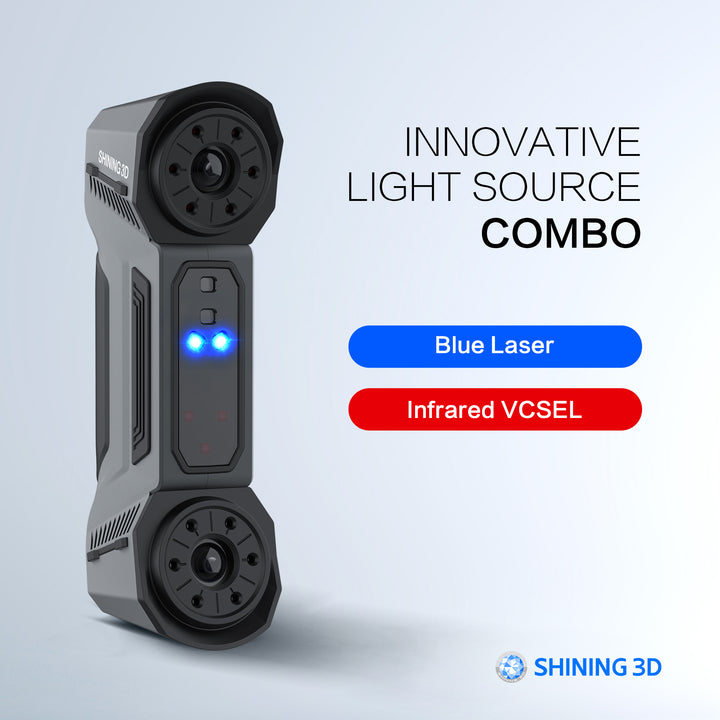

- Light Source -- Blue Laser + Infrared VCSEL
- Accuracy -- Up to 0.02 mm
- Weight -- 620g
- Compact Size -- 193mm x 63mm x 53mm

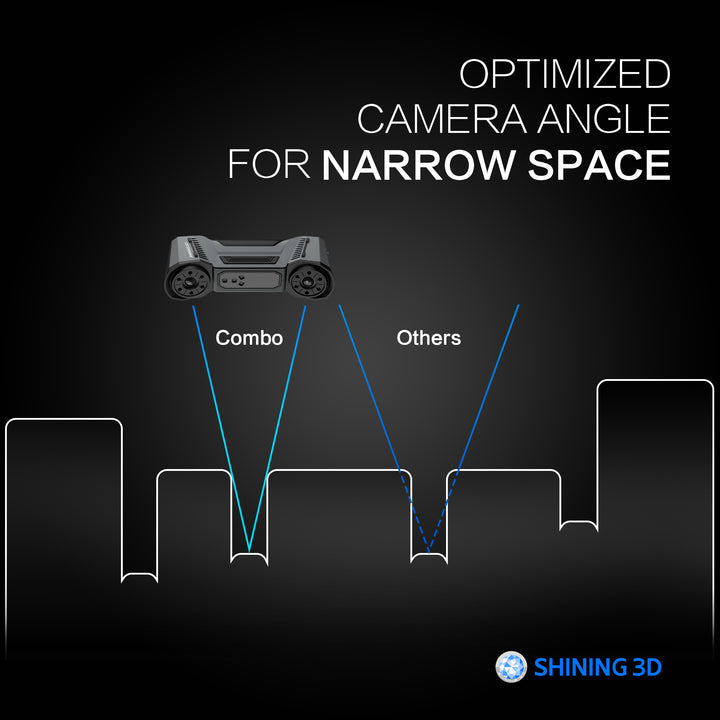

The FreeScan Combo and Combo+ have a compact size with stereoscopic cameras set closer together at an optimized camera angle allowing it to pick up detail in narrow spaces.
FreeScan Combo & Combo+ Metrology 3D Scanner
Scanning Speed
The FreeScan Combo can achieve a scanning speed of 1,860,000 points per second using the laser scan mode and a speed of 2,250,000 points per second utilizing infrared mode, whereas the Combo+ has a scanning speed of 3,600,000 points/s. Freescan Combo and Combo+ deliver high accuracy according to VDI-VDE 2634-2 of 0.02 mm while capturing a vast amount of data per second.
Versatility
The different scanning modes include:
- 26 laser lines suitable for easy and large size laser scanning (50 lines - Combo+)
- 7 parallel laser lines for scanning fine details such as raised/embossed text
- 1 single laser line to obtain 3D data from deeper holes and gaps
- Infrared mode can scan without markers
Intuitive and free scanning software
The FreeScan Combo and Combo+ provide an easy workflow, powerful and user-friendly software. The software integrates connections to the more commonly used 3D inspection and design software, allowing the scan data to be imported more efficiently.
SPECIFICATIONS
Compact & portable
This metrology-grade scanner has an ergonomic and compact design. With a size of 193 mm × 63 mm × 53 mm and a weight of 620 g, the FreeScan Combo comes as an easy-to-use and versatile scanner.
Versatility
Videos
Example Scans
FreeScan Combo | Combo+
$11,999.00
FreeScan Combo (26-line) - $11,999.00
(Sold Out)
