Solid Model
3D Files with Structure and Dimensions.
Documentation
Introduction
The LED Mini Spotlight is a professional-grade lighting solution designed to perfectly showcase your 3D printed masterpieces with precision and clarity. Designed to bring museum-quality illumination to your desktop, it is the ideal choice for highlighting intricate details in model display cabinets, protective cases, and custom DIY Maker projects. Whether you are showcasing a complex architectural print or a detailed figure, this spotlight provides the perfect focused ambiance.
Product Feature
- Precision 25° Beam Angle: Equipped with a high-quality optical lens that provides a concentrated 25° beam, ensuring your models are illuminated with precision and zero light leakage.
- Premium Aluminum Build: Crafted with a sleek black aluminum alloy housing, offering superior durability and excellent heat dissipation for long-term use.
- Integrated Control: Features an inline switch on a 1.5-meter cable, allowing for easy operation without disconnecting the USB power source.
Product Specifications

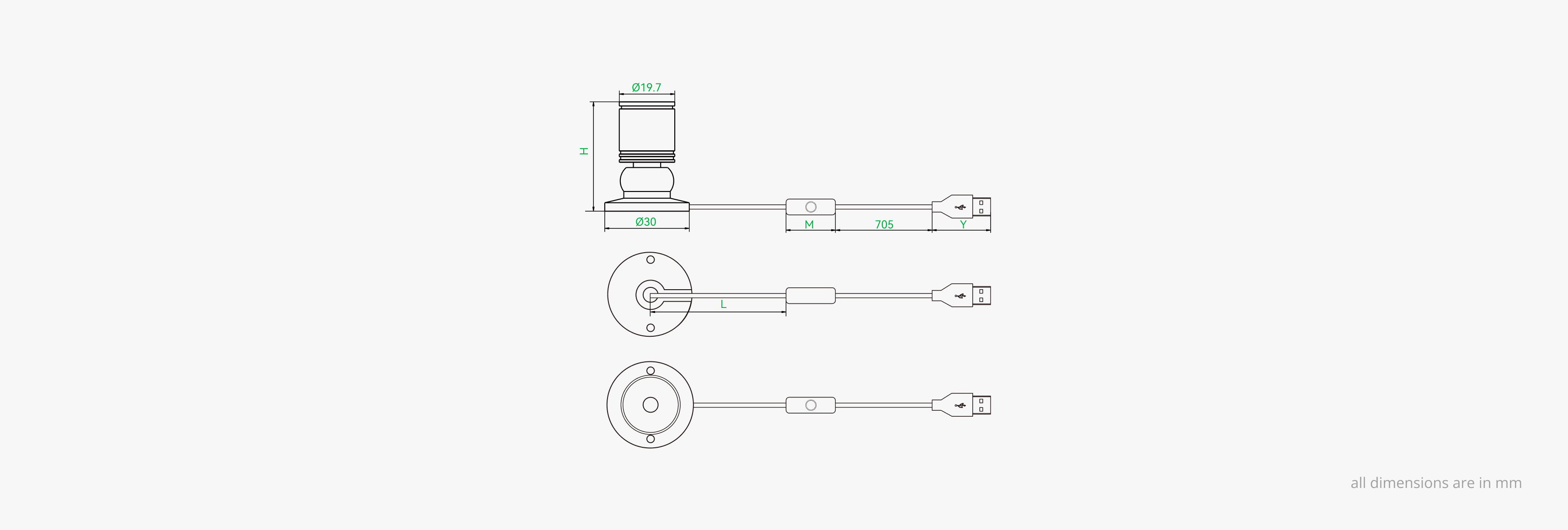

| Product ID | H(mm) | M (mm) | Y (mm) | L (mm) |
| KC026 | 40.5 | 45 | 40 | 690 |
| KC027 | 39 | 36 | 45 | 714 |
| Material | Black Aluminum Alloy |
| Interface | USB Type-A with Switch |
| Input Voltage | DC 5V |
| Dimensions | Height: 40.5 mm; Base: Ø30 mm |
| Power Consumption | 0.5W |
| Light Strip Current |
KC026 0.1 A; KC027 0.2 A |
| Color Temperature (CCT) | 3000K-3200K |
| Circuit Configuration | 1pcs Resistor |
Considerations
- Power Supply: Ensure use with a standard DC 5V power adapter or USB port. Excessive voltage may damage the internal circuitry.
- Indoor Use Only: This product is not waterproof; please use it in a dry, indoor environment.
- Installation: When mounting in enclosed display cases, ensure there is adequate ventilation to assist with the aluminum housing's natural heat dissipation.

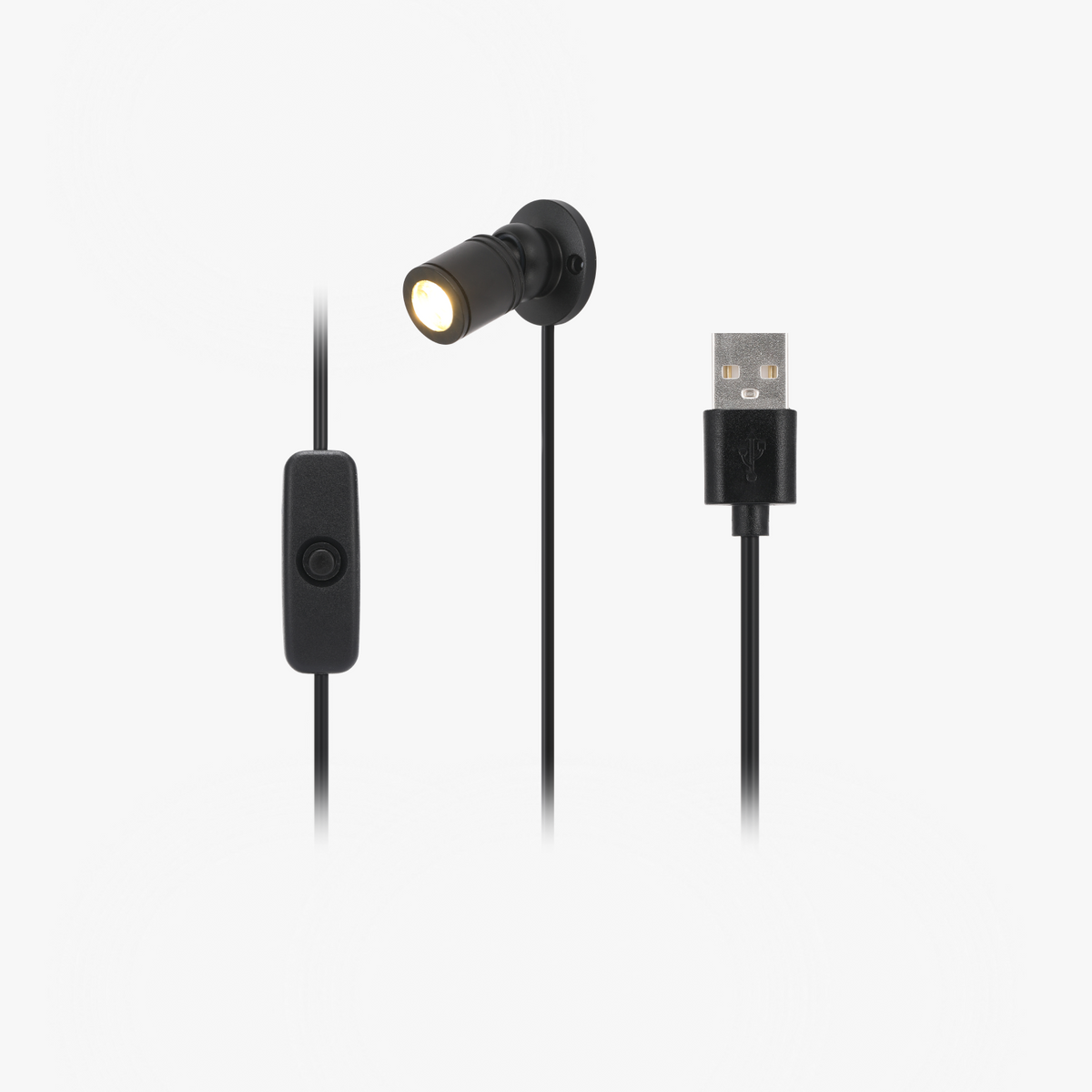

LED Mini Spotlight
$6.99
Warm White ( KC026 ) - $6.99
(Sold Out)
