User’s Manual
Product function and configuration guidelines.
Introduction
You can combine this product with a Multi-Function Core Board to form a Cyberbrick transmitter module. By pairing a Remote Control Receiver Shield with another Multi-Function Core Board, you can create a Cyberbrick receiver module. Connect joysticks and buttons to the transmitter module, and motors or servos to the receiver module, and you will have a minimal Cyberbrick remote control car project unit.
Can be combined with the Official R/C Combo Kits
Remote Control Toys
Product Specifications

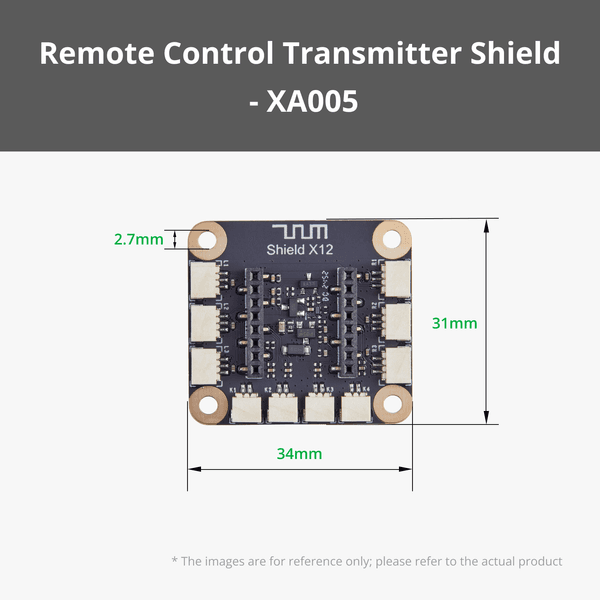

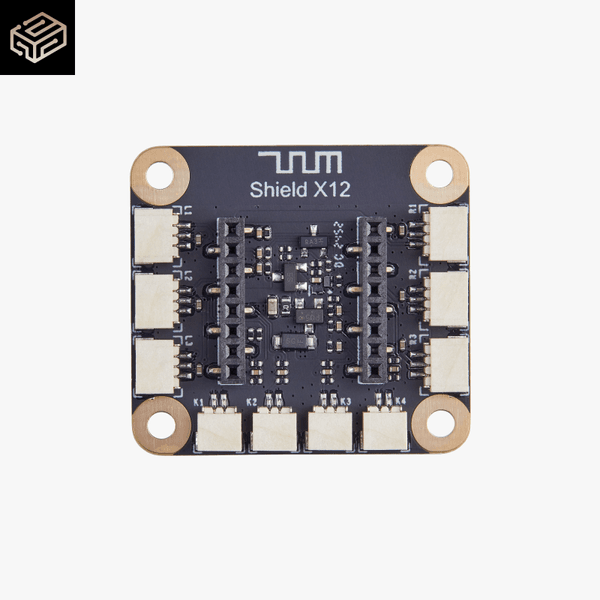

| Item Number | Component | Description |
| 1 | Power Input | XH2.54 2Pin DC power input |
| 2 | ADC Input Port | Connecting ADC modules such as joystick |
| 3 | Digital Input Port | Connecting binary-input modules such as momentary button |
| 4 | Core Slot | Connectable with multi-function controller core |
| 5 | Orientation Mark | Ensure proper installation alignmen |
Remote Control Transmitter Shield (1PCS)
$6.99
Remote Control Transmitter Shield (1PCS) - XA005 - $6.99
