Electric Push Rod

Introduction

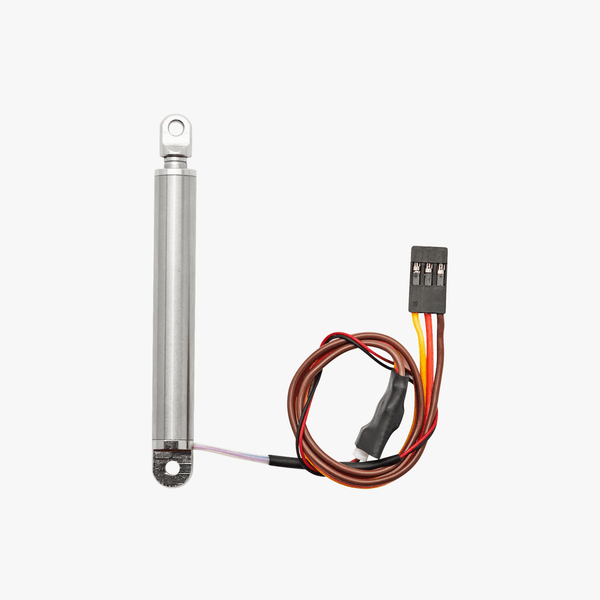

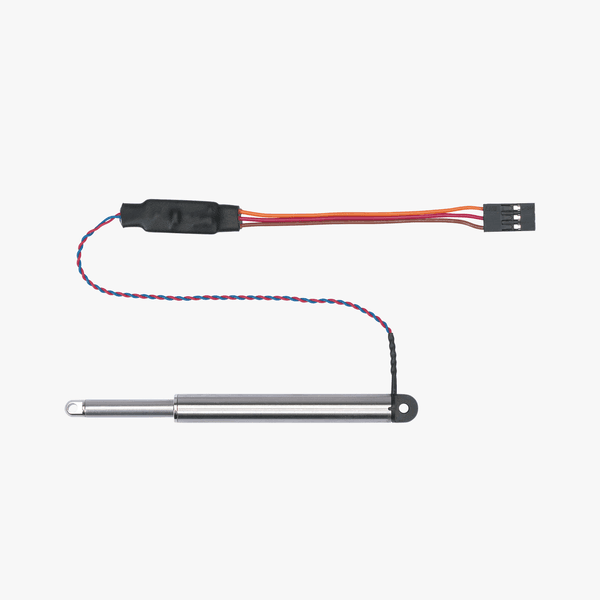

The Electric Push Rod includes an electric linear actuator and a control cable. Connect the actuator to the Remote Control Receiver Shield's servo interface using the included cable to control its extension and retraction. With its ultra-compact size and sleek silver-white design, it's perfect for CyberBrick miniature engineering models, serving as a realistic substitute for hydraulic cylinders and similar components. Ideal for any application requiring stable, precise linear motion.

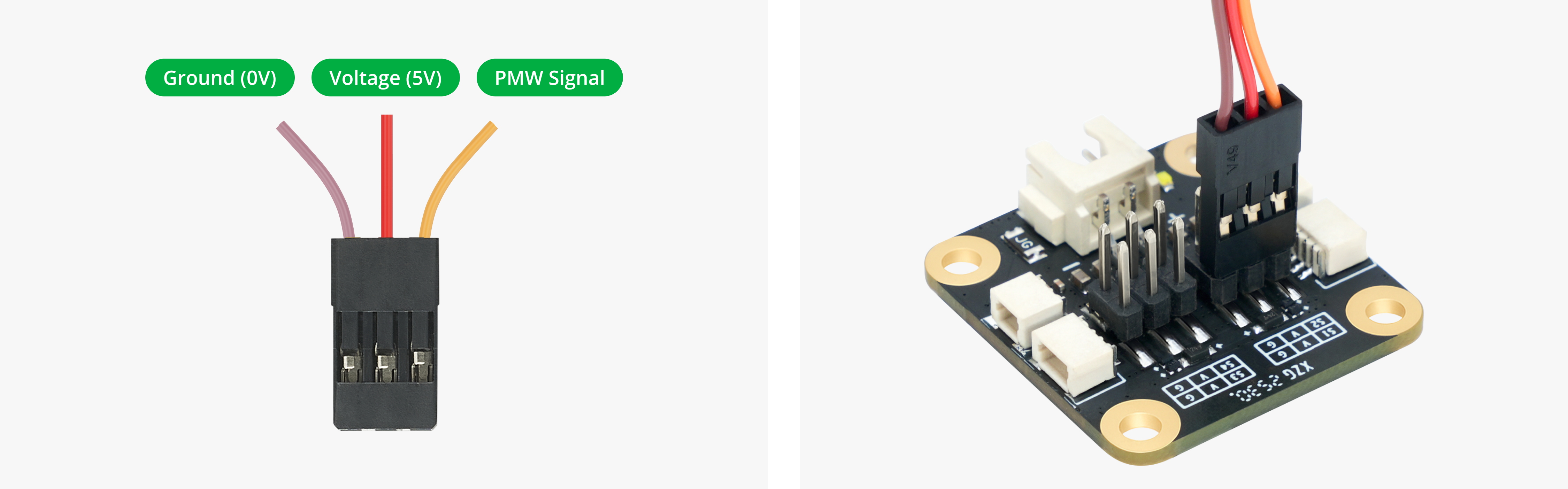

Servo Ports Pin Definition

Please strictly follow the wire sequence below to avoid damaging the components.



Product Specifications

Product ID	Material	Force	No-load Speed	Rated Voltage	Maximum Current
PG003	Stainless Steel, Lead-free Copper (Nickel-plated)	2.5 KG	6.25 mm/s	DC 5V	0.36A
LA010	Stainless Steel, Lead-free Copper (Nickel-plated)	2.5 KG	2.5 mm/s	DC 5V	0.25A
LA011	Stainless Steel, Lead-free Copper (Nickel-plated)	2.5 KG	2.5 mm/s	DC 5V	0.25A

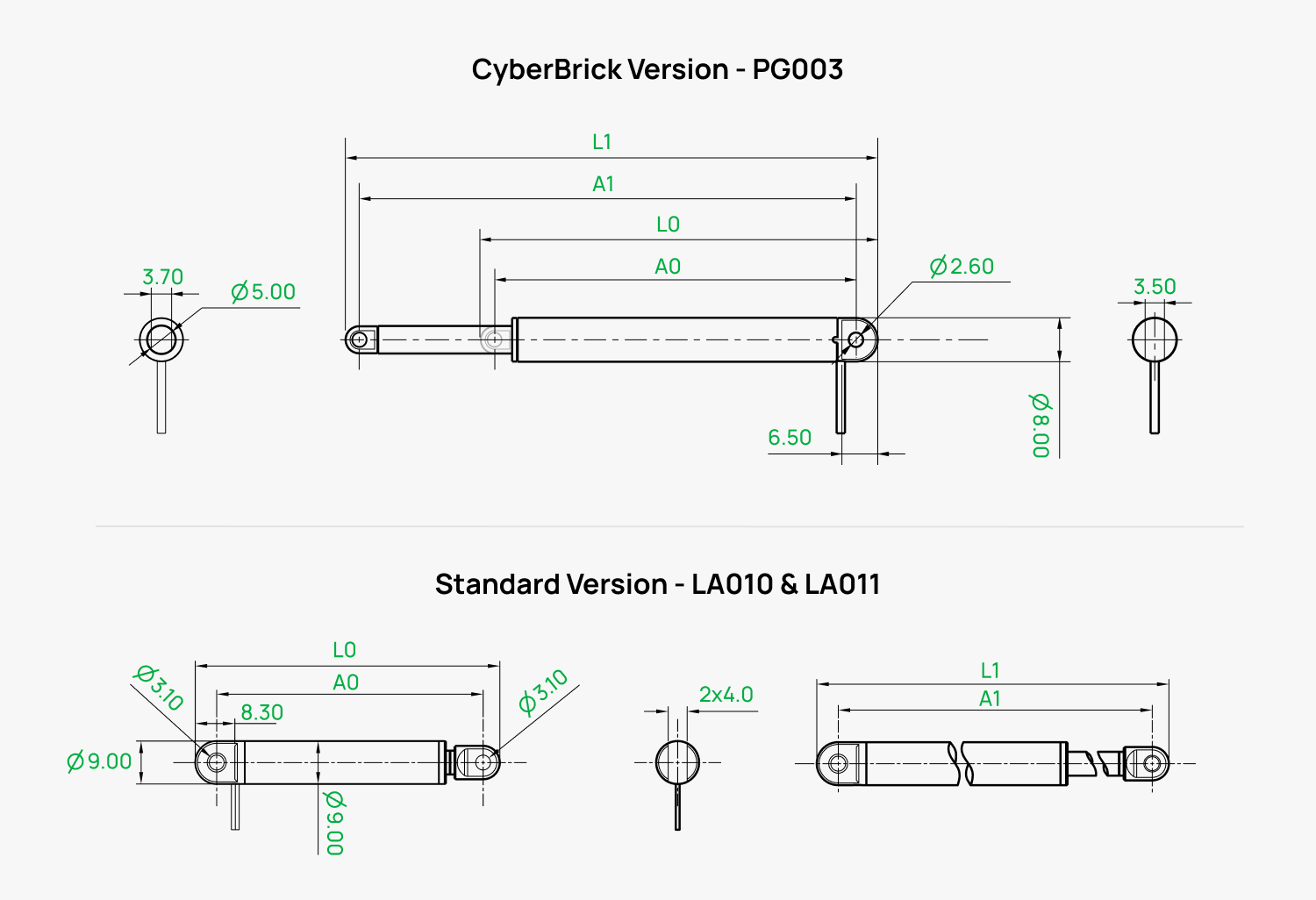

Product ID	Le (mm) Stroke Length	L0 (mm) Retracted Length	L1 (mm) Extended Length	A0 (mm)	A1 (mm)
PG003	25	71.63	96.63	65.18	90.18
LA010	25	79	104	71	96
LA011	60	114	174	106	166

Documentation

Specification

Essential Electrical and Physical Parameters.

Download

Soild Model

3D Files with Structure and Dimensions.

Download
