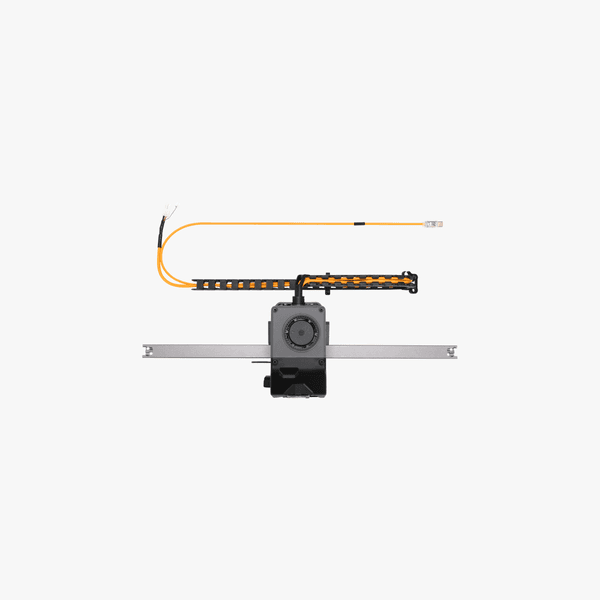

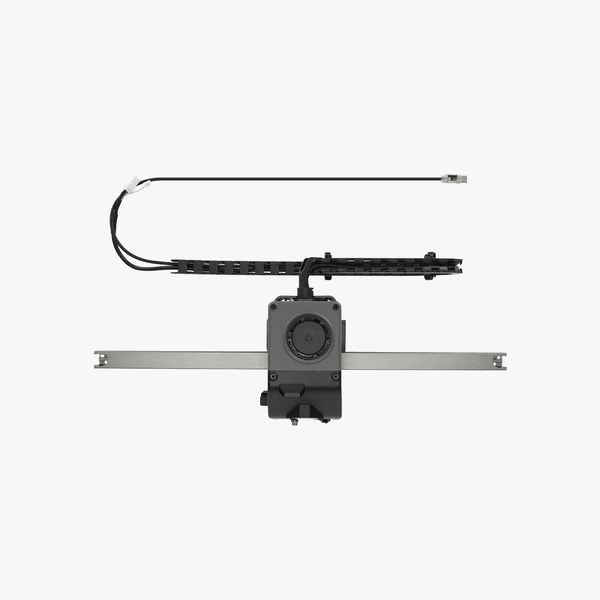

H2 Series Tool Head with X-Axis Assembly

Overview

The X-axis in a 3D printer is responsible for moving left and right, allowing the tool head to be precisely positioned along the horizontal direction. The Tool Head Assembly is responsible for performing specific processing tasks.

Installation

Learn more about the H2D and H2C Tool Head with X-Axis Assembly on Bambu Lab Wiki.

Learn more about the H2S Tool Head with X-Axis Assembly on Bambu Lab Wiki.

In the Box

For H2D

- H2D Tool Head with X-Axis Assembly*1
- M3-6 Screw*4
- BT3-8 Screw*6
- M3-8 Screw*4
- Hex Screwdriver*1
- H2.0 Hex Wrench*1

For H2S

- H2S Tool Head with X-Axis Assembly*1
- Hex Screwdriver*1
- M3-6 Screw*4
- BT3-8 Screw*4
- Lubricant Oil*1

For H2C

- Toolhead with X-Axis Assembly *1
- H2.0 Hex Wrench*1（short）*1
- H2.0 Hex Wrench*1（long）*1
- H1.5 Hex Wrench*1（short）*1
- M3x6 Screw *4
- BT3x5 Screw *1
- BT3x8 Screw *4
- M3x8 Screw *6
- Lubricant Oil *1

Compatibility

H2 Series
