This Handheld Vacuum Cleaner Kit offers versatile expandability, adapting to diverse scenarios through interchangeable components. Whether within the print chamber, on the optical shaft lead screw, or in desktop crevices, maintaining tidiness proves effortless and convenient. Users may freely design custom enclosures according to unique preferences and requirements, or obtain a wide variety of printed casings from MakerWorld to achieve personalised appearance customisation.
| Model Links | Creators | Need Other Accessories |

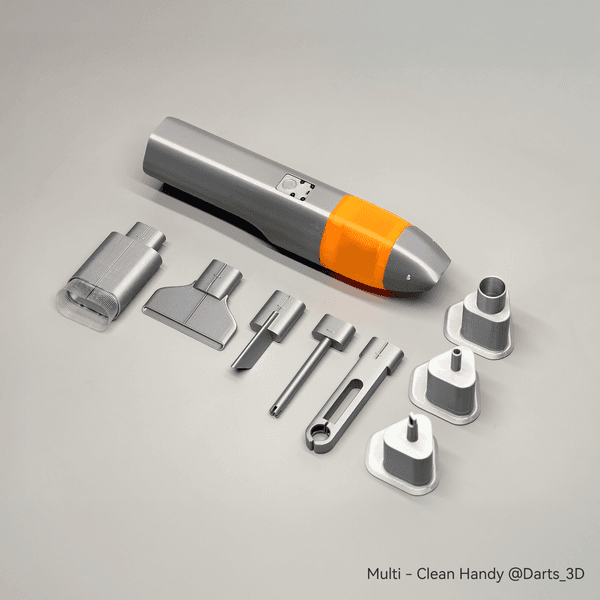

| Multi - Clean Handy | Darts_3D | NO |

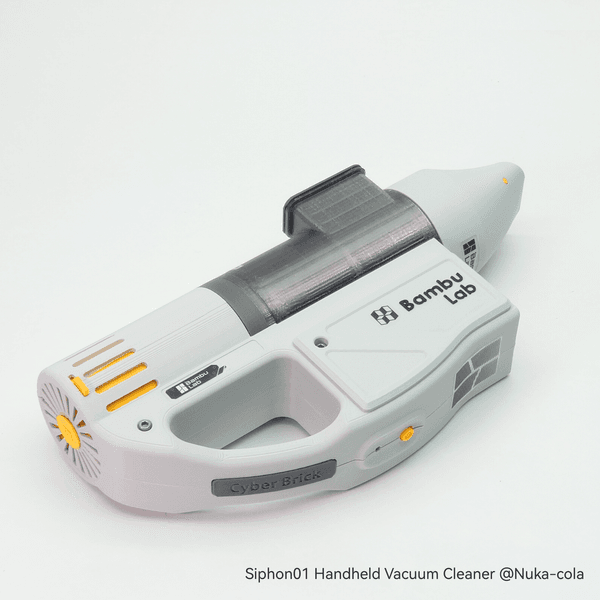

| Siphon01 Handheld Vacuum Cleaner | Nuka-Cola | YES |

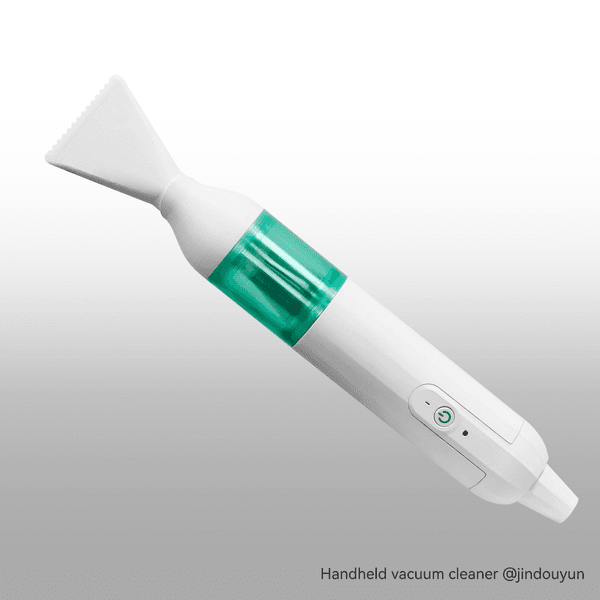

| Handheld vacuum cleaner | jindouyun | NO |

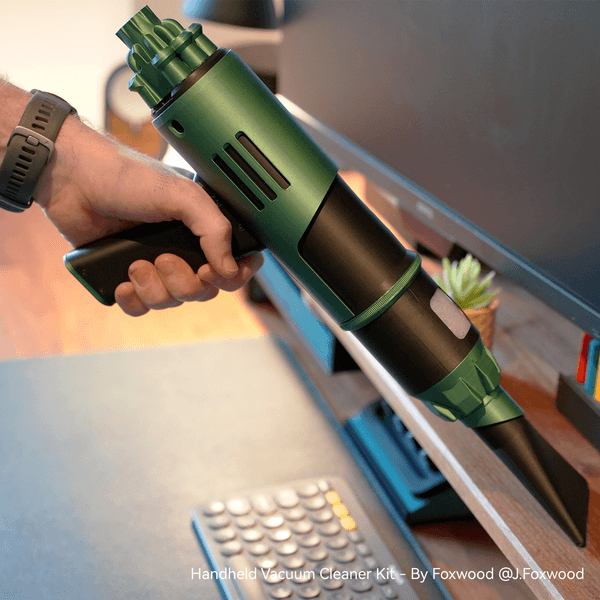

| Handheld Vacuum Cleaner Kit - By Foxwood | J.Foxwood | NO |
| Ultra-strong Suction Car Desktop Handheld Vacuum Cleaner | 326605913 | NO |

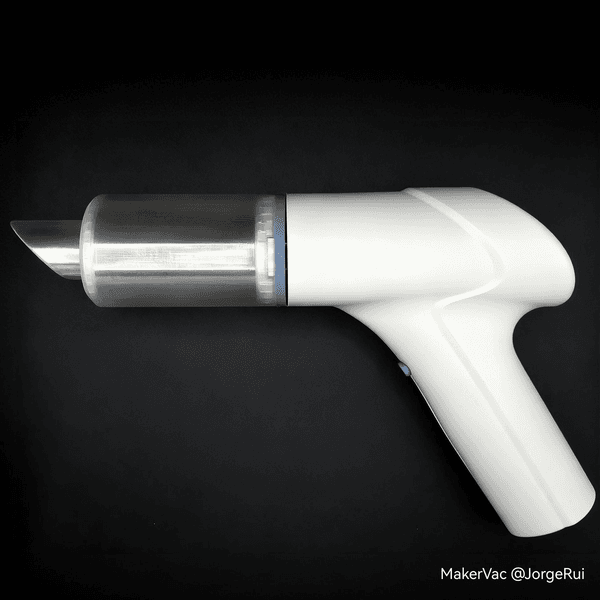

| MakerVac | JorgeRui | YES |

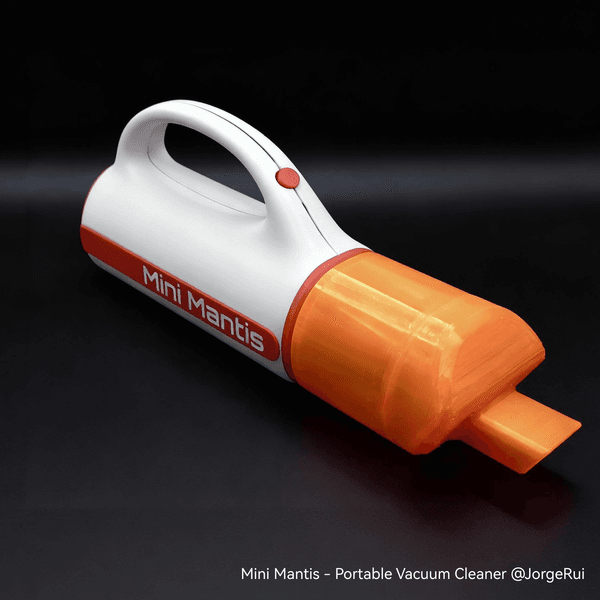

| Mini Mantis - Portable Vacuum Cleaner | JorgeRui | YES |

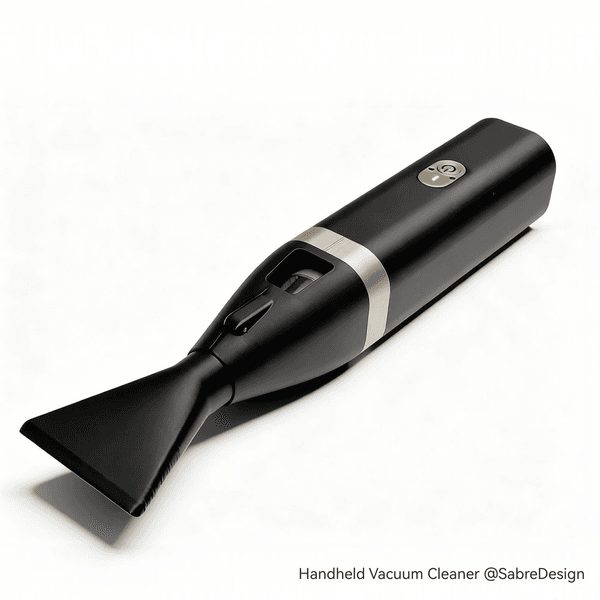

| Handheld Vacuum Cleaner | SabreDesign | NO |
Note: This model may require additional Maker's Supply parts for full assembly. Please check the model link for the complete BOM list.
| Supported Functions | Vacuuming / Blowing 2 in 1 Design |
| Suction Power Options | 7K / 13K / 16K Pa |
| Charging Voltage | 5V – 9V |
| Charging Port | Type-C Port (Supports QC Protocol) |
| Max Output Power | Level 1 (Low Power): 30.3 W Level 3 (High Power): 110 W |
| Button Functions | Long Press to Power Toggle Short Press to Shift Gears |
| Battery Capacity | 2000 mAh |
| Rated Input Power | 15W |
| Full Charge Time | ~1.5 hours |
| Theoretical Runtime | Level 1 (Low Power): ~43 mins Level 3 (High Power): ~12 mins |

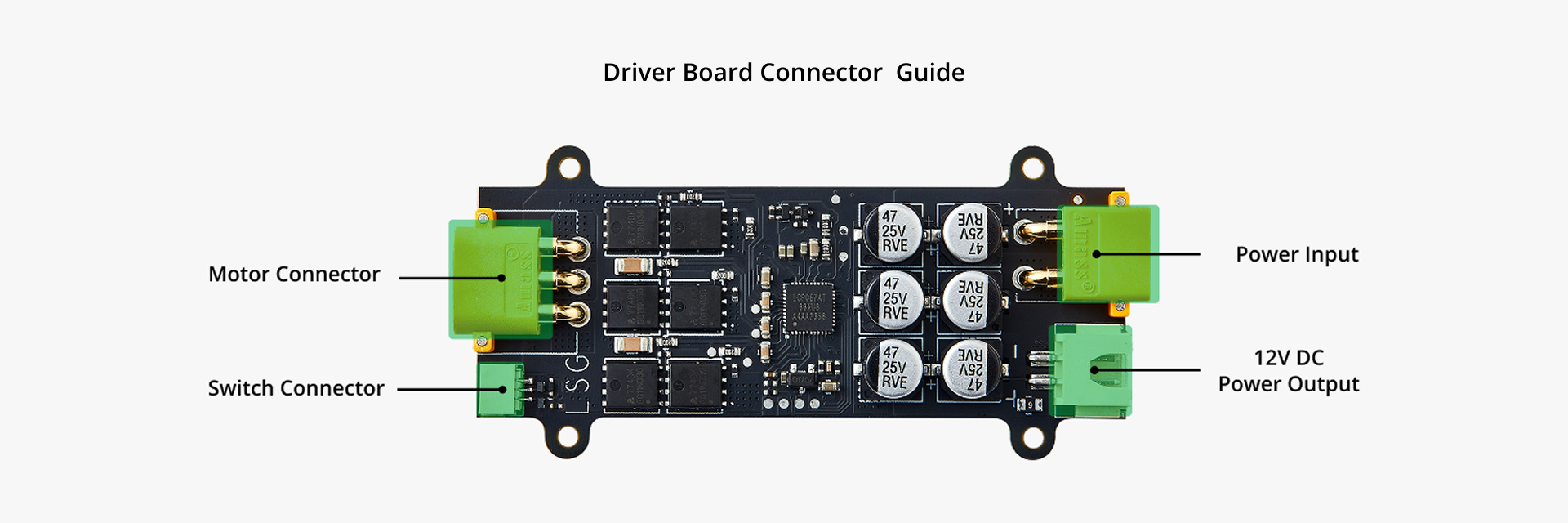

| Driver Board Event | Trigger | Light Signal |
| Charging | Plug in power | Constant on |
| Full | Plug in power | Turn off |
| Charging Abnormal | Plug in power | Fast flashing |
| Switch Board Event | Trigger | Light Signal |
| Power On/Off | Long press button | Constant on/Turn off |
| Gesture | Short press button during work | Single flash/Double flash/ Triple flash then constant on |
| Abnormal | Abnormal during work | Continuous flashing |
| Low Battery Reminder | Low battery during work | Slow flashing |

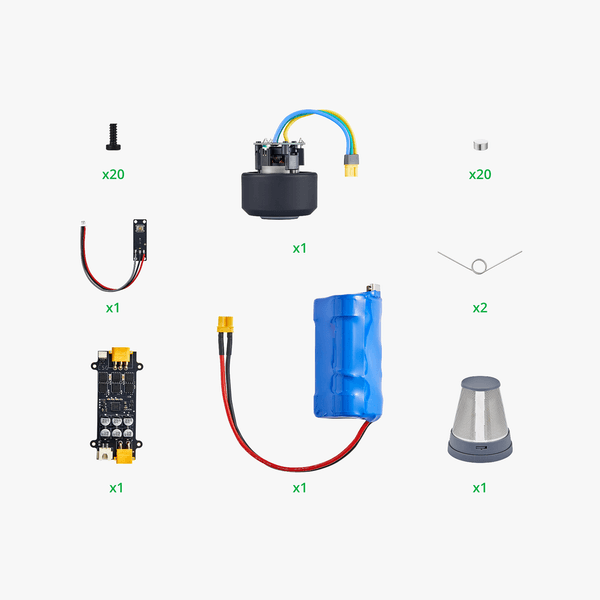

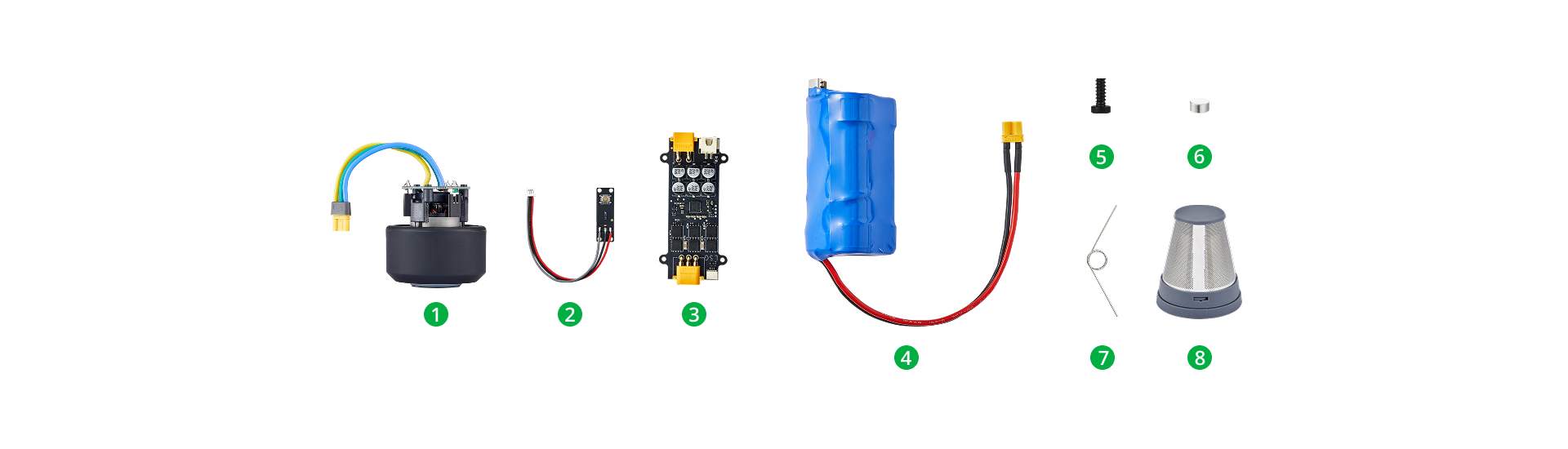

| Item Number | Item Name | Quantity |
| 1 | Handheld Vacuum Cleaner - Motor | 1 pcs |
| 2 | Handheld Vacuum Cleaner - Switch | 1 pcs |
| 3 | Handheld Vacuum Cleaner - Driver Board | 1 pcs |
| 4 | Handheld Vacuum Cleaner - Battery | 1 pcs |
| 5 | BT2x5 SHCS Self Tapping Screw - AA191 | 20 pcs |
| 6 | D4x2mm Round Magnet - CA001 | 20 pcs |
| 7 | 0.3x4x4 mm 120 Degree Torsion Spring | 2 pcs |
| 8 | Handheld Vacuum Cleaner - Fliter | 1 pcs |
The gear memory function enhances user convenience. Specifically:
On first power-on after battery connection, the device defaults to the highest gear (Gear 3).
If powered on again without disconnecting the battery, it resumes the gear setting used before shutdown.
If the battery is disconnected and reconnected, the next power-on will again default to Gear 3.
1.When the voltage drops below the level required for normal motor operation:
The white LED blinks slowly for 30 seconds, then the device shuts down automatically.
During these 30 seconds: Long press--powers off immediately; Short press--switches gear (if applicable).
2.After a low-battery shutdown, upon attempting to power on again:
If voltage meets the startup threshold, the motor starts—but if low voltage persists, the alert repeats.
If voltage is still too low, the motor won’t start, and neither the light nor buttons respond.
If a motor fault is detected (e.g., persistent air duct blockage or phase loss):
The motor stops immediately, and the white LED flashes rapidly for 30 seconds before turning off.
During this period: Long press--turns off the LED immediately; Short press--no response.
If the fault persists after reboot, the motor will not start, and the same alert sequence repeats.
When using the vacuum on tightly sealed surfaces like leather, car seats, or upholstery, the intake may become partially blocked, reducing airflow.
Since the motor relies on this airflow for cooling, please occasionally lift the vacuum during use to ensure adequate ventilation and prevent overheating.
Although this product is suitable for in-car use, its built-in lithium battery is sensitive to high temperatures. For safety reasons, we recommend not leaving it unattended in enclosed, hot environments—such as a vehicle parked in direct sunlight—to minimize the risk of battery overheating, swelling, or other hazards.
