Fine‑Tune Print Tolerances with Precision
Even with well‑calibrated printers, hole dimensions in FDM prints can vary slightly depending on material shrinkage, cooling, and layer orientation. This manual precision drill helps you carefully enlarge holes and refine tolerances without damaging delicate structures.
Manual Drilling for Better Control on Printed Parts
Small printed features or thin walls can crack easily when using powered drills. The manual drilling design provides direct tactile feedback, allowing you to gradually remove material and maintain precise control.
Smooth Rotation with Stable Force Control

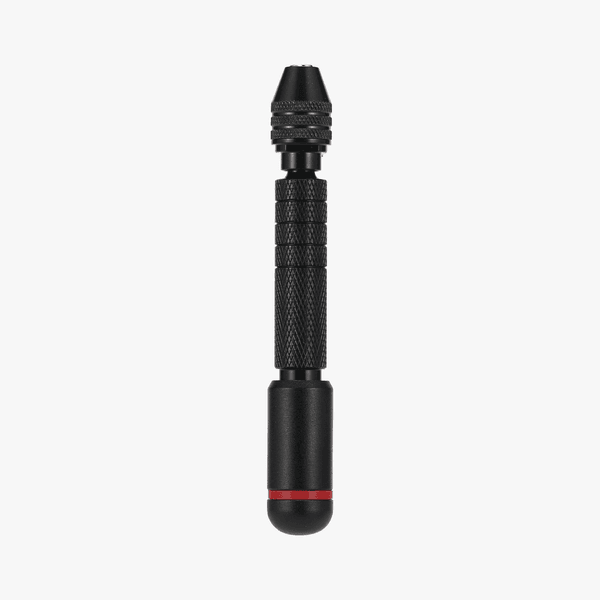

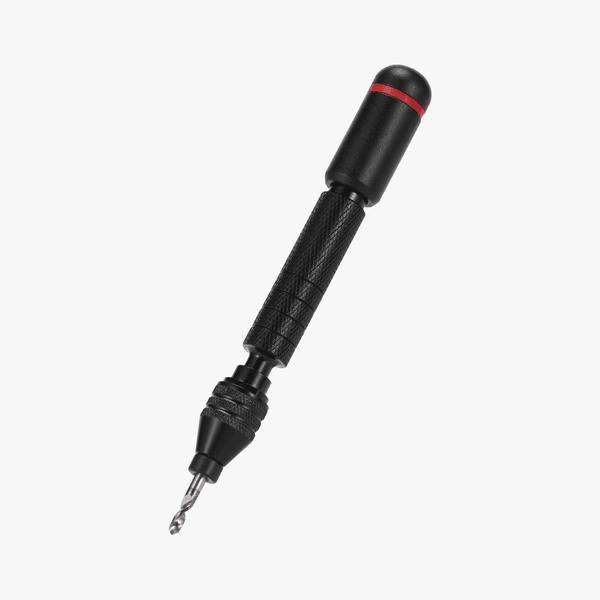

The anodized aluminum handle features a comfortable weighted grip, while the rear cap integrates a precision bearing. This allows the drill to rotate smoothly against your palm, improving stability and alignment when working with tiny holes.

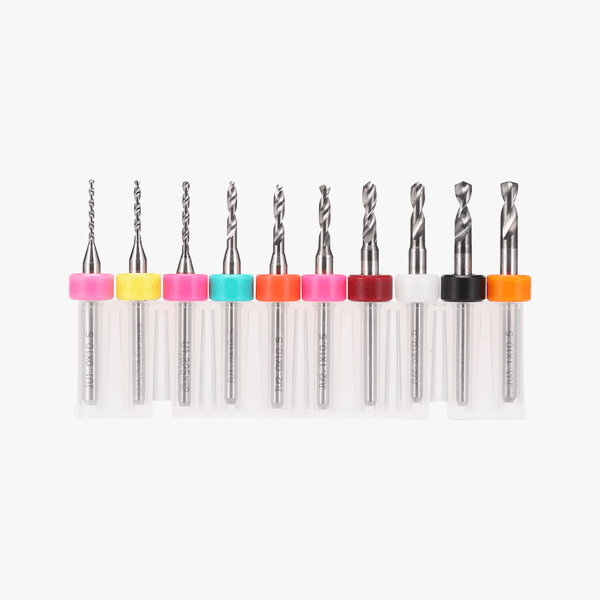

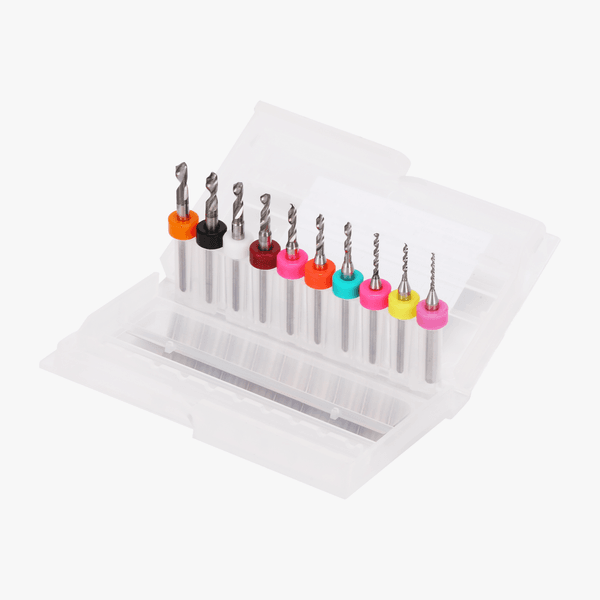

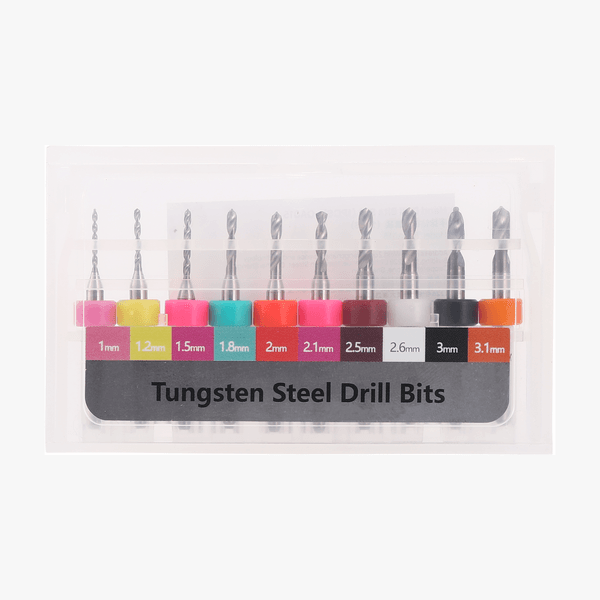

Tungsten Steel Bits with Quick Identification
Made from high‑hardness tungsten steel, the bits maintain sharp edges for clean cuts in PLA, PETG, and ABS. Intuitive color‑coded rings and laser‑engraved markings make it easy to quickly find the exact size you need.
Optimized Size Range for 3D Printing Tasks
The hand drill handle is compatible with bits from 0.3 to 3.2 mm, and the included drill bit set covers commonly used sizes for 3D printing post-processing. It is ideal for clearing partially closed pilot holes, refining screw fits, and handling other precise manual drilling tasks.

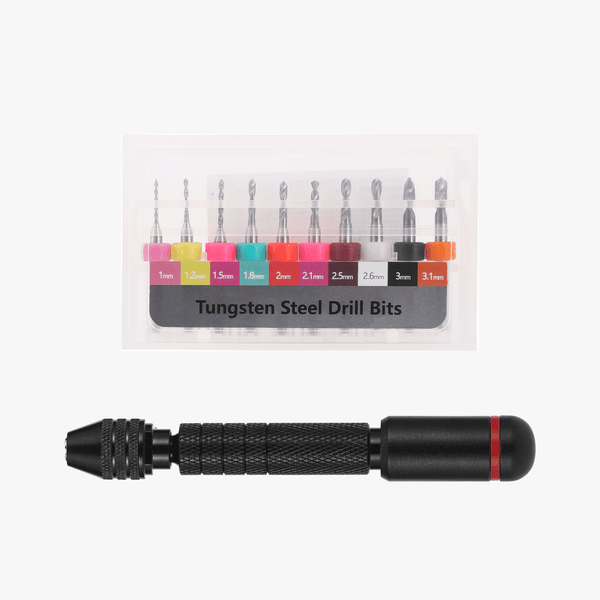

In The Box
| Item Name | Maker's Supply Hand Drill Kit | Hand Drill Handle | Tungsten Steel Drill Bits |
| Hand Drill Handle | √ | √ | / |
| Tungsten Steel Drill Bits | √ | / | √ |
Product Specification
| Category | Hand Drill Handle | Hand Drill Bits Set | Complete Hand Drill Kit |
| Main Materials | Anodized Aluminum Alloy | Tungsten Steel | Aluminum Handle + Tungsten-Steel Bit Set |
| Bit Compatibility | 0.3–3.2 mm | Bit diameters: 1 / 1.2 / 1.5 / 1.8 / 2 / 2.1 / 2.5 / 2.6 / 3 / 3.1 mm | Same as individual components |
| Effective Bit Length | — | 8–12 mm | — |
| Clamping Method | Manual thread-tightened chuck | Manual thread-tightened chuck | Same as individual components |
| Special Design | Rear bearing for smoother rotation | Color-coded rings + laser size marking | Combination of both features |
| Recommended Use | Manual drilling, enlarging holes | Precision hole adjustment on plastics, silicone, PCB | All-in-one solution for model drilling |
| Included Items | 1 × Handle | 10 × Drill Bits | 1 Handle + 10 Drill Bits |
Consideration
To ensure safe and optimal performance:
When Using Small Bits (0.3 mm / 0.5 mm)
-
Use light pressure; excessive force may cause breakage
-
Avoid drilling high-hardness materials with micro bits
General Safety & Usage
-
Always tighten the chuck manually before use to secure the bit
-
Use safety goggles to protect against flying debris
-
For uneven surfaces, use a guide sleeve to prevent bit deflection
-
If a bit is dropped, inspect for cracks—replace if damaged
-
For high-accuracy drilling, pair with a dedicated model drilling stand
WARNING: Sharp blade/edge.
- This product contains a knife blade, sharp edge, pointed tip, or other sharp component. Improper use or handling may cause cuts, puncture wounds, or other personal injury.
- Use only for its intended purpose and in accordance with applicable instructions.
- Handle with care, keep hands and body parts away from the cutting path, and do not use the product in any unlawful, unsafe, reckless, or unintended manner.
- Do not use if damaged, loose, or otherwise unsafe.
- Keep out of reach of children and pets.
- Clean carefully after use and store securely, preferably with any blade guard, sheath, cover, lock, or protective packaging provided.
Maker's Supply Hand Drill Kit
