Upgraded for More Advanced Pulse Control
Improved Surface Quality for Precise Details
Large-format Parts
Self-supporting Complex Structures
Less Support Waste, Faster Post-processing
25%~54% Less Time Needed for Sanding or Polishing
The total area of support contact points has been reduced by 25% to 54%*, resulting in a decrease in the time needed for sanding or polishing.
20% - 60% Fewer Supports
A lower peeling force reduces the demand for supports. As a result, support material usage is cut by 20%-60%* while ensuring successful prints, improving resin utilization.
*Data sourced from HeyGears Lab, the results may vary with different resins. For low-viscosity materials, it is recommended to adjust the support critical angle to ensure printing quality.
Reduced Peeling Force, Enhanced Print Results
How it Works
During the printing process, the PRM 2 creates a cycle of positive and negative pressure within the release film with periodic inflation and deflation.
This creates a larger peeling angle, reducing the force needed to separate the printedpart from the release film.
Reduce Peeling Force by Approximately 50%*
The Reflex 2 series, combined with the Pulsing Release Module 2, achieves a dramatic reduction in peeling force—by about 50%*.
This not only minimizes the need for support optimization but also breaks through the limits of manual tuning, ensuring a comprehensive improvement in final print quality.
*Data sourced from HeyGears Lab, based on the large-format model with PAS10 resin
Successful Prints With a Support Critical Angle as low as 15°
The reduction in peeling force allows for a lower critical support angle, which minimizes the number of supports and the area of support contact points, thereby streamlining the post-processing workflow.
Push the Boundaries of Your Support Settings
The reduction in peeling force allows for more extreme support parameters: the diameter of the support contact point can be reduced by up to 30%*, achieving up to a 70%* reduction in the area of the support contact point.
Specifications
- Input Voltage: 24V DC
- Rated Power: 25 W
- Dimensions: 310*148*235 mm 310*148*235 mm (12.52*35.83*39.25 in)
- Weight: 3 kg

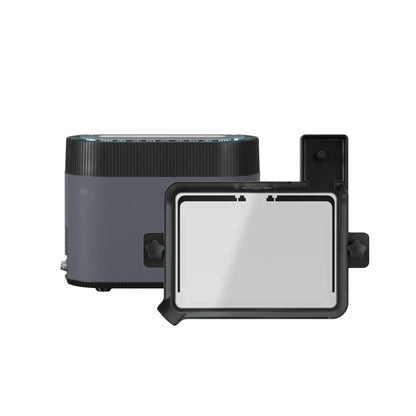

Pulsing Release Module 2 Kit
