Reflex RS Turbo & RS Pulsing Release Module Kit
Reflex RS Turbo & RS Pulsing Release Module Kit
Roll over image to zoom in Click on image to zoom
Reflex RS Turbo & RS Pulsing Release Module KitReflex RS Turbo & RS Pulsing Release Module Kit

Reflex RS Turbo & RS Pulsing Release Module Kit

HeyGears

Product Features

The Pulsing Release Module (PRM) boosts your production efficiency by reducing the peeling force by approximately 50% for each layer through a cycle of positive and negative pressure within the release film created by periodic inflation and deflation.

Product Highlights

By reducing the peeling force, it delivers the following benefits:
20% - 60% fewer supports*
Reduce support contact points by 25% - 54%*
Unlock more complex models (*Data based on PAS10 resin)
Resin & Model Compatibility:

PARP10, PAS10, PAP10, PAWR10, PAF10, PAU11
Resins not compatible with PRM: PAWW10 & PAWW20
The Pulsing Release Module is not recommended for models with 3 mm thin walls or thinner. Printing performance may vary depending on materials and model design; please refer to actual results.

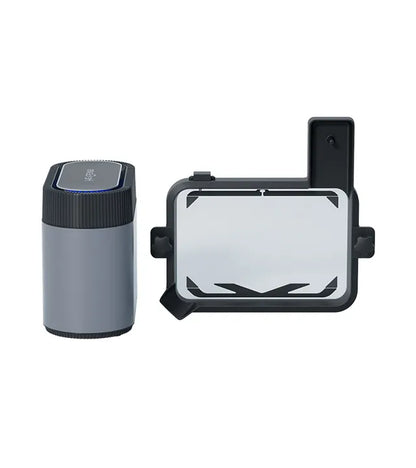

Product Includes:

Pulsing Release Module x1
Reflex RS Turbo & RS Heated & Pulsing Release Resin Tank x1

Price:
$689.00

Why Do You Need？

Reduce Peeling Force by Approximately 50%*

Optimal Support Angles

The peeling force drop boosts the molding of models, requiring smaller support critical angles to ensure print success. The number of supports and support points therefore significantly reduces, making post-processing polishing more efficient than before.

3D Printing Support Reduction - 56% Less Material, 17.20g vs 7.43g, with Pulsing Release Technology

20% - 60% Fewer Supports

Fewer supports are needed to improve resin utilization and to take control of production costs.

*Data sourced from HeyGears Lab, based on the large-format model with PAS10 resin.

HeyGears Pulsing Release Module reduces supports by up to 60%, saving resin and lowering production costs

Reduce Support Contact Points by 25% - 54%

Reduce the total area of support contact points by 25% to 54%Minimize the time and effort needed for the sanding or polishing process.

Improved Complex Model Printability

Utilizing the Pulsing Release Module allows the Reflex RS to tackle more intricate model structures with ease.

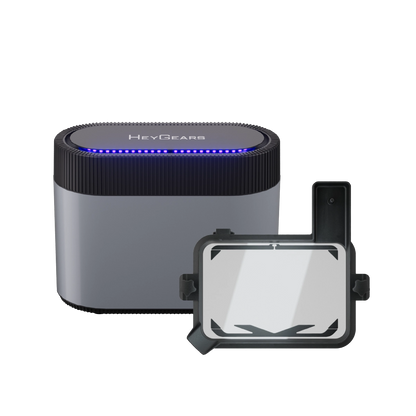

HeyGears Reflex RS Turbo and RS Pulsing Release Module Kit

Specifications

  • Input Voltage：24V DC
  • Rated Power： 25 W
  • Dimensions：310*148*235 mm / 12.52*5.83*9.25 in
  • Weight: 3 kg
Reflex RS Turbo & RS Pulsing Release Module Kit

Reflex RS Turbo & RS Pulsing Release Module Kit

$689.00
