User’s Manual
Product function and configuration guidelines.
Introduction
You can combine this product with a Multi-Function Core Board to form a Cyberbrick receiver module. By pairing the Remote Control Transmitter Shield with another Multi-Function Core Board, you can create a Cyberbrick transmitter module. Connect joysticks and buttons to the transmitter module, and connect motors or servos to the receiver module, and you will have the minimal Cyberbrick remote control car project unit.
Can be combined with the Official R/C Combo Kits
Remote Control Toys

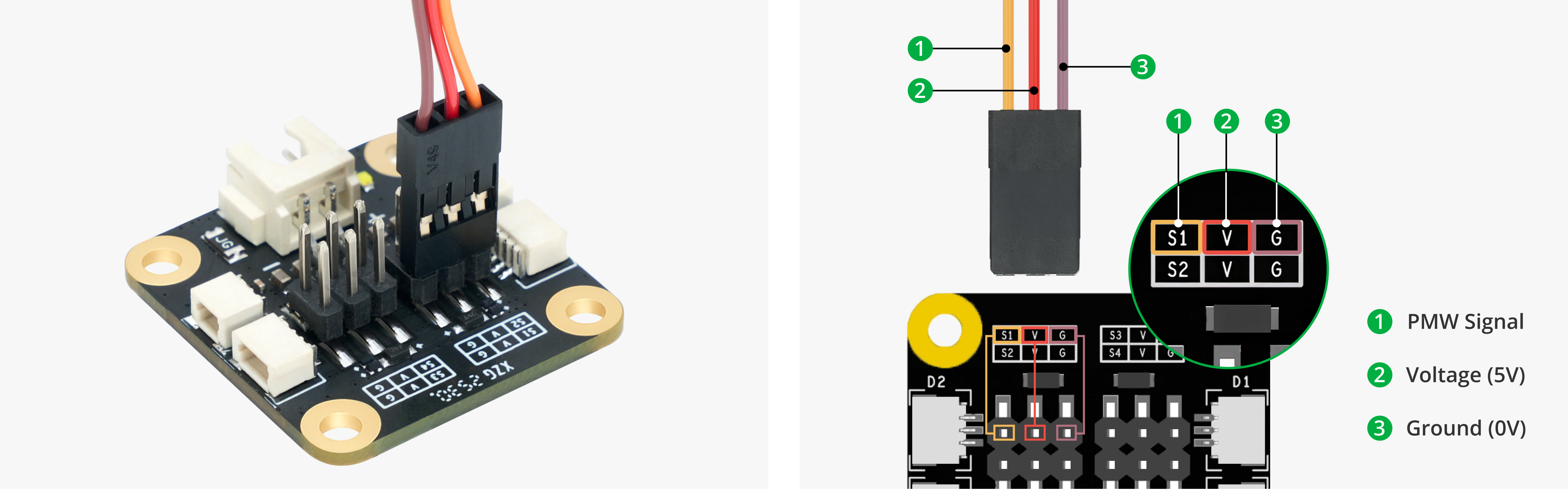

Servo Ports Pin Definition
Please strictly follow the wire sequence below to avoid damaging the components.

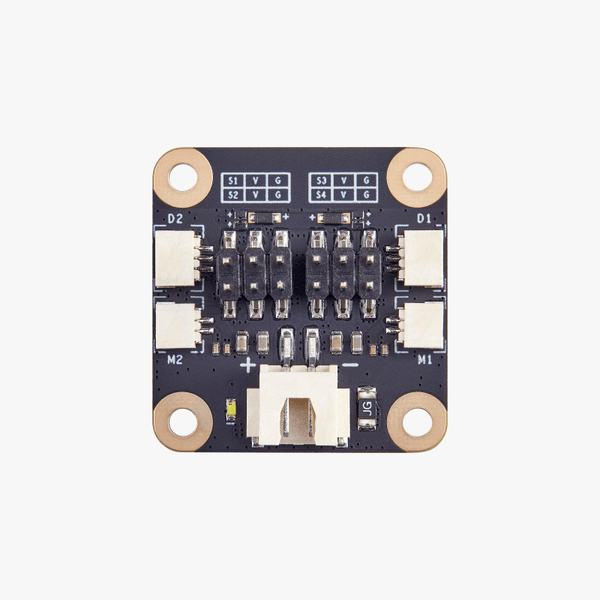

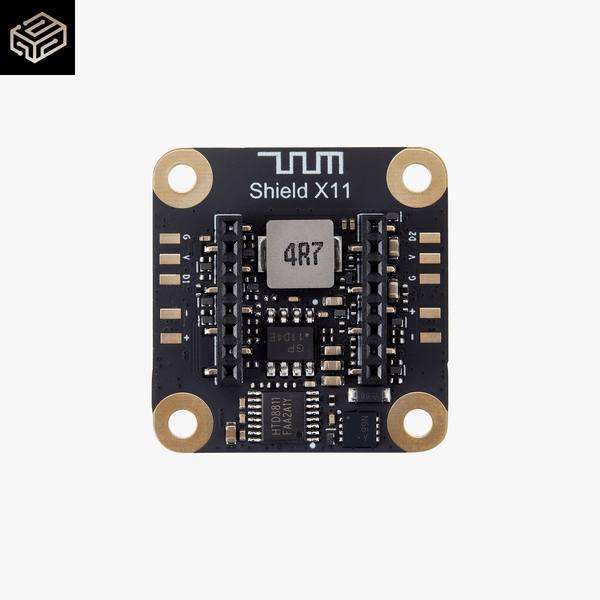

Product Specifications
| Item Number | Component | Description |
| 1 | WS2812 Port | Connectable with WS2812 LED hub or WS2812 LED strip |
| 2 | DC Motor Port | Connectable with DC motor |
| 3 | Servo Port | Connectable with universal 5V servo motors |
| 4 | Power Input | XH2.54 2Pin DC power input |
| 5 | Power Indicator | White light means power on |
| 6 | Core Slot | Connectable with multi-function controller core |
| 7 | Orientation Mark | Ensure proper installation alignmen |
|
Product ID
|
Model
|
Input Voltage | Current | Output Channel | Weight | Size |
|
XA004
|
Shield X11 | DC 7.4V – 12.6V | Standby current 60mA Working current 200~300mA Maximum current 3A |
4CH PWM 2CH MOTOR 2CH LED |

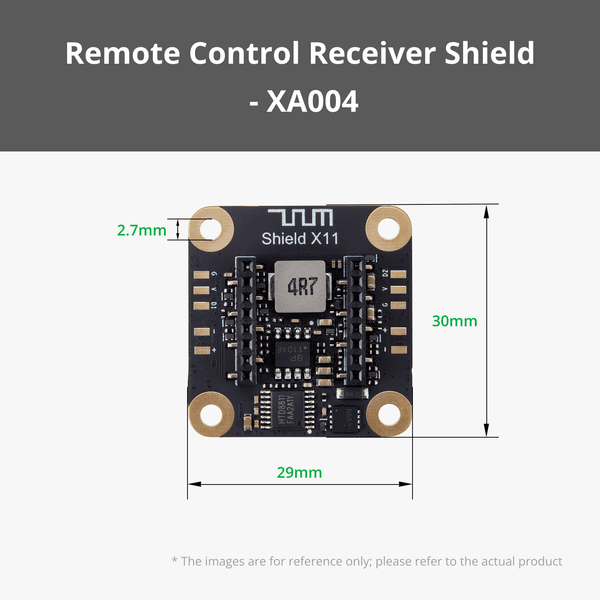

6g | 30*29mm |
Documentation
Remote Control Receiver Shield (1PCS)
