Documentation
*Specifications: Essential electrical and physical parameters required for proper operation.
Introduction

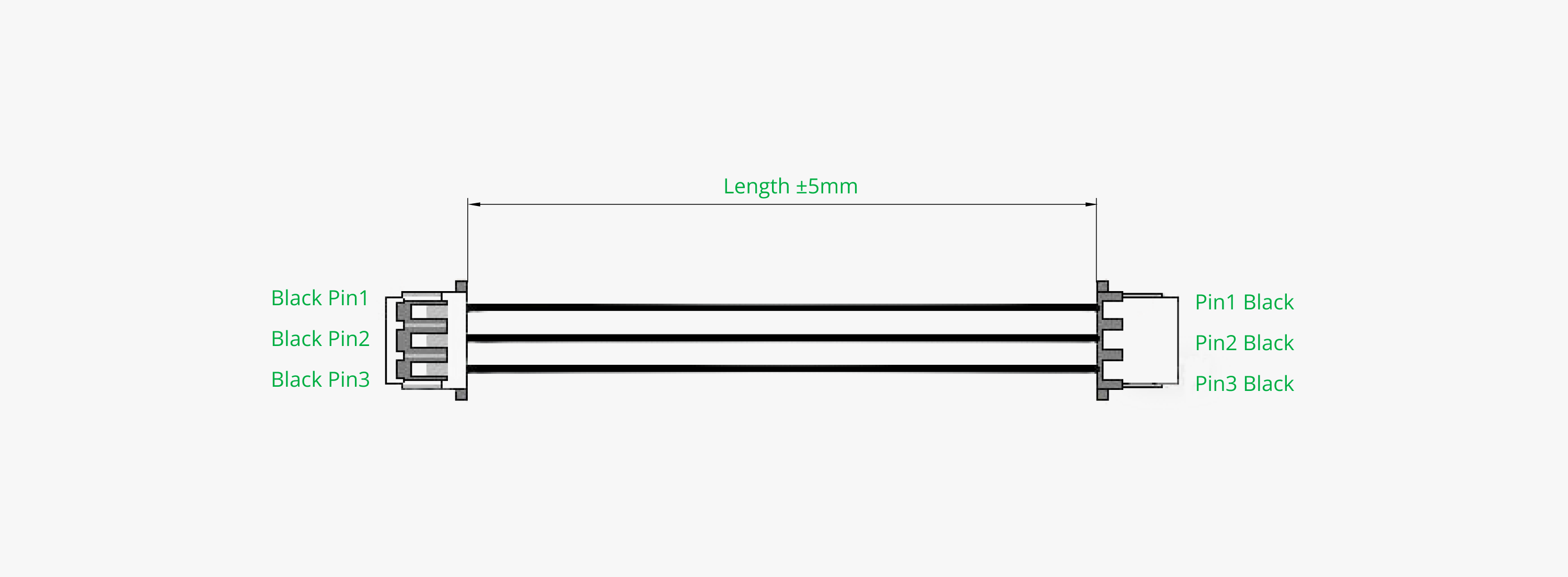

Peripheral connection cable - SH1.0-3PIN is commonly used for signal transmission between miniature modules and control boards that support the SH1.0 interface. It is compatible with 1.0mm pitch sockets, making it suitable for space-constrained electronic projects.
Product Specifications
|
Product ID
|
Connector Model
|
Length (mm) | Outer Diameter (mm) | Wire Gauge Size | Color |
|

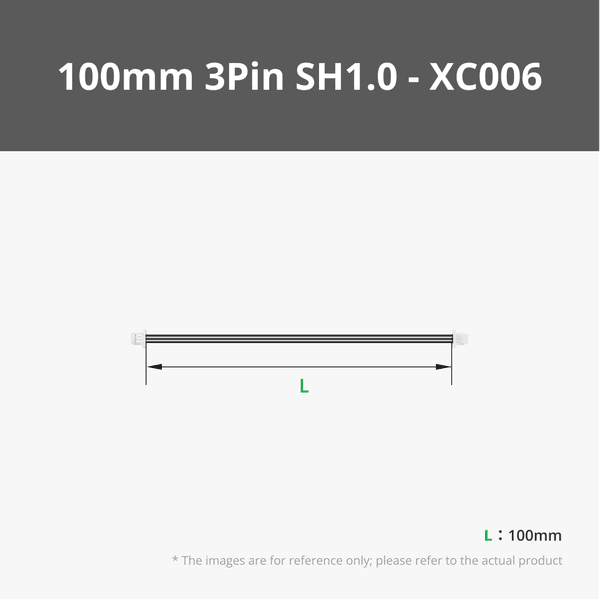

XC006
|
PH1.0-3Pin
|
100 | 1.0 | 30 AWG | Black |
|
XC015
|
PH1.0-3Pin
|
200 | 1.0 | 30 AWG | Black |
|

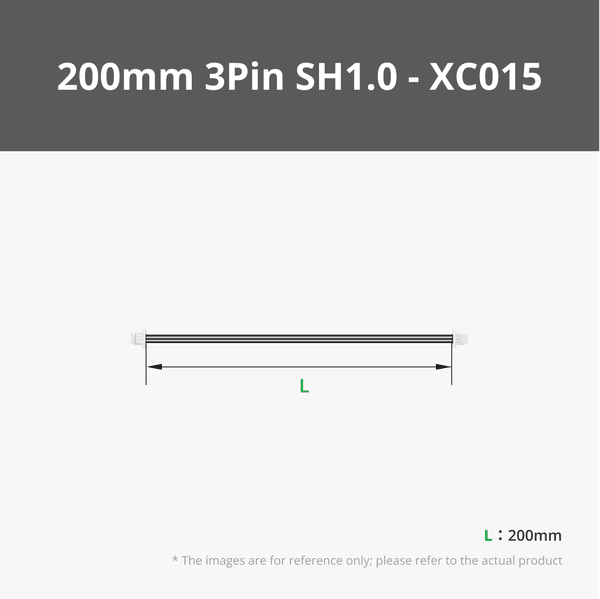

XC016
|
PH1.0-3Pin
|
300 | 1.0 | 30 AWG | Black |
Consideration
-
Please hold the connector when plugging and unplugging, and do not forcefully twist the connectors to avoid wires loosening or detaching.

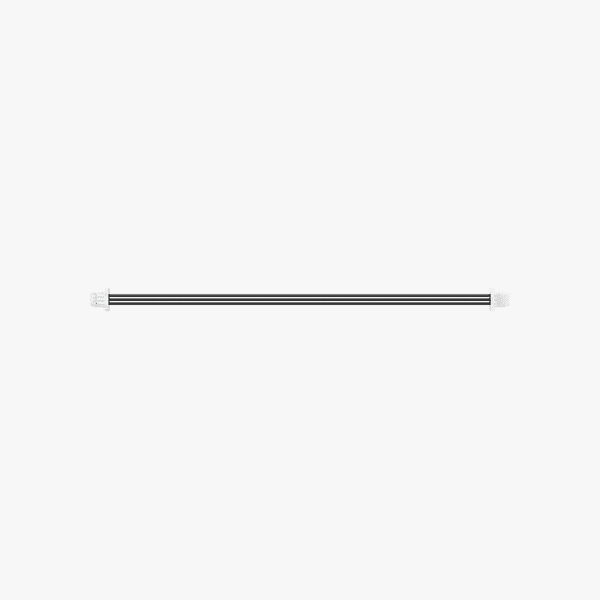

Wire with 3Pin SH1.0 Connectors (2PCS)
$1.59
100mm Wire with 3Pin SH1.0 Connectors (2PCS) - XC006 - $1.59
