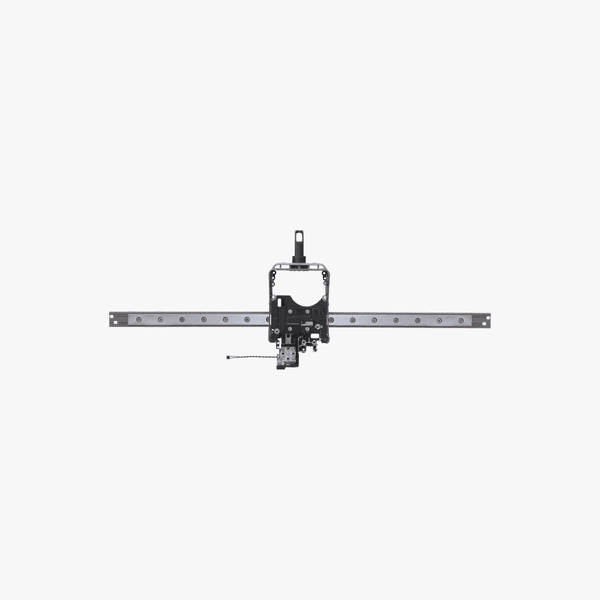

X-Axis Assembly - H2 Series

Overview

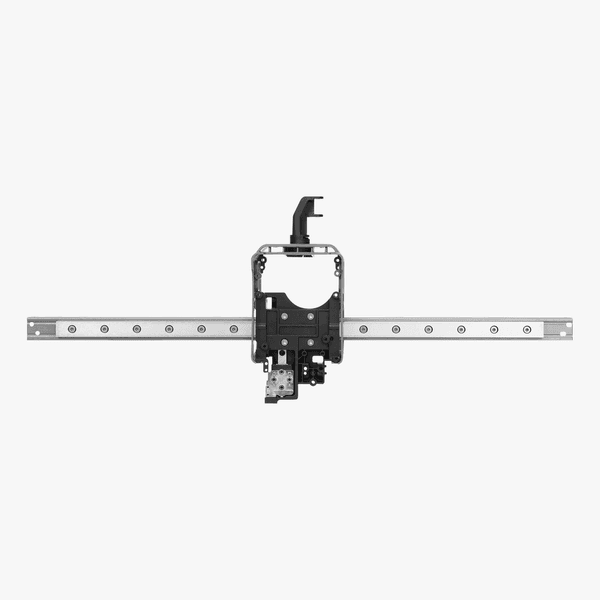

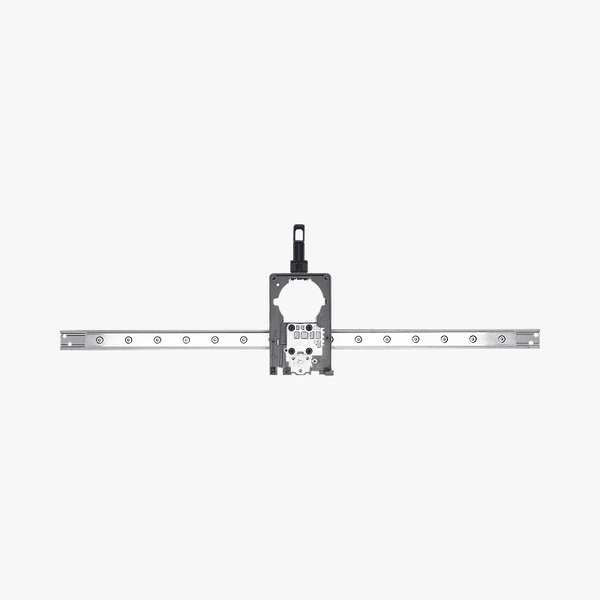

The X-Axis Assembly consists of the linear rail, lifting bracket, and the toolhead middle frame, and it controls the toolhead's movement along the X-axis.

Installation

Learn more about H2D/H2C X-Axis Assembly on Bambu Lab Wiki.

Learn more about H2S X-Axis Assembly on Bambu Lab Wiki.

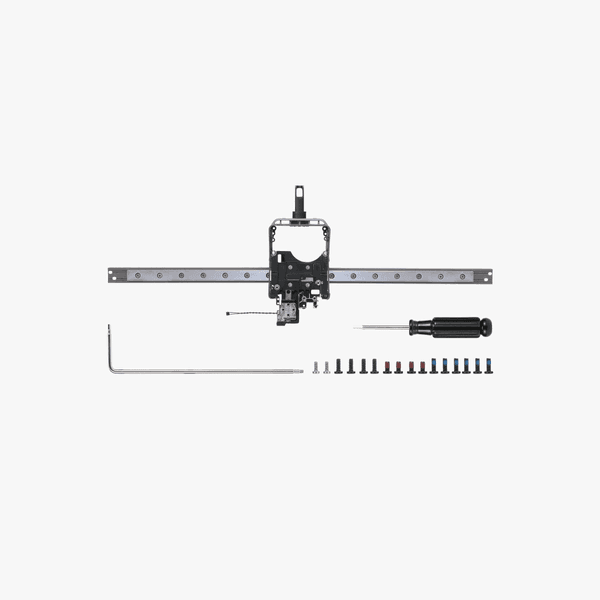

In the Box

For H2D

- X-Axis Assembly*1

- Hex Screwdriver *1

- H2.0 Hex Wrench*1

- M3-6 Screw*4

- BT2-5 Screw*2

- BT3-8 Screw*4

- M3-8 Screw*6

For H2S

- X-Axis Assembly*1
- Screw driver*1
- Screws Kit

For H2C

- X-Axis Assembly*1
- H2.0 Hex Wrench*1（short）*1
- H2.0 Hex Wrench*1（long）*1
- M3x6 Screw *4

- BT2x5 Screw *2
- BT3x8 Screw *4
- M3x8 Screw *6

Compatibility

H2 Series
