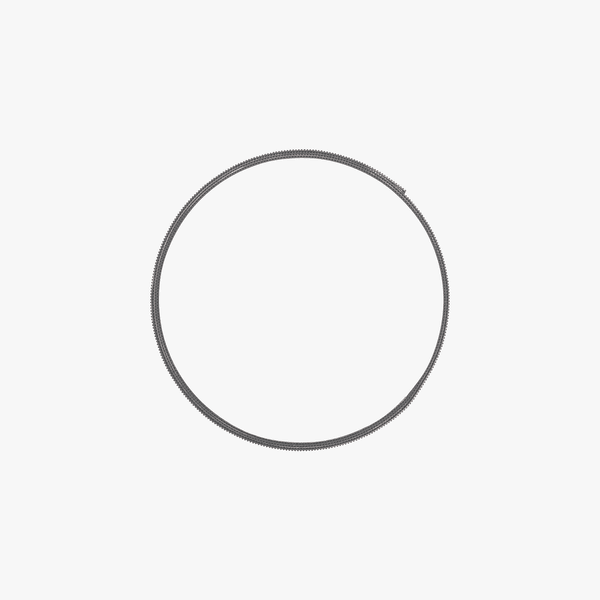

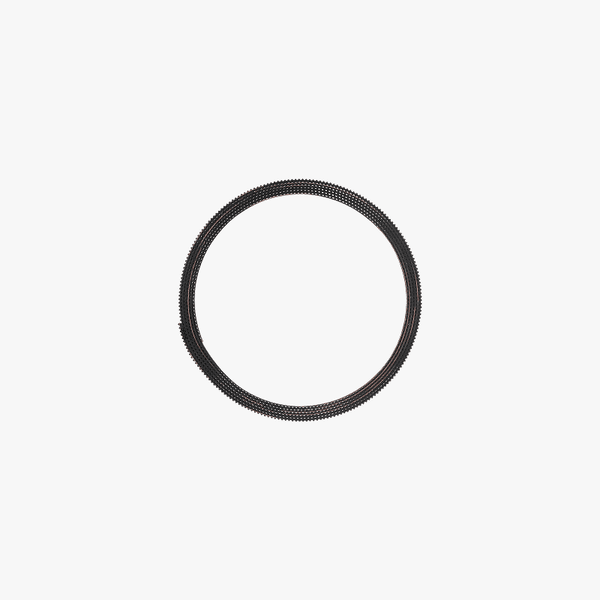

XY Belt - H2 Series

Overview

The XY Belt connects the XY Motor and the toolhead, driving the toolhead's movement in the X/Y directions.

Installation

Learn more about H2D/H2C XY Belt on Bambu Lab Wiki.

Learn more about H2S XY Belt on Bambu Lab Wiki.

In the Box

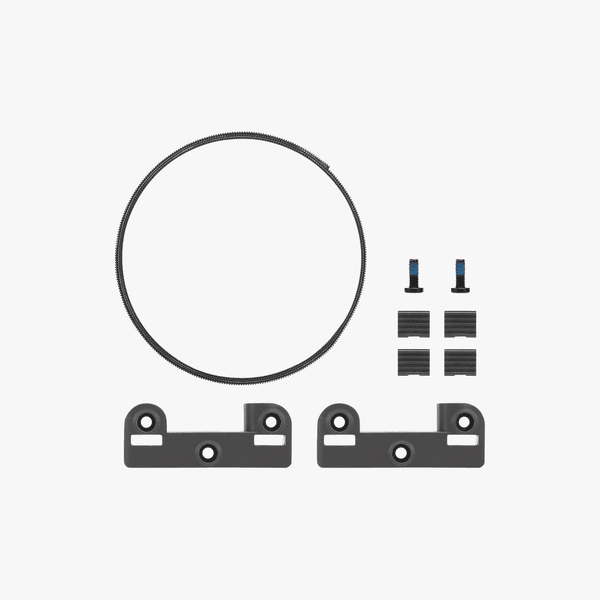

For H2D/H2C

- XY Belt*2
- Belt Fixing Block*4
- Belt Fixing Bracket*2
- M3-8 Screw*6

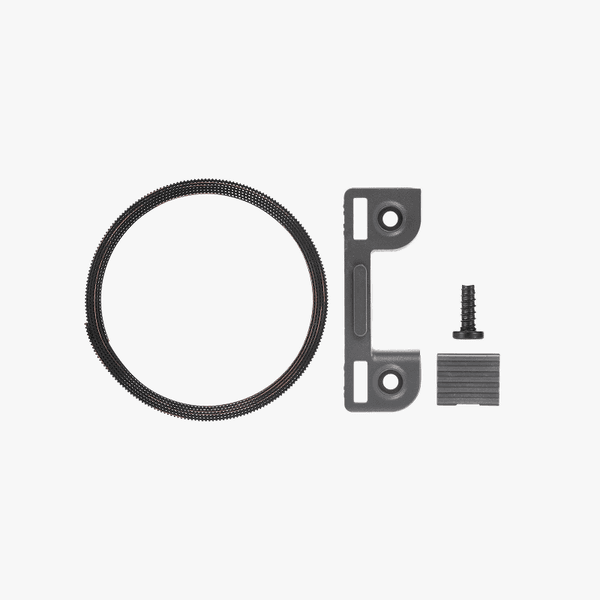

For H2S

- XY Belt*2
- Belt Fixing Block (Left)*1
- Belt Fixing Block (Right)*1
- Belt Tensioning Block*4
- BT3-8 Screw*4

Compatibility

H2 Series
